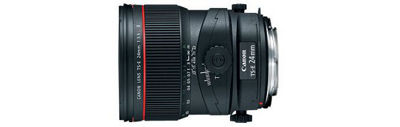

TS-E 24mm f/3.5L II
- Diagonal angle of view of 84° on a full-frame camera
- Ergonomically-designed and easily operated tilt and shift knobs
- Enhanced range of tilt movement of up to +/- 8.5°
- TS rotation combine tilting and shifting axis' within the range of +/- 90°
A superb refinement to a true Canon classic, the new TS-E 24mm f/3.5L II offers enhanced functionality and image quality in its most popular tilt-shift focal length. Designed with UD glass to minimize and compensate for chromatic aberrations and a specially coated aspherical element for the highest possible glare-free image quality, this tilt-shift lens features an angle of view of 84° on a full-frame camera.
New TS rotation lets users freely combine tilting and shifting within the range of +/- 90° in the direction of movement. The Tilt function has an enhanced range of movement of up to +/- 8.5°, a revolving construction for both portrait and landscape shooting modes, locking, ergonomically-designed and easily operated tilt and shift knobs, uses a circular aperture for beautiful out-of-focus areas, and is constructed using only lead-free glass and has an SWC lens coating that controls ghosting and flare to a far greater degree than earlier coating technologies.
Sample Images
MTF Chart
| Focal Length Maximum Aperture | 24mm F/3.5 |
| Minimum Aperture | F/22 |
| Lens Construction | 16 Elements In 11 Groups |
| Diagonal Angle Of View | 84° (Without Tilt Or Shift) |
| Image Circle Diameter | 67.2mm |
| Focus Adjustment | Manual Focus, Rear Focusing System (No Floating System) |
| Closest Focusing Distance | 0.21m / 0.69 Ft. (Maximum Close-Up Magnification: 0.34x) |
| Aperture Control | EMD With 8 Blade Iris Diaphragm, Circular Aperture |
| Filter Size | 82mm |
| Max Diameter X Length Weight | 3.5" X 4.2", 27.5 Oz. / 88.5 X 106.9mm, 780g |
| Lens Cap Lens Hood Pouch | Provided |
Extension Tube EF-12 II
Extension Tube EF 12 II is especially suited for close-focusing with wide-angle lenses.
Cases / Lens
Lens Case LZ1319
Lens pouch cases are compact, yet keep your lenses looking like new.
Lens / Hoods
Lens Hood EW-88B
Lens Caps
Lens Dust Cap E Rear Cap
Rear lens cap for all EF type lenses, lens extenders, and extension tubes. Used to protect the rear glass element from dust and scratches.
Lens Cap E-82
