REALiS WUX5000 D
- Native Widescreen WUXGA Resolution (1920 x 1200)
- AISYS-Enhanced LCOS Technology
- DICOM Simulation Mode
- 5000 Lumens with a 1000:1 Contrast Ratio
- Three Optional Interchangeable Genuine Canon Lenses
- Motorized Lens Shift
- REALiS WUX5000 D Multimedia Projector
- Power Cord
- Remote Control (AAA size x2)
- VGA to VGA Connection Cable
- User's Manual/Installation Manual (CD)
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS
The REALiS WUX5000 D is a high-performance WUXGA (1920 x 1200) resolution installation projector employing Canon's AISYS-enhanced LCOS technology and interchangeable Genuine Canon lenses to deliver spectacularly clear and rich images. This new model also offers 5000 lumens of brightness, ease of installation and maintenance, and powered lens shift which can be operated in both vertical and horizontal directions.
The REALiS WUX5000 D features a DICOM Simulation Mode which allows for the viewing of monochrome digital X-Rays, CAT Scans and MRI's with accurate color and precise detail. This special mode simulates the results of devices compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 standard, making it the ideal large venue projector for those in the medical education and training fields.

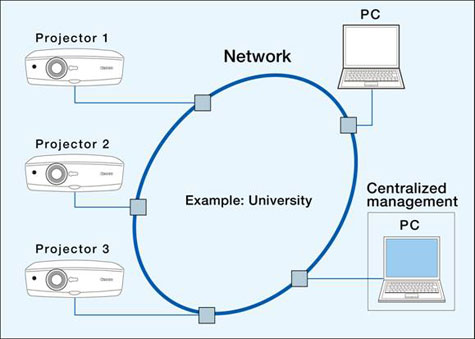

Other features of this widescreen projector include an HDMI terminal (version 1.3 deep color) for projection of high-quality digital images and uncompressed 1080p video, as well as a built-in network connection (RJ-45) for remote network operation. The projector's expanded color space and advanced optics mean that the 5000 lumens of the REALiS WUX5000 D bring razor-sharp, brilliant results, without the need to 'over specify' the lumens required to compensate for loss in brightness typically associated with wide or long throw lenses.
The REALiS WUX5000 D is the perfect choice for installations in large settings which require high-resolution images with exceptional detail, clarity and contrast.

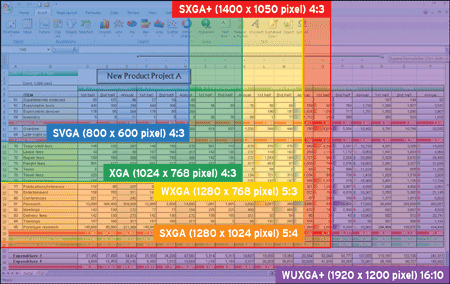

Canon’s REALiS WUX5000 D brings true widescreen content to your large room installation in high resolution WUXGA. The fine detail delivers clarity to the furthest seat in a boardroom, conference room or lecture hall. Every element of an X-ray, CAT scan or MRI displayed can be viewed with precise detail. Compared to XGA projectors, the REALiS WUX5000 D’s WUXGA resolution shows a significantly larger display area, delivering razor-sharp precision in projected images. This model allows the display of true widescreen screen 1080p content without compression, showing the true proportions of the source image on the screen just as it appears on your computer monitor.![]()
The REALiS WUX5000 D projector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.
|
Canon’s renowned optical prowess combines the latest generation of our AISYS (Aspectual Illumination System) Optical System with LCOS technology in the REALiS WUX5000 D. They come together to deliver brilliant, ultra-sharp images in almost any environment. LCOS Technology LCOS (Liquid Crystal On Silicon) has taken projectors to a whole new level. This technology means higher resolution images, seamless images with no flickering or "screen door" effect, quick image response for better looking moving images, smooth rendition of fine lines, seamless photo reproduction, sharp display of small text, and crisp blacks.
AISYS Optical Engine Canon takes the capability of LCOS technology to the next level by combining it with our proprietary and enhanced 4th generation AISYS Optical Engine. Covered by a Canon patent, this optical light engine achieves brightness and high contrast. AISYS has three components: the illumination system; the color separation and combination system; and the LCOS panels. Only Canon's innovative, breakthrough AISYS technology achieves the right balance of contrast, brightness and compact size to maximize the performance of LCOS.

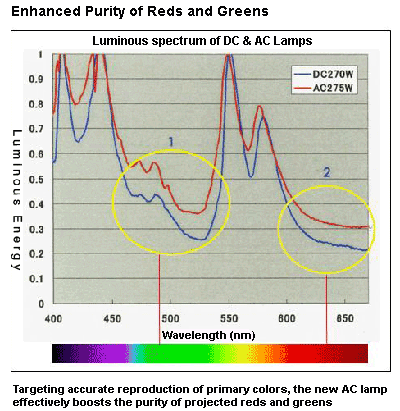

Brighter, truer color comes from the AC lamp system of the REALiS WUX5000 D and the AISYS Optical Engine. The colors on the screen have a more life-like depth thanks to the purity of red and green when compared with conventional DC lamps. In addition, this lamp system boasts an extended operating life, up to 3,000 hours. ![]() LCOS technology combined with Canon's exclusive AISYS Optical Engine, the AC lamp system, and 5000 lumens make the REALiS WUX5000 D a superb high-performance installation projector like no other.
The REALiS WUX5000 D projector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.
|

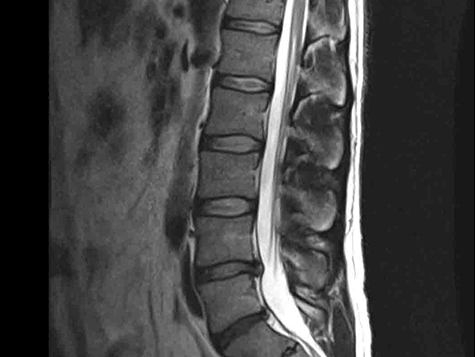

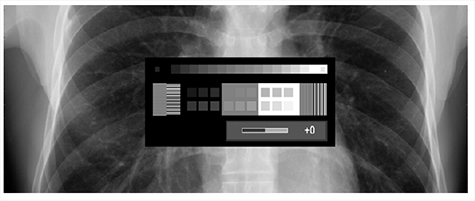

The new REALiS WUX5000 D features a DICOM Simulation image mode setting that allows the projector to simulate the results of devices compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 standardized display function for display of grayscale images. Images such as X-rays, CAT scans, and MRIs that are typically displayed on DICOM compliant monitors can now be simulated via large projected images by the REALiS WUX5000 D. This new feature is recommended for use in medical schools for training and educational use only.![]() Project x-rays and other monochrome images with precise detail and clarity. A built-in, easy to use calibration tool allows you to configure the projector to match the brightness of the environment in which the image is being displayed. With 21 steps of preset gamma adjustments, the new REALiS WUX5000 D gives you greater flexibility when calibrating the projector in the variable lighting conditions of your conference or classroom setting. ![]() Built-in calibration tool has 21 steps of preset gamma adjustments.
The REALiS WUX5000 D projector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.
|
The REALiS WUX5000 D projects an impressive 5000 lumens, delivering incredible image quality and brightness. The 1000:1 contrast ratio ensures deep blacks and bright whites. Pure, high contrast color reproduction creates images with crisp depth and dimension, ideally suited for conveying texture and materials. Color remains crisp, with superior color balance, perfect for presenting high quality visuals.
The REALiS WUX5000 D projector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.
|

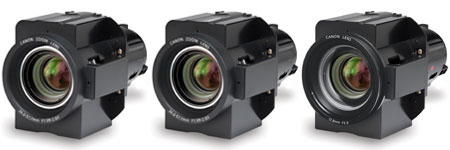

The REALiS WUX5000 D projector gives you the choice of three new interchangeable Genuine Canon lenses. Canon is renowned for our expertise and achievement in lens design and construction - in fact the optical technology developed for our acclaimed EOS series of SLR cameras is reflected in the development of our projection lenses. The 1.5x Zoom Lens (RS-IL01ST), Long Focus Zoom Lens (RS-IL02LZ) and Ultra Wide Angle Lens (RS-IL03WF) can be attached to the REALiS WUX5000 D depending on the application.![]() All three lenses share the benefits of specifically designed aspherical lenses to minimize their total length. In fact, all three lenses are similar in size and fit in the same space on the projector. For temporary installations, such as those carried out by staging and or rental companies, the projector can be shipped in the same box with the lens already assembled.
The REALiS WUX5000 D projector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.
|

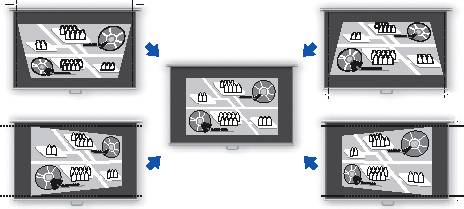

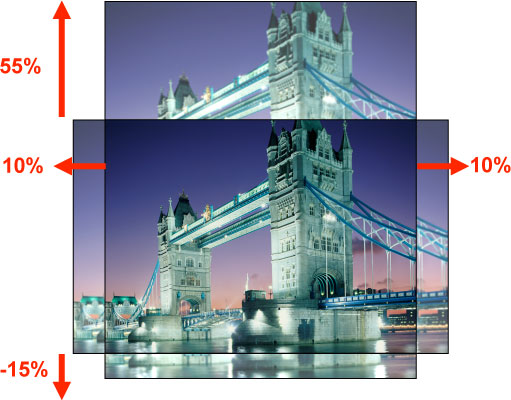

The lens shift capability of all three lenses ably assists in allowing maximum flexibility for a wide variety of installation situations. The range of adjustment for the lenses is as follows:
You can be virtually assured that the REALiS WUX5000 D can be optimally placed, and since lens shift doesn’t degrade the image the way digital keystone correction can, the extraordinary quality of your projected images is not compromised. ![]()
The REALiS WUX5000 D projector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.
|

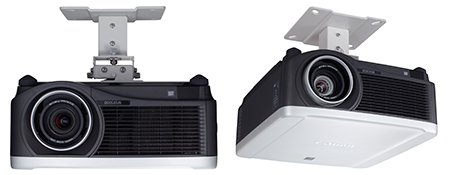

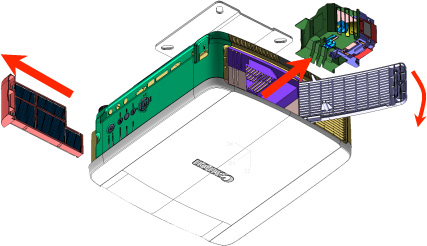

With dimensions of 15.0" W x 6.7" H x 16.9" D and a weight of 18.7 lbs, the REALiS WUX5000 D makes installation easy in a wide variety of applications. The design of the location of the consumable parts enhances both flexibility in mounting and ease of maintenance. The projector's lamp and filter can be replaced from the back/side, and the PS optical filter element can be replaced through the top of the projector. The REALiS WUX5000 D projector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information. |

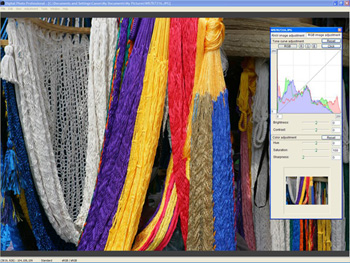

Like all REALiS Projectors, the REALiS WUX5000 D includes Canon's high-accuracy Color Management System which ensures accurate color reproduction for an extended color space and compensates for color variances due to lighting differences. Precise control prevents the excess leakage of light, producing rich, detailed gradations even in the shadowed portions of images - recreating depth and dimension with stunning drama and realism. The REALiS WUX5000 D features a color processing algorithm, along with a highly accurate 3D LUT (Look Up Table). Conventional systems shift neighboring colors along with the selected color, often resulting in an imbalance in the image. The WUX5000 allows for the correction of a single color without affecting the others.
6-Axis Color Adjustment Your projection screen is your canvas with the REALiS WUX5000 D's unparalleled color control. An easy-to-use Graphical User Interface lets you adjust your palette of colors to paint the picture you want for your audience. The WUX5000's 6-Axis Color Adjustment lets you fine-tune the hue, saturation and brightness of each of the primary and secondary colors. This high degree of control makes each projected image a masterpiece. ![]()
The REALiS WUX5000 D projector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.
|
The REALiS WUX5000 D features the ability to process RGB and component signals, from input to display, in 10-bit resolution for higher-quality images.![]()
The REALiS WUX5000 D projector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.
|
The REALiS WUX5000 D gives you an impressive range of input options, allowing you to connect to a variety of devices, including laptop and desktop computers, Blu-Ray players, digital cameras and camcorders. HDMI ![]() Network-Ready RJ-45 Port The REALiS WUX5000 features a built-in network interface (RJ-45), enabling centralized control and monitoring of multiple projector units from a networked PC. This makes it simple for an A/V team to operate ceiling mounted or remotely installed projectors from a PC screen, allowing fewer personnel to cover a larger service area. The REALiS WUX5000 D can also be locally operated through its RS-232 port. The REALiS WUX5000 D is compatible with industry-standard AMX, Crestron, and Extron controllers, making it possible to construct a sophisticated AV system. In addition, email alerts can be sent to the central PC to give notification of any malfunctions or service issues which may arise in a projector. ![]()
The REALiS WUX5000 D projector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.
|
With dimensions of 15.0" W x 6.7" H x 16.9" D and a weight of 18.7 lbs, the REALiS WUX5000 D makes installation easy in a wide variety of applications. The design of the location of the consumable parts enhances both flexibility in mounting and ease of maintenance. The projector's lamp and filter can be replaced from the back/side, and the PS element may be replaced through the top of the projector. An array of advanced and well-designed features makes the REALiS WUX5000 D extremely easy to use: User-Friendly Menu System Once it's set up, operating your projector is easy with the help of Guidance Functions that display operating instructions in an on-screen window. A Graphical User Interface makes for easy operation, with five menus for quick access to Display settings, Image adjustments System settings, Network settings and Information. You're never more than a few steps away from any adjustment you need to make! Plus, front and rear infrared sensors let you control your REALiS WUX5000 D with a wireless remote from in front of or behind the projector. User Memory Allows the user to set up 10 different settings based on the content being shown. Five user memory settings for PC sources such as DVI-D, Analog PC, and HDMI. The other five settings are for video sources such as Component and HDMI. ![]() Minimal Noise While presenting you can be sure your audience isn't distracted by fan noise. Tthe REALiS WUX5000 D runs at 40dB. ![]() Selectable Image Modes To optimize the image quality of your projected content, the REALiS WUX5000 D offers the choice of up to eight Image Modes, selectable dependant on the type of input signal either from a PC or Component Video source.

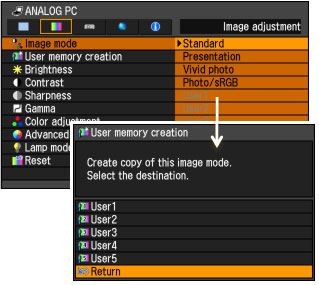

User settings are up to five user-selected combinations which can be stored in memory and which can be chosen as image modes. (PC / Component Video)
The REALiS WUX5000 D projector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.
|

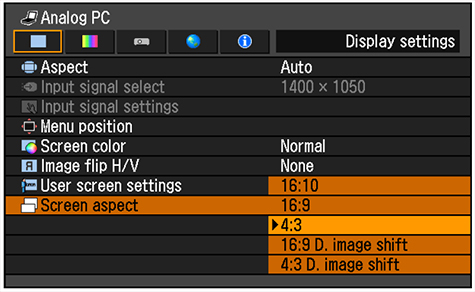

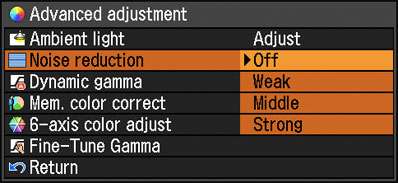

The REALiS WUX5000 projector allows for a variety of advance image quality adjustments. Screen Color Correction Noise Reduction
The REALiS WUX5000 D projector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.
|
Lcd Panel System | 0.7" Reflective LCD Panels (LCOS) X 3 |
Aspect Ratio | 16:10 |
Native Resolution | WUXGA (1920 X 1200) |
Brightness | 5000 Lumens |
Uniformity | 88% |
Contrast Ratio | 1000:1 |
Digital Keystone Vertical | -11 To +20 Degrees For Standard Lens ±20 Degrees For Telephoto Lens ±13 Degrees For Fixed Short Focus Lens |
Digital Keystone Horizontal | ±20 Degrees For Standard Lens ±20 Degrees For Telephoto Lens ±20 Degrees For Fixed Short Focus Lens |
Projection Lens | Projector Does Not Ship With Lens. 3 Optional Interchangeable Lenses Are Available (See Optics Listed Below). |
Color Adjust | Levels / Balance / Temperature / RGB Gain / RGB Offset / 6-Axis Color Adjustment / Memory Color Correction |

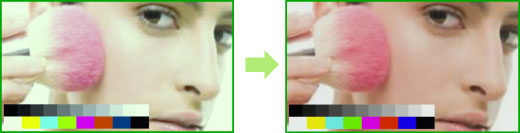

Wall Correction | Greenboard |
Mounting | Ceiling / Rear / Rear-Ceiling / Upward / Downward |
Tilt Angle | Adjustable Feet Up To 6 Degrees |
Scanning Frequency | H: 15~75 KHz, V: 50~85 Hz; 162 MHz Or Less |
Analog Input | WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA |
Digital Input | WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA |
Component Input | 1080p / 1080i / 720p / 576p / 480p / 480i |
Digital Video Input | 1080p / 1080i / 720p / 576p / 480p |
Input Rj45 | Yes |
Input Stereo Mini Jack | Audio Input X2 |
Output Stereo Mini Jack | Audio Output X1 |
Built In Speaker | 5W (Mono) |
Control Terminal | D-Sub 9pin: RS-232C Network: RJ-45 (100BASE-TX / 10BASE-T) |
Lamp Type | 330W NSH (AC) |
Lamp Life | 3000 Hours |
Wireless | Wireless Infrared (Front / Back) |
Fan Noise | 40dB |
Power Comsumption | 450W (Normal) / 1.7W (Standby) / 0.35W (Standby With LAN Off) |
Power Source | AC 100 ~ 240V, 50/60Hz |
Operating Temperature | 41° To 95° F (5° To 35° C) |
Storage Temperature | 14° To 140° F (-10° To 60° C) |
Dimension | 15.0 X 6.7 X 16.9 In. (Without Lens, Including Protruding Parts) |
Weight | 18.7 Lbs. Without Lens |
Content |
General Specifications
Optics (3 Optional Interchangeable Genuine Canon Lenses)
|
