EOS Rebel T5i
- EOS Rebel T5i Body
- EF-S 18-55mm f/3.5-5.6 IS STM lens
- Eyecup Ef (not shown)
- Battery Pack LP-E8
- Battery Charger LC-E8E
- Wide Neck Strap EW-100DB IV
- USB Interface Cable IFC-130U
- EOS Digital Solution Disc & Software Instruction Manual CD
- Camera Instruction Manual (not shown)
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS
Renew Your Creative Soul.
The EOS Rebel T5i features Canon's amazing 18.0 Megapixel CMOS (Complementary Metal Oxide Semiconductor) sensor. Perfect for enlargements or for cropping detailed portions of the composition, the camera's sensor captures images with exceptional clarity and tonal range. This first-class sensor features many of the same technologies used by professional Canon cameras to maximize each pixel's light-gathering efficiency and has center pixels that aid in the EOS Rebel T5i's accurate AF performance. This APS-C size sensor creates an effective 1.6x field of view (compared to 35mm format).
14-bit A/D Conversion
With 14-bit analog-to-digital conversion, the EOS Rebel T5i captures and records images with remarkable gradations and detail in subtle tones and colors, resulting in more realistic and detailed images. By recording up to 16,384 colors per channel, the EOS Rebel T5i ensures that the fine detail found in subjects like foliage, sky and water are preserved and recorded with a tremendous level of accuracy, ensuring gorgeous results.
ISO 10012800 and expandable to 25600 in H mode
Thanks to its DIGIC 5 Image Processor, the EOS Rebel T5i features an expanded ISO range of ISO 10012800 (expandable to 25600 in H mode) that makes shooting possible in situations previously unthinkable without flash. The EOS Rebel T5i, with the DIGIC 5 Image Processor's remarkable noise-reduction technology, performs brilliantly in low-light shooting. Used with one of Canon's EF or EF-S lenses with Optical Image Stabilizer, the EOS Rebel T5i can record beautiful images even when light sources are scarce.
DIGIC 5 Image Processor
The EOS Rebel T5i's DIGIC 5 Image Processor works with the camera's CMOS sensor to deliver images with incredible detail in more situations, without the need for artificial light sources. With the power of the DIGIC 5 Image Processor, the EOS Rebel T5i can achieve higher ISO sensitivity, can shoot up to 5.0 fps continuously and can even perform advanced functions like HDR Backlight Control, art filters, lens correction and much more. The camera's brilliant imaging core supercharges every facet of still and moving image capture.

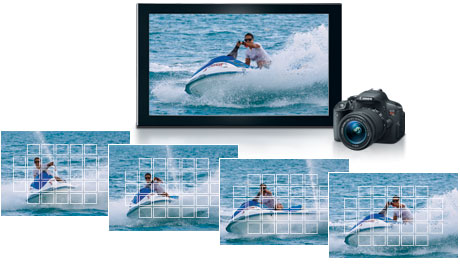

The EOS Rebel T5i can shoot up to 5.0 frames per second, continuously. Thanks to the enhanced shutter mechanism, mirror drive and camera sensor, the EOS Rebel T5i is ready for action; whether capturing that perfect expression, the game's winning goal, or the bride walking down the aisle, the EOS Rebel T5i delivers the speed and performance to guarantee results.
The EOS Rebel T5i is equipped with AF features that ensure speedy, accurate and continuous AF every time. When shooting through the viewfinder, the EOS Rebel T5i has advanced autofocus with a 9-point, all cross-type AF system (including a high-precision dual-cross f/2.8 center point) for accurate focus whether the camera is oriented in portrait or landscape position. An AI Servo AF system achieves and maintains consistent focus with an exceptional degree of reliability.
The EOS Rebel T5i also features Canon's amazing Hybrid CMOS AF System, perfect for shooting photos and video in Live View. This system combines two distinct AF technologies, phase and contrast detection AF, for speedier and more accurate focus. These complementary focusing systems are aided by pixels on the camera's CMOS sensor that assist in predicting subject location, making continuous focus tracking quick and accurate in video recording while enhancing focusing speed.
The EOS Rebel T5i offers easy-to-use, professional video capture without compromise. Capable of shooting in a number of recording sizes and frame rates, the EOS Rebel T5i is the new standard for performance, quality and simplicity. The EOS Rebel T5i enables easy manual control of exposure, focus and Live View features, even in-camera editing! Movie Servo AF allows continuous autofocus tracking of moving subjects while recording video. When shooting video with one of Canon's STM lenses, such as the new EF-S 1855mm f/3.55.6 IS STM, Movie Servo AF takes advantage of the lens' stepping motor for smooth and quiet continuous AF. With an STM lens attached, the EOS Rebel T5i is the standard for SLR moviemaking performance!
Resolution & Recording Sizes | Frame Rates |
Full HD 1920 x 1080 16:9 format |
30 fps (29.97) |
25 fps PAL standard | |
24 fps (23.976) | |
HD 1280 x 720 16:9 format |
60 fps (59.94) |
50 fps PAL standard | |
Standard Definition (SD) 640 x 480 |
30 fps (29.97) |
25 fps PAL standard |
Built-in stereo microphone, manual audio level adjustment
The EOS Rebel T5i has an internal stereo microphone for improved audio capture and a wind filter feature to reduce wind noise when shooting outdoors. Sound recording levels can be manually (up to 64 different levels) or automatically controlled. A built-in attenuator is also provided to reduce audio clipping. For more advanced audio recording, the EOS Rebel T5i is compatible with many third-party electret condenser microphones with a 3.5mm diameter plug.

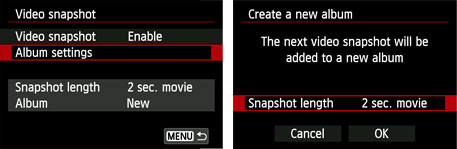

Video Snapshot
With the Video Snapshot feature, the EOS Rebel T5i can capture short video clips (of 2, 4 or 8 seconds) then combine them automatically into one video file as a snapshot or highlights "album". With no editing needed after shooting, the compiled video is perfect for sharing online or displaying directly on an HDTV via the camera's HDMI port. Additionally, stills can be recorded during video shooting simply by pressing the camera's shutter button. During playback, video clips in an album can be reordered or deleted.
The EOS Rebel T5i comes with a Vari-angle Touch Screen 3.0-inch Clear View LCD monitor II. Using capacitive technology similar to today's popular mobile devices, this screen is touch-sensitive and delivers intuitive touch panel operation. Two-finger touch gestures can be used for zooming or changing images. Menu and quick control settings can be accessed, and focus point and shutter release can be activated with the touch of a fingertip using Touch AF. Displaying fine detail (at approximately 1.04 million dots), this screen is perfect for composing and reviewing images. Thanks to a solid construction between the monitor's resin-coated cover and the liquid crystal display, reflections are minimized, and the display can be viewed, without glare, from any number of angles. The LCD's surface is treated with a smudge-resistant coating to minimize fingerprints and maintain a bright, clear image display.
The EOS Rebel T5i features Scene Intelligent Auto mode, which incorporates a number of Canon technologies to deliver the best possible exposure. Joining Picture Style Auto, Automatic Lighting Optimizer, Automatic White Balance, Autofocus, and Automatic Exposure, Scene Intelligent Auto mode analyzes the image, accounting for faces, colors, brightness, moving objects, contrast, even whether the camera is handheld or on a tripod, and then chooses the exposure and enhancements that bring out the best in any scene or situation.
Accessible right on the EOS Rebel T5i's Mode Dial, Handheld Night Scene mode captures nightscapes with bright highlights and detailed dark areas, delivering results previously impossible without the use of a tripod. By shooting and combining four consecutive shots at a shutter speed fast enough to avoid camera shake, the EOS Rebel T5i's Handheld Night Scene mode makes dramatic nighttime photography simple.
HDR Backlight Control mode
The EOS Rebel T5i's HDR Backlight Control mode ensures that backlit subjects are not recorded too darkly. By shooting three consecutive shots at different exposures (underexposed, correctly exposed and overexposed) and then combining the images, the final result maintains detail in both the shadow and highlight areas, ensuring the backlit subject is properly exposed.
Seven Creative Filters that can be displayed in real time
To add to the fun and creative possibilities available with the EOS Rebel T5i, the camera has seven different creative filters that can dramatically alter the mood and visual effect of any particular scene. Creative Filters include Grainy Black and White, Soft Focus, Fisheye Effect, Toy Camera Effect, Miniature Effect, Art Bold Effect and Water Painting Effect. Each effect can be applied in three different levels (low, standard and strong), and easily previewed on the LCD panel in Live View. Since the filters can be applied to the image after shooting, it's easy to try several effects on the same shot during post-process.
To enhance its already admirable high ISO shooting capabilities, the EOS Rebel T5i features an intelligent Multi Shot Noise Reduction tool that reduces noise even further than the camera's sensor and the DIGIC 5 Image Processor do. With Multi Shot Noise Reduction activated, the camera takes four consecutive shots, merges and aligns them. This eliminates more noise than the Rebel's traditional Noise Reduction filter, with little or no apparent resolution loss. Moving subjects are even optimized to minimize subject blur! Thanks to this clever feature, high ISO shooting has never looked better.
The EOS Rebel T5i uses popular SD, SDHC, SDXC, and is even compatible with Ultra High Speed (UHS-I), memory cards. Compact and available in large capacities, SD, SDHC and SDXC memory cards are a perfect complement to the camera's compact design.
Additionally, the EOS Rebel T5i is compatible with Eye-Fi* SD cards, which are outfitted with a Wi-Fi® transmitter (IEEE 802.11b/g) and an internal antenna for wireless, high-speed transfer of images. With an Eye-Fi card installed, the EOS Rebel T5i can display the Eye-Fi's connection status and error notes with ease, for fully functional wireless uploading of images directly from the camera.
* Canon cameras are not guaranteed to support Eye-Fi card functions, including wireless transfer. In case of an issue with the Eye-Fi card, please consult with the card manufacturer. The use of Eye-Fi cards may not be available outside the United States and Canada; please contact the card manufacturer for territory availability.

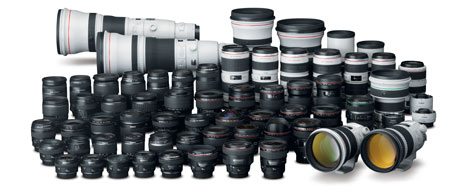

The EOS Rebel T5i is compatible with all Canon lenses in the EF lineup, including compact and lightweight EF-S lenses, ranging from ultra-wide angle to super telephoto lenses and including the STM series optimized for video shooting. Canon lenses employ advanced optical expertise and micron-precision engineering to deliver outstanding performance and deliver beautiful results. Special technologies like Canon's Optical Image Stabilizer help to minimize the effect of camera shake, effectively adding up to four stops of light; STM lenses even feature a stepping motor for smooth and quiet continuous autofocus while capturing video. With an array of lenses perfect for travel, sports, still life and everything in between, photographers can truly maximize the quality and performance of their EOS Rebel T5i.
The EOS Rebel T5i features lens correction tools that compensate for lens characteristics that can affect overall image quality. The EOS Rebel T5i's Peripheral Illumination Correction feature corrects light falloff in the corner of the image according to the characteristics of the lens being used. It even has correction data for a number of popular lenses stored in its memory. With the EOS Rebel T5i's chromatic aberration correction tool, distracting color fringing can be corrected at the time of shooting.

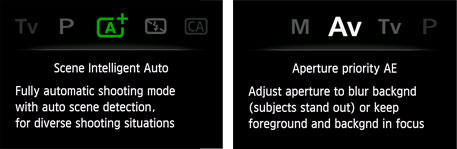

Feature Guide
To help explain the specific function of features found on the EOS Rebel T5i, the Feature Guide displays a simple description helpful in determining the applicability for the situation at hand. It is displayed in each shooting mode, during mode dial operations, and for Quick Control screen functions. It appears automatically when a function is selecteda lifesaver when trying to determine the best mode or function for the next picture. The feature guide works automatically by default, and can be disabled easily through the camera's menu.
GPS Compatible
With the optional GPS Receiver GP-E2 attached to the hot shoe or the digital terminal, the EOS Rebel T5i can record location, including latitude, longitude and altitude, and has the ability to track the trajectory of movement with its logging function. An electric compass records the camera's orientation during each shot, and world time information is recorded through GPS syncing.
JPEG Resizing
To create images suitable for sharing by email or online, the EOS Rebel T5i can resize JPEG files, in-camera, of varying pixels (aspect ratio cannot be changed, only the image size can be decreased) while leaving the original image untouched.
Photobook Set-up
Photographers can share their images in book form with the EOS Rebel T5i's convenient Photobook Set-up feature. Users can easily choose specific images, images in a folder and even all images, then specify their sequence and layout. The results can be printed in book form with ease.
Image Rating
To help organize images recorded to the camera's storage, the EOS Rebel T5i makes it simple to rate individual images from one star to five. Therefore, image browsing, printing and slide shows can be based upon those ratings.
Scene Mode Position
Newly featured on the EOS Rebel T5i, the SCN setting on the Mode dial activates a choice of scenes on the menu screen for quick access to features like Night Portrait, HDR Backlight Control, Handheld Night Scene and more.
Type | Digital AF/AE Single-Lens Reflex Camera With Built-In Flash |
Recording Medium | SD Card, SDHC Card, SDXC Memory Card * Compatible With Ultra High Speed (UHS-I) Memory Cards And Eye-Fi Cards. |
Image Format | Approx. 22.3mm X 14.9mm (APS-C) |
Compatible Lenses | Canon EF Lenses (Including EF-S Lenses) |
Lens Mount | Canon EF Mount |
Type | CMOS Sensor |
Pixels | Effective Pixels: Approx. 18.0 Megapixels |
Pixel Unit | 4.3 µm Square |
Total Pixels | Total Pixels: Approx. 18.50 Megapixels |
Aspect Ratio | 3:2 (Horizontal : Vertical) |
Color Filter System | RGB Primary Color Filters |
Low Pass Filter | Fixed Position In Front Of The Image Sensor |
Dust Deletion Feature | (1) Self Cleaning Sensor Unit Removes Dust Adhering To The Low-Pass Filter. Self-Cleaning Executed Automatically (Taking Approx. 2 Sec.) When Power Is Turned On Or Off. Manual Execution Also Possible (Taking Approx. 5 Sec.). (2) Dust Delete Data Acquisition And Appending The Coordinates Of The Dust Adhering To The Low-Pass Filter Are Detected By A Test Shot And Appended To Subsequent Images. The Dust Coordinate Data Appended To The Image Is Used By The Provided Software To Automatically Erase The Dust Spots. (3) Manual Cleaning |
Recording Format | Complies With Design Rule For Camera File System 2.0 And Exif 2.30 |
File Size | (1) Large: Approx. 17.90 Megapixels (5,184 X 3,456) (2) Medium: Approx. 8.00 Megapixels (3,456 X 2,304) (3) Small 1: Approx. 4.50 Megapixels (2,592 X 1,728) (4) Small 2: Approx. 2.50 Megapixels (1920 X 1280) (5) Small 3: Approx. 0.35 Megapixels (720 X 480) (6) RAW: Approx. 17.90 Megapixels (5,184 X 3,456) |
Backup Recording | N/A |
File Numbering | The Following Three Types Of File Numbering Method Can Be Set: (1) Continuous Numbering * The Numbering Of Captured Images Will Continue Even After You Replace The Camera's Card. (2) Auto Reset * When You Replace The Camera's Card, The Numbering Will Be Reset To Start From 0001. If The New Card Already Contains Images, The Numbering Will Continue From The Last Recorded Image In The Card. (3) Manual Reset * Resets The File Number To 0001, And Creates A New Folder Automatically. |
Raw Jpeg Simultaneous Recording | Yes |
Color Space | SRGB, Adobe RGB |
Picture Style | Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined 1-3 * In Basic Zone Modes, "Auto" Is Set Automatically. * In Creative Zone Modes, You Can Select Or Set The Picture Style. * Default Settings For [User Defined 1-3] Are [Auto]. |
Settings | Auto, Preset (Daylight; Shade; Cloudy, Twilight, Sunset; Tungsten Light; White Fluorescent Light; Flash), Custom (Approx. 2,000° - 10,000°K), White Balance Correction, And White Balance Bracketing |
Auto White Balance | Auto White Balance With The Image Sensor |
Color Temperature Compensation | White Balance Correction:
|
Color Temperature Information Transmission | Provided |
Type | Eye-Level SLR (With Fixed Pentamirror) |
Coverage | Approx. 95% Vertically And Horizontally (With Eye Point Approx. 19mm) |
Magnification | Approx. 0.85x / 23.8° (50mm Lens ∞, -1 M-1) |
Eyepoint | Approx. 19 Mm (At -1m-1 From The Eyepiece Lens Center) |
Dioptric Adjustment Correction | -3.0 To +1.0 M-1 (Dpt) |
Focusing Screen | Fixed |
Mirror | Quick-Return Half Mirror (Transmission: Reflection Ratio Of 40:60) |
Viewfinder Information | 1) AF Information (AF Points And Focus Confirmation Light) 2) Exposure Information (Shutter Speed, Aperture, ISO Speed (Always Displayed), AE Lock, Exposure Level, Spot Metering Circle, Exposure Warning) 3) Flash Information (Flash Ready, Flash Exposure Compensation, High-Speed Sync, FE Lock, Red-Eye Reduction Light) 4) Image Information (Highlight Tone Priority (D+), Monochrome Shooting, Maximum Burst (1-Digit Display), White Balance Correction, SD Card Information) |
Depth Of Field Preview | Enabled With Depth-Of-Field Preview Button |
Type | TTL Secondary Image-Forming, Phase-Difference Detection |
Af Points | 9 Points (All AF Points Are Cross-Type At F/5.6., Center AF Point Is Diagonal Cross-Type At F/2.8.) |
Af Working Range | EV -0.5 - 18 (At Room Temperature And ISO 100, Based On Canon's Testing Standards) |
Focusing Modes | (1) Autofocus
|
Af Point Selection | (1) Manual Selection (2) Auto Selection * Automatically Set In Basic Zone Modes. |
Selected Af Point Display | Indicated By Superimposed Display In The Viewfinder And On The LCD Monitor. |
Af Assist Beam | (1) Intermittent Firing Of Built-In Flash (2) Effective Range: Approx. 13.2 Ft. / 4m At Center, Approx. 11.5 Ft. / 3.5m At Periphery * With An EOS-Dedicated Speedlite Attached, The Speedlite's AF-Assist Beam Is Emitted Instead. * Compatible With Assist-Beam (Intermittent Firing) Of 270EX II, 320EX, And 270EX Flashes. |
Metering Modes | TTL Maximum Aperture Metering With 63-Zone Metering Sensor: 1) Evaluative Metering (Linked To All AF Points) 2) Partial Metering (Center, Approx. 9% Of Viewfinder) 3) Spot Metering (Center, Approx. 4% Of Viewfinder) 4) Center-Weighted Average Metering |
||||||||||||
Metering Range | EV 1.0 - EV 20.0 (At 73°F/23°C With 50mm F/1.8 II Lens At ISO 100) | ||||||||||||
Exposure Control Systems | Creative Zone (1) Program AE (Shiftable) (2) Shutter-Priority AE (3) Aperture-Priority AE (4) Manual Exposure (Including Bulb) Basic Zone (1) Scene Intelligent Auto (Program AE / Non-Shiftable) (2) Flash Off (3) Creative Auto * When Background Blurring Is Set, Shooting With Flash Is Disabled. When The Flash Is Raised, Background Blurring Cannot Be Set. (4) Portrait (5) Landscape (6) Close-Up (7) Sports (8) Special Scene - Night Portrait - Handheld Night Scene HDR Backlight Control Mode |
||||||||||||
Iso Speed Range | For Stills: 1. Manual Setting Range Of ISO 100-12800, Expansion To ISO 25600 2. Auto, ISO 100-6400 (In Whole-Stop Increments)
|
||||||||||||
Exposure Compensation | Manual: ±5 Stops In 1/3- Or 1/2-Stop Increments (AEB ±2 Stops) AEB : ±2 Stops In 1/3- Or 1/2-Stop Increments * If The Exposure Compensation Exceeds ±2 Stops, The Left Or Right Icon Appears In The Viewfinder. * Manual Exposure Compensation And AEB Can Be Set In Combination. * AEB Is Set In The Following Sequence: Standard Exposure, Decreased Exposure, And Increased Exposure. * If AEB Is Used With The Self-Timer, The Three Bracketed Shots Will Be Taken In Succession After The 10-Sec. Or 2-Sec. Delay. |
||||||||||||
Ae Lock | (1) Auto AE Lock * In The One-Shot AF Mode With Evaluative Metering, AE Lock Takes Effect When Focus Is Achieved. (2) Manual AE Lock * In The P, Tv, Av, And M Modes, Enabled With The AE Lock Button. (Press Again To Update.) * Enabled In All Metering Modes. |
Type | Vertical-Travel, Mechanical, Focal-Plane Shutter With All Speeds Electronically-Controlled * Electronic 1st Curtain And Mechanical 2nd Curtain |
Shutter Speeds | 1/4000 To 1/60 Sec., X-Sync At 1/200 Sec. (Scene Intelligent Auto) * With A Wide-Angle Lens, The Shutter May Be 1/60 Sec. Or Slower. 1/4000 To 30 Sec., Bulb, X-Sync At 1/200 Sec. * Settable In 1/3- Or 1/2-Stop Increments. |
Shutter Release | Soft-Touch Electromagnetic Release |
Self Timer | 10-Sec. Or 2-Sec. Delay |
Shutter Lag Time | (1) During SW-1 ON, Time Lag Between SW-2 ON And Start Of Exposure: Approx. 0.075 Sec. (2) Time Lag Between Simultaneous SW-1/SW-2 ON And Start Of Exposure: Approx. 0.150 Sec. * Time Lag With The Aperture Stopped Down By 3 Stops Or Less. Excludes AF Operation Time. |
Compatible Flash | EX-Series Speedlites |
Flash Metering | E-TTL II Autoflash (Evaluative Flash Metering And Average Flash Metering), FE Lock |
Flash Exposure Compensation | ±2 Stops In 1/3-Stop Or 1/2-Stop Increments |
Fe Lock | Provided |
External Flash Settings | (1) External Flash Function Setting * Flash Firing, E-TTL II Auto Flash System, Flash Mode, Wireless Master, Zoom, Sync Setting, Flash Exposure Compensation, FEB, And Clear Setting. * With The 600EX-RT, Radio Wireless Transmission Control Is Possible. (2) External Flash C.Fn Setting * The Actual Setting Options For (1) And (2) Will Differ Depending On The Speedlite Used. |
Pc Terminal | Not Provided |
Drive Modes | Single, Continuous, 10-Sec. Self-Timer/Remote Control, 2-Sec. Self-Timer, Continuous Shooting After 10-Sec. Self-Timer (2 To 10 Shots) |
Continuous Shooting Speed | High-Speed Continuous Shooting: Max. Approx. 5.0 Fps * With One-Shot AF Or AI Servo AF |
Max Burst During Continuous Shooting | Based On 8GB Memory Card: JPEG Large/Fine: Approx. 22 Shots RAW: Approx. 6 Shots RAW+JPEG Large/Fine: 3 Shots Based On 8GB UHS-I Memory Card: JPEG Large/Fine: Approx. 30 Shots RAW: Approx. 6 Shots RAW + JPEG Large/Fine: 3 Shots * Figures Are Based On Canon’s Testing Standards (ISO 100 And Standard Picture Style). * At ISO 12800, Maximum Burst Will Greatly Decrease Due To Internal Processing. |
Shooting Modes | Still Photo Shooting And Video Shooting |
Focusing | (1) AF Operation Of The Hybrid CMOS AF, One-Shot AF I. Face Detection Plus Tracking AF Ii. FlexiZone - Multi * 31 Zones * AF At The Touched Zone Iii. FlexiZone - Single (2) TTL Secondary Image-Forming, Phase-Difference Detection With AF Operation, One-Shot AF I. Manual Selection Ii. Auto Selection * Automatically Set In Basic Zone Modes (3) Manual Focus * Manual Focusing By Enlarging Images By Approx. Five To Ten Times |
Metering Modes | Real-Time Evaluative Metering With Image Sensor. (1) Evaluative Metering (315 Zones) (2) Partial Metering (Approx. 8.8% Of Live View Screen) (3) Spot Metering (Approx. 2.8% Of Live View Screen) (4) Center-Weighted Average Metering * AE Lock Possible. The Active Metering Time Can Be Changed. |
Metering Range | EV 0 To EV 20 (At 23°C/73°F, 50mm F/1.4 Lens, ISO 100) |
Grid Display | Two Grids Provided: (1) Grid 1: Pair Of Vertical And Horizontal Lines (2) Grid 2: 5 Vertical And 3 Horizontal Lines |
Exposure Simulation | Provided |
Silent Shooting | Not Provided |
File Format | MOV: Movie: MPEG-4 AVC / H.264 * Variable (Average) Bit Rate Audio: Linear PCM * Meta Information Is Embedded In The MOV File (No Separate THM File) |
File Size | Recording Size: [Full HD] 1920 X 1080 (30 Fps*1/25 Fps/24 Fps*2): 330 MB/Min. [HD] 1280 X 720 (60 Fps*3/50fps): 330 MB/Min. [SD] 640 X 480 (30 Fps*1/25fps): 82.5 MB/Min. * If The File Size Exceeds 4GB, A New File Will Be Automatically Created. * See Following Section For Actual Frame Rates. |
Frame Rates | 1920 X 1080 (Full HD): 30p (29.97) / 24p (23.976) / 25p 1280 X 720 (HD): 60p (59.94) / 50p 640 X 480 (SD): 30p (29.97) / 25p |
Continuous Shooting Time | Based On 8GB Memory Card [1920 X 1080] 30 Fps/25 Fps/24 Fps: 22 Min. [1280 X 720] 60 Fps/50 Fps: 22 Min. [640 X 480] 30 Fps/25 Fps: 1 Hr. 32 Min. Based On 16GB Memory Card [1920 X 1080] 30 Fps/25 Fps/24 Fps: 44 Min. [1280 X 720] 60 Fps/50 Fps: 44 Min. [640 X 480] 30 Fps/25 Fps: 3 Hr. 04 Min. * If Recording Time Reaches 29 Min. 59 Sec., Movie Shooting Stops Automatically. * See Frame Rates Section For Actual Frame Rates. |
Focusing | (1) One-Shot AF (2) Servo AF (3) Manual Focus * Magnify The Image By Approx. 5x Or Appox. 10x And Focus Manually. AF Using AF Point Selection: I. Face Detection Plus Tracking AF Ii. FlexiZone - Multi * 31 Zones * AF At The Touched Zone Iii. FlexiZone - Single |
Range | 8 Bit, 0 - 255 |
Exposure Control | (1) Program AE For Movie Shooting * In Basic Zone Modes, P, Av, And Tv Modes * Shutter Speed 1/30 - 1/4000 Sec. (Signal Accumulation Time), Aperture, And ISO Speed Automatically Set. (2) Manual Exposure * Shutter Speed (Signal Accumulation Time), Aperture, And ISO Speed (Auto/Manual) Manually Set. The Shutter Speed (Signal Accumulation Time) Is Limited To 1/4000 Sec. At The Maximum And To 1/30 Sec. At The Minimum For 24/25/30 Fps Or 1/60 Sec. Or Higher For 50/60 Fps. |
Exposure Compensation | Provided (±3 Stops In 1/3-Stop Increments) * For Video, Exposure Compensation Will Not Be Applied Beyond ±3 Stops Even If The Exposure Compensation Has Been Set Beyond ±3 Stops. * For Still Photo Shooting, The Exposure Compensation Can Be Set And Applied Up To ±5 Stops. |
Type | TFT Color, Liquid-Crystal Monitor With Touch Panel LCD (Capacitive Type) |
Screen Monitor Size | Wide 3.0-Inch (Screen Aspect Ratio Of 3:2) 7.7cm Diagonal (6.37cm Wide, 4.25cm High) |
Pixels | Approx. 1,040,000 Dots |
Coverage | Approx. 100% |
Brightness Control | Adjustable To One Of Seven Levels |
Coating | Anti-Smudge Coating |
Interface Languages | 25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese) |
Image Display Format | (1) Single Image Display
|
Highlight Alert | On The Detailed Information And Histogram Displays, Highlight Areas With No Image Data Will Blink. |
Histogram | Brightness / RGB |
Items | When You Press The Quick Control Function Button Under The Following Conditions, You Can Set The Functions Below: *The Settable Functions Depend On The Shooting Mode (1) With Viewfinder Shooting: Shutter Speed, Aperture, ISO Speed, Exposure Compensation, AEB, Flash Exposure Compensation, Picture Style, White Balance, Auto Lighting Optimizer, Built-In Flash Func. Setting, AF Mode, Drive Mode, Metering Mode, And Image Recording Quality. (2) With Live View Shooting: AF Mode, Drive Mode, White Balance, Picture Style, Auto Lighting Optimizer, Image-Recording Quality, And Built-In Flash Func. Setting. (3) With Video Shooting: AF Mode, White Balance, Picture Style, Auto Lighting Optimizer, Image Recording Quality (Stills), Video-Recording Size, And Video Snapshot. |
Protection | Erase Protection Can Be Applied/Canceled For A Single Image, All Images In A Folder, Or All Images On The Card. |
Erase | Erase Single Image, Erase Selected Images, Erase All Images In Folder, Erase All Images On A Card, Or Erase Only Unprotected Images. |
Compatible Printers | PictBridge-Compatible Printers |
Printable Images | RAW, JPEG, And RAW+JPEG Images Complying To Design Rule For Camera File System * Movies Cannot Be Printed. |
Dpof | Complies To DPOF Version 1.1 |
Compatible Images | Not Provided |
Custom Functions | Eight Custom Functions With 24 Settings Settable With The Camera |
Custom Controls | Not Provided |
My Menu Registration | Up To Six Top-Tier Menu Options And Custom Function Settings Can Be Registered |
Usb Terminal | - For Personal Computer Communication And PictBridge (Hi-Speed USB) - Audio (Stereo)/Video (NTSC/PAL) Output - To Connect A GP-E2 GPS Receiver |
Video Out Terminal | Type C (Switches Automatically To Suit The Resolution) Video Output: 1080/60i, 1080/50i, 480/60p, 576/50p * Switches Automatically To 1, 2, 3, Or 4 To Suit The TV |
Extension System Terminal | Not Provided |
Battery | One Battery Pack LP-E8 * With The AC Adapter Kit ACK-E8, AC Power Is Possible. * With Battery Grip BG-E8, It Is Possible To Use Two Battery Pack LP-E8 Units. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Battery Life | 1) Camera Body Only
2) With Battery Grip BG-E8
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Battery Check | Automatic Battery Level Check When Power Is Turned ON. Battery Level Indicated In One Of Four Levels On LCD Monitor. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Saving | Power Turns Off After The Set Time Of Non-Operation Elapses * [Auto Power Off] Settable To 30 Sec., 1 Min., 2 Min., 4 Min., 8 Min., 15 Min. Or Disable |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Date Time Battery | Built-In Secondary Battery It Is Not Replaceable By The User. It Recharges When LP-E8 Is Loaded Or When The AC Adapter Is Connected. Without Any Recharging, The Backup Battery Can Maintain The Date/Time For Approx. 3 Months. The Backup Battery Takes Approx. 8 Hours To Be Fully Recharged. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Start Up Time | Approx. 0.1 Sec. (Based On CIPA Testing Standards) |
Dimensions W X H X D | Approx. 5.2 X 3.9 X 3.1 In. Approx. 133.1 X 99.8 X 78.8mm |
Weight | Approx. 20.5 Oz. / 580g (CIPA Standard) Approx. 18.5 Oz. / 525g (Body Only) |
Operating Temperature Range | 32-104°F/0-40°C |
Operating Humidity Range | 85% Or Less |

Dioptric Adjustment Lens E (+1)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.

Dioptric Adjustment Lens E (+2)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.

Dioptric Adjustment Lens E (-3)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.

Dioptric Adjustment Lens E (-4)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera. Requires Rubber Frame Ef, Eb or Ec.

Dioptric Adjustment Lens E (+1.5)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.

Dioptric Adjustment Lens E (0)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.

Dioptric Adjustment Lens E (+0.5)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.

Dioptric Adjustment Lens E (-2)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.

Semi Hard Case EH19-L

Semi Hard Case EH27-L

Semi Hard Case EH24-L

Lens Hood EW-63C
Designed to prevent stray light from entering the lens in order to keep unwanted glare from affecting your photographs.

Eyepiece EP-EX15 II
Eyepiece Extender provides a 5/8" (15mm) extension of the cameras eyepiece away from the camera body and reduces the camera's viewfinder magnification by 30%. It is particularly useful for eyeglass wearers and prevents a user's face or nose from touching the camera body or LCD display.

Remote Control RC-6
Remote Control for EOS cameras.

Remote Controller Adapter RA-E3

Remote Switch RS-60E3
Compact remote switch replicating all of the functions of the shutter release button.

USB Cable IFC-500U
The Canon IFC-500U USB Interface Cable enables you to transfer your camera pictures to a computer fast. The cable connects to your camera and to the USB port on your PC or MAC Computer.

USB Cable IFC-200U
The Canon IFC-200U USB Interface Cable enables you to transfer your camera pictures to a computer fast. The cable connects to your camera and to the USB port on your PC or MAC Computer.

HTC-100
Mini-HDMI Cable: connects Canon HD Camcorders/select PowerShot Cameras to HDMI compatible TV.

Video Cable AVC-DC400ST
Enables direct image display from the EOS to an HD television or a similar display device.

Deluxe Gadget Bag 10EG
This gadget bag is an excellent value, with all the quality material of the Professional 1, at a slightly smaller size. It is designed to hold two 35mm SLR bodies, 5 - 8 lenses, plus film and accessories. It features full padding and interior partitions, leather reinforcing, high strength quick-release buckles, padded exterior pockets, leather snap handle and shoulder strap. Size: 10.5" (W) x 8"(H) x 7.5" (D)

Digital Gadget Bag 100DG
Designed especially for digital SLRs. Can hold your cameras, lenses, accessories and even a laptop computer. Durable, water-repellent nylon exterior. Padded interior dividers and easy-access storage pockets.

Zoom Pack 1000 Holster Case
Weather-Proof Exterior. Interior Padding for Cushioning. Front Zippered Accessory Pocket. Touch Fastened Closure. Shoulder Strap.

Deluxe Back Pack 200EG
Backpack with carry handle and detachable strap. Holds 1-2 Cameras bodies, 3-4 lenses and accessories. Inside measurements (W x H x D): 10 x 14.75 x 5 inches. Rugged nylon, water-repellent, urethane coated for extra durability. Well-arranged divider system for secure storage and easy access. Lightweight construction, padded shoulder straps and back for comfort. Front webbing ideal for storing a light jacket. Tripod carrying straps. Color: Black with Olive.

Deluxe Gadget Bag 100EG
Waterproof bag holds 1-2 cameras and 3-4 lenses with room for accessories. Front and Rear zippered pouchs. Zippered full-length mesh pouch inside top cover. Divider system for secure storage and easy access. Size: 9" (W) x 7" (H) x 5.5" (D)

Digital Gadget Bag 200DG
Size 10.5"(W) x 7.5"(H) x 7"(D)

Professional Gadget Bag 1EG
Large gadget bag for the traveling professional. Size: 14.2" (W) x 8.7"(H) x 8.3"(D). This bag is designed to hold two 35mm SLR camera bodies, seven to ten lenses, flash, film, accessories, etc. It features full padding and interior dividers for cameras and lenses, as well as padded outside pockets.Features adjustable tripod straps, and high strength buckles for the main compartment. The Canon logo is embroidered on the top flap.

Gadget Bag 2400
Fits DSLR and Standard Lens Kit. Made from Cordura Nylon. Large Zippered Front Accessory Pocket. Zippered Mesh Pocket Inside Top Lid. Two Side Accessory Zippered Pockets. Tripod Loops on Bottom. Five Movable, Padded Internal Dividers. Two Strap Handles with Grip. Removable Shoulder Strap. Rubber Feet for Ground Protection.

Neck Strap EW-100DBIII
Wide neck strap.

Wide Strap EW-100 DB IV
Wide strap for EOS Cameras.

Lens Wide Strap
Fits Many Long Telephoto Lenses.

Wide Strap EW-100DB V
Wide strap for EOS Cameras.

Angle Finder C (incl. Adapter Ec-C, Ed-C)
Angle Finder C lets you adjust the viewing angle while providing a 2.5x magnification for critical focusing with a full screen image that also shows exposure data.

DC Coupler DR-E8
The Canon DR-E8 DC Coupler used in conjunction with a compatible AC adapter (not included) allows you to power your Canon EOS Rebel directly from an AC Power source.

Battery Charger LC-E8E
Charger for LP-E8 Batteries.

Compact Power Adapter CA-PS700A
This compact adapter powers your camera from an AC power supply and charges your batteries on the camera. This allows for uninterrupted recording of your special events and keeps your batteries ready to go.

Battery Grip BG-E8
For EOS Digital Rebel Cameras

Battery Pack LP-E8
For EOS Digital Rebel Cameras

Eyecup Ef

Rubber Frame EF
The Ef rubber frame replaces the standard eyecup when using a Diopter lens.

Magnifier MG-Ef
A viewfinder accessory developed to make it easier to check the composition. It magnifies the viewfinder image by approx. 1.2 times. This model is compatible with the EOS Rebel models. * Please note that the magnifier will reduce the field of view visible through the camera's viewfinder and display. This effect on the image through the viewfinder will be more pronounced while wearing glasses. The magnifier may blur the image visible through the viewfinder and may make it more difficult to focus the camera manually. Please note, the image taken with the camera will not be affected by any of the above.
- Windows Server 2025
- macOS 14
- macOS 13
- Windows 11
- macOS 12
- Windows Server 2022
- macOS 11
- Linux MIPS
- Linux ARM
- macOS 10.15
- macOS v10.13
- macOS v10.14
- Windows Server 2019 (x64)
- macOS v10.14
- macOS v10.13
- Windows Server 2016 (x64)
- macOS Sierra v10.12
- Linux 64bit
- Linux 32bit
- OS X v10.11
- Windows 10
- Windows 10 (x64)
- OS X v10.10
- OS X v10.9
- Windows Server 2012 R2 (x64)
- Windows 8.1 (x64)
- Windows 8.1
- Windows Server 2012 (x64)
- Windows 8
- Windows 8 (x64)
- Windows 7
- Windows 7 (x64)
- Windows Vista
- Windows Vista (x64)
- Windows XP
- Windows XP (x64)
- Windows Server 2008
- Windows Server 2008 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2003
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003 R2 (x64)
- Windows 2000
- Windows NT
- Windows 3.1
- Windows Me
- Windows 98
- Windows 95
- Mac OS X v10.8
- Mac OS X v10.7
- Mac OS X v10.6
- Mac OS X v10.5
- Mac OS X v10.4
- Mac OS X v10.3
- Mac OS X v10.2
- Mac OS X v10.1
- Mac OS X
- Mac OS 9
- Mac OS 8
- Linux (x64)
- Linux (x32)
- Linux
Locating and installing your download Locating and installing your download ES Locating and installing your download PT
How to identify your OS version
To help determine which Windows operating system is running on your computer, please view the below steps:
Windows 11
Click on the Windows button (located left to the Search at the bottom).
Click on the Settings button to navigate to the system settings.
Scroll to the bottom of the page and click on the About button.
You will be able to find your Windows operating system under the Windows Specifications section.
Windows® 10
Click Start or click the Windows button (usually found in the lower-left corner of your screen).
Click Settings.
Click About (which is usually located within the lower left of the screen). The next screen should display the Windows version.
Windows 8 or Windows 8.1
Option1: Swipe in from the upper-right corner of the screen while viewing the desktop in order to open the menu, then select Settings.
Select PC Info. Under Windows edition, the Windows version is shown.
Option 2: From the Start Screen
While on the Start screen, type computer.
Right-click on the computer icon. If using touch, press and hold on the computer icon.
Click or tap Properties. Under Windows edition, the Windows version is shown.
Windows 7
Click Start or click the Windows button (usually found in the lower-left corner of your screen).
Right-click Computer and select Properties from the menu. The resulting screen should now display the Windows version.
Linux
To check the version of your Linux operating system (OS), you can use the following commands in your terminal:
1. uname -r: Displays your Linux kernel version.
2. cat /etc/os-release: Displays your distribution name and version.
3. lsb_release -a: Displays specific details about your Linux distribution and version.
4. You can also use the hostnamectl command to display the Linux kernel version. However, this command is only available on Linux distributions that use systemd by default.
To help determine which Mac operating system is running on your computer, select the Apple menu in the upper-left corner of your screen and choose About This Mac.
Upon selecting, you should see the macOS name followed by the version number.
Canon U.S.A Inc. All Rights Reserved. Reproduction in whole or part without permission is prohibited.
