EOS 5DS

Newly designed 50.6 Megapixel full-frame CMOS.
EOS Scene Detection System.
61-Point High Density Reticular AF.
Advanced mirror control mechanism & new user-selectable shutter release time lag.

WHERE TO BUY

SERVICE LOCATOR

PRODUCT ADVISORIES

In The Box

EOS 5DS Body
Battery Pack LP-E6N
Battery Charger LC-E6
Eyecup EG (not shown)
Wide Strap EW-EOS5DS
Interface Cable IFC-150U II
Cable Protector
EOS Digital Solution Disc (not shown)

The Freedom of High Resolution

Marking a new standard in high-resolution digital SLR photography, the Canon EOS 5DS camera shatters the status quo with a new 50.6 Megapixel, full-frame CMOS sensor. Perfect for commercial and fine art photography, or any other application that calls for extremely high-resolution, the EOS 5DS is the ultimate combination of EOS performance and ultra-high megapixel capture. It features an advanced, 61-point High Density Reticular AF system that includes 41 cross-type AF points and EOS iTR AF for precise AF in numerous situations. An anti-flicker function helps provide consistent exposure and color during continuous shooting under certain lighting conditions, while a built-in bulb timer and intervalometer expands creative opportunities without the need for an additional remote control. A refined mirror control mechanism reduces vibration and a Time Release Lag setting minimizes camera shake for sharp image capture when using mirror lock-up. New features like a crop function of 1.3x and 1.6x and a Custom Quick Control screen are complemented by advanced, multi-featured Full HD Movie capture, with Time Lapse Movie, and much more. With EOS performance and 50.6 Megapixel Capture, the EOS 5DS revolutionizes high-resolution photography!

Expand All

Newly designed 50.6 Megapixel full-frame CMOS helps deliver ultra-high resolution images for large-scale printing and extensive, creative cropping, while Dual DIGIC 6 Image Processors enable spectacular image quality and processing speed.

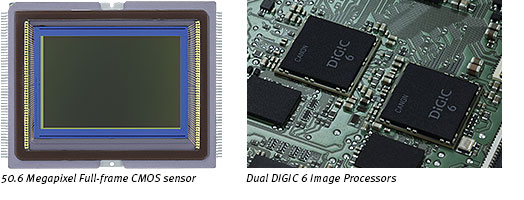

New 50.6 Megapixel Full-frame CMOS sensor

The EOS 5DS camera features Canon's newest full-frame CMOS sensor. At 50.6 Megapixels, it's the highest resolution sensor in the history of EOS. It captures 8712 x 5813 effective pixels, delivering images with an unprecedented level of realism perfect for large-scale commercial printing, fine art, significant crops and any number of other high-end applications. Thanks to this amazing sensor, engineered to work in concert with dual DIGIC 6 Image Processors, the EOS 5DS is a remarkable, high-resolution camera with impressive performance.

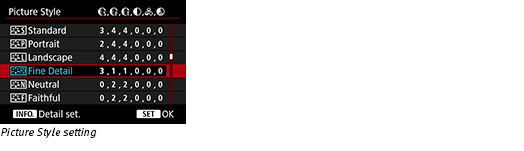

New Fine Detail mode in Picture Style

Taking advantage of its sensor's high-resolution capturing power, the EOS 5DS camera has a new Picture Style called Fine Detail mode. Fine Detail emphasizes fine edges and patterns or textures by setting the camera's Sharpness sub-settings, fineness and threshold to their minimum and by lowering contrast settings as well. Prioritizing minute details in the image allows for better gradations, more detailed textures and fine edges for smoother, more polished photographs.

EOS Scene Detection System features a 150,000-pixel RGB+IR Metering Sensor for excellent precision.

EOS Scene Detection System with RGB+IR Metering Sensor

The EOS 5DS camera has an amazing iSA Intelligent Scene Analysis system that employs an independent RGB+IR light sensor with approximately 150,000-pixel resolution. This sensor enables Canon's Intelligent Tracking and Recognition system (iTR AF) that detects and tracks subjects, automatically switching the AF point to optimize tracking. With new tracking algorithms tailored to recognize faces and colors, this system serves as a brilliant foundation to the EOS 5DS's AF system.

61-Point High Density Reticular AF including up to 41 cross-type AF points and EOS iTR allows for high precision autofocus.

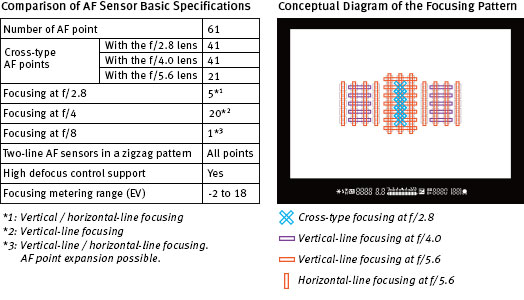

61-point High Density Reticular AF

For fast, precise AF with sophisticated tracking performance, the EOS 5DS camera has an advanced, 61-point High Density Reticular AF system with up to 41 cross-type AF points. The EOS 5DS's AF system is incredibly sensitive to changes in composition, making adjustments quickly to help ensure consistent, sharp AF. A new RGB+IR AF (with approximately 150,000 pixels) sensor monitors subject motion, and Canon's iTR Intelligent Tracking and Recognition system synchronizes the active AF point with the subject's motion, helping to ensure that AF precision is maintained. With focus modes dedicated to the particulars of the shooting environment, the EOS 5DS realizes a level of focus accuracy befitting its 50.6 Megapixel sensor.

Advanced mirror control mechanism and new user-selectable shutter release time lag helps suppress camera vibration for reducing image shake.

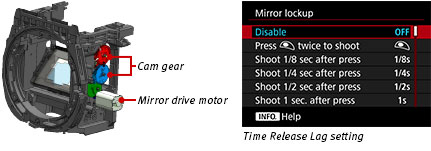

Advanced Mirror control mechanism and shutter release time lag

The camera shake that occurs from the impact of an SLR's mirror can leave blurred details in the recorded image. This effect is magnified when working with a super high-resolution sensor like the one found in the EOS 5DS camera. To counter the effects of conventional, spring-driven SLR mirrors, the EOS 5DS features a newly developed Mirror Vibration Control system. The camera's mirror is not controlled by springs but instead is driven by a small motor and cams. This system suppresses the impact typical of the camera's mirror, significantly reducing impact and its effects on the image. A new Time Release Lag setting, easily accessed on the EOS 5DS's menu system, offers added protection against camera shake by setting the shutter release time intentionally longer so the camera does not begin the exposure until after the impact of the camera's mirror has diffused.

Anti-flicker helps compensate for flickering light sources and provides consistent exposure and color during continuous shooting.

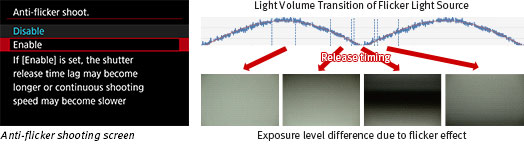

Anti-flicker feature

With Canon's Anti-flicker function, the EOS 5DS camera is able to deliver accurate results under cycling lighting situations. Under flickering light, such as fluorescent lighting, a fast shutter speed may result in an irregular exposure. The EOS 5DS's Anti-flicker function detects the frequency and phase of the flicker and captures images near the point of peak brightness when the subject is most likely well illuminated.

Built-in intervalometer and bulb timer helps deliver expanded creativity.

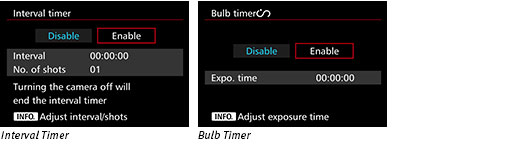

Built-in intervalometer and bulb timer

The EOS 5DS camera offers time-lapse fixed-point shooting and long exposures without the need for a remote control. The EOS 5DS's interval timer takes from 1 to 99 shots at preselected intervals (from 1 second to 99 hours 59 minutes 59 seconds, or unlimited), ideal for shooting flowers as they bloom or clouds drifting through the sky. Captured exposures can even be collected and saved as an HD movie. Its built-in bulb timer keeps the shutter open for a designated amount of time, perfect for night photography, to capture the flow of traffic on a street corner, or any other situation where long exposure photography is warranted.

1.3x and 1.6x crop shooting adds superb flexibility, while still delivering high resolution images required for demanding applications.

1.3x and 1.6x crop shooting

For still photography, the EOS 5DS camera features the flexibility of a cropping feature that extends the shooting effect 1.3x and 1.6x. With 50.6 Megapixel capture, cropped shots are possible with plenty of resolution to spare. Images recorded at 1.3x (APS-H) are approximately 30.5 Megapixels (6768 x 4512) Large/Fine JPEG, while images recorded at 1.6x (APS-C) are approximately 19.6 Megapixels (5424 x 3616) Large/Fine JPEG. Particularly useful in extending the range of telephoto lenses, the crop function also improves the EOS 5DS's subject tracking capability with almost the entire frame covered with AF points. Image cropping can be displayed in the viewfinder either masked or overlaid with an outline showing the cropped area, and in Live View shooting the image is cropped by the effect chosen. Aspect ratios can also be defined, with the EOS 5DS shooting in 1:1, 4:3, and 16:9 ratios, in addition to the default 3:2.

Intelligent Viewfinder II with approximately 100% viewfinder coverage.

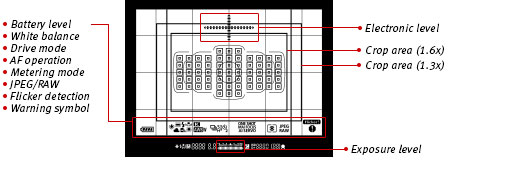

Intelligent Viewfinder II

The EOS 5DS camera's Intelligent Viewfinder II makes it easy to both shoot, change and confirm camera settings and shooting modes all without looking away from the viewfinder. Displaying approximately 100% of the composition, the viewfinder can show settings like shooting mode, exposure level, white balance, drive mode, AF operation, metering mode, recording format, an electronic level and more. All of this information can be displayed by or superimposed easily over the image for review while shooting, and multiple views are customizable through the EOS 5DS's simple user interface.

Full HD 30p movie capability and Time Lapse Movie function, which takes still photographs at set intervals and combines them into a Full HD movie file.

Full HD 30p movie capability

The EOS 5DS camera is a sophisticated movie-making machine, capturing Full HD movies with numerous manual controls at multiple frame rates and compressions. Featuring movie capture and manual controls, the EOS 5DS's shutter button can be programmed to capture still images when pressed during movie shooting.

ALL-I	Compresses each frame. Although the file size is larger than IPB, each frame is not affected by the previous and next frames, making it suitable for editing and extracting frames.
IPB	Compresses the movie frame by referencing the previous and next frames. High compression is used, making it suitable for recording long movies.

Movie-recording Size			Total Recording Time			File Size (MB/min.)
Movie-recording Size			4GB Card	8GB Card	16GB Card	File Size (MB/min.)
1920x1080 (Full HD)	29.97 fps 25.00 fps 23.98 fps	ALL-I	5 min.	11 min.	23 min.	654
1920x1080 (Full HD)	29.97 fps 25.00 fps 23.98 fps	IPB	16 min.	33 min.	1 h. 7 min.	225
1280x720 (HD)	59.94 fps 50.00 fps	ALL-I	6 min.	13 min.	26 min.	583
1280x720 (HD)	59.94 fps 50.00 fps	IPB	19 min.	38 min.	1 h. 17 min.	196
640x480 (VGA)	29.97 fps 25.00 fps	IPB	48 min.	1 h. 37 min.	3 h. 14 min.	78

* If the recording time reaches 29 min. 59 sec., the movie shooting will stop automatically.
* There is no 4 GB file size limit for when the shooting stops automatically.

NTSC			PAL
1920x1080 (Full HD)	29.97 fps	ALL-I	1920x1080 (Full HD)	25.00 fps	ALL-I
		IPB			IPB
	23.98 fps	ALL-I		—	—
		IPB			—
1280x720 (HD)	59.94 fps	ALL-I	1280x720 (HD)	50.00 fps	ALL-I
		IPB			IPB
640x480 (VGA)	29.97 fps	IPB	640x480 (VGA)	25.00 fps	IPB

Time Lapse Movie function

An EOS first, the EOS 5DS camera even has a time-lapse movie feature that takes still photos at set intervals and joins them to create a silent movie. Perfect for showing the moving clouds across the sky, growth of a plant, changes in scenery, the flow of people walking and more, the EOS 5DS's Time Lapse Movie function creates professional-quality movies, in camera, without the need for a computer, saving precious time when out in the field.

High-speed continuous shooting up to 5.0 fps allows you to capture fast action.

High-speed continuous shooting

The EOS 5DS camera can continuously shoot up to 5.0 frames per second. Thanks to its speedy dual DIGIC 6 Image Processors plus its enhanced shutter mechanism and mirror drive, the EOS 5DS is capable of capturing full 50.6 Megapixel images at high speed with superb quality. This sophisticated balance between high pixel count and shooting speed ensures the EOS 5DS is always ready for the next shot.

3.2-inch ClearView II LCD monitor, 170° viewing angle, 1,040,000-dot VGA, reflection resistance with multi coating and high-transparency materials for bright and clear viewing.

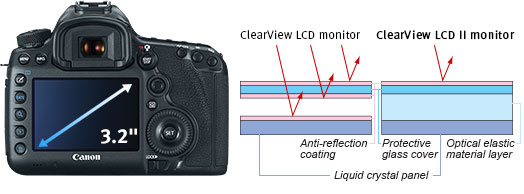

3.2-inch ClearView II LCD Monitor

The 3.2-inch ClearView II LCD monitor has 1,040,000 dots, anti-reflective construction and features Canon's ClearView technology for a bright, sharp display in any number of shooting situations. It's ideal for reviewing settings and images, as well as for shooting in Live View mode. In Live View, grid lines can be displayed in 9 sections, 24 sections, or 9 sections with diagonals, as can the electronic level, which helps ensure accurate level by displaying roll. For image review, the EOS 5DS camera has a dedicated Magnify/Reduce button for zooming in or out (up to 16x) simply by pressing the button and turning the Main Dial. Images can be protected or erased quickly, individually or in batches, and slideshows can be created with some or all images and can be sequenced by date, folders, movies, stills or rating. A clear and simple feature guide found in the camera's menu provides detailed reference information whenever needed.

Customizable Quick Control Screen allows you to quickly change frequently used camera settings and functions.

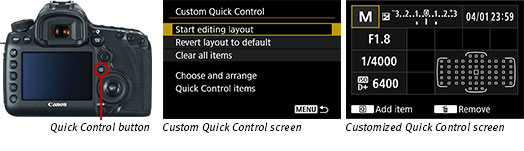

Quick Control Screen

In addition to a conventional Quick Control screen, the EOS 5DS camera features a Quick Control button that enables the photographer to quickly and easily access the settings critical for the task at hand. The user can specify features to display, as well as their location and size on the screen. With the level of customization the Custom Quick Control screen offers, the EOS 5DS can work perfectly with the style of any photographer.

Support for USB 3.0.

USB 3.0

The EOS 5DS camera features a USB 3.0 digital terminal for fast transfer to PCs and printers, plus offers connectivity to Canon's WFT-E7 (Version 2) for wireless transfer and Wi-Fi^® compatibility.

NOTE: For connecting an interface cable to the USB 3.0 terminal, a cable protector is included with the EOS 5DS, and must be used at all times to protect the camera's circuit board.

Expand All

Con Type

Type	Digital, Af/Ae Single-Lens Reflex, Camera
Recording Medium	Cf Card Type I Drive (Incompatible With Type Ii And Microdrive.) High-Speed Writing Possible With Udma Cf Cards. Sd, Sdhc, And Sdxc Memory Cards High-Speed Writing Possible With Uhs-I Sd Cards. Multimediacard (Mmc) Cannot Be Used. (A Card Error Will Be Displayed.)
Image Format	Approx. 36 Mm X 24mm (35mm Full-Frame)
Compatible Lenses	Canon Ef Lenses (Excluding Ef-S Lenses)
Lens Mount	Canon Ef Mount

Image Sensor

Type	High-Sensitivity, High-Resolution, Large Single-Plate Cmos Sensor
Pixels	Effective Pixels: Approx. 50.60 Megapixels Total Pixels: 53.00 Megapixels
Pixel Unit	4.14µm Square
Total Pixels	Total Pixels: 53.00 Megapixels
Aspect Ratio	3:2 (Horizontal: Vertical)
Color Filter System	Rgb Primary Color Filters
Low Pass Filter	Fixed Position In Front Of The Image Sensor
Dust Deletion Feature	(1.) Self Cleaning Sensor Unit Removes Dust Adhering To The Low-Pass Filter. At Power On: Performed For Approx. 3 Sec. (Operation Indicated For 2 Sec.) At Power Off: Performed For Approx. 2 Sec. Manual Operation: Performed For Approx. 8.5 Sec. Magnesium Fluoride Coating On The Low-Pass Filter Surface Applied. (2.) Dust Delete Data Acquisition And Appending The Coordinates Of The Dust Adhering To The Low-Pass Filter Are Detected By A Test Shot And Appended To Subsequent Images. The Dust Coordinate Data Appended To The Image Is Used By The Eos Software To Automatically Erase The Dust Spots. (3.) Manual Cleaning

Recording System

Recording Format	Design Rule For Camera File System 2.0 And Exif 2.3
Image Format	Still Image: Jpeg, Raw (14-Bit Canon Original), Raw, M-Raw, S-Raw, Raw+Jpeg, M-Raw+Jpeg, S-Raw+Jpeg Video: Mov (Image Data: H.264/Mpeg-4 Avc; Audio: Linear Pcm)
File Size	Full Size Large: Approx. 50.3 Megapixels (8688 X 5792) Medium 1: Approx. 39.3 Megapixels (7680 X 5120) Medium 2: Approx. 22.1 Megapixels (5760 X 3840) S1 (Small 1): Approx. 12.40 Megapixels (4320 X 2880) S2 (Small 2): Approx. 2.50 Megapixels (1920 X 1280) S3 (Small 3): Approx. 350,000 Pixels (720 X 480) Raw: Approx. 50.3 Megapixels (8688 X 5792) M-Raw: Approx. 28.50 Megapixels (6480 X 4320) S-Raw: Approx. 12.40 Megapixels (4320 X 2880) Crop - 1.3x Large: Approx. 30.5 Megapixels (6768 X 4512) Medium 1: Approx. 24.1 Megapixels (6016 X 4000) Medium 2: Approx. 13.6 Megapixels (4512 X 3008) S1 (Small 1): Approx. 7.6 Megapixels (3376 X 2256) S2 (Small 2): Approx. 2.5 Megapixels (1920 X 1280) S3 (Small 3): Approx. 0.35 Megapixels (720 X 480) Crop - 1.6x Large: Approx. 19.6 Megapixels (5424 X 3616) Medium 1: Approx. 15.4 Megapixels (4800 X 3200) Medium 2: Approx. 8.7 Megapixels (3616 X 2408) S1 (Small 1): Approx. 4.9 Megapixels (2704 X 1808) S2 (Small 2): Approx. 2.50 Megapixels (1920 X 1280) S3 (Small 3): Approx. 0.35 Megapixels (720 X 480) Aspect Ratio - 1:1 Large: Approx. 33.5 Megapixels (5792 X 5792) Medium 1: Approx. 26.2 Megapixels (5120 X 5120) Medium 2: Approx. 14.7 Megapixels (3840 X 3840) S1 (Small 1): Approx. 8.3 Megapixels (2880 X 2880) S2 (Small 2): Approx. 1.6 Megapixels (1280 X 1280) S3 (Small 3): Approx. 0.23 Megapixels (480 X 480) Aspect Ratio: 4:3 Large: Approx. 44.7 Megapixels (7712 X 5792) Medium 1: Approx. 34.9 Megapixels (6816 X 5120) Medium 2: Approx. 19.7 Megapixels (5120 X 3480) S1 (Small 1): Approx. 11.1 Megapixels (3840 X 2880) S2 (Small 2): Approx. 2.2 Megapixels (1712 X 1280) S3 (Small 3): Approx. 0.31 Megapixels (640 X 480) Aspect Ratio: 16:9 Large: Approx. 42.5 Megapixels (8688 X 4888) Medium 1: Approx. 33.2 Megapixels (7680 X 4320) Medium 2: Approx. 18.7 Megapixels (5760 X 3240) S1 (Small 1): Approx. 10.5 Megapixels (4320 X 2432) S2 (Small 2): Approx. 2.1 Megapixels (1920 X 1080) S3 (Small 3): Approx. 0.28 Megapixels (720 X 408) Exact File Sizes Depend On The Subject, Iso Speed, Picture Style, Etc.
Recording Functions	Standard * Records To Either The Cf Card Or Sd Card. Auto Switch Card * When The Current Card Becomes Full, The Camera Switches To The Other Card Automatically. Record Separately * The Cf Card And Sd Card Record The Same Image At A Different Image Recording Quality (L, M, S1, S2, S3, Raw, M-Raw, S-Raw) Record To Multiple * Both The Cf Card And Sd Card Record The Same Image At The Same Image Recording Quality. (Also Applies To Raw+Jpeg, M+Jpeg, And Sraw+Jpeg)
Backup Recording	Images Recorded In A Card Can Be Copied To The Other Card
File Numbering	The Following Three Types Of File Numbers Can Be Set: (1) Continuous Numbering * The Continuous Numbering Of Captured Images Will Continue Even After You Replace The Camera's Card. (The Numbering Continues Even When The Folder Changes.) (2) Auto Reset * When You Replace The Camera's Card, The Numbering Will Be Reset To Start From 0001. If The New Card Already Contains Images, The Numbering Will Continue From The Last Recorded Image In The Card. (3) Manual Reset * Resets The File Number To 0001, And Creates A New Folder Automatically.
Raw Jpeg Simultaneous Recording	The Image-Recording Quality Can Be Selected In Any Combination Of The Three Raw And Eight Jpeg Recording Quality Settings.
Color Space	Selectable Between Srgb And Adobe Rgb
Picture Style	Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined 1-3 * Scene Intelligent Auto Will Set [Auto] Automatically. * [Standard] Is The Default Setting For [User Def. 1-3]

White Balance

Settings	Auto (Awb): Ambience Priority Auto (Awb): White Priority Daylight Shade Cloudy, Twilight, Sunset Tungsten Light White Fluorescent Light Flash Custom (Custom Wb) Color Temperature * With An Ex-Series Speedlite Having The Color Temperature Information Transmission Feature, The Color Temperature Setting Changes To Match The Color Temperature When The Flash Is Fired. Set To Approx. 6000k If The Flash Unit Does Not Have The Color Temperature Communication Feature.
Auto White Balance	Auto White Balance With The Image Sensor
Color Temperature Compensation	Blue/Amber Bias: ±9 Levels Magenta/Green Bias: ±9 Levels *Corrected In Reference To The Current Wb Mode's Color Temperature.
Color Temperature Information Transmission	Provided

Viewfinder

Type	Eye-Level Pentaprism
Coverage	Approx. 100% Vertically And Horizontally (At Approx. 21mm Eyepoint)
Magnification	Approx. 0.71x / Angle Of View 34.1° (With 50mm Lens At Infinity, -1 M^-1 (Dpt))
Eyepoint	Approx. 21mm (At -1m^-1 From The Eyepiece Lens Center)
Dioptric Adjustment Correction	-3.0 To +1.0m^-1 (Diopter)
Focusing Screen	Fixed
Mirror	Quick-Return Half Mirror (Transmission: Reflectance Ratio Of 40:60)
Viewfinder Information	Af Information Af Point, Focus Confirmation, Af Status Indicator Exposure Information Shutter Speed, Aperture, Iso Speed (Always Displayed), Ae Lock, Exposure Level, Exposure Warning Flash Information Flash Ready, Flash Exposure Compensation, High-Speed Sync, Fe Lock, Red-Eye Reduction Light Image Information Highlight Tone Priority (D+), Maximum Burst (2-Digit Display), Card Information Battery Check Composition Information Grid, Electronic Level Warning Symbol Displayed If Any Of The Following Is Set: Monochrome, White Balance Correction, One-Touch Recording Quality Switch, Expanded Iso Speed, Or Spot Metering. Jpeg/Raw Flicker Detection
Depth Of Field Preview	Enabled With Depth-Of-Field Preview Button

Autofocus

Type

Ttl Secondary Image - Registration, Phase Detection

Af Points

61-Point High-Density Reticle Af

Cross-Type Af Points	Af Points
Dual Cross-Type Af Points At F/2.8 And F/5.6	5
Cross-Type Af Points At F/4.0 + F/5.6	20
Cross-Type Af Points At F/5.6	21
Horizontal-Line Focusing Af Points At F/5.6	20
Cross-Type Af Points At F/8	1

Af Working Range

Ev -2 - 18 (At 73°F/23°C And Iso 100)

Focusing Modes

(1) Autofocus

One-Shot Af
Predictive Ai Servo Af
- For Automatic Af Point Selection, The Af Point To Start The Ai Servo Af Operation Can Be Selected.
- For Automatic Af Point Selection, The Active Af Point Can Be Displayed.
Ai Focus Af
- (Switches Between One-Shot Af And Ai Servo Af Automatically)
- Automatically Set In A+ (Auto) Mode

(2) Manual Focus (Mf)

Af Point Selection

Single-Point Spot Af (Manual Selection)
Single-Point Af (Manual Selection)
*The Checkmark Cannot Be Removed From This Option.
Af Point Expansion (Manual Selection, 4 Points: Up, Down, Left, And Right)
Af Point Expansion (Manual Selection, Surrounding 8 Points)
Zone Af (Manual Zone Selection
Auto Selection 61-Point Af)

Selected Af Point Display

Displayed In Viewfinder With Transparent Lcd And On Lcd Panel

Active Af Point Indicator

Af Area Used In Horizontal/Vertical (Grip Up Or Down) Shooting And The Manually-Selected Af Point Position Can Be Set Separately

Af Assist Beam

Enable
With An Eos-Dedicated Speedlite, Af-Assist Beam Is Emitted Automatically When Necessary.
Disable
Ir Af Assist Beam Only
* No Af-Assist Beam With Flash Bursts.

Exposure Control

Metering Modes

Approx. 150,000-Pixel Rgb+Ir Metering Sensor

Eos Isa System With 252-Zone (18 X 14) Metering

Evaluative Metering (Linked To All Af Points)
Partial Metering (Center, Approx. 6.1% Of Viewfinder)
Spot Metering (Center, Approx. 1.3% Of Viewfinder)
* Af Point-Linked Spot Metering Not Provided.
Center-Weighted Average Metering
* The Selectable Metering Modes Can Be Restricted With A Custom Function.

Metering Range

Ev 0-20 (At 73°F / 23°C At Iso 100)

Exposure Control Systems

(1) Scene Intelligent Auto

(2) Program Ae (Shiftable)

(3) Shutter-Priority Ae (Safety Shift Possible)

(4) Aperture-Priority Ae (Safety Shift Possible)

(5) Manual Exposure
* The Metering Mode Can Be Specified With A Custom Function.
(6) Bulb
(7) Custom Shooting Mode, C1, C2, C3
* Evaluative Metering, Averaged Metering

Iso Speed Range

Manual Settings:
Normal Iso Speeds	Iso 100–6400 (In 1/3-Stop Or Whole-Stop Increments)
Expanded Iso Speeds	L: Equivalent To Iso 50, H: Equivalent To Iso 12800

* For (Highlight Tone Priority), The Settable Iso Speed Range Will Be Iso 200–6400.
* Iso Speed Safety Shift Possible With Custom Function.
* For Movie Shooting, The Maximum Expanded Iso Speed Is Also Iso 12800.

Iso 100-6400 (In 1/3-Stop Or Whole-Stop Increments)

Iso Speed Expansion Possible To Iso 50 And 12,800.
Iso Speed Safety Shift Possible With Custom Function.

Auto Settings:
Shooting Mode	Iso Settings
	Without Flash	With Flash
A+	100–3200	Iso 100–1600
P/Tv/Av/M	100–6400^*1	Iso 400 Fixed^1,2,*3
B	Iso 400 Fixed^*1

*1: It Depends On (Minimum) And (Maximum) Of (Auto Iso Range).
*2: If Overexposure Would Occur With Fill Flash, The Minimum Iso Speed Is Set To Iso 100 (Except For M And B).
*3: Auto Set For Iso 400–1600 In The P Mode With External Speedlite Set For Bounce Flash.

Iso Speed Upper And Lower Limits:
(1) Manual Setting Range
* Iso Speed Expansion Is Set With This Option.

(2) Auto Iso Ranger
* Iso Speed Expansion Not Settable.

Exposure Compensation

Manual: ±5 Stops In 1/3 Or 1/2-Stop Increments
Aeb: ±3 Stops In 1/3 Or 1/2-Stop Increments
* Indicated Up To ±3 Stops On The Lcd Panel And In The Viewfinder.

Ae Lock

(1) Auto Ae Lock
* In The One-Shot Af Mode With Evaluative Metering, Ae Lock Takes Effect When Focus Is Achieved.
(2) Manual Ae Lock
* With Ae Lock Button. (Ae Lock Is Updated Each Time You Press The Button.) Enabled In All Metering Modes.

Shutter

Type	Vertical-Travel, Mechanical, Focal-Plane Shutter With All Speeds Electronically-Controlled
Shutter Speeds	X-Sync At 1/200 Sec. 1/8000 To 30 Sec., Bulb (Total Shutter Speed Range. Available Range Varies By Shooting Mode.) * Shutter Speed's Control Range Can Be Set With A Custom Function.
Shutter Release	Soft-Touch Electromagnetic Release
Self Timer	10-Sec. Or 2-Sec. Delay
Shutter Lag Time	(1.) During Sw-1 On, Time Lag Between Sw-2 On And Start Of Exposure: Approx. 0.059 Sec. During Silent Shooting, Approx. 0.108 Sec. With Flash, Approx. 0.086 Sec. During Silent Shooting With Flash, Approx. 0.108 Sec. (2.) Time Lag Between Simultaneous Sw-1/Sw-2 On And Start Of Exposure: Approx. 0.186 Sec. During Silent Shooting, Approx. 0.230 Sec. With Flash, Approx. 0.236 Sec. During Silent Shooting With Flash, Approx. 0.255 Sec.

External Speedlite

Eos External Flash Or Dedicated Speedlites	E-Ttl Ii Autoflash With All Ex Series Speedlites
Zooming To Match Focal Length	Provided
Compatible Flash	Ex-Series Speedlites
Flash Exposure Compensation	±3 Stops In 1/3- Or 1/2-Stop Increments
Fe Lock	Provided
External Flash Settings	The Camera Can Set The Following With Speedlite 600ex-Rt, 580ex Ii, 430ex Ii, 320ex, 270ex Ii, Or 270ex: (1) External Flash Control * Flash Mode, Sync Setting, Feb (Not Possible With 270ex Ii/270ex), Flash Exposure Compensation, E-Ttl Ii, Zoom, Wireless Master Flash (Not Possible With 430ex Ii/ 270ex), And Clear Settings. * With The Speedlite 600ex-Rt, Radio Wireless Control Is Possible. (2) Flash Custom Function Setting
Pc Terminal	Provided (No Polarity)

Drive System

Drive Modes

Single, High-Speed Continuous, Low-Speed Continuous, Silent Single Shooting, Silent Continuous Shooting, And Self-Timer (10 Sec. Self-Timer/Remote Control, Or 2-Sec. Self-Timer/Remote Control)

Continuous Shooting Speed

High-Speed: Maximum Approx. 5.0 Shots/Sec.
Low-Speed: Maximum Approx. 3.0shots/Sec.
Silent Continuous Shooting: Maximum Approx. 3.0 Shots/Sec.

Max Burst During Continuous Shooting

Image Recording Quality	Crop/Aspect Ratio	Image File Size (Approx. Mb)	Possible Shots (Approx.)	Maximum Burst (Approx.)
				Cf Card: 8 Gb		Sd Card: 8 Gb
				Standard	High-Speed (Udma 7)	Standard	High-Speed (Uhs-I)
Large/Fine	Full-Frame	14.1	510	31	510 (Full)	31	510 (Full)
	1.3x Crop	8.5	840	110	840 (Full)	120	840 (Full)
	1.6X Crop	5.5	1,310	1,310 (Full)	1,310 (Full)	1,310 (Full)	1,310 (Full)
	1:1 (Aspect Ratio)	9.4	760	76	760 (Full)	85	760 (Full)
	4:3 (Aspect Ratio)	12.5	570	No Value Data For Live View Shooting.
	16:9 (Aspect Ratio)	11.9	600	No Value Data For Live View Shooting.
Large/Normal	Full-Frame	7.0	1,030	1,030 (Full)	1,030 (Full)	1,030 (Full)	1,030 (Full)
M1/Fine	Full-Frame	10.9	660	45	660 (Full)	49	660 (Full)
M1/Normal	Full-Frame	5.5	1,310	1,310 (Full)	1,310 (Full)	1,310 (Full)	1,310 (Full)
M2/Fine	Full-Frame	7.1	1,010	1,010 (Full)	1,010 (Full)	1,010 (Full)	1,010 (Full)
M2/Normal	Full-Frame	3.5	2,030	2,030 (Full)	2,030 (Full)	2,030 (Full)	2,030 (Full)
S1/Fine	Full-Frame	4.5	1,590	1,590 (Full)	1,590 (Full)	1,590 (Full)	1,590 (Full)
S1/Normal	Full-Frame	2.3	3,120	3,120 (Full)	3,120 (Full)	3,120 (Full)	3,120 (Full)
S2	Full-Frame	1.2	5,600	5,600 (Full)	5,600 (Full)	5,600 (Full)	5,600 (Full)
S3	Full-Frame	0.3	20,380	20,380 (Full)	20,380 (Full)	20,380 (Full)	20,380 (Full)
Raw	Full-Frame	60.5	100	12	14	12	14
	1.3x Crop	60.5	100	12	14	12	14
	1.6X Crop	60.5	100	12	14	12	14
	1:1 (Aspect Ratio)	60.5	100	12	14	12	14
	4:3 (Aspect Ratio)	60.5	100	No Value Data For Live View Shooting.
	16:9 (Aspect Ratio)	60.5	100	No Value Data For Live View Shooting.
Mraw	Full-Frame	44.0	140	12	14	12	14
Sraw	Full-Frame	29.8	190	14	15	14	14
Raw + Large/Fine	Full-Frame	60.5 + 14.1	87	12	12	12	12
	1.3x Crop	60.5 + 8.5	94	12	14	12	14
	1.6X Crop	60.5 + 5.5	98	12	14	12	14
	1:1 (Aspect Ratio)	60.5 + 9.4	93	12	14	12	14
	4:3 (Aspect Ratio)	60.5 + 12.5	89	No Value Data For Live View Shooting.
	16:9 (Aspect Ratio)	60.5 + 11.9	90	No Value Data For Live View Shooting.
Mraw + Large/Fine	Full-Frame	44.0 + 14.1	110	11	12	11	12
Sraw + Large/Fine	Full-Frame	29.8 + 14.1	140	14	14	14	14

* The Number Of Possible Shots And Maximum Burst Apply To An 8 Gb Card Based On Canon's Testing Standards.
* The Image File Size, Number Of Possible Shots, And Maximum Burst Will Vary Depending On The Shooting Conditions (Aspect Ratio 3:2, Subject, Memory Card Brand, Iso Speed, Picture Style, Etc.).
* The "F" After The Number Indicates That Continuous Shooting Is Possible Until The Card Becomes Full.

Live View Functions

Shooting Modes	Still Photo And Video Recording
Focusing	Contrast Af Manual Focus
Metering Modes	Evaluative Metering (315-Zone) Partial Metering (Approx. 6.4% Of Live View Screen) Spot Metering (Approx. 2.8% Of Live View Screen) Center-Weighted Average Metering Ae Lock Possible. The Active Metering Timer Can Be Changed.
Metering Range	Metering Range: Ev 0 - Ev 20 (At 73°F / 23°C, Iso 100)
Grid Display	Three Grid Display Provided 9 Sections 24 Sections 9 Sections + Diagonal Lines
Exposure Simulation	Provided
Silent Shooting	Provided (Mode 1 And Mode 2)

Video Shooting

File Format

Mov
Mpeg-4 Avc / H.264
Variable (Averaged) Bit Rate

File Size

Recording Sizes:
1920 X 1080 (Full Hd), 1280 X 720 And 640 X 480

Frame Rates

[1920 X 1080]: 30 Fps / 25 Fps / 24 Fps
[1280 X 720]: 60 Fps / 50 Fps
[640 X 480]: 30 Fps / 25 Fps

Continuous Shooting Time

Continuous Shooting Time Based On 8gb Memory Card:
Movie Recording Size			Total Recording Time	File Size (Mb/Min.)
Movie Recording Size			8gb	File Size (Mb/Min.)
1920 X 1080	29.97 Fps 25.00 Fps 23.98 Fps	All-I	11 Min.	654
1920 X 1080	29.97 Fps 25.00 Fps 23.98 Fps	Ipb	33 Min.	255
1280 X 720	59.94 Fps 50.00 Fps	All-I	13 Min.	583
1280 X 720	59.94 Fps 50.00 Fps	Ipb	38 Min.	196
640 X 480	29.97 Fps 25.00 Fps	Ipb	1 Hr. 37 Min.	78

* If The Recording Time Reaches 29 Min. 59 Sec., The Movie Shooting Will Stop Automatically.
* There Is No 4 Gb File Size Limit For When The Shooting Stops Automatically.

Focusing

Same As Focusing With Live View Shooting
* During Movie Shooting Or If Movie Cropping Has Been Set, The Image Cannot Be Magnified For Manual Focusing.

Range

Manual Settings:
Normal Iso Speeds: Iso 100-6400 (In 1/3-Stop Or Whole-Stop Increments)
Expanded Iso Speeds: L: Equivalent To Iso 50, H: Equivalent To Iso 12800
* For [Highlight Tone Priority], The Settable Iso Speed Range Will Be Iso 200-6400.
* Iso Speed Safety Shift Possible With Custom Function.
* For Movie Shooting, The Maximum Expanded Iso Speed Is Also Iso 12800.

Auto Settings:
A+: Iso 100-3200 (No Flash) / Iso 100-6400 (With Flash)
P/Tv/Av/M: Iso 100-6400*1 (No Flash) / Iso 400 Fixed*1,*2, *3
B: Iso 400 Fixed (No Flash) / Iso 400 Fixed*1,*2, *3
*1: It Depends On [Minimum] And [Maximum] Of [Auto Iso Range].
*2: If Overexposure Would Occur With Fill Flash, The Minimum Iso Speed Is Set To Iso 100 (Except For M And B).
*3: Auto Set For Iso 400-1600 In The P Mode With External Speedlite Set For Bounce Flash.

Exposure Control

Shooting Mode	Frame Rate	Shutter Speed (Sec.)		Aperture		Iso Speed (Recommended Exposure Index)
		Auto Setting	Manual Setting	Auto Setting	Manual Setting	Auto Setting	Manual Setting
A+ Program Ae For Movie Shooting	29.97, 25.00, 24.00, 23.98	1/4000–1/30	–	Yes	–	Iso 100–6400^*1	–
	59.94, 50.00	1/4000–1/60	–		–		–
P, B, Program Ae For Movie Shooting	29.97, 25.00, 24.00, 23.98	1/4000–1/30	–	Yes	–	Iso 100–6400 (H1: 12800)^*1	–
	59.94, 50.00	1/4000–1/60	–		–
Tv Movie Shutter-Priority Ae	29.97, 25.00, 24.00, 23.98	–	1/4000–1/30	Yes	–	Iso 100–6400^*2
	59.94, 50.00	–	1/4000–1/60		–
Av Movie Aperture-Priorityae	29.97, 25.00, 24.00, 23.98	1/4000–1/30	–	–	Yes	Iso 100–6400 (H1: 12800)^*1	–
	59.94, 50.00	1/4000–1/60	–	–
M Movie Manual Exposure	29.97, 25.00, 24.00, 23.98	–	1/4000–1/30	–	Yes	Iso 100–6400^*3	100–6400 1/3 Or 1/-Stop Increments (H 12800)^*3
	59.94, 50.00	–	1/4000–1/60	–

Iso Speed For Still Photos During Movie Shooting:
*1: Iso 100 – Iso 3200
*2: Iso 100 – Iso 6400
*3: Same As The Iso Speed Used For Movie Shooting.

Exposure Compensation

Up To ±3 Stops In 1/3-Stop Increments
* For Movies, Even If Exposure Compensation Has Been Set Beyond ±3 Stops, Exposure Compensation Up To Only ±3 Stops Will Be Applied.
* For Still Photos, Exposure Compensation Up To ±5 Stops Can Be Applied.

Lcd Monitor

Type	Tft Color, Liquid-Crystal Monitor
Screen Monitor Size	3.2-Inches (Screen Aspect Ratio 3:2) Approx. 8.11cm (7.13cm Width, 5.19cm Height)
Pixels	Approx. 1.04 Million Dots
Coverage	Approx. 100% Approx. 170° Vertically And Horizontally
Brightness Control	Auto: Brightness Adjusted Automatically By The Light Sensor * Adjustable To One Of Three Levels: Darker, Standard, Brighter Manual: Adjustable To One Of Seven Brightness Levels
Coating	Clear View Lcd Ii * Glass Surface Has An Anti-Reflective Ar Coating.
Interface Languages	25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese)

Playback

Image Display Format	Single Image, Single Image + Image-Recording Quality/Shooting Information, Histogram, 4- Or 9-Image Index, Magnified View (Approx. 1.5x-10x), Rotated Image (Auto/Manual), Image Jump (By 10/100 Images, Index Screen, By Shooting Date, By Folder), Two-Image Comparative Display, Slide Show (All Images/Selected By Date/Folder), Star Rating
Highlight Alert	With Single-Image Display (Info.) And Single-Image Display, Overexposed Highlight Areas Will

Quick Control Function

Items

The Following Functions Can Be Set:
Shutter Speed, Aperture, Iso Speed, Exposure Compensation, Aeb, Flash Exposure Compensation, Af Point Selection (Including Af Area Selection Modes), Picture Style, White Balance, Wb Correction, Metering Mode, Auto Lighting Optimizer, Recording Function Switching, Image-Recording Quality, Af Mode, Drive Mode, And Custom Controls (Camera Controls/Buttons Customization).

Image Protection And Erase

Protection	Erase Protection Can Be Applied Or Canceled For A Single Image, All Images In A Folder Or All Images In The Card
Erase	Erase A Single Image, Selected Images, All Images In A Folder, All Images In A Card Or Erase Only Unprotected Images

Direct Printing

Compatible Printers	Pictbridge-Compatible Printers
Printable Images	Raw And Jpeg Images Complying To Design Rule For Camera File System * Movies Cannot Be Printed

Digital Print Order Format

Dpof	Version 1.1 Compatible

Direct Image Transfer

Compatible Images

Jpeg And Raw Images And Movie
For Raw+Jpeg, Only The Raw Or Jpeg Image Or Both Images Can Be Transferred

Customization

Custom Functions	16 Custom Functions Settable With The Camera
Custom Controls	The Following Camera Controls Can Be Customized By Assigning The Desired Function: Shutter Button Halfway Pressing, Af-On Button, Ae Lock Button, Depth-Of-Field Preview Button, Lens Af Stop Button, Multifunction Button, Set Button, Main Dial, Quick Control Dial, And Multi-Controller
Camera User Settings	Current Camera Settings Can Be Registered To C1, C2 And C3 On The Mode Dial (Automatic Registration Update Is Possible)
My Menu Registration	Up To Six Top-Tier Menu Options And Custom Function Settings Can Be Registered

Con Interface

Usb Terminal	For Personal Computer Communication And Direct Printing (Usb 3.0)
Video Out Terminal	(1) Video Out Terminal: Ntsc/Pal Selectable (2) Mini-Hdmi Out Terminal
Extension System Terminal	For Connection To Wft-E7a (Version 2) And Gps Receiver Gp-E2
Gigabit Ethernet	The Rj-45 Jack Is Not Built-In And Is Only Available Via The Wireless File Transmitter Wft-E7a (Version 2)

Power Source

Battery

One Battery Pack Lp-E6
Ac Power Can Be Supplied With The Ac Adapter Kit Ack-E6

Battery Life

Camera Body Only:

Shooting Method	Temperature	Possible Shots
Viewfinder Shooting	73°F/ 23°C	Approx. 700
Viewfinder Shooting	32°F/ 0°C	Approx. 660
Live View Shooting	73°F/ 23°C	Approx. 220
Live View Shooting	32°F/ 0°C	Approx. 210

With Battery Grip:

Shooting Method	Battery	Temperature	Possible Shots
Viewfinder Shooting	Lp-E6 X 2	73°F/ 23°C	Approx. 1.400
	Lp-E6 X 2	32°F/ 0°C	Approx. 1,320
	Size Aa/Lr6 Alkaline Batteries	73°F/ 23°C	Approx. 140
	Size Aa/Lr6 Alkaline Batteries	32°F/ 0°C	Approx. 14
	Size Aa/Ni-Mh Batteries	73°F/ 23°C	Approx. 680
	Size Aa/Ni-Mh Batteries	32°F/ 0°C	Approx. 630
Live View Shooting	Lp-E6 X 2	73°F/ 23°C	Approx. 440
	Lp-E6 X 2	32°F/ 0°C	Approx. 420
	Size Aa/Lr6 Alkaline Batteries	73°F/ 23°C	–
	Size Aa/Lr6 Alkaline Batteries	32°F/ 0°C	–

* Based On Cipa Testing Standards

Battery Check

Automatic Battery Check When The Power Switch Is Turned On:
Displayed In 6 Levels:

Battery Level Displayed On Lcd Panel And In Viewfinder.
Battery Information Can Be Checked With The [Battery Info.] Menu.
If Battery Grip Bg-E11 Is Used With Size Aa/Lr6 Batteries; The Battery Level Is Displayed In Four Levels Instead.

Power Saving

Power Turns Off After The Set Time (1, 2, 4, 8, 15 Or 30 Minutes) Of Non-Operation Elapses.

Date Time Battery

Cr1616 Lithium Battery

Start Up Time

Approx. 0.1 Sec

Dimensions And Weight

Dimensions W X H X D	Approx. 5.98 X 4.58 X 3.01 In. (152.0 X 116.4 X 76.4mm)
Weight	Approx. 32.80 Oz. / 930g (Based On Cipa Standards) Approx. 29.80 Oz./ 845g (Body Only)

Operating Environment

Operating Temperature Range	32-104°F/0-40°C
Operating Humidity Range	85% Or Less

Dioptric Lenses

Dioptric Adjustment Lens Eg (-4)

The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera. Please see the Compatibility tab for a list of compatible EOS cameras.

Dioptric Adjustment Lens Eg (-3)

Dioptric Adjustment Lens Eg (+2)

Dioptric Adjustment Lens Eg (+3)

Dioptric Adjustment Lens Eg (-2)

Dioptric Adjustment Lens Eg (+1)

Dioptric Adjustment Lens Eg (0)

Controllers: Remotes / Wireless / Microphones

Remote Control RC-6

Remote Control for EOS cameras.

Wireless Controller for EOS LC-5

Extended range wireless controller system.

Timer Remote Controller TC-80N3

Remote switch for EOS cameras with the N3-type socket. This remote switch has a self-timer, interval timer, long exposure timer and exposure-count setting feature. The timer can be set from 1 second to 99 hours. A new dial enables you to easily enter the numeric settings with a single thumb. It has an illuminated LCD panel and a 2.6ft/80cm cord.

Remote Switch RS-80N3

Remote switch for EOS cameras with the N3-type socket to prevent camera shake for super telephoto shots, macro photography shots and bulb exposures. The Remote Switch works just like a shutter button, enabling halfway or complete pressing. It has a shutter-release lock and a 2.6ft/80cm cord.

Cables & Cords

HTC-100

Mini-HDMI Cable: connects Canon HD Camcorders/select PowerShot Cameras to HDMI compatible TV.

USB Cable IFC-500U II

The Canon IFC-500U II USB Interface Cable enables you to transfer your camera pictures to a computer fast. The cable connects to your camera and to the USB port on your PC or MAC Computer.

USB Cable IFC-150AB II

The Canon IFC-150AB II USB Interface Cable enables you to connect WFT-E7A (ver.1) wireless transmitter to your EOS camera. The WFT-E7A (ver.1) wireless transmitter can be used with the EOS cameras if upgraded to firmware Ver. 1.1.0 or later and using separately sold Canon IFC-150AB II USB Interface Cable or Canon IFC-40AB II USB Interface Cable.

USB Cable IFC-150U II

The Canon IFC-150U II USB Interface Cable enables you to transfer your camera pictures to a computer fast. The cable connects to your camera and to the USB port on your PC or MAC Computer.

Cases / Gadget Bags

Deluxe Gadget Bag 10EG

This gadget bag is an excellent value, with all the quality material of the Professional 1, at a slightly smaller size. It is designed to hold two 35mm SLR bodies, 5 - 8 lenses, plus film and accessories. It features full padding and interior partitions, leather reinforcing, high strength quick-release buckles, padded exterior pockets, leather snap handle and shoulder strap. Size: 10.5" (W) x 8"(H) x 7.5" (D)

Digital Gadget Bag 100DG

Designed especially for digital SLRs. Can hold your cameras, lenses, accessories and even a laptop computer. Durable, water-repellent nylon exterior. Padded interior dividers and easy-access storage pockets.

Professional Gadget Bag 1EG

Large gadget bag for the traveling professional. Size: 14.2" (W) x 8.7"(H) x 8.3"(D). This bag is designed to hold two 35mm SLR camera bodies, seven to ten lenses, flash, film, accessories, etc. It features full padding and interior dividers for cameras and lenses, as well as padded outside pockets.Features adjustable tripod straps, and high strength buckles for the main compartment. The Canon logo is embroidered on the top flap.

Gadget Bag 2400

Fits DSLR and Standard Lens Kit. Made from Cordura Nylon. Large Zippered Front Accessory Pocket. Zippered Mesh Pocket Inside Top Lid. Two Side Accessory Zippered Pockets. Tripod Loops on Bottom. Five Movable, Padded Internal Dividers. Two Strap Handles with Grip. Removable Shoulder Strap. Rubber Feet for Ground Protection.

Deluxe Gadget Bag 100EG

Waterproof bag holds 1-2 cameras and 3-4 lenses with room for accessories. Front and Rear zippered pouchs. Zippered full-length mesh pouch inside top cover. Divider system for secure storage and easy access. Size: 9" (W) x 7" (H) x 5.5" (D)

Digital Gadget Bag 200DG

Size 10.5"(W) x 7.5"(H) x 7"(D)

Deluxe Back Pack 200EG

Backpack with carry handle and detachable strap. Holds 1-2 Cameras bodies, 3-4 lenses and accessories. Inside measurements (W x H x D): 10 x 14.75 x 5 inches. Rugged nylon, water-repellent, urethane coated for extra durability. Well-arranged divider system for secure storage and easy access. Lightweight construction, padded shoulder straps and back for comfort. Front webbing ideal for storing a light jacket. Tripod carrying straps. Color: Black with Olive.

Cases & Straps

Hand Strap E2

The Canon Hand Strap E2 is designed to add support and comfort to hand-holding a Canon SLR camera. The strap attaches to the eyelets at the sides of the camera.

Wide Strap EW-100DB V

Wide strap for EOS Cameras.

Wide Strap EW-100 DB IV

Wide strap for EOS Cameras.

Adapters / Chargers / Couplers /Stations

Angle Finder C (incl. Adapter Ec-C, Ed-C)

Angle Finder C lets you adjust the viewing angle while providing a 2.5x magnification for critical focusing with a full screen image that also shows exposure data.

DC Coupler DR-E6

When shooting indoors, in a studio or on a tabletop, use this DC coupler to provide uninterrupted power to your Canon Digital SLR.

Battery Charger LC-E6

Battery Charger for NP-E6 Li-ion Batteries.

Car Battery Cable CB-570

Combine the CB-570 with the CG-570 Battery Charger and charge your batteries directly from your car for the ultimate in power supply convenience.

Car Battery Charger CBC-E6

Car battery charger for Canon EOS Digital SLR LP-E6 battery.

Batteries & Grips

Battery Pack LP-E6N

Rechargeable lithium-ion battery. Compatible with Canon LC-E6 and Canon LC-E6E battery chargers.

Viewing Accessories / Eye Cups / Eye Frames

Anti-Fog Eyepiece Eg

The Anti-Fog eyepiece uses specially treated advanced-process glass, which prevents condensation or fogging. Designed for use in warm and humid or cold weather when fogging is most likely to occur, and attaches easily to reduce condensation and help you maintain a clear view of your subject.

Eyecup Eg

Canon Eyecup EG for EOS Digital Cameras.

Software & Drivers

Filter & Sort Filtrar y ordenar Filtrar e ordenar

All Todos Tudo

Drivers Controladores Drivers

Software & Utilities Software y Utilitarios Software e utilitários

Firmware Firmware Firmware

CLEAR ALL Borrar Todo APAGAR TUDO

VIEW RESULTS Ver Resultados VER RESULTADOS

<p>Software & drivers are specific to your operating system. Not all software & drivers are compatible with operating systems and versions.</p>

Results will appear after selecting an Operating System and Version above.

Manuals

Brochures

FAQs

Sorry, No Results matched

1- of Results

Advisories

Title Firmware Notice: Firmware Version 1.2.0 for the Wireless File Transmitter WFT-E7

Advisory Type

Date 06.17.15

VIEW

Title Firmware Notice: Firmware Version 2.0.0 for the GPS Receiver GP-E2

Advisory Type

Date 06.18.15

VIEW

Title Firmware Update: EOS 5DS Firmware Version 1.1.4

Advisory Type

Date 02.09.21

VIEW

Title Firmware Notice: EOS 5DS Firmware Update, Version 1.1.2

Advisory Type

Date 11.29.17

VIEW

Title Firmware Notice: To Owners of the EOS 5DS / EOS 5DS R Digital SLR Cameras

Advisory Type

Date 08.25.16

VIEW

Title Firmware Notice: Wireless File Transmitter WFT-E7 Firmware Update, Version 1.2.1

Advisory Type

Date 01.27.16

VIEW

Title Service Notice: Regarding the security advisory for Canon digital cameras related to PTP (Picture Transfer Protocol) communication functions and firmware update functions

Advisory Type

Date 08.06.19

VIEW

Apps

Software Development Kit

Wireless Help

How-to Video

Fax Help

Technical Warranty Info

Service Upgrades

Calibration

Additional Support

Awards

GET PRODUCTS

Want to buy a product? Let us help you find where you can.

WHERE TO BUY

GET SUPPORT

Need help with your product? Let us help you find what you need.

PRODUCT SUPPORT

GET SERVICE

Need to service your product? Let us help you find where you can.

SERVICE LOCATOR

Explore null | Canon Latin America

EOS 5DS

The Freedom of High Resolution
