XF300

The Canon XF300 Professional Camcorder features MPEG-2 4:2:2 50Mbps recording to Compact Flash (CF) cards captured through a Genuine Canon HD L-Series lens and three Canon Native 1920x1080 CMOS Image Sensors. Demanding users will find a camcorder that can be tailored to fit their needs - and at an affordable cost.

WHERE TO BUY

PRODUCT ADVISORIES

In The Box

XF300 Camcorder with lens cap
Lens Hood
Eyecup
Battery Pack BP-955
Compact Power Adapter CA-930
DC Cable DC-930
Wireless Controller WL-D6000
Shoulder Strap SS-1200
Component Cable DTC-1500
Canon XF Utilities Disc

Canon continues to innovate and develop image acquisition products for the most demanding professional. The Canon XF300 Professional Camcorder features 50Mbps MPEG-2 4:2:2 recording to Compact Flash (CF) Cards for unsurpassed image quality and efficient, robust workflow at an affordable price. It is ideally suited to match the requirements of electronic newsgathering (ENG) crews, independent filmmakers, documentary producers, event videographers and military agencies.

Utilizing file-based MPEG-2 compression with an MXF File Wrapper ensures the widest compatibility with existing industry infrastructure, metadata and non-linear editing (NLE) systems. And 4:2:2 color sampling provides ultra-fine transitions in tone and color for maintaining the highest quality image for use in advanced post production.

A newly developed Genuine Canon 18x HD L-Series Lens along with three Canon native 1920 x 1080 CMOS Image Sensors delivers pristine image quality.

The XF300 also offers multiple recording bit rates, resolutions and variable frame rates to expand your creative flexibility, and allow you to work in virtually any production environment. And complete customization over the image, display and operation makes the XF300 a camcorder that can be tailored to fit your individual needs.

Expand All

MPEG-2 4:2:2 50Mbps Codec (Canon XF Codec)

MPEG-2 compression is both highly reliable and versatile. Developed by the Moving Pictures Expert Group (MPEG), it is one of the most widely used compression schemes in the industry for camera acquisition, over the air broadcast, cable and satellite TV. Canon’s adaptation of MPEG-2 for the XF300 Professional Camcorder, named the Canon XF Codec, ensures the widest compatibility with existing industry infrastructure and non-linear editing (NLE) systems. As well, by using an MXF file wrapper, video and audio can be wrapped in a single file along with important metadata.

The XF300 supports the highest HD quality with Full HD 1920x1080 resolution, up to 50Mbps bit rate and 4:2:2 color sampling.

4:2:2 color sampling provides twice the color resolution of HDV and other codecs that use 4:2:0 color sampling. 4:2:2 provides ultra-fine transitions in tone and color and maintains the highest quality image for use in post production processes such as chroma keying, color grading, advanced compositing and effects.

The codec’s 50Mbps constant bit rate provides the bandwidth needed to capture the XF300’s superior resolution and color in spectacular detail.

Record to affordable Compact Flash Cards

Unlike other camcorders which use proprietary memory systems, the XF300 Professional Camcorder records to cost effective Compact Flash (CF) cards. The camcorder features two CF card slots and offers versatile recording functions including:

Relay recording:: When one CF card becomes full, the camcorder automatically switches video recording to the other CF card.
Hot swapping:: Media can be replaced without turning off the camcorder. And while recording, the other card can be removed without interruption.
File copy and backup:: Files may be copied from one card to the next – ideal for backing up when on location.
Pre Record:: Perfect for news crews and live event shooters, the camcorder continuously buffers approximately three seconds of video in memory. When the Record button is pressed, recording begins and the contents of buffer memory are added, so you never miss an important shot.

Recording Time Chart

BIT RATE

CF Card Capacity	50Mbps	35Mbps	25Mbps
2GB	5 Minutes	5 Minutes	10 Minutes
4GB	10 Minutes	10 Minutes	20 Minutes
8GB	20 Minutes	25 Minutes	40 Minutes
16GB	40 Minutes	55 Minutes	80 Minutes
32GB	80 Minutes	110 Minutes	155 Minutes
64GB	160 Minutes	225 Minutes	310 Minutes
128GB	320 Minutes	445 Minutes	625 Minutes

File based recording facilitates workflow by reducing transfer times when moving video to non-linear editing (NLE) systems. Additionally, metadata can be input at image acquisition and imagery may be reviewed immediately after recording to ensure every shot is captured and logged correctly.

The following compact flash cards have been tested by Canon and are compatible with this product.
Manufacturer	Product name	Capacity	Model number
SanDisk*	ExtremePro	64GB	SDCFXP-064G-J91
		32GB	SDCFXP-032G-J91
		16GB	SDCFXP-016G-J91
	Extreme	32GB	SDCFX-032G-J61
		16GB	SDCFX-016G-J61
		8GB	SDCFX-008G-J61
Hagiwara SYS-COM*	Z III	8GB	HPC-CF8GZ3U5
Hagiwara SYS-COM*	Z III	4GB	HPC-CF4GZ3U5
Lexar**	Professional x300	16GB	LCF16GBERBJP300
		8GB	LCF8GBERBJP300
		4GB	LCF4GBERBJP300
	Professional x600	16GB	LCF16GBCRBJP600
	Professional x600	8GB	LCF8GBCRBJP600
Delkin Devices***	CombatFlash	32GB	DDCFCOMBAT-32GB
		16GB	DDCFCOMBAT-16GB
		8GB	DDCFCOMBAT-8GB
Transcend***	600x CompactFlash Card	32GB	TS32GCF600
Transcend***	600x CompactFlash Card	16GB	TS16GCF600
Canon makes no representations or warranties with respect to any third party accessory or product mentioned herein.

* Fully operational in all modes.
** Fully operational in all modes with Firmware Version 1.0.1.0 upgrade. Click the Drivers & Software tab above to download the most up to date firmware.
*** Not operational when using slow motion modes.

Major NLE Software Compatibility

Canon’s XF Codec is supported by the industry’s leading manufacturers: Adobe, Apple, Avid and Grass Valley. This ensures the widest compatibility with existing infrastructure and non-linear editing (NLE) software.

NLEs	Windows	Mac
Adobe CS5 or later	Yes2	Yes
Apple Final Cut Pro 6.0.3 or later3	-	Yes
Avid Media Composer 4.0.5 or later4 Avid NewsCutter 8.0.5 or later 4	Yes	Yes
Avid Media Composer 6.0 NewsCutter 10.0 for 64bit OS Available: End of January 2012	Yes	Yes
EDIUS Pro 5.5 or later1	Yes	-

1 The software company will do the compatibility
2 Need to specify as an MXF file

3	A	When ingesting clips that were recorded using the following video configurations: [1] 50Mbps (4:2:2), 1280x720, 30P, [2] 50Mbps (4:22), 1280x720, 25P or [3] 50Mbps (4:2;2), 1280x720, 24P, the clips cannot be used in Final Cut Pro if Native is selected in the “Transcode to” (“Target Format”) column. Select instead one of the ProRes422 options.
	B	In the Log and Transfer window, relay clips (clips recorded spanning two or more CF cards) are not handled as one clip but are instead treated and ingested as separate, independent clips.
	C	When ingesting clips with Native selected in the “Transcode to” (“Target Format”) column, a name other than Canon will appear in the Compressor field. However, the clips will be correctly ingested.

4	A	Clips that were recorded using the 50Mbps (4:2:2), 1280x720, 24P video configuration cannot be used with Avid Media Composer 4.0.5/5.0.0 & NewsCutter 8.0.5/9.0.0.
	B	Clips recorded using the 25Mbps (4:2:0), 1440x1080, 30P video configuration will be treated by Avid Media Composer 4.0.5/5.0.0 & NewsCutter 8.0.5/9.0.0 as 60i clips. To edit as a 30P project, please use clips recorded using the 50Mbps (4:2:2),30P, or 35Mbps (4:2:0), 30P video configurations.
	C	When linking MXF files using the Link to AMA File(s) menu option, a name other than Canon may appear in the Video properties. However, the clips will be correctly linked.

Genuine Canon 18x HD L-Series Lens

Inspired by the same high level of optical precision used in Canon broadcast and photographic lenses, the Canon XF300 Professional Camcorder incorporates a Genuine Canon 18x HD L-Series lens that features a wide and impressive zoom range of 29.3 – 527.4mm (35mm equivalent). The lens incorporates High Index – Ultra-low Dispersion (HI-UD), Ultra-low Dispersion (UD) and aspherical elements to minimize chromatic aberration while delivering a resolution of 1,000 TV lines.

In Full Manual Mode, the lens features mechanical stops for both the zoom and focus systems. Mechanical (Hard) end stops ensure that repeatable and dependable focus and zoom can be achieved when manually turning the lens barrel. These mechanical stops also allow for compatibility with many third-party remote camera controllers that require end stops in order to calibrate themselves. Additionally, display distance indicators on the lens barrel allow the operator to easily set the desired focus distance and move between focus points while recording.

For enhanced versatility and durability, the lens is equipped with three built-in glass, neutral density (ND) filters (¼, 1/16 and 1/64) and a six-blade metal aperture iris.

SuperRange Optical Image Stabilizer

The XF300 also incorporates a newly designed SuperRange Optical Image Stabilization system (lens shift) with three modes: Standard, Dynamic and Powered.

Standard:: Lens shift is controlled so that the maximum compensation angle is constant from wide angle through telephoto.
Dynamic:: Stabilization changes throughout the zoom range to minimize more pronounced shaking. This is especially useful at wide-angle focal lengths when walking.
Powered:: Vibration is suppressed at the telephoto end of the range, where shake is most apparent due to high magnification.

Instant AF
When shooting high definition video, sharp focus becomes more critical than ever. Canon's proprietary Instant AF system combines an external AF sensor with Canon's legendary auto focus system for fast and accurate focus. Together, the two sensors reduce focusing time - even in low-light, low contrast, or high brightness situations - and improve focusing performance on difficult subjects.

The XF300 gives you a choice of two AF modes for different shooting applications:

Normal AF changes focus at a speed that appears natural and doesn't distract the viewer.
Instant AF changes focus as rapidly as possible and is designed for applications in which quick focus is more important than other considerations - for example, in news gathering or documentary work.

Optional Canon WA-H82 Wide Attachment (0.8X)
Optically matched for the XF300’s HD lens, the WA-H82 Wide Attachment increases wide angle capability to approximately 24mm (35mm equivalent), while maintaining the versatility of a 4X zoom range.

* Instant AF is not possible with the WA-H82.

Three Canon Native 1920 x 1080 CMOS Image Sensors

Newly designed and manufactured exclusively by Canon, the XF300 Professional Camcorder incorporates three native 1920 x 1080 CMOS Image Sensors, which deliver outstanding Full HD video recording with minimal noise. These 1/3-inch sensors enable a compact lens and body design, for greater mobility and quick shooting.

Multiple Recording Bit Rates, Resolutions, and Variable Frame Rates

Multiple recording modes, resolutions and frame rates make the XF300 Professional Camcorder creatively flexible and able to work in virtually any production environment. From the highest quality 50Mbps Full HD, to the HDV compatible 25Mbps, users will find the camcorder capable of taking on any job.

Mode	Resolution	Frame Rate
50Mbps (CBR) 4:2:2	1920 x 1080	60i/30p/24p
50Mbps (CBR) 4:2:2	1280 x 720	60p/30p/24p
35Mbps (VBR) 4:2:0	1920 x 1080	60i/30p/24p
35Mbps (VBR) 4:2:0	1280 x 720	60p/30p/24p
25Mbps (CBR) 4:2:0	1440 x 1080	60i/30p/24p

Variable Frame Rates
The XF300 Professional Camcorder offers a full range of selectable frame rates. You can choose between 60i, 60p, 30p and 24p settings to achieve just the look you want.

60p Frame Rate (Available in 720p Mode Only)
In addition to the standard interlaced frame rate of 60i, the XF305 is able to capture at 60p. 60p is rapidly becoming the standard for fast-action sports.
30p Frame Rate
30p is the ideal frame rate for video viewed on the Internet. It is also an excellent choice for frame grabbing during playback.
24p Frame Rate
24p matches the frame rate of a traditional film camera giving the same cadence and temporal motion needed for a "film look."

Optional 50i/50p/25p Frame Rate Upgrade
For added versatility, XF300 can be customized to record in both 60i/50i, 60p/50p, and 24p/25p (this optional upgrade must be performed by a Canon Factory Service Center).

Slow Motion & Fast Motion
Slow and Fast Motion Modes allow the XF300 to record a different frame rate than the playback frame rate, resulting in either a fast or slow motion effect during playback. Since the camera is recording real frames and modifying the playback rate, there is no quality loss and maximum image quality is maintained.

In 1080 mode, fast motion is supported up to 2.5x the normal rate and as slow as 1/2.5x. In 720 mode, fast motion is supported up to 5x the normal rate and as slow as 1/1.25x.

Mode	Resolution	Playback Rate	Record Rates
50Mbps	1920 x1080	30p/24p	12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30
50Mbps	1280 x 720	60p/30p/24p	12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60
35Mbps	1920 x 1080	30p/24p	12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30
35Mbps	1280 x 720	60p/30p/24p	12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60
25Mbps	1440 x 1080	30p/24p	12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30

Interval Recording
With this feature, users can program the camera to record a specified number of frames at specified intervals. The technique can be used to observe natural phenomena over extended periods, making it ideal for time-lapse applications. The interval can be set in 25 levels ranging from 1 second to 10 minutes.
60i/30p: Selectable between 1, 3, 6 and 9 frames
24p/60p: Selectable between 2, 6 and 12 frames

Frame Recording
This setting allows a specified number of frames to be recorded – ideal for projects such as clay animation.
60i/30p: Selectable between 1, 3, 6 and 9 frames
24p/60p: Selectable between 2, 6 and 12 frames

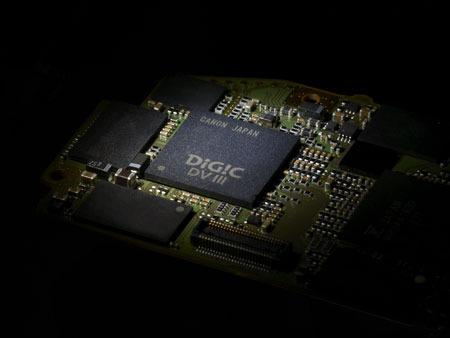

Canon DIGIC DV III Image Processor

The XF300 Professional Camcorder features Canon's powerful DIGIC DV III Image Processor, which provides enhanced shading, lifelike tonal gradations, new custom picture settings and lower power consumption. DIGIC DV III is also the high-speed engine which powers Genuine Canon Face Detection. On-the-go videographers will appreciate the ability to track one subject in a crowd of people.

Brilliant Ergonomics

La Videocámara Profesional XF300 cuenta con un nuevo estándar en lo que se refiere a diseños ergonómicos en cámaras compactas profesionales. Está diseñada desde cero para mejorar la comodidad y la facilidad de uso de la tomas sin trípode. Los usuarios verán una cámara bien balanceada ya que la empuñadura se encuentra más cerca del acceso óptico, próximo al centro de gravedad de la cámara. Esto permite que el operador mantenga fácilmente la estabilidad de la toma, a la vez que minimiza la fatiga en el brazo. Los controles están adecuadamente colocados para que la cámara asemeje una extensión natural del cuerpo del operador.

Además, la XF300 tiene un estilo rediseñado para que el uso de la videocámara sea altamente intuitivo. Los nuevos usuarios y los usuarios que han cambiado de producto, se sentirán inmediatamente familiarizados con el diseño de los botones, el sistema de menú y los controles de la cámara, además de la facilidad de uso al instante con organización en la operación y los controles, los cuales cumplen con los estándares de la industria.

Large, 4.0-inch, 1.23-megapixel LCD Monitor and High Resolution, 1.55-megapixel EVF

4.0-inch, 1.23-megapixel LCD Monitor
A 4.0-inch, 1.23-megapixel LCD monitor provides a large, accurate area for critical focus confirmation and approximately 100% field of view. The display is freely rotating- able to open on both the right and left side of the camera body. The display also features an additional 35º of forward movement past normal position. The large range of movement makes the display adjustable for easy viewing even in the most difficult shooting positions. The flexibility and fluidity of movement also makes the display less susceptible to accidental damage, compared to a more rigid design, if bumped during recording.

High Resolution, 1.55-megapixel EVF

The XF300 Professional Camcorder features a 0.52-inch, 1.55 Megapixel Color EVF and approximately 100% field of view coverage for comfortable viewing and accurate judgment of composition, focus and color. The angle of the viewfinder is adjustable for additional user comfort and when using the LCD display for monitoring. The EVF can be used as a cheek pad to ensure three points of contact when hand holding and maximizing stability. This makes the camcorder much easier to manage during extended recording periods and long days of shooting.

Focus Assist Functions
Edge Monitor Focus Assist System
With Canon’s new Edge Monitor Focus Assist system, a red and green monitor is shown at the bottom of the LCD Display and three red focus check areas are shown across the display. The green waveform shows overall focus of the image, while the red waveform shows the focus status of the focus check boxes. Through this dynamic focus feedback, the user can intuitively tune focus in a scene and quickly change the zone of focus.

Peaking/Magnify
Two peaking modes and a magnify focus assist function are available in standby and record mode (LCD monitor and EVF), making it extremely easy for the XF300 operator to check and confirm critical focus.

Exceptional Customization

Users of the XF300 Professional Camcorder have full manual control of all camera functions to adapt to both technical and artistic challenges when shooting. For maximum customization, users have access to Custom Picture Settings, Custom Functions and Custom Display Options to tailor the camera to match their creative and production needs. Any combination of these items can be saved to an SD memory card for easy setup and matching of multiple XF305 and XF300 camcorders.

Custom Picture Settings
You can manually set an extensive variety of image quality adjustments and store them as 9 different presets. The adjustments include: Gamma, Black Level, Black Gamma, Low Key Saturation, Knee, Sharpness, Noise Reduction, Skin Detail, Selective Noise Reduction, Color Matrix, White Balance, Color Correction and Setup Level.

Gamma	Normal 1
	Normal 2
	Normal 3
	Normal 4
	Cine 1
	Cine 2
Black	Master Pedestal	-50 → +50
Master Black	Red	-50 → +50
	Green	-50 → +50
	Blue	-50 → +50
Black Gamma	Level	-50 → +50
	Range	-5 → +50
	Point	-1 → +50
Low Key Saturation	Enable	On
	Enable	Off
	Level	-50 → +50
Knee	Enable	On
	Enable	Off
	Auto	On
	Auto	Off
	Slope	-35 → +50
	Point	50 → 109
	Saturation	-10 → +10
Sharpness	Level	-10 → +50
	H. Detail Frequency	-8 → +8
	HV Detail Balance	-8 → +8
	Limit	-50 → +50
	Select	0 → +15
	Knee Aperture	Gain 0 → 9
	Knee Aperture	Slope 0 → 3
	Detail Sharp	Level 0 → 50
		Slope 0 → 3
		Offset 0 → 50
	Coring	Level -30 to +50
		D-Ofst 0 to +50
		D-Curve 0 to +8
		D-Depth -4 to +4
Noise Reduction		Auto
		Off
		1 → 8
Skin Detail	Effect Level	Off
		Low
		Middle
		High
	Hue	-16 → +16
	Chroma	0 → 31
	Area	0 → 31
	Y Level	0 → 31

Selective NR	Effect Level	Off
		Low
		Middle
		High
	Hue	0 → 31
	Chroma	0 → 31
	Area	0 → 31
	Y Level	0 → 31
Color Matrix	Select	Normal 1
		Normal 2
		Normal 3
		Normal 4
		Cine 1
		Cine 2
	Gain	-50 → +50
	Phase	-18 → +18
	R-G	-50 → +50
	R-B	-50 → +50
	G-R	-50 → +50
	G-B	-50 → +50
	B-R	-50 → +50
	B-G	-50 → +50
White Balance	R Gain	-50 → +50
	G Gain	-50 → +50
	B Gain	-50 → +50
Color Correction	Select Area	Off
		A
		B
		A&B
	A Area Select	Phase 0 → 31
		Chroma 0 → 31
		Area 0 → 31
		Y Level 0 → 31
	A Area Revision	Level -50 to +50
	A Area Revision	Phase -18 to +18
	B Area Select	Phase 0 → 31
		Chroma 0 → 31
		Area 0 → 31
		Y Level 0 → 31
	B Area Revision	Level -50 to +50
	B Area Revision	Phase -18 to +18
Setup Level	Level	-50 → +50
	Press	On
	Press	Off
100% Clip	On
100% Clip	Off

Custom Functions
The XF300’s operation can be further fine-tuned through the use of Custom Functions. This allows the camcorder to truly match your shooting style. A total of 12 unique items can be adjusted including: Shockless Gain, Shockless White Balance, AE Response, Iris Limit, Iris Ring Direction, Focus Ring Control and Character Record.

As well, for quick access to commonly used functions, the XF300 features 13 customizable control buttons.

Custom Display
The Custom Display function lets you set 32 display items to create a custom LCD/EVF to suit your specific needs. Items that can be selected include: Zoom Position, Audio Level, Remaining Record Time, Exposure, Object Distance, Time Code and more.

Workflow

Smooth and efficient workflow is an essential part of the production process. Canon’s XF Codec is supported by the industry’s leading manufacturers: Adobe, Apple, Avid and Grass Valley. This ensures the widest compatibility with existing infrastructure and non-linear editing (NLE) software.

Compact Flash Cards
Understanding that accessibility to media is an important part of any file-based workflow, the Canon XF300 Professional Camcorder records to cost-effective Compact Flash (CF) cards, not proprietary media.

MXF Wrapper
The XF300 uses Material Exchange Format (MXF) for its file structure - an internationally standardized container format for the exchange of video and audio material. Using the MXF format, video and audio can be wrapped into a single file along with important metadata. With MXF, the XF300 will not only benefit from the highest level of compatibility with NLE systems, but also with high-end network systems used by many networks and production studios.

Bundled Canon XF Utility Software
Compatible for use on both Mac and Windows platforms, Canon’s XF Utility software provides a simplified first step in the process of managing and playing back your clips.

Additionally, the software can manage lists of clips in a number of display formats, as well as tag, add and edit metadata. It also serves as an efficient means of backing up media.

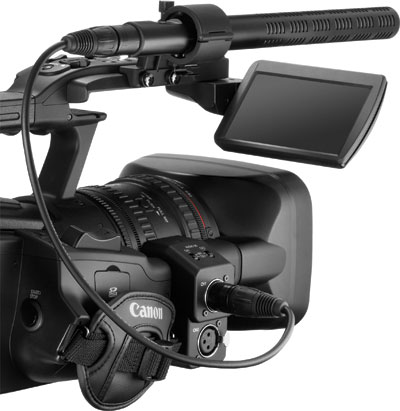

Audio System

A stereo microphone is incorporated into the XF300 Professional Camcorder, as are two XLR audio inputs with +48V phantom power. The built in microphone provides exceptional audio in fast-paced situations while the XLR inputs provide connectivity to external microphones, and other professional audio devices. If you choose, the built-in microphone and XLR input can be used simultaneously.

Audio is recorded in 16-bit PCM format at 48 kHz for amazing quality and fidelity. And both the built in microphone and XLR inputs have the option for automatic or full manual gain control. To prevent variations in the recorded audio level, the dial can also be locked.

The XF300 also includes a 3.5mm headphone terminal with 16 volume settings for accurate audio monitoring.

Connectivity

Aside from providing the professional user with complete control over the image, the Canon XF300 Professional Camcorder also provides complete creative freedom when it comes to inputs and outputs including:

HDMI Output
Component Video Output
Composite Video Output (BNC and 3.5mm)
USB 2.0 Hi-Speed Terminal
Remote Control Terminal (compatible with LANC protocol)

Additional Features

Waveform Monitor and Vectorscope

Videographers depend on these features to confirm accurate exposure and color levels during the capture process. Typically only found on expensive external units, the Canon XF300 Professional Camcorder has a waveform monitor and vectorscope built right into the camera. The waveform monitor shows a detailed view of overall image brightness and RGB components. The onboard vectorscope provides real-time image hue and saturation analysis, making it easy to check color balance and see the result of white balance adjustments.

Intelligent Battery System

The XF300 Professional Camcorder is compatible with Canon’s new BP-955 and BP-975 Intelligent Lithium-ion batteries. These batteries communicate remaining running time (down to the minute) and wear data back to the camcorder, so the user is well-informed at all times. On the outside of the battery, four LED lamps allow battery life to be viewed quickly when in the field. Additionally, the camcorder is compatible with existing Canon BP-900 series batteries. Batteries can also be inserted and removed while the supplied AC power cable is connected.

Photo Capture

For applications such as storyboarding, continuity and publicity shots, the XF300 offers the ability to capture 1920 x 1080 still images. Photos may be captured to an SD memory card during the time of recording, as well as “frame grabbed” during playback.

Color Bars with Reference Tone

Two types of color bars can be selected: Type 1 (SMPTE compliant) or Type 2 (ARIB compliant) 1 kHz Reference Tone: -12dB, -18dB, 20dB or OFF

Support for 9 languages including:

German, Spanish, French, Italian, Polish, Russian, English, Chinese (simplified) and Japanese.

1 Year Parts and Labor Limited Warranty

Product Attributes

Std Def High Def

High Definition

Power Supply Rated

7.4V DC (Battery Pack)

Video Recording System

Compression: MPEG-2 Long GOP
Color Space: 4:2:2 (At 50Mbps Recording)
File Format: MXF
Recording Modes:
50Mbps (CBR) 4:2:2, 1920x1080, (60i/30p/24p),
1280x720 (60p/30p/24p);
35Mbps (VBR) 4:2:0, 1920x1080 (60i/30p/24p),
1440x1080 (60i/30p/24p),
1280x720 (60p/30p/24p);
25Mbps (CBR) 4:2:0, 1440x1080 (60i/30p/24p)

Audio Recording System

2-Channel, PCM Digital Recording, 16-Bit; 48kHz

Image Sensor

(3) 1/3-Inch CMOS

Number Of Recording Pixels

Approx. 2.37 Megapixels (2044 X 1160 Pixels) Each X 3

Effective Pixels

Approx. 2.07 Megapixels (1920 X 1080 Pixels)

Maximum Recording Time

128GB Compact Flash (CF) Card
Greater Capacity Is Possible When Two Cards Are Used.
25Mbps: 625 Minutes
35Mbps: 445 Minutes
50Mbps: 320 Minutes

Lens

Canon 18x HD L Series Zoom, 4.1-73.8mm (35mm Equivalent 29.3 - 527.4mm),
F/1.6-2.8

Focusing System

TVAF Plus External Phase Difference Metering Sensor, Autofocus (Instant AF, Normal AF, Face AF), Manual, Full Manual

Max Shutter Speed

1/2000

Minimum Focusing Distance

20mm (Wide Macro), 1m (Entire Zoom Range)

White Balance

Auto, Manual, Custom (2000K - 15000K In 100K Increments), Daylight, Tungsten

Frame Rate

60i, 60p, 30p, 24p (50i, 50p And 25p Optional Upgrade Available Through Canon Factory Service Center)

Minimum Illumination

Full AUTO Mode: 4.5 Lux (Shutter Speed 1/60, Gain +21dB); Manual Mode: 08 Lux (Shutter Speed 1/4, Gain +33dB), (When 60i Is Selected)

Image Stabilization

SuperRange Optical (Lens Shift) Modes: Standard, Powered, Dynamic, Off

Filter Diameter

82mm

Viewfinder

0.52-Inch Color Widescreen, Approx. 1,555,000 Dots, Approx. 100% Field Of View

Lcd Screen

4.0-Inch Color Widescreen LCD, Approx. 1,230,000 Dots, Approx. 100% Field Of View

Microphone

Stereo Electret Condenser Microphone

Recording Media

CF Card : 2 Slots, Movie Files Only
SD Card: Still Images, Custom Picture Data, Clip Metadata, Custom Settings

Usb Terminal

Mini-B USB 2.0 Hi-Speed

Video Terminal

Component: Output Only
Composite: A/V Terminal 3.5mm Mini-Jack, Output Only, BNC Terminal, Output Only, Signals Can Be Output Simultaneously Through A/V Terminal And BNC Terminal

Audio Terminal

XLR 3-Pin Jack (2), Switchable Between MIC/LINE

Hdmi Terminal

Yes (Type A)

Av Mini Terminal Headphone Terminal

3.5mm Stereo Mini-Jack

Operating Temperature Range

0 - 40° C, 32 - 104° F , 85% Relative Humidity

Dimensions

Approx. 6.0 X 9.3 X 15.0 In. (153 X 236 X 382mm) (Not Including Lens Hood, Eyecup, Grip Belt)

Weight Eyecup Only

5.8 Lbs (2,630 G) (Includes Grip Belt)

Weight

6.5 Lbs (2,940 G) (Includes Grip Belt, Lens Hood, BP-955, CF Card (X1) And SD Card/Not Including Eyecup)

Content

The Following Compact Flash Cards Have Been Tested By Canon And Are Compatible With This Product.
Manufacturer	Product Name	Capacity	Model Number
SanDisk*	ExtremePro	64GB	SDCFXP-064G-J91
		32GB	SDCFXP-032G-J91
		16GB	SDCFXP-016G-J91
	Extreme	32GB	SDCFX-032G-J61
		16GB	SDCFX-016G-J61
		8GB	SDCFX-008G-J61
Hagiwara SYS-COM*	Z III	8GB	HPC-CF8GZ3U5
Hagiwara SYS-COM*	Z III	4GB	HPC-CF4GZ3U5
Lexar**	Professional X300	16GB	LCF16GBERBJP300
		8GB	LCF8GBERBJP300
		4GB	LCF4GBERBJP300
	Professional X600	16GB	LCF16GBCRBJP600
	Professional X600	8GB	LCF8GBCRBJP600
Delkin Devices**	CombatFlash	32GB	DDCFCOMBAT-32GB
		16GB	DDCFCOMBAT-16GB
		8GB	DDCFCOMBAT-8GB
Transcend**	600x CompactFlash Card	32GB	TS32GCF600
Transcend**	600x CompactFlash Card	16GB	TS16GCF600
Canon Makes No Representations Or Warranties With Respect To Any Third Party Accessory Or Product Mentioned Herein.

* Fully Operational In All Modes.
** Not Operational When Using Slow Motion Modes.

Software & Drivers

Filter & Sort Filtrar y ordenar Filtrar e ordenar

All Todos Tudo

Drivers Controladores Drivers

Software & Utilities Software y Utilitarios Software e utilitários

Firmware Firmware Firmware

CLEAR ALL Borrar Todo APAGAR TUDO

VIEW RESULTS Ver Resultados VER RESULTADOS

<p>Software & drivers are specific to your operating system. Not all software & drivers are compatible with operating systems and versions.</p>

Results will appear after selecting an Operating System and Version above.

Manuals

Brochures

FAQs

Sorry, No Results matched

1- of Results

Advisories

Title Safety Notice: Counterfeit Lithium-ion Battery Packs and Chargers

Advisory Type

Date 01.24.12

VIEW

Title Safety Notice: Counterfeit Lithium-ion Battery Packs and Chargers (updated)

Advisory Type

Date 03.20.14

VIEW

Title Service Notice: XF305 / XF300: Firmware Update Version 1.0.4.0

Advisory Type

Date 06.18.12

VIEW

Title Service Notice: XF305 / XF300 Firmware Update, Version 1.0.7.0

Advisory Type

Date 12.22.14

VIEW

Apps

Software Development Kit

Wireless Help

How-to Video

Fax Help

Technical Warranty Info

Service Upgrades

Calibration

Additional Support

Awards

GET PRODUCTS

Want to buy a product? Let us help you find where you can.

WHERE TO BUY

GET SUPPORT

Need help with your product? Let us help you find what you need.

PRODUCT SUPPORT

GET SERVICE

Need to service your product? Let us help you find where you can.

SERVICE LOCATOR

Explore null | Canon Latin America

XF300
