XF100
- XF100 Camcorder with Lens Cap
- Lens Hood
- Battery Pack BP-925
- Compact Power Adapter CA-930
- DC Cable DC-930
- Wireless Controller WL-D6000
- Shoulder Strap SS-1200
- Microphone Holder Unit
- Component Cable CTC-100/S
- Canon XF Utilities Disc
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS
Compact in size, light weight and fully featured, the Canon XF100 Professional Camcorder can be tailored to fit a wide range of individual needs. While sharing many of the capabilities of the Canon XF305 and XF300 Professional Camcorders, including the Canon XF Codec and Compact Flash (CF) recording, the XF100 offers some exciting new features of its own.
Whether used as a companion to the XF305 or XF300 or as a standalone camcorder, the XF100 is geared for a wide range of applications where high image quality, extreme portability, and efficient workflow are of the utmost importance. And with infrared recording and true stereoscopic 3-D production capabilities, the XF100 allows users to explore new creative outlets and emerging markets.
The XF100 utilizes Canon's XF Codec – a file-based MPEG-2 compression with an MXF File Wrapper that ensures the widest compatibility with existing industry infrastructure, metadata and non-linear editing (NLE) systems. The codec's 4:2:2 color sampling provides ultra-fine transitions in tone and color for maintaining the highest image quality needed for advanced post production processing.

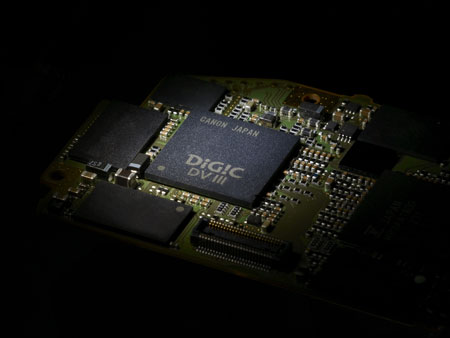

The XF100's newly developed Genuine Canon 10x HD Video Lens along with a Canon native 1920 x 1080 CMOS Image Sensor delivers exceptional image quality. The XF100 also offers multiple recording bit rates, resolutions and variable frame rates to expand creative flexibility, allowing users to work in virtually any production environment.









![]() ![]() The XF100 supports the highest HD quality with Full HD 1920x1080 resolution, up to a 50Mbps bit rate and 4:2:2 color sampling. 4:2:2 color sampling provides twice the color resolution of HDV and other codecs that use 4:2:0 color sampling. 4:2:2 provides ultra-fine transitions in tone and color and maintains the highest quality image for use in post production processes such as chroma keying, color grading, advanced compositing and effects. The codec’s 50Mbps constant bit rate provides the bandwidth needed to capture the XF100's superior resolution and color in spectacular detail. ![]() ![]() ![]() |
![]() Relay recording When one CF card becomes full, the camcorder automatically switches video recording to the other CF card. Hot swapping Media can be replaced without turning off the camcorder. And while recording, the other card can be removed without interruption. ![]() Files may be copied from one card to the next – ideal for backing up when on location. Pre Record Perfect for news crews and live event shooters, the camcorder continuously buffers approximately three seconds of video in memory. When the Record button is pressed, recording begins and the contents of buffer memory are added, so you never miss an important shot. Double Slot Recording For safety and convenience, the Double Slot Recording feature allows you to record simultaneously to each of the two CF cards, providing an instant backup for your footage. Recording Time Chart BIT RATE
File-based recording facilitates workflow by reducing transfer times when moving video to non-linear editing (NLE) systems. Additionally, metadata can be input at image acquisition and imagery may be reviewed immediately after recording to ensure every shot is captured and logged correctly. |
The following compact flash cards have been tested by Canon and are compatible with this product. |
|||
Manufacturer | Product name | Capacity | Model number |
SanDisk* | ExtremePro | 64GB | SDCFXP-064G-J91 |
32GB | SDCFXP-032G-J91 | ||
16GB | SDCFXP-016G-J91 | ||
Extreme | 32GB | SDCFX-032G-J61 | |
16GB | SDCFX-016G-J61 | ||
8GB | SDCFX-008G-J61 | ||
Hagiwara SYS-COM* |
Z III | 8GB | HPC-CF8GZ3U5 |
4GB | HPC-CF4GZ3U5 | ||
Lexar** | Professional x300 | 16GB | LCF16GBERBJP300 |
8GB | LCF8GBERBJP300 | ||
4GB | LCF4GBERBJP300 | ||
Professional x600 | 16GB | LCF16GBCRBJP600 | |
8GB | LCF8GBCRBJP600 | ||
Delkin Devices*** | CombatFlash | 32GB | DDCFCOMBAT-32GB |
16GB | DDCFCOMBAT-16GB | ||
8GB | DDCFCOMBAT-8GB | ||
Transcend*** | 600x CompactFlash Card | 32GB | TS32GCF600 |
16GB | TS16GCF600 | ||
Canon makes no representations or warranties with respect to any third party accessory or product mentioned herein. |
** Fully operational in all modes with Firmware Version 1.0.1.0 upgrade. Click the Drivers & Software tab above to download the most up to date firmware.
*** Not operational when using slow motion modes.
Canon's XF Codec is supported by the industry’s leading manufacturers: Adobe, Apple, Avid and Grass Valley. This ensures the widest compatibility with existing infrastructure and non-linear editing (NLE) software.
Notes
|
![]() Power zoom is available in Constant and Variable settings in 3 modes, Fast (approx. 1.9 – 60 seconds), Normal (approx. 3.0 – 180 seconds) and Slow (approx. 4.0 – 285 seconds). To provide added control, there are 16 predefined steps in Constant mode and rocker switch pressure sensitive or control ring speed management in Variable mode. For enhanced versatility the XF100 offers a built-in gradation type neutral density (ND) filter (approximately 1/8), as well as an eight blade metal aperture iris. ![]() Additionally, a custom dial is available which allows the iris to be controlled. SuperRange Optical Image Stabilizer The XF100 also incorporates a SuperRange Optical Image Stabilization system (lens shift) with four modes: Standard, Powered, Dynamic and Off. ![]() Lens shift is controlled so that the maximum compensation angle is constant from wide angle through telephoto. Powered: Vibration is suppressed at the telephoto end of the range, where shake is most apparent due to high magnification. Dynamic: Stabilization changes throughout the zoom range to minimize more pronounced shaking. This is especially useful at wide-angle focal lengths when walking. Instant AF When shooting high definition video, sharp focus becomes more critical than ever. Canon's proprietary Instant AF system combines an external AF sensor with Canon's legendary auto focus system for fast and accurate focus. Together, the two sensors reduce focusing time - even in low-light, low contrast, or high brightness situations - and improve focusing performance on difficult subjects. The XF100 gives you a choice of five AF modes for different shooting applications:
![]() When shooting with the XF100, the minimum focus distance is 20mm (0.78 inches) at Macro and maintains 60cm (1.97 feet) throughout the entire zoom range. This allows excellent versatility in a wide range of shooting situations. ![]() In contrast to a typical 6-blade iris, the XF100's 8-blade iris captures extraordinarily smooth out-of-focus ‘bokeh' for a more attractive image effect. The additional blades also reduce diffraction of light passing through the iris, allowing for the use of smaller apertures while maintaining image quality. ![]() The Digital Teleconverter extends the reach of the optical zoom, and is selectable by 1.5x, 3x and 6x. This feature is ideal when extreme telephoto shooting is needed such as in sports and wildlife, as well as, surveillance applications for law enforcement and the military. |
![]() ![]() |
![]()
Variable Frame Rates The XF100 Professional Camcorder offers a full range of selectable frame rates. You can choose between 60i, 60p, 30p and 24p settings to achieve just the look you want.
For added versatility, the XF100 can be customized to record in both 60i/50i, 60p/50p, and 24p/25p (this optional upgrade must be performed by a Canon Factory Service Center). Slow Motion & Fast Motion Slow and Fast Motion Modes allow the XF100 to record a different frame rate than the playback frame rate, resulting in either a fast or slow motion effect during playback. Since the camera is recording real frames and modifying the playback rate, there is no quality loss and maximum image quality is maintained. In 1080 mode, fast motion is supported up to 2.5x the normal rate and as slow as 1/2.5x. In 720 mode, fast motion is supported up to 5x the normal rate and as slow as 1/1.25x.
Interval Recording With this feature, users can program the camera to record a specified number of frames at specified intervals. The technique can be used to observe natural phenomena over extended periods, making it ideal for time-lapse applications. The interval can be set in 25 levels ranging from 1 second to 10 minutes. 60i/30p: Selectable between 1, 3, 6 and 9 frames 24p/60p: Selectable between 2, 6 and 12 frames Frame Recording This setting allows a specified number of frames to be recorded – ideal for projects such as clay animation. 60i/30p: Selectable between 1, 3, 6 and 9 frames 24p/60p: Selectable between 2, 6 and 12 frames ![]() |
![]() ![]() |
![]() ![]() The XF100 has the ability to be paired with another XF100 or XF105 camcorder to provide true stereoscopic 3-D recording. It offers several features to assist with 3-D production including OIS Lens Shift to aid in optically aligning the two camcorders. A focal length guide displays the zoom position of each camera in relation to each other and calibrates the zoom distance. The XF100's compact size provides an alternative to large 3-D rigs allowing 3-D crews to work more quickly and efficiently, while providing the needed features to capture exceptional 3-D imagery.
|

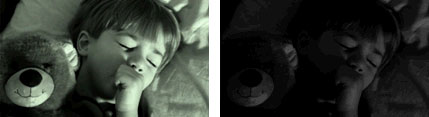

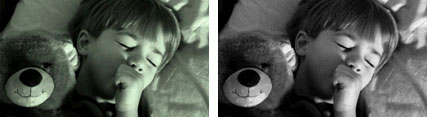

![]() ![]() Image Comparison: Infrared on & off ![]() Image Comparison: Infrared green & white modes |

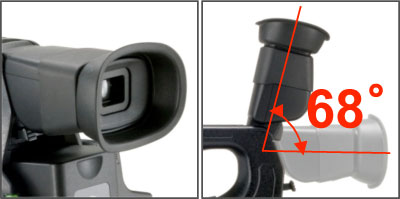

![]() ![]() The XF100 is designed as an ultra-compact camcorder without compromising on features and usability. Its small size makes this camcorder ideal in situations where every inch and ounce count, such as flying to location or going on expedition. It offers amazing image quality yet can easily be placed in the back of a car or carried in a backpack making the XF100 the perfect camera to go anywhere, anytime on a moment’s notice. |
![]() A 3.5-inch, 920,000 Dot LCD monitor provides an ample, accurate area for critical focus confirmation and approximately 100% field of view. The display opens on the left side of the camera body. EVF The XF100 Professional Camcorder features a 0.24-inch, 260,000 Dot Color EVF and approximately 100% field of view coverage for comfortable viewing and accurate judgment of composition. Brightness, contrast, color and backlight are adjustable. The angle of the viewfinder is adjustable up and down through 68º for additional user comfort and when using the LCD display for monitoring. ![]() Focus Assist Functions Edge Monitor Focus Assist System With Canon’s new Edge Monitor Focus Assist system, a red and green monitor is shown at the bottom of the LCD Display and three red focus check areas are shown across the display. The green waveform shows overall focus of the image, while the red waveform shows the focus status of the focus check boxes. Through this dynamic focus feedback, the user can intuitively tune focus in a scene and quickly change the zone of focus. Peaking/Magnify Two peaking modes and a magnify focus assist function are available in standby and record mode (LCD monitor and EVF), making it extremely easy for the XF100 operator to check and confirm critical focus. |
![]() Custom Picture Settings You can manually set an extensive variety of image quality adjustments and store them as 9 different presets in the camera. Up to 20 may be saved to an SD card. The adjustments include: Gamma, Black Level, Black Gamma, Low Key Saturation, Knee, Sharpness, Noise Reduction, Skin Detail, Selective Noise Reduction, Color Matrix, White Balance, Color Correction and Setup Level.
Custom Functions The XF100’s operation can be further fine-tuned through the use of Custom Functions. This allows the camcorder to truly match your shooting style. A total of 15 unique items can be adjusted including: Shockless Gain, Shockless White Balance, AE Response, Iris Limit, Iris Ring Direction, Focus Ring Control and Character Record. As well, for quick access to commonly used functions, the XF100 features 10 customizable control buttons. Custom Display The Custom Display function lets you set 32 display items to create a custom LCD/EVF to suit your specific needs. Items that can be selected include: Zoom Position, Audio Level, Remaining Record Time, Exposure, Object Distance, Time Code and more. |
Smooth and efficient workflow is an essential part of the production process. Canon’s XF Codec is supported by the industry’s leading manufacturers: Adobe, Apple, Avid and Grass Valley. This ensures the widest compatibility with existing infrastructure and non-linear editing (NLE) software. ![]() Understanding that accessibility to media is an important part of any file-based workflow, the Canon XF100 Professional Camcorder records to cost-effective Compact Flash (CF) cards, not proprietary media. MXF Wrapper The XF100 uses Material Exchange Format (MXF) for its file structure -an internationally standardized container format for the exchange of video and audio material. Using the MXF format, video and audio can be wrapped into a single file along with important metadata. With MXF, the XF100 will not only benefit from the highest level of compatibility with NLE systems, but also with high-end network systems used by many networks and production studios. Bundled Canon XF Utility Software Compatible for use on both Mac and Windows platforms, Canon’s XF Utility software provides a simplified first step in the process of managing and playing back your clips. Additionally, the software can manage lists of clips in a number of display formats, as well as tag, add and edit metadata. It also serves as an efficient means of backing up media. |

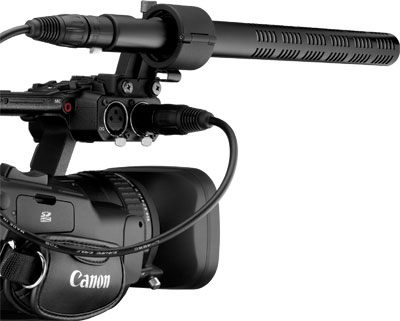

![]() Audio is recorded in 16-bit PCM format at 48 kHz for amazing quality and fidelity. And both the built-in microphone and XLR inputs have the option for automatic or full manual gain control. To prevent variations in the recorded audio level, the dials can be locked by closing the audio panel cover. ![]() * Optional microphone shown |
![]()
|
Waveform Monitor Videographers depend on this feature to confirm accurate exposure and color levels during the capture process. Typically only found on expensive external units, the Canon XF100 Professional Camcorder has a waveform monitor built right into the camera. The waveform monitor shows a detailed view of overall image brightness and RGB components. ![]() Optically matched for the XF100’s HD lens, the WD-H58W Wide Converter provides a magnification factor of 0,8x increasing wide angle capability to approximately 24mm (35mm equivalent). Intelligent Battery System ![]() Additionally, the camcorder is compatible with existing Canon BP-900 series batteries. Batteries can also be inserted and removed while the supplied AC power cable is connected. Photo Capture For applications such as storyboarding, continuity and publicity shots, the XF100 offers the ability to capture 1920 x 1080 still images. Photos may be captured to an SD memory card during the time of recording, as well as “frame grabbed” during playback. Color Bars with Reference Tone Two types of color bars can be selected: Type 1 (SMPTE compliant) or Type 2 (ARIB compliant) 1 kHz Reference Tone: -12dB, -18dB, 20dB or OFF Support for 9 languages including: German, Spanish, French, Italian, Polish, Russian, English, Chinese (simplified) and Japanese. 1 Year Parts and Labor Limited Warranty |
Std Def High Def | High Definition | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply Rated | 7.4V DC (Battery Pack) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Recording System | Compression: MPEG-2 Long GOP Color Space: 4:2:2 (At 50Mbps Recording) File Format: MXF Recording Modes: 50Mbps (CBR) 4:2:2, 1920x1080, (60i/30p/24p), 1280x720 (60p/30p/24p) 35Mbps (VBR) 4:2:0, 1920x1080 (60i/30p/24p), 1280x720 (60p/30p/24p) 25Mbps (CBR) 4:2:0, 1440x1080 (60i/30p/24p) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Recording System | 2-Channel, PCM Digital Recording, 16-Bit; 48kHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/3-Inch CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Number Of Recording Pixels | Approx. 2.37 Megapixels (2044 X 1160 Pixels) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels | Approx. 2.07 Megapixels (1920 X 1080 Pixels) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum Recording Time | 128GB Compact Flash (CF) Card Greater Capacity Is Possible When Two Cards Are Used. 25Mbps: 625 Minutes 35Mbps: 445 Minutes 50Mbps: 320 Minutes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | Canon 10x HD Zoom Lens, 4.25-42.5mm (35mm Equivalent 30.4-304mm), F/1.8-2.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focusing System | TVAF Plus External Phase Difference Metering Sensor, Autofocus (Instant AF, Medium AF, Normal AF, Face AF, Face Only AF), Manual, Full Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manual Exposure | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max Shutter Speed | 1/2000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum Focusing Distance | 20mm (Wide Macro), 60cm (Entire Zoom Range) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto, Manual, Custom (2000K - 15000K In 100K Increments), Daylight, Tungsten | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate | 60i, 60p, 30p, 24p (50i And 25p Optional Upgrade Available Through Canon Factory Service Center) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum Illumination | Full AUTO Mode: 4.5 Lux (Shutter Speed 1/60, Gain +24dB); Manual Mode: .11 Lux (Shutter Speed 1/4, Gain +33dB), (When 60i Is Selected) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Stabilization | SuperRange Optical (Lens Shift) 4 Modes: Standard, Powered, Dynamic, Off | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Filter Diameter | 58mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Viewfinder | 0.24-Inch Color Widescreen, Approx. 260,000 Dots, Approx. 100% Field Of View | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lcd Screen | 3.5-Inch Color Widescreen LCD, Approx. 920,000 Dots, Approx. 100% Field Of View | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Microphone | Stereo Electrect Condenser Microphone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Media | CF Card : 2 Slots, Movie Files Only SD Card: Still Images, Custom Picture Data, Clip Metadata, Custom Settings |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Usb Terminal | Mini-B USB 2.0 Hi-Speed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Terminal | Component: Output Only Composite: A/V Terminal 3.5mm Mini-Jack, Output Only |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Terminal | XLR 3-Pin Jack (2), Switchable Between MIC/LINE, 3.5mm Stereo Mini-Jack | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hdmi Terminal | Yes (Type A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Av Mini Terminal Headphone Terminal | 3.5mm Stereo Mini-Jack | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remote Control Terminal | Yes (Compatible With LANC Protocol) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature Range | 0°- 40°C, 32° - 104°F , 85% Relative Humidity | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | Approx. 4.8 X 5.8 X 9.8 In. (121 X 148 X 250mm) (Not Including Lens Hood, Mic Holder Unit, Grip Strap) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight Memorycard Only | 2.2 Lbs (1020 G) (Includes Grip Strap) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight | 2.7 Lbs (1240 G) (Includes Grip Strap, Lens Hood, Mic Holder Unit, BP-925, CF Card (X1) And SD Card) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
