Std Def High Def
|
High Definition |
Television System
|
NTSC |
Video Recording System
|
AVCHD Standard, MPEG-4 AVC/H.264 |
Image Sensor
|
1/5.8-Inch CMOS, Back-Illuminated |
Number Of Recording Pixels
|
Approx. 2.51 Megapixels |
Effective Pixels
|
Video: Approx. 2.29 Megapixels (1920x1080) Photo: Approx. 2.29 Megapixels (1920x1080) |

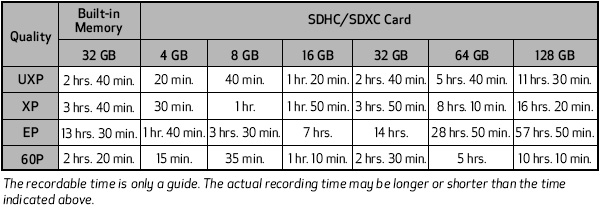

Maximum Recording Time
|
32GB Internal Flash Drive In AVCHD*: 4.8 Mbps (1920x1080)**: 13 Hrs. 30 Min. 17 Mbps (1920x1080)**: 3 Hrs. 40 Min. 24 Mbps (1920x1080)**: 2 Hrs. 40 Min. 28 Mbps (1920x1080)**: 2 Hrs. 20 Min.
* Variable Bit Rate. ** When Recording Has Continued For Approximately 12 Hours, It Will Automatically Stop. |
Lens
|
Zoom Ratio: 40x Optical / 60x Dynamic* / 200x Digital
* When Image Stabilization Set To OFF.
Focal Length: 2.9–116.0mm
35mm Film Equivalent: • Video: Approx. 40.5–1620mm (Image Stabilizer: Off) • Photo: 40.5–1620mm (16:9), 49.5–1980mm (4:3)
Max. F/Stop: F/1.8–6.3 |
Manual Exposure
|
Available |
White Balance
|
Auto, MWB, Fine, Cloud, Halogen, Marine: Blue, Marine: Green |
Frame Rate
|
60P/60i |
Minimum Illumination
|
3 Lux |
Image Stabilization
|
Intelligent IS Settings: - OFF: Deactivates Image Stabilizer.
- ON: Reduces Camera Shake Under Normal Shooting Conditions.
- ON (AIS): Reduces Camera Shake More Effectively When Shooting Bright Scenes On The Wide-Angle End. Only On The Wide-Angle End (Approx. 5x).
- Enhanced AIS: The Area Of Correction In The Enhanced AIS-Mode Is Greater Than That In The AIS Mode. Camera Shake Can Be Reduced More Effectively Even When Recording Is Performed By Zooming From Wide-Angle To Telephoto.
It Is Recommended To Set The Image Stabilizer To "OFF" When Shooting A Subject Of Little Movement With The Unit On A Tripod. Complete Stabilization May Not Be Possible If Camera Shake Is Excessive. This Setting Is Effective For Video Recording Only. Using The Image Stabilizer Will Narrow The Angle Of View. Dynamic Zoom Is Not Available In The Enhanced AIS Mode. |
Filter Diameter
|
37mm Diameter* * When A Lens Filter Or Conversion Lens Is Attached, Vignetting May Occur |

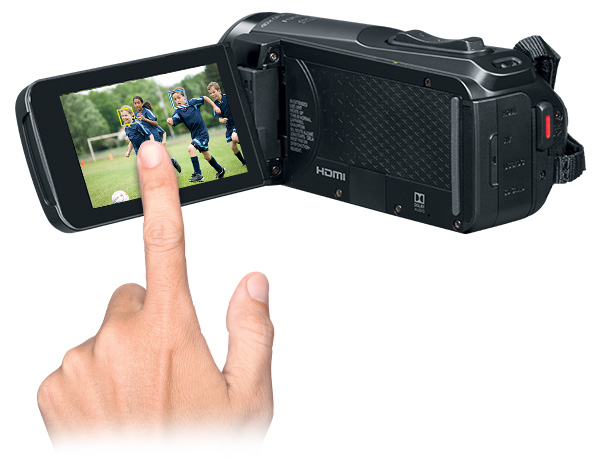

Lcd Screen
|
3.0-Inch (7.51cm) Panel, Widescreen Color LCD (Approx. 460,000 Dots) |
Recording Media
|
Built-In 32GB Memory And 1 Additional SD/SDHC/SDXC Memory Card Slot |
Usb Terminal
|
Micro USB Type AB, USB 2.0 Compliant |
Video Terminal
|
Signal Configuration: NTSC Standard Color Video Signals Impedance: 75 Ω Signal Level: 1.0 V (P-P) |
Audio
|
Types Of Signals: Stereo Audio Signal Impedance: 1 KΩ Frequency Characteristic: 48kHz, 256 Kbps |
Supplied Video Editing Software
|
Not Available |
Hdmi Terminal
|
HDMI Mini Connector |
Operating Temperature Range
|
14-104°F (-10-40°C) 35-80% Relative Humidity (Operation) -4-122°F (-20-50°C) 35-80% Relative Humidity (Storage) 50-95°F (10-35°C) 35-80% Relative Humidity (Charging) |
Dimensions
|
2.4 X 2.3 X 5.0 In. / 60 X 59.5 X 128mm (Excluding Grip Belt) |
Weight
|
Approx. 10.72 Oz. / 304g (Camera Only) |
