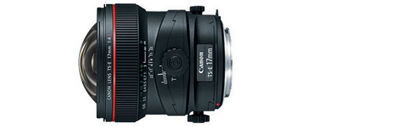

TS-E 17mm f/4L
- A diagonal angle of view of 104°
- Tilt & Shift with a range of movement of up to +/- 6.5° and 12mm respectively
- Both UD glass and a specially coated aspherical element to optimize image quality
- SWC lens coating to control ghosting and flare
The widest tilt-shift lens in Canon's lineup, the new TS-E 17mm f/4L lens expands shooting possibilities exponentially on EOS Digital cameras. Designed with UD glass to minimize and compensate for chromatic aberrations, with a specially coated aspherical element for the highest possible glare-free image quality, this tilt-shift lens offers a diagonal angle of view of 104° on a full-frame SLR camera.
New TS rotation lets users freely combine tilting and shifting within the range of +/- 90° in the direction of movement. The lens also has an improved tilt & shift knob with an enhanced range of movement of up to +/- 6.5° and 12mm repectively, with a revolving function for better operability. It uses a circular aperture for beautiful out-of-focus areas and has an SWC lens coating to control ghosting and flare to a far greater degree than with earlier coating technologies.
Sample Images
MTF Chart
| Focal Length Maximum Aperture | 17mm F/4.0 |
| Minimum Aperture | F/22 |
| Lens Construction | 18 Elements In 12 Groups |
| Diagonal Angle Of View | 104° (Without Tilt Or Shift) |
| Image Circle Diameter | 67.2mm |
| Focus Adjustment | Manual Focus, Rear Focusing System With Focusing Cam (With Floating System) |
| Closest Focusing Distance | 0.25m / 0.82 Ft. (Maximum Close-Up Magnification: 0.14x) |
| Aperture Control | EMD With 8 Blade Iris Diaphragm, Circular Aperture |
| Max Diameter X Length Weight | 3.5" X 4.2", 28.9 Oz. / 88.9 X 106.7mm (Maximum Lens Length), 820g |
| Lens Cap Lens Hood Pouch | Lens Cap And Pouch Provided. (No Lens Hood Available.) |
Lens Case LP1219
Soft drawstring lens case that keep your lenses looking like new.
Lens Caps
Lens Dust Cap E Rear Cap
Rear lens cap for all EF type lenses, lens extenders, and extension tubes. Used to protect the rear glass element from dust and scratches.
Lens Cap 17
