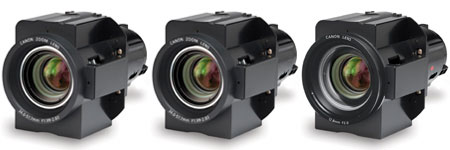

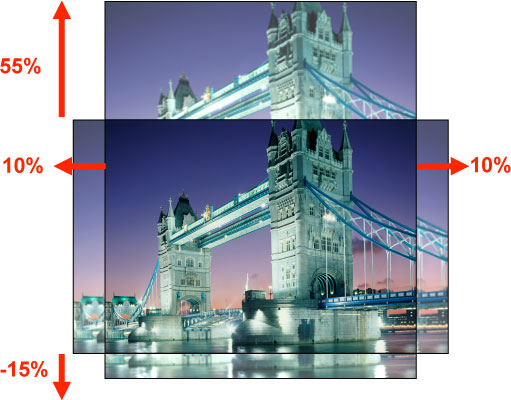

The horizontal/vertical lens shift capability of all three lenses ably assists in allowing maximum flexibility for a wide variety of installation situations. The range of adjustment for the lenses is as follows:

• 1.5x Zoom Lens (RS-IL01ST): Down 15% - Up 55%, Left 10% - Right 10%
• Long Focus Zoom Lens (RS-IL02LZ): Down 15% - Up 55%, Left 10% - Right 10%
• Ultra Wide Angle Lens (RS-IL03WF): Down 5% - Up 5%, Left 2% - Right 2%

You can be virtually assured that the REALiS WUX5000 can be optimally placed, and since lens shift doesn’t degrade the image the way digital keystone correction can, the extraordinary quality of your projected images is not compromised.

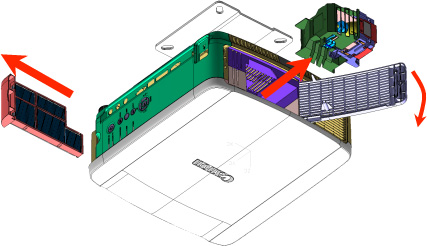

The design of the location of the consumable parts enhances both flexibility in mounting and ease of maintenance. The projector's lamp and filter can be replaced from the back/side, and the PS optical filter element can be replaced through the top of the projector.

HDMI
The REALiS WUX5000 is equipped with an HDMI terminal (version 1.3 deep color), supporting full HD 1080p signals provided by HDTV capable satellite and cable boxes, as well as Blu-Ray players. Connect an HD capable satellite and cable box, digital camcorder or Blu-Ray player to the HDMI terminal for instant display of high-definition video. With single-link bandwidth to 340 MHz (10.2 gbps) it is ready to support the demands of future HD display devices as well.

Network-Ready RJ-45 Port

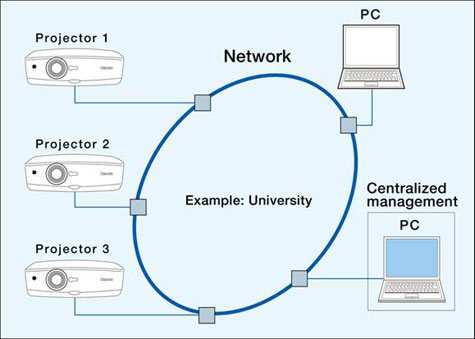

The REALiS WUX5000 features a built-in network interface (RJ-45), enabling centralized control and monitoring of multiple projector units from a networked PC. This makes it simple for an A/V team to operate ceiling mounted or remotely installed projectors from a PC screen, allowing fewer personnel to cover a larger service area. The REALiS WUX5000 can also be locally operated through its RS-232 port.

The REALiS WUX5000 is compatible with industry-standard AMX, Crestron, and Extron controllers, making it possible to construct a sophisticated AV system. In addition, email alerts can be sent to the central PC to give notification of any malfunctions or service issues which may arise in a projector.

• Standard
  Emphasizes white tones and is best suited for text-based computer screens or moving images projected in a bright room. (PC / Component Video)

• Presentation
  Works well for PowerPoint and similar slide presentations in a bright room. (PC)

• Dynamic
  Can be chosen for moving images in a bright room. (Component Video)

• Vivid Photo
  Best for situations in which color and sharpness are the priority, in a somewhat darker room. (PC)

• Photo/sRGB
  Conforms to sRBG standards and will accurately project images shot by an sRGB-compatible digital camera. (PC / Component Video)

• Video
  Selected when viewing video in a somewhat darker room. (Component Video)

• Cinema
  Allows the optimum presentation of moving images in a dim room, 'movie theater' atmosphere. (Component Video)

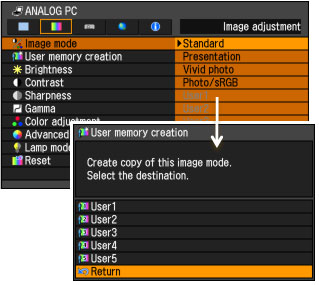

User settings are up to five user-selected combinations which can be stored in memory and which can be chosen as image modes. (PC / Component Video)

In addition, users can utilize a new Noise Reduction feature that allows the reduction of visual image noise to Off, Weak, Middle or Strong.

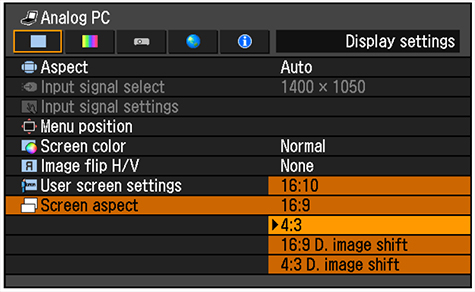

Selectable Aspect Ratios

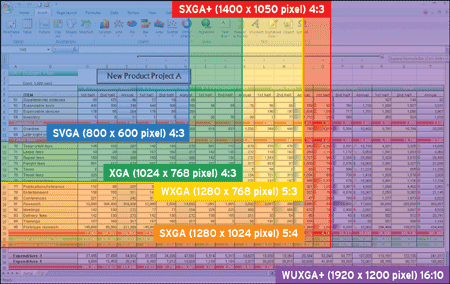

In order to best reproduce images, you can select the proper aspect ratio to project. Choose either the native 16:10, 16:9 or 4:3 to exactly match the content format.



Security
When you're finished using your REALiS WUX5000, you can use the Pin Code Lock and Function Key Lock to control its use.

Screen Color Correction
You can fine tune the colors of the image based on a variation of screen color - adjustments can be made from Normal and Greenboard, as well as additional tuning for projecting onto any other colored surface.

Dynamic Gamma
When you are projecting moving images with low contrast, the REALiS WUX5000 can employ a Dynamic Gamma function to heighten contrasts. It automatically brings up the bright areas and pushes down the dark so the video can be seen more clearly. This function operates at your choice, so if the original image is acceptable, there is no need to employ Dynamic Gamma.

Memory Color Correction
This function emphasizes skin tones and blues in order to better match most viewers memory of these shades. It works by shifting colors in the skin-tone range and boosts the blue component. The degree of brightness in R, G, B as well as C, M, Y can be adjusted as set between low, medium and high.

Ambient Light Function
An advanced function which can be used to compensate for lighting conditions for both the type of lighting (Tungsten, Fluorescent and Fluorescent H) and intensity (Low, Medium or High), the ambient light function is ideal for users displaying content and cannot control the lighting conditions. This is useful for educators speaking in classrooms or photographers showing their work in an art museum/gallery or at a seminar.

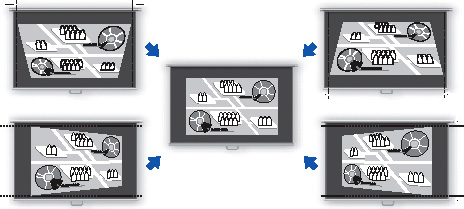

Keystone Correction
A considerable range of adjustment is possible in the Keystone Correction settings. They range in the vertical from ±20 degrees for the Standard/ Telephoto lenses to ±13 degrees for the Wide-Angle lens. Horizontally, -11 to +20 degrees are available for the Standard lens and ±20 degrees for Telephoto/ Wide-Angle lenses.



Noise Reduction
In addition, users can utilize a new Noise Reduction feature that allows the reduction of image noise to Off, Weak, Middle or Strong.
