The new REALiS WUX10 Mark II is Canon's top of the line projector, delivering the highest resolution of any Canon projector. The WUXGA (1920 x 1200) projector using LCOS technology, the REALiS WUX10 Mark II provides superior image quality, resolution, and color reproduction for end-users in corporate, educational, and specialized fields.

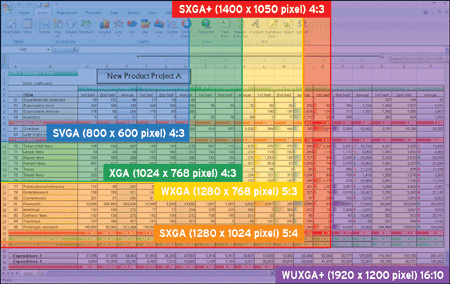

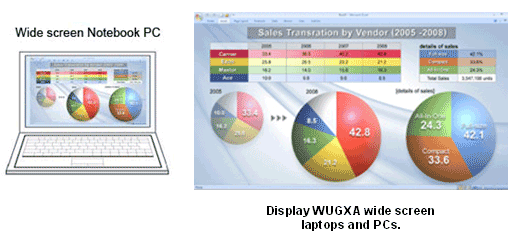

The REALiS WUX10 Mark II allows for data produced on your high resolution widescreen PC or laptop to be projected accurately, displaying the entire screen in its true proportions, just as it appears on your computer monitor screen.

To match the increasing demand for wide screen, the REALiS WUX10 Mark II allows you to display true widescreen 1080p content in high resolution WUXGA, without compression.

With Canon LCOS projectors, you get all the brilliance and image sharpness of innovative LCOS technology in an ultra-portable and affordable projector unlike any others on the market. It's the right choice for displaying bright, big-screen images without darkening the conference room or classroom.

LCOS (Liquid Crystal On Silicon) has taken projectors to a whole new level. This new technology means higher resolution images, seamless images with no flickering or "screen door" effect, quick image response for better looking moving images, smooth rendition of fine lines, seamless photo reproduction, sharp display of small text, and crisp blacks.

LCD	DLP	LCOS
Circuitry around each pixel causes screen door effect.	Space between micro-mirrors creates screen door effect.	Circuitry behind panels virtually eliminates screen door effect.

But only Canon realizes the full potential of LCOS technology by combining it with our proprietary and improved 3rd generation AISYS Engine, our patented optical light engine for achieving brightness and high contrast using LCOS panels. AISYS has three components: the illumination system; the color separation and combination system; and the LCOS panels. Only Canon's innovative, breakthrough AISYS technology achieves the right balance of contrast, brightness and compact size to maximize the performance of LCOS. Plus, our new advanced AISYS optical engine features new optical elements, redesigned polarizing beam splitters, and a reconfigured optical layout. The result is improved light efficiency, uniformity and expanded color space.

LCD	LCOS
Grid-like pixel pattern known as the "Screen Door Effect".	Lattice-free, seamless image when LCOS is combined with AISYS.

DLP	LCOS
Color appears blurred and broken.	Color appears crisp and sharp.

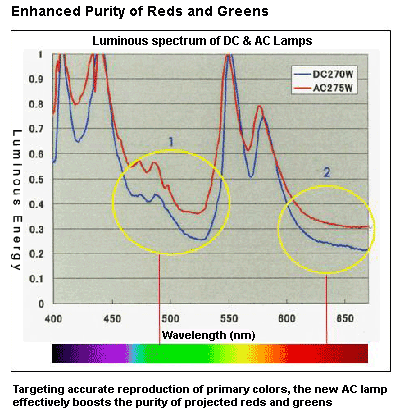

With the new AC lamp system of the REALiS WUX10 Mark II and the AISYS optical system the images you project are brighter, with truer color. The purity of red and green is enhanced over that which is possible with conventional DC lamps, giving a more life-like depth to the colors on the screen. In addition, the new lamp system boasts an extended operating life, up to 2,000 hours in normal mode and up to 3,000 hours in quiet mode.

LCOS technology combined with Canon's exclusive AISYS optical engine, the new AC lamp system, and 3200 lumens make the REALiS WUX10 Mark II a superb high-performance projector like no other.

The REALiS WUX10 Mark II projects with 3200 Lumens. Canon's exclusive AISYS Optical Engine AC lamp system delivers incredible image quality and brightness. The 1000:1 contrast ratio ensures deep blacks and bright whites.

Pure, high-contrast color reproduction creates images with crisp depth and dimension, ideally suited for conveying texture and materials. Colors remain crisp, with superior color balance, perfect for presentations incorporating high-quality visuals.

AISYS-based WUX10 Mark II Projector

Reproduces fine details of texture and materials.

The REALiS WUX10 Mark II's new 1.5x zoom lens suppresses the distortion of images to the maximum extent. Made possible by a lens design technology Canon has accumulated in the past, the new REALiS WUX10 Mark II is able to project images more faithfully.

The lens also features a 10:0 lens offset, which maintains the lower edge of projected images. The lower edge of the projected image matches the optical axis of the lens. This permits projection of high-quality images without the deterioration in image quality caused by keystone correction.

You can easily change the screen size to accommodate various venues and/or applications. It is now easier to set up the projector perpendicular to the screen without having to tilt the projector, or use the keystone correction.

With 10:0 Lens Shift	Without 10:0 Lens Shift
No keystone correction required when projector is moved straight back. Simple positioning with image quality preserved.	Keystone correction required when angle is changed. Image obstructed by table when projector is moved back.

Ambient light can cause changes in the accuracy of the colors being projected. The REALiS WUX10 Mark II's Photo Mode allows you to make adjustments to the projectors color temperature and color level*, based on the lighting condition of the room. This feature makes it possible to accurately reproduce color, and provide faithful reproduction of changes in contrast- even on a large screen inside a bright room. Images projected onto the screen are as close to the actual work as possible.

Without Photo Mode	With Photo Mode
The dark section looks blackish and intensity levels are not assigned accurately.	Specific details of shapes and difference in colors can be visible to the naked eye.

Fine adjustments can also be made in accordance with various environment lights, such as incandescent lamp, fluorescent lamp, and brighter and darker room conditions. Accordingly, accurate image reproduction can be made on a large screen, with a quality similar to the image displayed on an sRGB monitor.

This feature is particularly useful when displaying photography in a studio, wedding center, art museum, or a gallery. All adjusted values can be saved in Photo Mode.

*Adjustments to color temperature and color level can not be made if the projector is set to DICOM or another image mode.

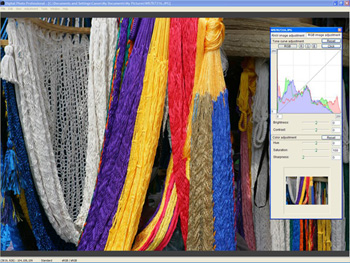

Your projection screen is your canvas with the REALiS WUX10 Mark II's unparalleled color control. An easy-to-use Graphical User Interface lets you adjust your palette of colors to paint the picture you want for your audience. The REALiS WUX10 Mark II's 6-axis (RGBCMY) color adjustment lets you fine-tune the hue and saturation of each of the primary and secondary colors. This high degree of control makes each projected image a masterpiece.

With Memory/Vivid Color Correction, you can adjust the degree of vividness of each of the primary colors (red, green, and blue) and each of the secondary colors (cyan, magenta, and yellow). Choose between low, medium, and high to project the image the way you remember it.

Conventional Projector	REALiS WUX10 Mark II Projector
No color adjustments can result in low saturation and color reproduction.	Color adjustments allow for vivid color reproduction.

The REALiS WUX10 Mark II features the ability to process analog RGB and component signals, from input to display, in 10-bit resolution for higher-quality images.

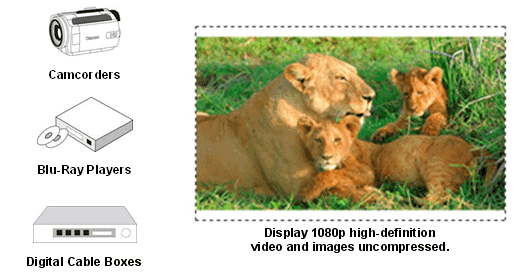

The REALiS WUX10 Mark II is equipped with an HDMI terminal (version 1.3 deep color), supporting full HD 1080p signals provided by HDTV capable satellite and cable box, as well as Blu-Ray players. Connect an HD capable satellite and cable boxes, digital camcorder or Blu-Ray player to the HDMI terminal for instant display of high-definition video.

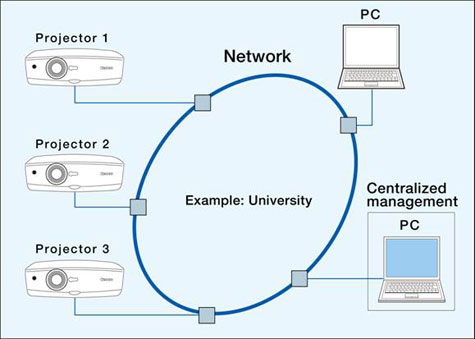

To maximize the usability of the REALiS WUX10 Mark II, the new built-in network interface (RJ-45) enables centralized control and monitoring of multiple projector units from a networked pc. This makes it simple for an A/V team to operate ceiling mounted or remotely installed projectors from a PC screen, allowing fewer personnel to cover a larger service area.

The REALiS WUX10 Mark II is compatible with industry-standard AMX, Crestron, and Extron controllers, making it possible to construct a sophisticated AV system. In addition, email alerts can be sent to the central PC to give notification of any malfunctions or service issues which may arise in a projector. The REALiS WUX10 Mark II can also be externally operated through its RS-232 port.

Control Manufacturer Logos

With dimensions of 11.0" W x 13.2" D x 4.5" H (284 x 336 x 114 mm) and a weight of only 10.8lbs (4.9 kg), the REALiS WUX10 Mark II is an ultra-portable and compact projector that's easy to carry and set up, wherever you need it. With an array of advanced and well-designed features, it's also extremely easy to use:

Automatic Vertical Keystone Correction lets you project a perfect image by correcting for keystone distortion of +/- 20 degrees. Plus, depending on your requirements, you can use it for rear-projection, or you can mount it on the ceiling with an optional Ceiling Mount Adapter.

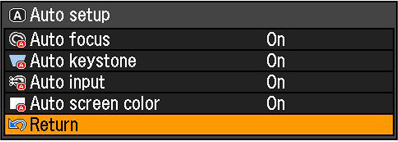

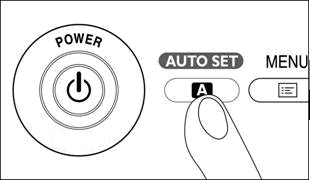

The Auto Set-up function performs four vital set-up configurations at the touch of a single button.

This convenient function ensures optimum settings, even if you've never operated a projector before.

• Auto Focus - your REALiS WUX10 Mark II measures the distance to the screen and makes your projected image razor-sharp
• Auto Keystone - vertical keystone correction is automatically applied
• Auto Input - the projector automatically detects the input port
• Auto Screen Color - the projector automatically compensates for the color of the projection surface

Once it's set up, operating your projector is easy with the help of Guidance Functions that display operating instructions in an on-screen window. A Graphical User Interface makes for easy operation, with three menus for quick access to display settings, image adjustments and system settings. You're never more than three steps away from any adjustment you need to make! Plus, front and rear infrared sensors let you control your REALiS WUX10 Mark II with a wireless remote from in front of or behind the projector.

In the classroom or office, the projector's Spotlight feature dims your image except for the area you want everyone to pay attention to. That way, you can make sure your audience sees exactly what you want them to see and isn't distracted by fan noise. In Normal mode, the REALiS WUX10 Mark II runs at 35dB; and in Quiet mode, it runs at 31dB.

The REALiS WUX10 Mark II even has features that make it simple to turn off. You never have to wait for the projector to cool down before unplugging it and heading to your next meeting - the projector's fan continues to operate, powered by an internal charging system. You can also turn the projector off simply by unplugging it - a convenient feature when the projector is mounted on the ceiling and can't be operated directly.

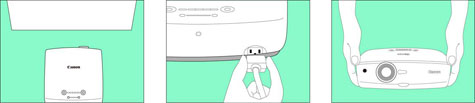

When the presentation finishes...	...the projector can be unplugged immediately.	Convenient for quick clean-up and transport.

Finally, when you're finished using your REALiS WUX10 Mark II, you can use the Pin Code Lock and Function Key Lock to control its use. On top of all of that, the REALiS WUX10 Mark II makes your life easier with its 3-year parts and labor warranty and 120-day lamp life warranty.
