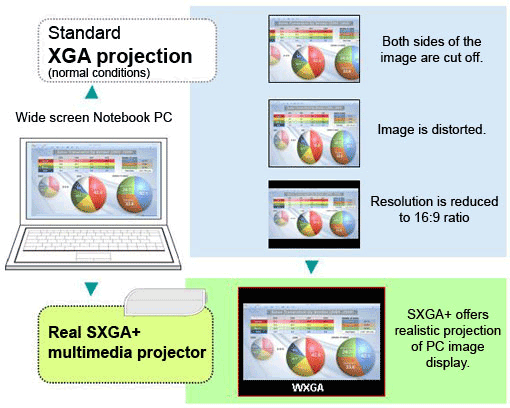

Canon’s REALiS SX6000 D brings true reproduction of content from 4:3 ratio sources in high-resolution SXGA+. The fine detail delivers clarity to the furthest seat in a boardroom, conference room or lecture hall. Every element of an X-ray, CAT scan or MRI displayed can be viewed with precise detail. Compared to XGA projectors, the REALiS SX6000 D’s SXGA+ resolution shows a significantly larger display area, delivering razor-sharp precision in projected images. This model allows the display of 1400x1050 or 1280x1084 content without compression, showing the true proportions of the source image on the screen just as it appears on your computer monitor.

The REALiS SX6000 Dprojector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.

The REALiS SX6000 D incorporates Canon’s latest developments in our AISYS (Aspectual Illumination System) Optical System with AISYS 4.1 and a new LCOS panel. They come together to deliver brilliant, ultra-sharp images in almost any environment.

Next-Generation LCOS Technology
LCOS (Liquid Crystal On Silicon) has brought higher resolution images without flickering or the “screen door” effect, quicker image response in showing moving images, smooth rendition of fine lines and seamless photo reproduction. Additional benefits are the sharp display of small text and crisper blacks. The REALiS SX6000 D features a new LCOS panel which also delivers improvements in aperture ratio, now at 96% for smoother fine detail. It also brings more accurate white balance with improved neutrality. For situations in which long periods of continuous projection are required, such as surveillance or show display, the new panel offers greater durability and reliability thanks to excellent burn-in resistance. Up to 100 hours or more of constant display is possible with no burn-in visible.

AISYS 4.1 Optical Engine
Canon takes the capability of LCOS technology to the next level by combining it with our enhanced 4th generation AISYS Optical Engine. Canon-patented optical light technology achieves high brightness and contrast within a very small footprint. AISYS has three components: the illumination system; the color separation and recombination system; and the LCOS panels. Only Canon's innovative, breakthrough AISYS technology achieves the right balance of contrast, brightness and compact size to maximize the performance of LCOS.

Brighter, truer color comes from the AC lamp system of the REALiS SX6000 D and the AISYS Optical Engine. The colors on the screen have a more life-like depth thanks to the purity of red and green when compared with conventional DC lamps. In addition, this lamp system boasts an extended operating life, up to 3000 hours in normal or quiet mode. The elimination of the organic polarizing element in the new AISYS 4.1 Optical Engine also gives the REALiS SX6000 D the ability to run for extended periods as might be required.

LCOS technology combined with Canon's exclusive AISYS Optical Engine, the AC lamp system, and 6,000 lumens, make the REALiS SX6000 Da brilliant high-performance installation projector with few rivals.

The REALiS SX6000 D projector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.

The REALiS SX6000 D features a DICOM Simulation image mode setting that allows the projector to simulate medical imaging in compliance with the Digital Imaging and Communications in Medicine (DICOM) Part 14 standardized display function for display of grayscale images. Images such as X-rays, CAT scans, and MRIs that are typically displayed on DICOM compliant monitors can now be simulated via large projected images by the REALiS SX6000 D. This new feature is recommended for use in medical schools for training and educational use only, and not for diagnostic purposes. The 4:3 aspect ratio of the REALiS SX6000 D is especially suited for use in medical educational environments.

Project x-rays and other monochrome images with precise detail and clarity.

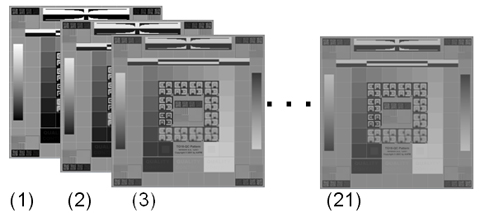

With 21 steps of preset gamma adjustments and custom color temperature controls, the new REALiS SX6000 D gives you greater flexibility when adjusting the projector to the lighting conditions of your conference or classroom setting.

Built-in calibration tool has 21 steps of preset gamma adjustments.

The REALiS SX6000 Dprojector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.

The REALiS SX6000 D projects an impressive 6000 lumens, delivering incredible image quality and brightness. The 1000:1 contrast ratio ensures deep blacks and bright whites. Pure, high contrast color reproduction creates images with crisp depth and dimension, ideally suited for conveying texture. Color remains crisp, with superior color balance, perfect for presenting high-quality visuals.

Best of all, this brilliance comes with outstanding eco-performance. The REALiS SX6000 D is rated at 435W, delivering an industry leading 6000 lumens while consuming only 0.0725 W/lm.

REALiS SX6000 D Projector

Reproduces fine details and precise colors thanks to high brightness and high contrast.

The REALiS SX6000 Dprojector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.

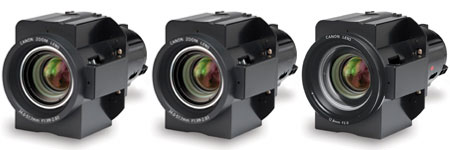

The REALiS SX6000 D projector gives you the choice of three interchangeable Genuine Canon lenses. Canon is renowned for our expertise and achievement in lens design and construction - in fact the optical technology developed for our acclaimed EOS series of SLR cameras is reflected in the development of our projection lenses. Either the1.5x Standard Zoom Lens (RS-IL01ST), Long Focus Zoom Lens (RS-IL02LZ), or Ultra Wide Angle Lens (RS-IL03WF) can be used with the REALiS SX6000 D depending on the application.

A standout feature of these Genuine Canon lenses is their lack of brightness loss compared to lenses fitted to competitor’s products. Why is that important? Because you will no longer need to ‘over specify’ brightness in order to compensate for loss, which is common with wide or long throw lenses. That can have a real impact on the price you pay for your installation projector.

All three lenses share the benefits of specifically designed aspherical lenses to deliver high-quality images with a small footprint. In fact, all three lenses are similar in size and fit in the same space on the projector.

The REALiS SX6000 Dprojector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.

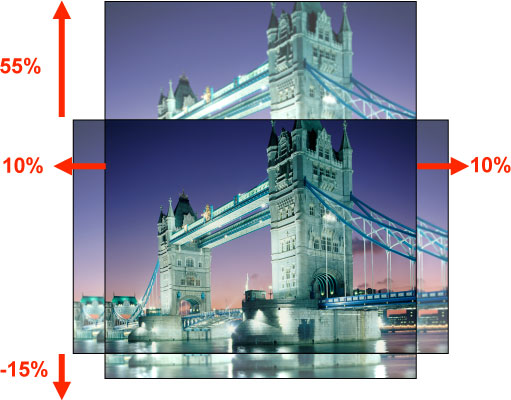

The lens shift capability of all three lenses ably assists in allowing maximum flexibility for a wide variety of installation situations. The range of adjustment for the lenses is as follows:

• Ultra Wide Angle Lens (RS-IL03WF): Down 5% - Up 5%, Left 10% - Right 10%
• Standard Zoom Lens (RS-IL01ST): Down 12% - Up 50%, Left 10% - Right 10%
• Long Focus Zoom Lens (RS-IL02LZ): Down 15% - Up 50%, Left 10% - Right 10%

You can be virtually assured that the REALiS SX6000 D can be optimally placed, and since lens shift doesn’t degrade the image the way digital keystone correction can, the extraordinary quality of your projected images is not compromised.

The REALiS SX6000 Dprojector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.

With dimensions of 15.0"W x 6.7"H x 16.9"D and a weight of 18.7lbs (not including lens), the REALiS SX6000 D makes installation easy in a wide variety of applications.

The design of the location of the consumable parts enhances both flexibility in mounting and ease of maintenance. The projector's lamp and filter can be replaced from the back and side without dismounting the projector.

The direct power on/off feature of the REALiS SX6000 D allows for more flexible installation on ceilings or walls. It will automatically turn on the projector when the power cord is plugged into an outlet and off when the plug is removed. There is no need to press the power button on the projector, which might be difficult in certain installation situations.

The REALiS SX6000 D projector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.

Like all REALiS Projectors, the REALiS SX6000 D includes Canon's high-accuracy color controls, which ensure accurate color reproduction and compensate for color variances due to lighting differences. High brightness and contrast produce rich, detailed gradations even in the shadowed portions of images - recreating depth and dimension with stunning drama and REALiSm.

The REALiS SX6000 D features a color processing algorithm, along with a highly accurate 3D LUT (Look Up Table). Conventional systems shift neighboring colors along with the selected color, often resulting in an imbalance in the image. The REALiS SX6000 D allows precise color correction.

With conventional systems, neighboring colors change when a specific color is being changed		3D-LUT with the color processing algorithm only changes the specific color selected
3D LUT improves color reproduction in all image modes under any ambient light condition

6-Axis Color Adjustment

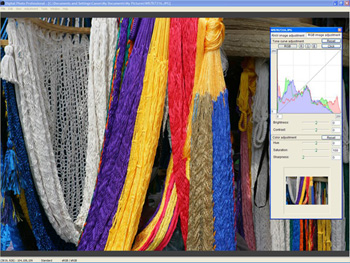

Your projection screen is your canvas with the REALiS SX6000 D’s unparalleled color control. An easy-to-use Graphical User Interface lets you adjust your palette of colors to paint the picture you want for your audience. The REALiS SX6000 D's 6-Axis Color Adjustment lets you fine-tune the hue, saturation and brightness of each of the primary and secondary colors. This high degree of control allows each image to be displayed exactly as intended.

Integrated Test Patterns
The latest addition to the arsenal of color management tools is the REALiS SX6000 D’s Integrated Test Patterns. You can adjust the image angle, gradation and color tone, as well as isolate system faults. It’s another way in which color and tone reproduction can be made as true as possible to your original source.

The REALiS SX6000 Dprojector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.

The REALiS SX6000 D features the ability to process RGB and component signals, from input to display, in 10-bit color for higher-quality reproduction of fine detail and gradients.

The REALiS SX6000 Dprojector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.

The REALiS SX6000 D gives you an impressive range of input options, allowing you to connect to a variety of devices, including laptop and desktop computers, Blu-Ray players, digital cameras and camcorders.

HDMI
The REALiS SX6000 D is equipped with an HDMI terminal (version 1.3 Deep Color), supporting 1080p signals provided by HDTV-capable satellite and cable boxes, as well as Blu-Ray players. Connect an HD capable satellite and cable box, digital camcorder or Blu-Ray player to the HDMI terminal for instant display of high-definition video. With single-link bandwidth to 340 MHz (10.2 Gbps), it is ready to support the demands of future HD display devices as well.

DVI-I
All that brilliance and image quality mean nothing if you don't have the right inputs. The REALiS SX6000 D gives you an impressive range of input options, allowing you to connect to a variety of devices, including laptop and desktop computers, Blu-Ray players, digital cameras and camcorders.

DVI-I Interface (HDCP Compliant)
The REALiS SX6000 D’s DVI-I interface provides an all-digital connection between the projector and an input source. It avoids the signal conversion step required by analog connections, and thus maintains high signal integrity. This results in a clearer picture, with no flickering, blurred lines, ghost images, or coloration problems with text display. The terminal also accepts an analog signal from your laptop computer, and devices with a VGA terminal.

Auto-Synch Audio Inputs
To give your presentations the final touch in impressive audio, the REALiS SX6000 D gives you the flexibility of three audio inputs. You can use one audio input for each source you may have (DVI, VGA, and Video). A variable audio output switches automatically when the input source changes. Audio can be played through the projectors built-in speaker, or can be connected to amplified speakers or a receiver for high-quality sound. All simple to install and with sound levels controllable from your projector's remote control unit.

Wired Remote Controller Terminal
For those situations in which a clear line of sight between the wireless remote and the REALiS SX6000 D is blocked, a hard-wired remote can be used to operate the projector. A terminal has been provided to connect the remote controller to the projector.

The REALiS SX6000 D is compatible with industry-standard AMX, Crestron and Extron controllers, making it possible to construct a sophisticated AV system. In addition, email alerts can be sent to the central PC to give notification of any malfunctions or service issues which may arise in the projector.

The REALiS SX6000 Dprojector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.

With dimensions of 15.0"W x 6.7"H x 16.9"D and a weight of 18.7lbs (not including lens), the REALiS SX6000 D makes installation easy in a wide variety of applications. The design of the location of the consumable parts enhances both flexibility in mounting and ease of maintenance. The projector’s lamp and filter can be replaced from the back and side, eliminating the need to dismount the projector in order to perform maintenance.

An array of advanced and well-designed features makes the REALiS SX6000 D extremely easy to use:

User-Friendly Menu System
Once it’s set up, operating your projector is easy with the help of Guidance Functions that display operating instructions in an on-screen window. A Graphical User Interface makes for easy operation, with five menus for quick access to categories including: Display settings, Image adjustments, System settings, Network settings and Information. You’re never more than a few steps away from any adjustment you need to make! Plus, front and rear infrared sensors let you control your REALiS SX6000 D with a wireless remote from in front of or behind the projector, if your installation will allow, or you can use the wired remote plugged into the terminal.

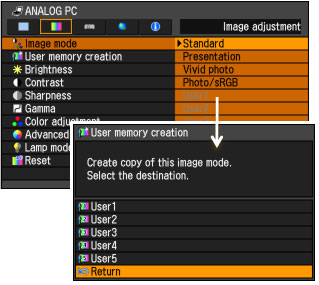

User Memory
This feature allows the user to set up 10 different settings based on the content being shown. Five user memory settings are for PC sources such as DVI-I, Analog PC, and HDMI. The other five settings are for video sources such as Component and HDMI.

Minimal Noise
While presenting, you can be sure your audience isn’t distracted by fan noise. The REALiS SX6000 D runs at 40dB.

Selectable Image Modes
To optimize the image quality of your projected content, the REALiS SX6000 D offers the choice of up to eight Image Modes, selectable dependent on the type of input signal either from a PC or Component Video source.

• Standard
  Emphasizes white tones and is best suited for text-based computer screens or moving images projected in a bright room. (PC / Component Video)

• Presentation
   Works well for PowerPoint and similar slide presentations in a bright room. (PC)

• Dynamic
  Can be chosen for moving images in a bright room. (Component Video)

• Vivid Photo
  Best for situations in which color and sharpness are the priority, in a somewhat darker room. (PC)

• Photo/sRGB
  Conforms to sRBG standards and will accurately project images shot by an sRGB-compatible digital camera. (PC / Component Video)

• Video
  Selected when viewing video in a somewhat darker room. (Component Video)

• Cinema
  Allows the optimum presentation of moving images in a dim room / 'movie theater' atmosphere. (Component Video)

User settings allow for up to five user-selected combinations which can be stored in memory and which can be chosen as image modes (PC / Component Video). In addition, users can utilize advanced adjustment features to optimize the SX6000 D to their viewing environment.

Security
When you're finished using your REALiS SX6000 D, you can use the Key Lock to prevent unauthorized use.

The REALiS SX6000 Dprojector is not cleared or approved for medical diagnosis and should not be used for these purposes. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.

The REALiS SX6000 D projector allows for a variety of advanced image quality adjustments.

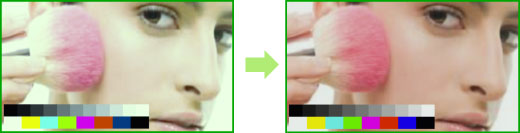

Screen Color Correction
You can fine-tune the colors of the image based on a variation of screen color. Adjustments can be made from Normal, Non-white board and Adjust settings. Non-white board is your setting choice for Greenboard and other dark surfaces, while Adjust will allow the user to make detailed RGB adjustments in the projected image as desired on any surface.

Dynamic Gamma
When you are projecting moving images in high ambient light, the REALiS SX6000 D can employ a Dynamic Gamma function to heighten contrast. It automatically brings up the bright areas and pushes down the dark so shadow details can be seen more clearly. This function operates at your choice, so if the original image is acceptable, there is no need to employ Dynamic Gamma.

Memory Color Correction
Human memories are most sensitive to shifts in skin tones and colors found in nature, like greens and blues. The memory color correction function makes images more attractive by implementing automatic corrections to move skin tones closer to standard definitions while boosting sky blues and vibrant greens.

Ambient Light Function
An advanced function which can be used to compensate for lighting conditions for both the type of lighting (Tungsten, Fluorescent and Fluorescent H) and the intensity (Low, Medium or High), the ambient light function is ideal for users displaying content in varied lighting conditions. This is useful for educators speaking in classrooms or photographers showing their work in an art museum/gallery or at a seminar. The ambient light function is available in Photo/sRGB, Video, and Cinema modes.

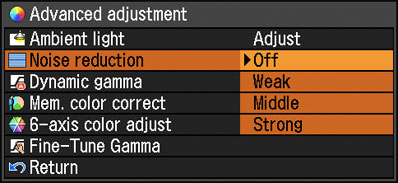

Noise Reduction
In addition, users can utilize a Noise Reduction feature that removes subtle noise artifacts that appear in data from DVD video and other relatively clean content. This function is available for component video and HDMI.
