REALiS SX6000
- REALiS SX6000 Projector
- Power Cord
- Remote Control (AA size x2)
- VGA to VGA Connection Cable
- User's Manual/Installation Manual (CD)
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS
The REALiS SX6000 is a high-performance SXGA+ (1400 x 1050) resolution installation multimedia projector employing Canon's AISYS-enhanced LCOS technology and interchangeable Genuine Canon lenses to deliver spectacularly clear and rich images. This model also offers 6000 lumens of brightness, ease of installation and maintenance, and powered lens shift which can be operated in both vertical and horizontal directions. A wired remote option allows the remote use of the REALiS SX6000 in situations where obstacles block a direct line of sight between the operator and projector.
This high-resolution projector includes an HDMI terminal (version 1.3 Deep Color) for projection of high-quality digital images and uncompressed 1080p video, as well as a built-in network connection (RJ-45) for remote network operation. The projector's expanded color space and advanced optics mean that the 6000 lumens of the REALiSSX6000 deliver razor-sharp, brilliant results, without the need to 'over specify' the lumens required to compensate for loss in brightness typically associated with wide or long throw lenses. Greater eco-efficiency has also been achieved with the REALiS SX6000, which consumes a class-leading 0.0725 W/lm.
The REALiS SX6000 is the perfect choice for installations in educational, corporate or museum settings in which the greatest level of detail and contrast in images must be seen. It also offers outstanding performance in the reproduction of 4:3 aspect ratio high resolution images. With no organic polarizing element in the new AISYS 4.1 Optical Engine, the REALiS SX6000 is suitable to run for extended periods.

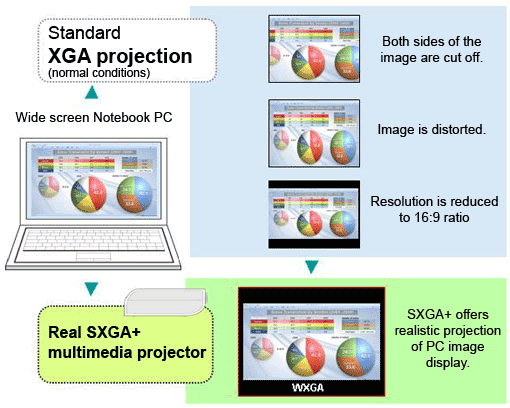

Canon’s REALiS SX6000 brings true reproduction of content from 4:3 ratio sources in high-resolution SXGA+. The fine detail delivers clarity to the furthest seat in a boardroom, conference room or lecture hall. Compared to XGA projectors, the REALiS SX6000’s SXGA+ resolution shows a significantly larger display area, delivering razor-sharp precision in projected images. This model allows the display of 1400x1050 or 1280x1084 content without compression, showing the true proportions of the source image on the screen just as it appears on your computer monitor. |
![]() The REALiS SX6000 incorporates Canon’s latest developments in our AISYS (Aspectual Illumination System) Optical System with AISYS 4.1 and a new LCOS panel. They come together to deliver brilliant, ultra-sharp images in almost any environment. Next-Generation LCOS Technology AISYS 4.1 Optical Engine Brighter, truer color comes from the AC lamp system of the REALiS SX6000 and the AISYS Optical Engine. The colors on the screen have a more life-like depth thanks to the purity of red and green when compared with conventional DC lamps. In addition, this lamp system boasts an extended operating life, up to 3000 hours in normal or quiet mode. The elimination of the organic polarizing element in the new AISYS 4.1 Optical Engine also gives the REALiS SX6000 the ability to run for extended periods as might be required. LCOS technology combined with Canon's exclusive AISYS Optical Engine, the AC lamp system, and 6,000 lumens make the REALiS SX6000 a brilliant high-performance installation projector with few rivals. |
The REALiS SX6000 projects an impressive 6000 lumens, delivering incredible image quality and brightness. The 1000:1 contrast ratio ensures deep blacks and bright whites. Pure, high contrast color reproduction creates images with crisp depth and dimension, ideally suited for conveying texture. Color remains crisp, with superior color balance, perfect for presenting high-quality visuals. Best of all, this brilliance comes with outstanding eco-performance. The REALiS SX6000 is rated at 435W, delivering an industry leading 6000 lumens while consuming only 0.0725 W/lm.
|

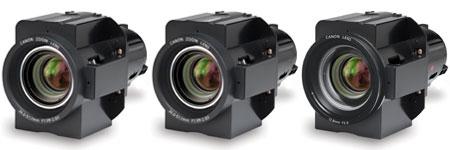

The REALiS SX6000 projector gives you the choice of three interchangeable Genuine Canon lenses. Canon is renowned for our expertise and achievement in lens design and construction - in fact the optical technology developed for our acclaimed EOS series of SLR cameras is reflected in the development of our projection lenses. Either the1.5x Standard Zoom Lens (RS-IL01ST), Long Focus Zoom Lens (RS-IL02LZ), or Ultra Wide Angle Lens (RS-IL03WF) can be used with the REALiS SX6000 depending on the application. A standout feature of these Genuine Canon lenses is their lack of brightness loss compared to lenses fitted to competitors’ products. Why is that important? Because you will no longer need to ‘overspecify’ brightness in order to compensate for loss, which is common with wide or long throw lenses. That can have a real impact on the price you pay for your installation projector. All three lenses share the benefits of specifically designed aspherical lenses to deliver high-quality images with a small footprint. In fact, all three lenses are similar in size and fit in the same space on the projector. |

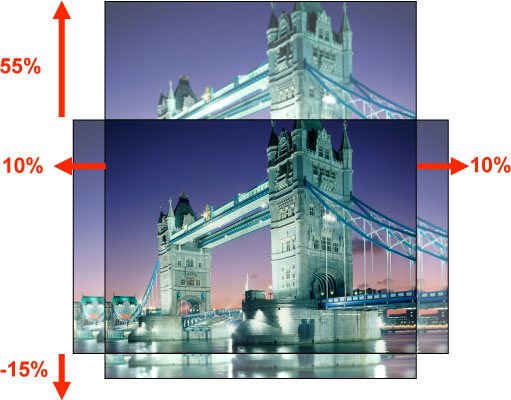

The lens shift capability of all three lenses ably assists in allowing maximum flexibility for a wide variety of installation situations. The range of adjustment for the lenses is as follows:
You can be virtually assured that the REALiS SX6000 can be optimally placed, and since lens shift doesn’t degrade the image the way digital keystone correction can, the extraordinary quality of your projected images is not compromised. |
With dimensions of 15.0"W x 6.7"H x 16.9"D and a weight of 18.7lbs (not including lens), the REALiS SX6000 makes installation easy in a wide variety of applications.
The direct power on/off feature of the REALiS SX6000 allows for more flexible installation on ceilings or walls. It will automatically turn on the projector when the power cord is plugged into an outlet and off when the plug is removed. There is no need to press the power button on the projector, which might be difficult in certain installation situations. |

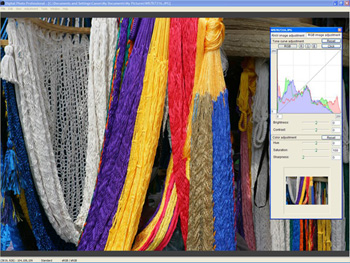

Like all REALiS Projectors, the REALiS SX6000 includes Canon's high-accuracy color controls, which ensure accurate color reproduction and compensate for color variances due to lighting differences. High brightness and contrast produce rich, detailed gradations even in the shadowed portions of images - recreating depth and dimension with stunning drama and REALiSm. The REALiS SX6000 features a color processing algorithm, along with a highly accurate 3D LUT (Look Up Table). Conventional systems shift neighboring colors along with the selected color, often resulting in an imbalance in the image. The REALiS SX6000 allows precise color correction.
6-Axis Color Adjustment Integrated Test Patterns |
The REALiS SX6000 features the ability to process RGB and component signals, from input to display, in 10-bit color for higher-quality reproduction of fine detail and gradients. |
The REALiS SX6000 gives you an impressive range of input options, allowing you to connect to a variety of devices, including laptop and desktop computers, Blu-Ray players, digital cameras and camcorders. ![]() HDMI DVI-I DVI-I Interface (HDCP Compliant)
Auto-Synch Audio Inputs ![]() Wired Remote Controller Terminal The REALiS SX6000 is compatible with industry-standard AMX, Crestron and Extron controllers, making it possible to construct a sophisticated AV system. In addition, email alerts can be sent to the central PC to give notification of any malfunctions or service issues which may arise in the projector. |
With dimensions of 15.0"W x 6.7"H x 16.9"D and a weight of 18.7lbs (not including lens), the REALiS SX6000 makes installation easy in a wide variety of applications. The design of the location of the consumable parts enhances both flexibility in mounting and ease of maintenance. The projector's lamp and filter can be replaced from the back and side, eliminating the need to dismount the projector in order to perform maintenance. An array of advanced and well-designed features makes the REALiS SX6000 extremely easy to use: User-Friendly Menu System User Memory Minimal Noise Selectable Image Modes

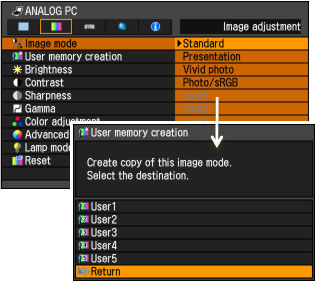

User settings allow for up to five user-selected combinations which can be stored in memory and which can be chosen as image modes (PC / Component Video). In addition, users can utilize advanced adjustment features to optimize the SX6000 to their viewing environment. Security |

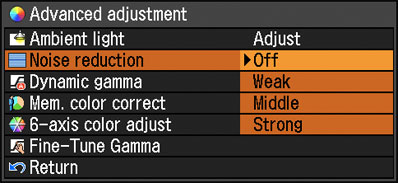

The REALiS SX6000 projector allows for a variety of advanced image quality adjustments. Screen Color Correction Dynamic Gamma Memory Color Correction Ambient Light Function ![]() ![]() ![]() Noise Reduction |
Lcd Panel System | 0.71" Reflective LCD Panels (LCOS) X 3 |
Aspect Ratio | 16:10 |
Native Resolution | WUXGA (1920 X 1200) |
Brightness | 3200 Lumens |
Uniformity | 88% |
Contrast Ratio | 1000:1 |
Digital Keystone Vertical | ±20 Degrees (Auto/Manual) |
Digital Keystone Horizontal | N/A |
Projection Lens | F1.85-2.65, F= 21.8-31.9 |
Lens Shifting | 10:0, Fixed |
Zoom | 1.5 X Powered |
Focus | Powered (Auto/Manual) |
Screen Size | 40"-300" |
Throw Distance | 3.9 - 29.9 Ft. |
Throw Ratio | 1.48 - 2.18:1 |
Color Mode | SRGB, Presentation, Standard, Movie, Photo |
Color Adjust | Dynamic Gamma, 6-Axis (RGBCMY) Color Adjustment |
Wall Correction | Auto / Manual |
Mounting | Ceiling / Rear / Ceiling And Rear |
Tilt Angle | Adjusting Feet Up To 10 Degrees |
Scanning Frequency | H:15 ~ 75 KHz , V:50 ~ 85 Hz, Dot Clock: 170 MHz |
Analog Input | WUXGA / UXGA / WSXGA+ / SXGA+ / WSXGA / SXGA / WXGA / XGA / SVGA / VGA |
Digital Input | WUXGA / UXGA / WSXGA+ / SXGA+ / WSXGA / SXGA / WXGA / XGA / SVGA / VGA |
Video Svideo Input | Composite Only |
Component Input | 1080p / 1080i / 1035i / 720p / 576p / 480p / 576i / 480i |
Digital Video Input | HDMI: 1080p / 1080i / 720p / 576p / 480p |
Input Dvi 29 Pin | Digital PC Input / Analog PC Input |
Input Dvi 15 Pin | Analog PC IN (Shared With D-Sub 15pin) |
Input Rca 1 | Composite Input |
Input Rj45 | Yes |
Input Stereo Mini Jack | Stereo Audio Input X3 |
Output Dsub 15pin | Analog PC OUT (Shared With D-Sub 15pin) |
Output Stereo Mini Jack | Stereo Audio Output X1 |
Built In Speaker | 1W (Mono) |
Control Terminal | D-Sub 9pin |
Lamp Type | 275W NSH (AC) |
Lamp Life | 2000 / 3000 Hours (Normal/Quiet) |
Wireless | Wireless Infrared, Front / Back |
Mouse Control | N/A |
Fan Noise | 32 / 36 DB |
Power Comsumption | 400W (Normal) / 330W (Quiet) / 11W (Stand-By With LAN Off) |
Power Source | AC 100 ~ 240V, 50/60Hz |
Operating Temperature | 41° To 95° F (5° To 35° C) |
Storage Temperature | 104° To -22° F (60° To -30° C), 5%RH ~ 90%RH |
Dimension | 11.2" X 4.6" X 13.2" (284 X 114 X 336mm) |
Weight | 11.02 Lbs. (5.0 Kg) |
Warranty | 3 Years Parts And Labor, 120 Day Lamp |
