PowerShot ELPH 530 HS

For twelve years ELPH cameras have been coveted icons of design and innovation. Informed by that legacy yet stepping solidly into the future comes the PowerShot ELPH 530 HS.

SERVICE LOCATOR

PRODUCT ADVISORIES

In The Box

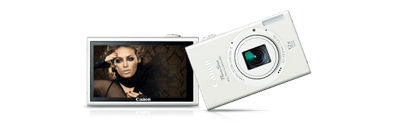

PowerShot ELPH 530 HS Body (white shown here)
Battery Pack NB-9L
Battery Charger CB-2LB
Wrist Strap WS-DC10
USB Interface Cable IFC-400PCU
Digital Camera Solution CD-ROM

Surpass Every Expectation.

For twelve years ELPH cameras have been coveted icons of design and innovation. Informed by that legacy yet stepping solidly into the future comes the PowerShot ELPH 530 HS. Beautifully sleek, this state-of-the-art camera is ready for the way you live now. Built-in Wi-Fi® lets you share images and beautiful 1080p Full HD videos virtually anywhere, while the 3.2-inch wide touch panel PureColor System LCD makes operation easy and interactive. So slim, it's hard to believe it packs a 28mm Wide-Angle lens with 12x Optical Zoom to capture just the image you want. Image quality is superb, with a 10.1 Megapixel High-Sensitivity CMOS Sensor and DIGIC 5 Image Processor for the clear low-light imaging of Canon's HS SYSTEM. It also comes equipped with the latest technological advancements like Smart AUTO with Face ID to ensure that every shot you capture is amazing.

Product Attributes

Type Of Camera

Compact Digital Still Camera With Built-In Flash, 12x Optical, 4.0x Digital And 48x Combined Zoom With Optical Image Stabilizer

Type

10.1 Megapixel, 1/2.3-Inch CMOS

Total Pixels

Approx. 16.8 Megapixels

Effective Pixels

Approx. 10.1 Megapixels

Focal Length

4.0 (W) - 48.0mm (T) (35mm Film Equivalent: 28 - 336mm)

Digital Zoom

Approx. 4x

Focusing Range

Normal: 2.0 In. (5cm) - Infinity (W), 3.3 Ft. (1m) - Infinity (T)
Auto: 0.4 In. (1cm) - Infinity (W), 3.3 Ft. (1m) - Infinity (T)
Macro: 0.4 In. - 1.6 Ft. (1-50cm) (W)

Autofocus

TTL Autofocus

Optical Viewfinder

N/A

Lcd Monitor

3.2-Inch TFT Touch Panel Color LCD With Wide Viewing Angle

Lcd Pixels

Approx. 461,000 Dots

Lcd Coverage

Approx. 100%

Maximum Aperture

F/3.4 (W) - F/5.6 (T)

Shutter Speed

1-1/4000 Sec.
15-1/4000 Sec. (Total Shutter Speed Range)

Sensitivity

Auto*, ISO 100/200/400/800/1600/3200 (In P Mode)
*Camera Automatically Sets The Optimal ISO Speed According To Shooting Mode

Light Metering Method

Evaluative*, Center Weighted Average, Spot**
* Facial Brightness Is Evaluated In Face AiAF.
** Fixed To Center.

Exposure Control Method

AE Lock

Exposure Compensation

+/-2 Stops In 1/3-Stop Increments (Not Available When Shooting Movies)

White Balance Control

Auto*, Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Custom
* Facial Color Is Evaluated In Face Detect (Face Detect WB)
- Adjusts The White Balance Separately For The Main Subject And The Background When The Flash Fires.

Built In Flash

Auto, Flash On, Slow Synchro, Flash Off
- Facial Brightness Is Also Evaluated In Face Detect.

Flash Range

1.6 - 8.2 Ft. (W), 3.3 - 4.9 Ft. (T), (50cm - 2.5m (W), 1.0 - 1.5m (T))
* Image Brightness May Diminish Depending On The Shooting Distance

Recycling Time

10 Sec. Or Less (Battery Voltage: 3.7V)

Flash Exposure Compensation

N/A

Shooting Modes

Auto*¹, P, Movie Digest, Portrait, Smooth Skin, Smart Shutter*², High-Speed Burst, Handheld Night Scene, Low Light, Fisheye Effect, Miniature Effect, Toy Camera Effect, Soft Focus, Monochrome, Super Vivid, Poster Effect, Color Accent, Color Swap, Snow, Fireworks, Long Shutter, IFrame Movie, Super Slow Motion Movie
- Shooting Movies Is Possible With The Movie Button
*1 Smart Auto Also Available For Movies
*2 Smile, Wink Self-Timer, Face Self-Timer

Photo Effects

My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin, Darker Skin, Vivid Blue, Vivid Green, Vivid Red, Custom Color*
*Adjustment Of Contrast, Sharpness, Saturation, Red, Green, Blue And Skin Tone Are Available

Self Timer

Approx. 10-Sec. Delay/Approx. 2-Sec. Delay/Custom*
*Delay Time (0 - 15 Sec. (In One-Second Increments), 20/25/30 Sec.) And Number Of Shots (1-10 Shots (In One-Shot Increments)) Can Be Specified.

Wireless Control

N/A

Continuous Shooting

Normal:
Approx. 2.6 Shots/Sec. (In P Mode)
Approx. 6.1 Shots/Sec. (In High-Speed Burst Mode)
AF:
Approx. 0.8 Shots/Sec. (In P Mode)
Approx. 0.8 Shots/Sec. (In Low Light Mode)
LV:
Approx. 0.8 Shots/Sec. (In P Mode)
- Under Conditions Where The Flash Does Not Fire Automatically.
- Differs According To Zoom Position.

Storage Media

MicroSD Memory Card, MicroSDHC Memory Card, MicroSDXC Memory Card

File Format

Design Rule For Camera File System, DPOF Version 1.1 Compliant

Image Recording Format

Superfine, Fine

Jpeg Compression Mode

Still Image: Exif 2.3 (JPEG)
Video: MOV (Image: H.264; Audio: Linear PCM (2-Channel Stereo))

Number Of Recording Pixels

Still Images:
[16:9]
Large: 3648 X 2048, Medium 1: 2816 X 1584
Medium 2: 1920 X 1080, Small: 640 X 360
[3:2]
Large: 3648 X 2423, Medium 1: 2816 X 1880
Medium 2: 1600 X 1064, Small: 640 X 424
[4:3]
Large: 3648 X 2736, Medium 1: 2816 X 2112
Medium 2: 1600 X 1200, Small: 640 X 480
[1:1]
Large: 2736 X 2736, Medium 1: 2112 X 2112
Medium 2: 1200 X 1200, Small: 480 X 480
Video:
[IFrame Movie]
1280 X 720 (30 Fps*¹)
[Super Slow Motion Movie]
640 X 480*², 320 X 240*³
[Miniature Effect]
1280 X 720*⁴, 640 X 480*⁴
[Other Than The Above]
1920 X 1080 (24 Fps*⁵), 1280 X 720 (30 Fps*¹), 640 X 480 (30 Fps*¹)
*1 Actual Frame Rate Is 29.97 Fps.
*2 Shooting: 120 Fps., Playback: 30 Fps*¹
*3 Shooting: 240 Fps., Playback: 30 Fps*¹
*4 Shooting: 6 Fps, 3 Fps, 1.5 Fps Playback: 30 Fps*¹
*5 Actual Frame Rate Is 23.976 Fps.

Content

		16:9			3:2			4:3
		File Size (KB)	4 GB	16 GB	File Size (KB)	4 GB	16 GB	File Size (KB)	4 GB	16 GB
Large (L)	SF	3,847	989	3,982	4,360	874	3,520	4,785	799	3,217
Large (L)	F	2,524	1,508	6,073	2,789	1,356	5,459	3,018	1,257	5,061
Medium 1(M1)	SF	2,630	1,436	5,784	2,914	1,297	5,224	3,173	1,195	4,810
Medium 1(M1)	F	1,814	2,081	8,377	1,945	1,947	7,837	2,073	1,829	7,362
Medium 2(M2)	SF	1,095	3,353	13,497	899	4,024	16,197	1,002	3,658	14,724
Medium 2(M2)	F	604	6,036	24,296	496	7,102	28,583	558	6,354	25,574
Small (S)	SF	188	17,249	69,418	221	15,093	60,741	249	13,416	53,992
Small (S)	F	113	24,149	97,186	133	20,124	80,988	150	20,124	80,988
*Medium (M)**	SF	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
*Medium (M)**	F	N/A	N/A	N/A	N/A	N/A	N/A	1,159	3,177	12,787

		1:1
		File Size (KB)	4 GB	16 GB
Large (L)	SF	3,588	1,058	4,262
Large (L)	F	2,263	1,676	6,748
Medium 1(M1)	SF	2,365	1,609	6,478
Medium 1(M1)	F	1,549	2,414	9,718
Medium 2(M2)	SF	760	4,829	19,436
Medium 2(M2)	F	420	8,049	32,395
Small (S)	SF	188	17,249	69,418
Small (S)	F	113	24,149	97,186
*Medium (M)**	SF	N/A	N/A	N/A
*Medium (M)**	F	N/A	N/A	N/A

*When In High-Speed Burst Or Low Light.
• The Approximate Number Of Images Recordable On Memory Cards Other Than The Above Can Be Calculated By Using The Above Figures As A Reference And Extrapolating Accordingly.

Content

	IFrame Movie & Movie Digest	Miniature Effect						Super Slow Motion Movie
	HD: 1280 X 720	HD: 1280 X 720			640 X 480			640 X 480	320 X 240
	30 Fps	5x	10x	20x	5x	10x	20x	120 Fps	240 Fps
	30 Fps	6 Fps	3 Fps	1.5 Fps	6 Fps	3 Fps	1.5 Fps	120 Fps	240 Fps
Video Size (KB/Sec.,)	4,701	573	287	143	246	123	61	4,914	2,457
4GB	13 Min. 35 Sec.	1 Hr. 45 Min. 54 Sec.	3 Hr. 21 Min. 14 Sec.	5 Hr. 35 Min. 24 Sec.	3 Hr. 43 Min. 36 Sec.	6 Hr. 42 Min. 29 Sec.	11 Hr. 10 Min. 49 Sec.	12 Min. 58 Sec.	25 Min. 47 Sec.
16GB	54 Min. 42 Sec.	7 Hr. 6 Min. 14 Sec.	13 Hr. 29 Min. 52 Sec.	22 Hr. 29 Min. 48 Sec.	14 Hr. 59 Min. 52 Sec.	26 Hr. 59 Min. 46 Sec.	44 Hr. 59 Min. 37 Sec.	52 Min. 14 Sec.	1 Hr. 43 Min. 49 Sec.

	Other
	Full HD: 1920 X 1080	HD: 1280 X 720	640 X 480
	24 Fps	30 Fps	30 Fps
Video Size (KB/Sec.,)	4,355	3,054	1,416
4GB	14 Min. 34 Sec.	20 Min. 44 Sec.	43 Min. 44 Sec.
16GB	58 Min. 40 Sec.	1 Hr. 23 Min. 29 Sec.	2 Hr. 56 Min. 3 Sec.

Playback Modes File

Stills & Videos:
Auto Rotate (Automatic Vertical/Horizontal Detection), Image Advance (Operation Tools, Transition Effects, Scroll Display, Active Display), Rotate, Favorites, My Category, Smart Shuffle, Group Playback, Image Search, Movie Digest, Slideshow (Playback Interval, Repeat, Effect, Playlist)
Still Images:
Single, Index (6-130 Thumbnails), Magnification (4-10x), Information Display, Red-Eye Correction, I-Contrast, Trimming, Resize, My Colors, Focus Check, Histogram, Overexposure Warning
Videos:
Normal Playback*¹, Skip Backward*², Previous Frame*³, Next Frame*³, Skip Forward*²
- Displays Playback Position And Shooting Time
Using The Software Included With The Camera (ImageBrowser EX), There Are 8 Levels (1/8x To 1x) Of Playback Speed For Super Slow Motion Movies Possible On A Computer.
*1 Audio Settings Available In 5 Levels
*2 Approximately 4 Seconds
*3 Slow Motion Available

Erase Modes

Select*¹, Select Range, Select All Images*²
- The Image Data In The Memory Card Stored With The Design Rule For Camera File Systems Format Can Be Erased (However, Protected Images Cannot Be Erased).
*1 Movies Can Be Erased Individually.
*2 When Images Have Been Selected In Image Search, Only Those Images Will Be Erased.

Computer Interface

Hi-Speed USB (Dedicated Connector (Female) With Unified Type Of Digital, Audio And Video

Video Out

NTSC/PAL (Dedicated Connector (Female) With Unified Type Of Digital, Audio And Video)

Audio Out

2-Channel Stereo (Dedicated Connector (Female) Unified Type Of Digital, Audio, And Video)

Other

Mini-HDMI Cable: Connection To High Definition Monitor; MicroSD Memory Card Slot; Direct Connection To Canon SELPHY Compact Photo Printers, PIXMA Inkjet Photo Printers And PictBridge-Compatible Printers Via Camera's USB 2.0 Hi-Speed Cable

Power Source

Battery Pack NB-9L, Compact Power Adapter CA-DC10 (Included With AC Adapter Kit ACK-DC70

Shooting Capacity Bp 511

Approx. 190 Shots

Playback Time Bp 511 512

Approx. 3 Hours

Operating Temperature

32-104°F/0-40°C

Operating Humidity

10-90%

Dimensions W X H X D

3.38 X 2.11 X 0.78 In. / 85.8 X 53.5 X 19.8mm

Weight

5.75 Oz. / 163g (Including The Batteries And Memory Card)
5.01 Oz. / 142g (Camera Only)
