LV-X300ST
- Native XGA Resolution (1024 x 768)
- 0.61:1 Short Thow Ratio
- High Brightness - 3000 Lumens
- High 2300:1 Contrast Ratio
- BrilliantColor™ Technology System
- HDMI Input
- Filter-Free Design
- Projector with Lens Cap
- Power Cord
- Computer Cable (Mini Dsub 15-Mini Dsub 15)
- Projector Remote Control LV-RC08 (includes battery)
- Quick Start Guide (book)
- User's Manual (CD-ROM)
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS
A brilliant 3000 Lumens and an impressive 2300:1 contrast ratio, the Canon LV-X300ST Short Throw Multimedia Projector gives clear, high quality native XGA resolution (1024 x 768) images at an affordable price. This projector's throw ratio of 0.61:1 enables the projection of a 5 1/2 foot wide image from just under 3 1/2 feet away, and a native aspect ratio of 4:3 is ideal when the source material and/or projection screen is in a 4:3 format.
With this great value comes a great set of features. It starts with an HDMI input for projecting high definition signals from various compatible sources such as computers, Blu-Ray players and cable boxes and includes the DLP® BrilliantColor™ Technology system that helps ensure realistic, rich colors with enhanced brightness thanks to a 6-color wheel. In addition, the filter-free design and long lamp life up to 6000 hours in "Eco" (Economy) mode help contribute to simplified maintenance as well as cost savings.
The LV-X300ST has settings to help maximize the impact of your materials. Multiple image modes deliver great flexibility in adjusting image quality to match your presentation needs whether for text, colorful graphs/charts, detailed photos or video. Screen color correction helps ensure that even if your projection surface isn't white your image quality can be optimized, and you can also enjoy engaging 3D content with the LV-X300ST thanks to its compatibility with the DLP-Link system which seamlessly communicates with a variety of DLP link enabled active glasses.
It will be easy to bring this projector along with you and simple to set it up, thanks to its light weight and compact dimensions. Measuring 11.1" x 4.64" x 10.53" (282 x 117.9 x 267.5mm) and weighing 6.17 lbs (2.8kg) you'll find the LV-X300ST a handy partner. Direct Power Off lets you pull the plug from the projector as soon as you're done – so you can quickly be on your way. You'll have flexibility in your sound options as well as you can either use the projectors built-in 10W speaker, or you may also tie-in to a compatible external sound system with built-in connectors.
![]() The native XGA (1024 X 768) resolution of the Canon LV-X300ST projector delivers sharp video, diagrams and text in a native 4:3 aspect ratio. For a presenter showing panoramic images, spreadsheets, or material from a laptop, high definition sources or the output of interactive white boards, XGA resolution offers a level of detail above that found in a standard SVGA resolution projector. In some cases, the 4:3 aspect ratio will also simplify the use for instances where the source and/or screen is in the 4:3 ratio as well. |
The Canon LV-X300ST has been designed to deliver its superb images in tight spaces, thanks to the short throw lens. Whether in a small classroom, working with the output of an interactive whiteboard or showing a presentation, you'll be able to project a high quality large image from a relatively short distance from the projection surface. The LV-X300ST's throw ratio of 0.61:1 enables the projection of a 5½ foot wide screen from just under 3½ feet away. You'll have flexibility in placement options without having to compromise on image quality. ![]() |

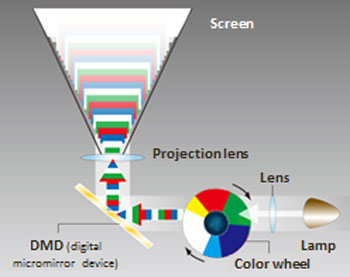

![]() The new color processing algorithm and 6-color wheel of the BrilliantColor™ Technology system bring an enhanced level of color realism and richness to your presentations. The reproduction of high-resolution graphics will be natural and lifelike, thanks to the addition of Cyan and Yellow, when compared to a 4-color wheel palette. This has the effect of increasing the saturation of colors, without adding white. The balance of colors displayed will be truer to the original. ![]() |
Delivering impactful presentations in challenging environments is among the highest of priorities for users. The Canon LV-X300ST meets that challenge head-on with the brilliance of 3000 Lumens. This projector will deliver exceptionally bright, clear, rich images in many applications. The projector's impressive 2300:1 contrast ratio contributes to the projection of images with deep, crisp blacks. ![]() For projecting in multi-purpose rooms such as classrooms or offices, this versatility in performance will be invaluable. |

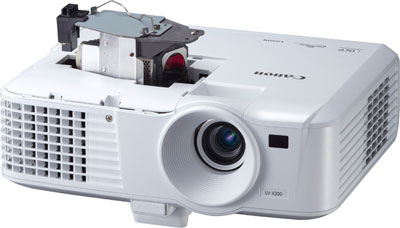

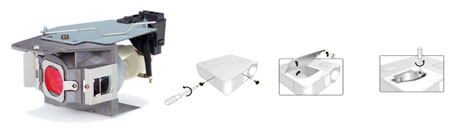

Maintenance of the LV-X300ST is simple with the combination of a filter-free design and an extended-life lamp. In Eco (Economy) Mode, the lamp life is up to 6,000 hours. These features, among the many others, make this projector easy to keep running. ![]() ![]() Eco Mode also comes with the bonus of reduced power consumption, as much as approximately 20% from standard mode, along with a reduction in fan noise lowered to 29 dB, helping to reduce the total cost of ownership and making it quieter as well. |
![]() Multiple Image Modes
![]() Screen Color Correction Mode |

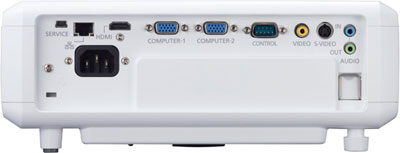

The HDMI input on the LV-X300ST allows projection of engaging high definition signals from various sources such as computers, Blu-ray players and cable boxes. ![]() You will also find 2 Analog PC inputs, 1 Video input, 2 Mini Jacks (audio input and output), 1 Mini DIN4 (S-Video) and a USB type B service port. ![]() The Canon LV-X300ST also supports PJLink™, allowing the projector to be controlled and monitored over a network. The administrator may remotely observe lamp hours, usage and more. Additional control options are possible thanks to the RS-232 input and the projector's Creston Connectivity. |
![]() A host of easy to use features are packed into the Canon LV-X300ST, making it a capable partner in delivering presentations with great impact. Direct Power Off * Before actually using this product, be sure to read the precautions in the instruction manual. ![]() Presentation Timer Closed Caption Mode Built-in 10W Speaker ![]() |

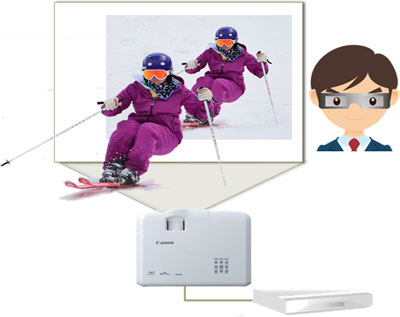

If 3D content is on your program plan, the LV-X300ST can handle it with ease. Capable of projecting 3D utilizing the DLP-Link System, the LV-X300ST only requires a 3D Blu-ray player as a source and DLP Link 3D glasses for your audience. ![]() |

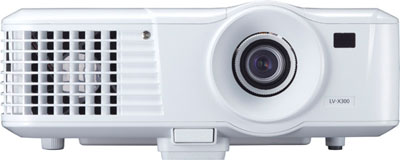

A key part of the appeal of a portable projector is convenient size and weight. The Canon LV-X300ST is small and light, but still packed with features, and it delivers brilliant images. It's been designed with a small, compact body – 11.1" x 4.64" x 10.53" and lightweight – only 6.17 lbs, light enough and small enough to make it easy to carry with you wherever you need to go. ![]() |
Lcd Panel System | 0.65" DMD X1 |
Aspect Ratio | 16:10 |
Native Resolution | WXGA (1280 X 800) |
Brightness | 3000 Lumens (Normal) / 2100 Lumens* (Eco) *Brightness In Eco Mode Is Only A Calculated Value, And Is Not Guaranteed As Specification. |
Uniformity | 75% |
Contrast Ratio | 2300:1 |
Digital Keystone Vertical | V-30°/+12° |
Projection Lens | F=6.9mm, F2.60 |
Zoom | Fixed |
Focus | Manual |
Screen Size | 60" - 120" *Images With The Same Aspect Ratio As The Digital Micromirror Device |
Throw Distance | 29.1"-58.2" (0.74 - 1.48m) |
Throw Ratio | 1.61:1 |
Color Mode | Presentation, Standard, SRGB, Movie, User 1, User 2 |
Color Adjust | Yes |
Wall Correction | Light Yellow, Pink, Light Green, Blue, Blackboard |
Mounting | Front Table, Rear Table, Front Ceiling, Rear Ceiling |
Tilt Angle | Front: 1 Rear: 1 (The Angle Of Elevation Of Up To 6°) |
Scanning Frequency | V:15.73 ~ 120kHz, H:24 ~ 101.563Hz |
Analog Input | UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA / MAC |
Digital Input | UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA |
Component Input | 1080p / 1080i / 720p / 576p / 576i / 480p / 480i |
Digital Video Input | 1080p / 1080i / 720p / 576p / 480p |
Input Dvi 29 Pin | Digital PC / Digital Video Input |
Input Dvi 15 Pin | Analog PC / Component Video Input |
Input Rca 1 | Video Input |
Input Mini 4 Pin | S-Video Input |
Input 5bnc | Audio Input X1, Audio Output X1 |
Input Rj45 | Network Connection (100BASE-TX / 10BASE-T) |
Input Stereo Mini Jack | RS-232C Connection |
Output Dsub 15pin | Service Port |
Built In Speaker | 10W, Mono |
Lamp Type | Super-High Pressure Mercury Lamp |
Lamp Life | 4000 Hours (Normal) / 6000 Hours (Eco) |
Wireless | Wireless Infrared |
Fan Noise | 36db (Normal) / 29dB (Eco) |
Power Comsumption | Normal: 330W Eco: 270W Standby Power: 3.0W (On) / 0.5W (Off) |
Power Source | AC 100 ~ 240V, 50/60 Hz |
Operating Temperature | 32°F - 104°F (0°C - 40°C) |
Storage Temperature | -4°F - 140°F (-20°C - 60°C) |
Dimension | W: 11.1"(282 Mm), H: 4.64"(117.9 Mm), D: 10.53"(267.5 Mm) (Including Protrusion) |
Weight | 6.2lbs |
