LV-X300
- Native XGA Resolution (1024 x 768)
- 2.04:1-1.86:1 Throw Ratio
- High Brightness - 3000 Lumens
- High 2300:1 Contrast Ratio
- BrilliantColor™ Technology System
- HDMI Input
- Filter-Free Design
- Projector with Lens Cap
- Power Cord
- Computer Cable (Mini Dsub 15-Mini Dsub 15)
- Projector Remote Control LV-RC08 (includes battery)
- Quick Start Guide (book)
- User's Manual (CD-ROM)
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS
The Canon LV-X300 projector has a native XGA resolution (1024 x 768), a brilliant 3000 Lumens and an impressive 2300:1 contrast ratio. Its native aspect ratio of 4:3 is especially useful for applications where the source content or screen being projected onto is also in this aspect ratio. It brings high quality projection at an affordable price.
The DLP® BrilliantColor™ Technology system provides rich, realistic colors with impressive brightness thanks to the 6-color wheel. It’s just one of the long list of features that combine to help deliver real value in the LV-X300. Others include an HDMI input that allows the projection of high definition signals from various compatible sources such as computers, Blu-Ray players and cable boxes. In addition, the filter-free design and long lamp life up to 6000 hours in "Eco" (Economy) mode help contribute to simplified maintenance as well as cost savings.
Enjoy engaging 3D content with the LV-X300 thanks to DLP-Link system compatibility. It communicates seamlessly with a variety of DLP® link enabled active glasses. Adjust image quality with multiple image modes to best match your presentation needs, whether they are text, photos, graphs and charts or video. The impact of your material can be maximized by the LV-X300. This projector can even optimize your image quality if your projection surface isn’t white with Screen Color Correction.
Direct Power Off lets you be quickly on your way when you have to simply pull the plug from the projector as soon as you’re done. The built-in 10W speaker helps ensure your presentation will sound as good as it looks and, for added flexibility, you can also connect to a compatible external sound system with built-in connectors. Compact, with dimensions of 11.1" x 4.5" x 9.13" (282 x 114 x 232mm) and light, with a weight of 5.5 lbs (2.5kg), the Canon LV-X300 can be easy to bring along wherever you go and simple to set-up.
The native XGA resolution (1024 X 768) of the Canon LV-X300 projector delivers clear, sharp video, diagrams and text in a native 4:3 aspect ratio. For a presenter showing panoramic images, spreadsheets, or material from a laptop, high definition sources or the output of interactive white boards, XGA resolution offers a higher level of detail and a significantly larger display area than that found in standard SVGA resolution projectors. In some cases, the 4:3 aspect ratio will also simplify the use for instances where the source and/or screen is in the 4:3 ratio as well. |

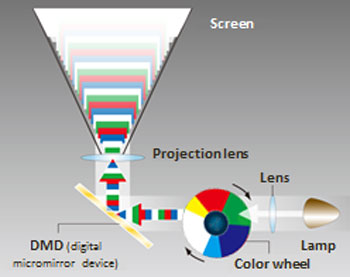

The new color processing algorithm and 6-color wheel of the BrilliantColor™ Technology system bring an enhanced level of color realism and richness to your presentations. The reproduction of high-resolution graphics will be natural and lifelike, thanks to the addition of Cyan and Yellow, when compared to a 4-color wheel palette. This has the effect of increasing the saturation of colors, without adding white. The balance of colors displayed will be truer to the original.
|
| Delivering impactful presentations in challenging environments is among the highest of priorities for users. The Canon LV-X300 meets that challenge head-on with the brilliance of 3000 Lumens. This projector will deliver exceptionally bright, clear, rich images in many applications. The projector's impressive 2300:1 contrast ratio contributes to the projection of images with deep, crisp blacks.
For projecting in multi-purpose rooms such as classrooms or offices, this versatility in performance will be invaluable. |

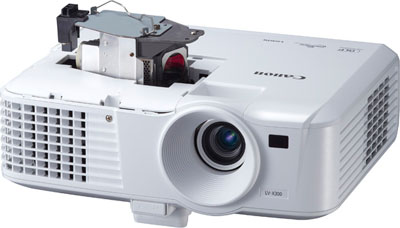

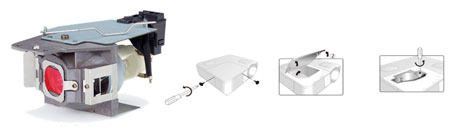

| Maintenance of the LV-X300 is simple with the combination of a filter-free design and an extended-life lamp. In Eco (Economy) Mode, the lamp life is up to 6,000 hours. These features, among the many others, make this projector easy to keep running.
Eco Mode also comes with the bonus of reduced power consumption, as much as approximately 20% from standard mode, along with a reduction in fan noise lowered to 29 dB, helping to reduce the total cost of ownership and making it quieter as well. |
Multiple Image Modes
Screen Color Correction Mode |

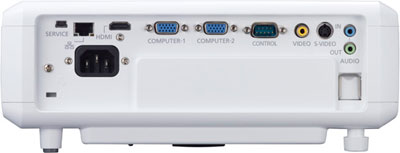

| The HDMI input on the LV-X300 allows projection of engaging high definition signals from various sources such as computers, Blu-ray players and cable boxes.

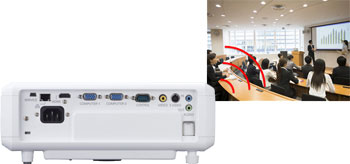

You will also find 2 Analog PC inputs, 1 Video input, 2 Mini Jacks (audio input and output), 1 Mini DIN4 (S-Video) and a USB type B service port. The Canon LV-X300 also supports PJLink™, allowing the projector to be controlled and monitored over a network. The administrator may remotely observe lamp hours, usage and more. Additional control options are possible thanks to the RS-232 input and the projector's Creston Connectivity. |
A host of easy to use features are packed into the Canon LV-X300, making it a capable partner in delivering presentations with great impact. Direct Power Off * Before actually using this product be sure to read the precautions in the instruction manual.
Presentation Timer Closed Caption Mode Built-in 10W Speaker
|

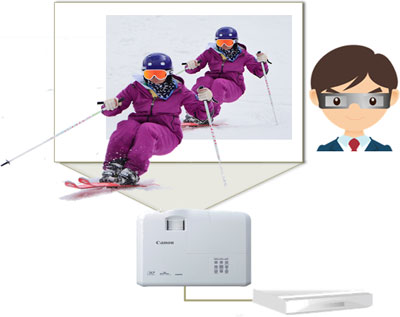

| If 3D content is on your program plan, the LV-X300 can handle it with ease. Capable of projecting 3D utilizing the DLP-Link System, the LV-X300 only requires a 3D Blu-ray player as a source and DLP Link 3D glasses for your audience.
|
| A key part of the appeal of a portable projector is convenient size and weight. The Canon LV-X300 is small and light, but still packed with features, and it delivers brilliant images. It's been designed with a small, compact body – 11.1" x 4.5" x 9.13" and lightweight – only 5.5 lbs, light enough and small enough to make it easy to carry with you wherever you need to go.
|
| Lcd Panel System | 0.65" DMD X1 |
| Aspect Ratio | 16:10 |
| Native Resolution | WXGA (1280 X 800) |
| Brightness | 3000 Lumens (Normal) / 2100 Lumens* (Eco) *Brightness In Eco Mode Is Only A Calculated Value, And Is Not Guaranteed As Specification. |
| Uniformity | 75% |
| Contrast Ratio | 2300:1 |
| Digital Keystone Vertical | V±30° |
| Projection Lens | F=21.0 - 23.1mm, F2.56 - 2.8 |
| Zoom | 1.1x, Manual |
| Focus | Manual |
| Screen Size | W: 60" - 150" T: 60" - 120" *Images With The Same Aspect Ratio As The Digital Micromirror Device |
| Throw Distance | W: 7.54 - 18.7ft (2.3 - 5.7m) T: 8.20 - 16.40ft (2.5 - 5.0m) |
| Throw Ratio | 2.04:1 - 1.86:1 |
| Color Mode | Presentation, Standard, SRGB, Movie, User 1, User 2 |
| Color Adjust | Yes |
| Wall Correction | Light Yellow, Pink, Light Green, Blue, Blackboard |
| Mounting | Front Table, Rear Table, Front Ceiling, Rear Ceiling |
| Tilt Angle | Front: 1 Rear: 1 (The Angle Of Elevation Of Up To 6°) |
| Scanning Frequency | V:15.73 ~ 120kHz, H:24 ~ 101.563Hz |
| Analog Input | UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA / MAC |
| Digital Input | UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA |
| Component Input | 1080p / 1080i / 720p / 576p / 576i / 480p / 480i |
| Digital Video Input | 1080p / 1080i / 720p / 576p / 480p |
| Input Dvi 29 Pin | Digital PC / Digital Video Input |
| Input Dvi 15 Pin | Analog PC / Component Video Input |
| Input Rca 1 | Video Input |
| Input Mini 4 Pin | S-Video Input |
| Input 5bnc | Audio Input X1, Audio Output X1 |
| Input Rj45 | Network Connection (100BASE-TX / 10BASE-T) |
| Input Stereo Mini Jack | RS-232C Connection |
| Output Dsub 15pin | Service Port |
| Built In Speaker | 10W, Mono |
| Lamp Type | Super-High Pressure Mercury Lamp |
| Lamp Life | 5000 Hours (Normal) / 6000 Hours (Eco) |
| Wireless | Wireless Infrared |
| Fan Noise | 35db (Normal) / 29dB (Eco) |
| Power Comsumption | Normal: 330W Eco: 275W Standby Power: 3.0W (On) / 0.5W (Off) |
| Power Source | AC 100 ~ 240V, 50/60 Hz |
| Operating Temperature | 32°F - 104°F (0°C - 40°C) |
| Storage Temperature | -4°F - 140°F (-20°C - 60°C) |
| Dimension | W: 11.10"(282 Mm), H: 4.5"(114.5 Mm), D: 9.13"(232 Mm) (Including Protrusion) |
| Weight | 5.5lbs |
