LV-WX300ST
- Native WXGA Resolution (1280 x 800)
- 0.49:1 Short Thow Ratio
- High Brightness - 3000 Lumens
- High 2300:1 Contrast Ratio
- BrilliantColor™ Technology System
- HDMI Input
- Filter-Free Design
- Projector with Lens Cap
- Power Cord
- Computer Cable (Mini Dsub 15-Mini Dsub 15)
- Projector Remote Control LV-RC08 (includes battery)
- Quick Start Guide (book)
- User's Manual (CD-ROM)
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS
The Canon LV-WX300ST Short Throw Multimedia Projector will fill a 5 ½ foot wide screen from just under 2 ½ feet away. With crisp native WXGA resolution (1280 x 800), a brilliant 3000 Lumens and an impressive 2300:1 contrast ratio, this projector brings high quality clear images at an affordable price. Its flexibility in placement can make presenting in challenging spaces easier.
The impressive feature list of the LV-WX300ST goes a long way in contributing to its value. An HDMI input allows various compatible sources including computers, Blu-Ray players and cable boxes to have their high definition signals directly projected. The DLP® BrilliantColor™ Technology system, with its 6-color wheel, ensures enhanced brightness and rich, realistic colors. In addition, the filter-free design and long lamp life up to 6000 hours in "Eco" (Economy) mode help contribute to simplified maintenance as well as cost savings.
Regardless of your source material, be it text, colorful graphs/charts, detailed photos or video, the LV-WX300ST will have a setting to help maximize their impact. Multiple image modes deliver great flexibility in adjusting image quality to match your presentation needs. If your projection surface isn't white, the screen color correction feature helps ensure that your image quality will be optimized. Compatibility with the DLP-Link system means you can enjoy engaging 3D content with the LV-WX300ST as it seamlessly communicates with a variety of DLP-Link enabled active glasses.
The dimensions of 11.1" x 4.64" x 10.53" (282 x 117.9 x 267.5mm) and a weight of 6.17 lbs (2.8kg) make the Canon LV-WX300ST compact, light and convenient to use. Simple to set-up, it will be easy to bring this projector along wherever you need to present. Direct Power Off lets you pull the plug from the projector as soon as you're done – so you can quickly be on your way. With a high quality built-in 10W speaker your presentation can also sound good. Built-in connectors give added flexibility for integrating with a compatible external sound system.

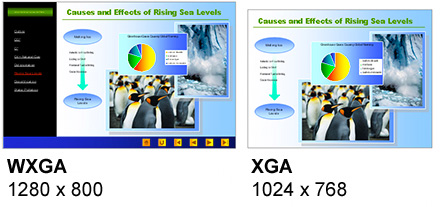

![]() The native WXGA resolution (1280 X 800) of the Canon LV-WX300ST projector delivers sharp video, diagrams and text in a native 16:10 aspect ratio. For a presenter showing panoramic images, spreadsheets, or material from a laptop, high definition sources or the output of interactive white boards, WXGA resolution offers a higher level of detail and a significantly larger display area than that found in standard XGA or SVGA resolution projectors. ![]() |
The Canon LV-WX300ST has been designed to deliver its superb images in tight spaces, thanks to the short throw lens. Whether in a small classroom, working with the output of an interactive whiteboard or showing a presentation, you'll be able to project a high quality large image from a relatively short distance from the projection surface. The LV-WX300ST's throw ratio of 0.49:1 enables the projection of a 5½ foot wide screen from just under 2½ feet away. You'll have flexibility in placement options without having to compromise on image quality. ![]() |

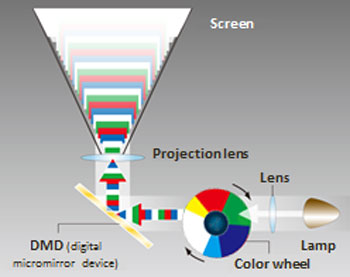

![]() The new color processing algorithm and 6-color wheel of the BrilliantColor™ Technology system bring an enhanced level of color realism and richness to your presentations. The reproduction of high-resolution graphics will be natural and lifelike, thanks to the addition of Cyan and Yellow, when compared to a 4-color wheel palette. This has the effect of increasing the saturation of colors, without adding white. The balance of colors displayed will be truer to the original. ![]() |
Delivering impactful presentations in challenging environments is among the highest of priorities for users. The Canon LV-WX300ST meets that challenge head-on with the brilliance of 3000 Lumens. This projector will deliver exceptionally bright, clear, rich images in many applications. The projector's impressive 2300:1 contrast ratio contributes to the projection of images with deep, crisp blacks. ![]() For projecting in multi-purpose rooms such as classrooms or offices, this versatility in performance will be invaluable. |

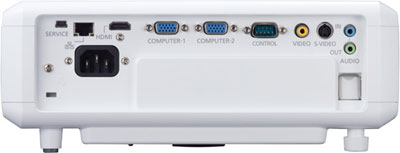

The HDMI input on the LV-WX300ST allows projection of engaging high definition signals from various sources such as computers, Blu-ray players and cable boxes. ![]() You will also find 2 Analog PC inputs, 1 Video input, 2 Mini Jacks (audio input and output), 1 Mini DIN4 (S-Video) and a USB type B service port. ![]() The Canon LV-WX300ST also supports PJLink™, allowing the projector to be controlled and monitored over a network. The administrator may remotely observe lamp hours, usage and more. Additional control options are possible thanks to the RS-232 input and the projector's Crestron Connectivity. |

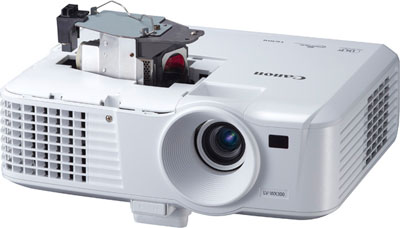

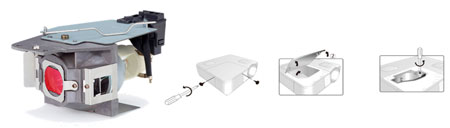

Maintenance of the LV-WX300ST is simple with the combination of a filter-free design and an extended-life lamp. In Eco (Economy) Mode, the lamp life is up to 6,000 hours. These features, among the many others, make this projector easy to keep running. ![]() ![]() Eco Mode also comes with the bonus of reduced power consumption, as much as approximately 20% from standard mode, along with a reduction in fan noise lowered to 29 dB, helping to reduce the total cost of ownership and making it quieter as well. |
![]() Multiple Image Modes
![]() Screen Color Correction Mode |

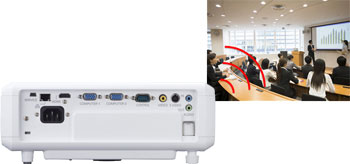

![]() A host of easy to use features are packed into the Canon LV-WX300ST, making it a capable partner in delivering presentations with great impact. Direct Power Off * Before actually using this product, be sure to read the precautions in the instruction manual. ![]() Presentation Timer Closed Caption Mode Built-in 10W Speaker ![]() |

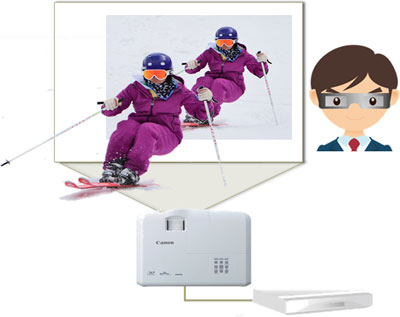

If 3D content is on your program plan, the LV-WX300ST can handle it with ease. Capable of projecting 3D utilizing the DLP-Link System, the LV-WX300ST only requires a 3D Blu-ray player as a source and DLP Link 3D glasses for your audience. ![]() |

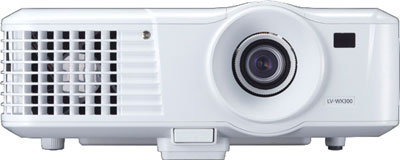

A key part of the appeal of a portable projector is convenient size and weight. The Canon LV-WX300ST is small and light, but still packed with features, and it delivers brilliant images. It's been designed with a small, compact body – 11.1" x 4.64" x 10.53" and lightweight – only 6.17 lbs, light enough and small enough to make it easy to carry with you wherever you need to go. ![]() |
Lcd Panel System | 0.65" DMD X1 |
Aspect Ratio | 16:10 |
Native Resolution | WXGA (1280 X 800) |
Brightness | 3000 Lumens (Normal) / 2100 Lumens* (Eco) *Brightness In Eco Mode Is Only A Calculated Value, And Is Not Guaranteed As Specification. |
Uniformity | 75% |
Contrast Ratio | 2300:1 |
Digital Keystone Vertical | V-18°/+12° |
Projection Lens | F=6.9mm, F2.60 |
Zoom | Fixed |
Focus | Manual |
Screen Size | W: 60" - 150" T: 60" - 120" *Images With The Same Aspect Ratio As The Digital Micromirror Device |
Throw Distance | 29.1" - 49.9" Ft (0.74 - 1.26m) |
Throw Ratio | 1.49:1 |
Color Mode | Presentation, Standard, SRGB, Movie, User 1, User 2 |
Color Adjust | Yes |
Wall Correction | Light Yellow, Pink, Light Green, Blue, Blackboard |
Mounting | Front Table, Rear Table, Front Ceiling, Rear Ceiling |
Tilt Angle | Front: 1 Rear: 1 (The Angle Of Elevation Of Up To 6°) |
Scanning Frequency | V:15.73 ~ 120kHz, H:24 ~ 101.563Hz |
Analog Input | UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA / MAC |
Digital Input | UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA |
Component Input | 1080p / 1080i / 720p / 576p / 576i / 480p / 480i |
Digital Video Input | 1080p / 1080i / 720p / 576p / 480p |
Input Dvi 29 Pin | Digital PC / Digital Video Input |
Input Dvi 15 Pin | Analog PC / Component Video Input |
Input Rca 1 | Video Input |
Input Mini 4 Pin | S-Video Input |
Input 5bnc | Audio Input X1, Audio Output X1 |
Input Rj45 | Network Connection (100BASE-TX / 10BASE-T) |
Input Stereo Mini Jack | RS-232C Connection |
Output Dsub 15pin | Service Port |
Built In Speaker | 10W, Mono |
Lamp Type | Super-High Pressure Mercury Lamp |
Lamp Life | 4000 Hours (Normal) / 6000 Hours (Eco) |
Wireless | Wireless Infrared |
Fan Noise | 36db (Normal) / 29dB (Eco) |
Power Comsumption | Normal: 330W Eco: 270W Standby Power: 3.0W (On) / 0.5W (Off) |
Power Source | AC 100 ~ 240V, 50/60 Hz |
Operating Temperature | 32°F - 104°F (0°C - 40°C) |
Storage Temperature | -4°F - 140°F (-20°C - 60°C) |
Dimension | W: 11.1"(282 Mm), H: 4.64"(117.9 Mm), D: 10.53"(267.5mm) (Including Protrusion) |
Weight | 6.2lbs |
