LV-S300
- SVGA Resolution (800 x 600)
- 2.04:1-1.86:1 Throw Ratio
- High Brightness - 3000 Lumens
- High 2300:1 Contrast Ratio
- BrilliantColor™ Technology System
- Filter-Free Design
- Projector with Lens Cap
- Power Cord
- Computer Cable (Mini Dsub 15-Mini Dsub 15)
- Projector Remote Control LV-RC08 (includes battery)
- Quick Start Guide (book)
- User's Manual (CD-ROM)
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS

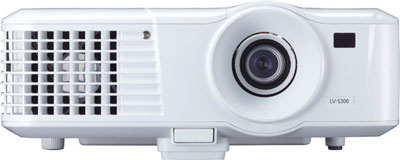

The Canon LV-S300 Multimedia Projector delivers quality images thanks to its brilliant 3000 Lumens, impressive 2300:1 contrast ratio, and native SVGA resolution (800 x 600).
This projector offers DLP® BrilliantColor™ Technology that helps ensure realistic, rich colors with enhanced brightness thanks to a 6-color wheel, and is also simple and cost-effective to operate thanks to a filter-free design and long lamp life up to 6000 hours in "Eco" (Economy) mode.
The LV-S300 is also flexible to meet your varied presentation needs with multiple image modes that can adjust image quality to best match text, graphs/charts, detailed photos, and video - whatever your source material might be. It doesn't even matter if your projection surface isn't white with Screen Color Correction since it can optimize your output for the color of the background. 3D content can also be projected as the LV-WX300 is compatible with the DLP-Link system; seamlessly communicating with a variety of DLP® link enabled active glasses.
The compact dimensions and light weight of the Canon LV-S300 offer convenience and flexibility. Handily sized at 11.1" x 4.5" x 9.13" (282 x 114 x 232mm) and weighing in at a slender 5.5 lbs (2.5kg) it's easy to carry this projector along with you wherever you need to go. If time is short after your presentation there is no need to be concerned - with Direct Power Off you can pull the plug from the projector the moment you're done and be on your way. The LV-S300 also offers a built-in 2W speaker, and if there is compatible sound system where you're presenting this projector can be hooked up to it through its built-in connectors.
![]() The native SVGA resolution (800 x 600) of the Canon LV-S300 projector delivers sharp video, diagrams and text. For a presenter showing PowerPoint presentations, documents, charts and graphs, the SVGA resolution meets those demands and delivers impressive quality for a very reasonable price. ![]() |

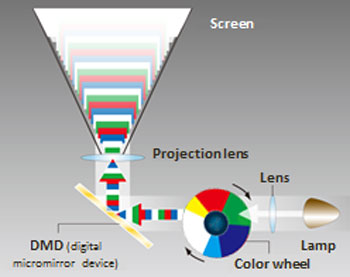

![]() The new color processing algorithm and 6-color wheel of the BrilliantColor™ Technology system bring an enhanced level of color realism and richness to your presentations. The reproduction of high-resolution graphics will be natural and lifelike, thanks to the addition of Cyan and Yellow, when compared to a 4-color wheel palette. This has the effect of increasing the saturation of colors, without adding white. The balance of colors displayed will be truer to the original. ![]() |
Delivering impactful presentations in challenging environments is among the highest of priorities for users. The Canon LV-S300 meets that challenge head-on with the brilliance of 3000 Lumens. This projector will deliver exceptionally bright, clear, rich images in many applications. The projector's impressive 2300:1 contrast ratio contributes to the projection of images with deep, crisp blacks. ![]() For projecting in multi-purpose rooms such as classrooms or offices, this versatility in performance will be invaluable. |

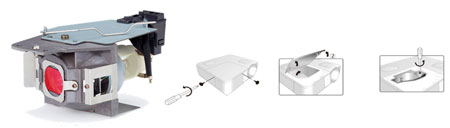

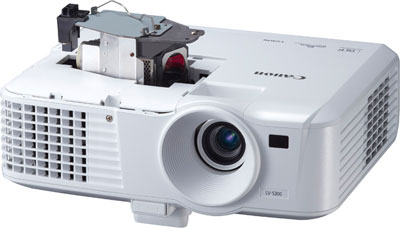

Maintenance of the LV-S300 is simple with the combination of a filter-free design and an extended-life lamp. In Eco (Economy) Mode, the lamp life is up to 6,000 hours. These features, among the many others, make this projector easy to keep running. ![]() ![]() Eco Mode also comes with the bonus of reduced power consumption, as much as approximately 20% from standard mode, along with a reduction in fan noise lowered to 29 dB, helping to reduce the total cost of ownership and making it quieter as well. |
![]() Multiple Image Modes
![]() Screen Color Correction Mode |

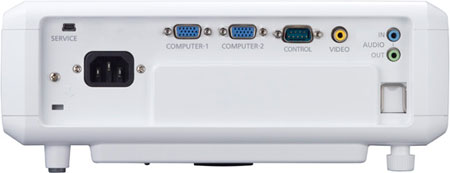

To give you flexibility of connectivity, the LV-S300 projector has a variety of inputs. You will find 2 Analog PC inputs, 1 Video input, 2 Mini Jacks (audio input and output), 1 Mini DIN4 (S-Video) and a USB type B service port. ![]() |
![]() A host of easy to use features are packed into the Canon LV-S300, making it a capable partner in delivering presentations with great impact. Direct Power Off * Before actually using this product, be sure to read the precautions in the instruction manual. ![]() Presentation Timer Closed Caption Mode Built-in 2W Speaker ![]() |

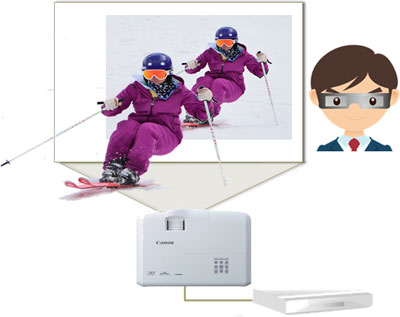

If 3D content is on your program plan, the LV-S300 can handle it with ease. Capable of projecting 3D utilizing the DLP-Link System, the LV-S300 only requires a 3D Blu-ray player as a source and DLP Link 3D glasses for your audience. ![]() |
A key part of the appeal of a portable projector is convenient size and weight. The Canon LV-S300 is small and light, but still packed with features, and it delivers brilliant images. It's been designed with a small, compact body – 11.1" x 4.5" x 9.13" and lightweight – only 5.5 lbs, light enough and small enough to make it easy to carry with you wherever you need to go. ![]() |
Lcd Panel System | 0.55" DMD X1 |
Aspect Ratio | 4:3 |
Native Resolution | SVGA (800 X 600) |
Brightness | 3000 Lumens (Normal) / 2100 Lumens* (Eco) *Brightness In Eco Mode Is Only A Calculated Value, And Is Not Guaranteed As Specification. |
Uniformity | 80% |
Contrast Ratio | 2300:1 |
Digital Keystone Vertical | V±30° |
Projection Lens | F=21.0 - 23.1mm, F2.56 - 2.8 |
Zoom | 1.1x, Manual |
Focus | Manual |
Screen Size | W: 60" - 150" T: 60" - 120" *Images With The Same Aspect Ratio As The Digital Micromirror Device |
Throw Distance | W: 7.54 - 18.7ft (2.3 - 5.7m) T: 8.20 - 16.40ft (2.5 - 5.0m) |
Throw Ratio | 2.04:1 - 1.86:1 |
Color Mode | Presentation, Standard, SRGB, Movie, User 1, User 2 |
Color Adjust | Yes |
Wall Correction | Light Yellow, Pink, Light Green, Blue, Blackboard |
Mounting | Front Table, Rear Table, Front Ceiling, Rear Ceiling |
Tilt Angle | Front: 1 Rear: 1 (The Angle Of Elevation Of Up To 6°) |
Scanning Frequency | V:15.73 ~ 120kHz, H:31.469 ~ 101.563Hz |
Analog Input | UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA / MAC |
Digital Input | UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA |
Component Input | 1080p / 1080i / 720p / 576p / 576i / 480p |
Digital Video Input | N/A |
Input Dvi 29 Pin | Digital PC / Digital Video Input |
Input Dvi 15 Pin | Analog PC / Component Video Input |
Input Rca 1 | Video Input |
Input Mini 4 Pin | N/A |
Input 5bnc | Audio Input X1, Audio Output X1 |
Input Rj45 | N/A |
Input Stereo Mini Jack | RS-232C Connection |
Output Dsub 15pin | Service Port |
Built In Speaker | 2W, Mono |
Lamp Type | Super-High Pressure Mercury Lamp |
Lamp Life | 5000 Hours (Normal) / 6000 Hours (Eco) |
Wireless | Wireless Infrared |
Fan Noise | 35db (Normal) / 29dB (Eco) |
Power Comsumption | Normal: 330W Eco: 275W Standby Power: 3.0W (On) / 0.5W (Off) |
Power Source | AC 100 ~ 240V, 50/60 Hz |
Operating Temperature | 32°F - 104°F (0°C - 40°C) |
Storage Temperature | -4°F - 140°F (-20°C - 60°C) |
Dimension | W: 11.10"(282 Mm), H: 4.5"(114.5 Mm), D: 9.13"(232 Mm) (Including Protrusion) |
Weight | 5.5lbs |
