LV-8235 UST
- Ultra short throw with Screen Size Up to 110"
- Native WXGA Widescreen Resolution (1280 x 800)
- High Brightness - 2500 lumens, High Contrast - 2000:1
- Flexible Connectivity with HDMI and Network Support
- 3D Sync Support
- LV-8235 UST Projector
- Remote Control (w/ 2 AAA batteries)
- VGA Computer Cable
- AC Power Cable
- Quick Start Guide
- CD ROM
The Canon LV-8235 UST ultra short throw projector is capable of displaying an 80 inch image from only 1.04 feet away. It combines 2500 lumens and a 2000:1 contrast ratio with a compact design and a wide range of installation options to bring a new level of image brilliance and flexible usability to the classroom, meeting room, office or trade show booth.
When you have to show fine texture and detail, such as found on fabric in a fashion showroom presentation or if you have a detailed technical drawing to display, the LV-8235 UST's HDMI input allows it to project crisp HD images, from a wide range of hi-definition sources. The LV-8235 UST is also a perfect partner with the laptop computers most used by students and professionals because it has WXGA native resolution (1280 x 800). If an educator needs to use the latest in 3D content in their classroom, the LV-8235 UST is ready with its 3D display system.
The LV-8235 UST is Canon's first DLP projector, using a 0.65" single DLP chip and comes with Canon's commitment to ease of use and maintenance as well as our legendary optical prowess. The LV-8235 UST ultra short focus projector will deliver brilliantly in the most challenging environments and your presentations will amaze your audiences.
You can project an 80-inch image from only 1.04 feet. The limitations of your room shrink along with the distance you'll need to use to project. A maximum image size of 110 inches is possible. When you add to this capability the option of ceiling or wall mounting of the LV-8235 UST, the opportunities for creative flexibility expand dramatically, as not only walls, but tables and the floor itself become viable projection surfaces. The impact on presentations in classroom, trade show or office venues can be huge.
|

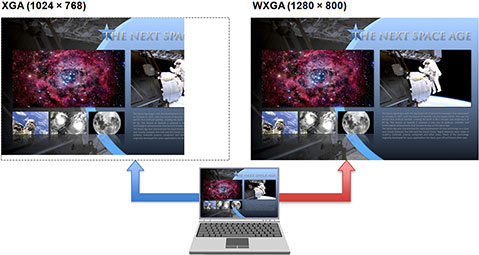

The LV-8235 UST offers native WXGA widescreen resolution (1280 x 800) delivering clear, sharp video, diagrams and text in a 16:10 aspect ratio, meeting the increasing demand for wide screen displays. The precise images reproduced by the sophisticated single-chip DLP technology are seen to their absolute best with WXGA resolution. Compared to standard XGA resolution projectors, the LV-8235 UST offers a larger display range capable of projecting data produced on many widescreen laptops. |
The LV-8235 UST features 2500 lumens, giving you the ability to deliver presentations in a wide variety of venues, be it a classroom, office or meeting room, in an equally wide range of lighting conditions.
Images are simulated It also features a 2000:1 contrast ratio which gives projected images crisp depth and dimension, ideal for conveying texture and materials. Colors remain crisp, with exceptional color balance, perfect for presentations incorporating high-quality, detailed visuals, such as fabrics or fine art. |
The LV-8235 UST works extremely well with a variety of external sources including networks, thanks to an array of useful input and output terminals.

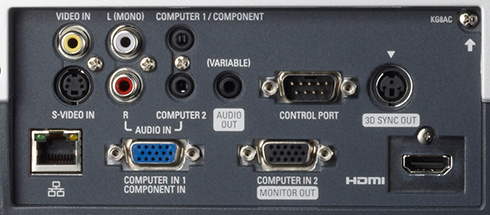

HDMI Version 1.3 Deep Color The LV-8235 UST is equipped with an HDMI terminal, supporting full HD 1080p signals provided by HDTV capable satellite and cable boxes, digital camcorders, and Blu-Ray players. Connect any of these inputs to the HDMI terminal for instant display of high-definition video. MiniDIN4 Input You also have the use of a MiniDIN4 input for the transfer of material from an S-video source. Network-ready RJ-45 Port To maximize the usability of the LV-8235 UST, the built-in RJ-45 port enables centralized control and monitoring from a networked PC. This makes it simple for an A/V team to operate ceiling or wall mounted installed projectors from a remote PC, allowing fewer personnel to cover a larger service area. RS-232C Serial Port Control the LV-8235 UST through a third-party system with the built-in RS-232C serial port. Video Input & Output The LV-8235 UST has two composite video inputs and an analog RGB output for high-definition video projection and composite video monitoring. Multiple Audio Inputs & Output Three stereo audio inputs (two 3.5mm Mini-Jack and one RCA) and one output (3.5mm Mini-Jack) are found on the LV-8235 UST for relaying audio through external speakers. It provides the flexibility needed to play audio from a linked DVD or PC source. |
More content is being created in 3D every day. With the LV-8235 UST, you can effectively display 3D images to be viewed with active-shutter 3D goggles. The LV-8235 UST incorporates a 3D display system employing a frame sequential method, alternating displaying right and left parallax views to create a 3D image. Of course, when projected using the DLP chip, 3D content is as effective as it can be. Especially useful in educational situations where the need for dynamic presentations of 3D content is growing rapidly, this latest trend in imaging is in your arsenal with the LV-8235 UST.  |

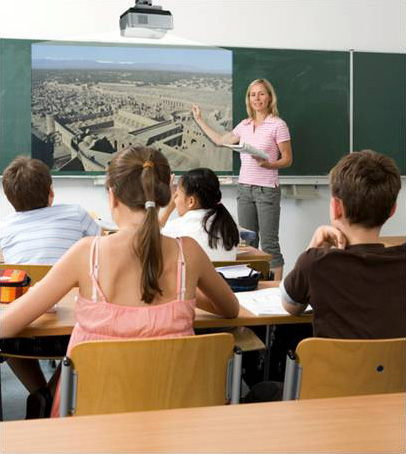

| The LV-8235 UST projector includes a colorboard adjustment setting that allows you to reproduce colors naturally when projecting onto a blackboard or colored wall, table or floor. The projector allows you to choose from four different projector surface colors: red, blue, yellow and green. In addition, there is a special blackboard setting that is useful when projecting onto a classroom board.
|
 You will find more options than ever before for choosing the surface you project onto. The LV-8235 UST employs a system in which the generated image is directed through the projection lens onto a built-in reflection mirror, looping back through a projection window. The LV-8235 UST gives you exceptional options in placing the projector, based on the needs of your venue.You also have the ability to project on a variety of surfaces, whether screen, wall, table or floor. Combined with the ultrashort-throw capability, it's possible to install the LV-8235 UST on a wall or ceiling using approved brackets and attachments and to project not only onto a wall, but also onto a table or the floor. This capability could prove extremely useful for trade show, showroom or classroom display applications. |
| At only 28dB in Eco mode, the LV-8235 UST is exceptionally quiet. The cooling system has been designed to most efficiently dissipate heat while keeping the noise level at a minimum, concentrating your audience's attention on the presentation, not the projector. If you are presenting to a hearing impaired audience or in a venue with a high level of ambient noise, the LV-8235 UST can deliver closed captioning to make any difficult to understand dialogue perfectly clear.  |

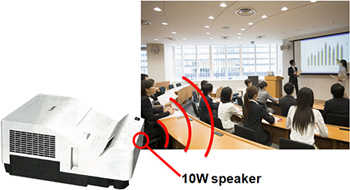

| Making the LV-8235 UST more convenient and easier to use were the goals of the Canon designers. You'll find controls and features made to let you concentrate on making better presentations. Direct Power On Computer Synchronization Built-in 10W Speaker |
This will automatically turn on your LV-8235 UST when a computer is connected and an input signal is detected. In addition, Computer Synchronization will also automatically detect the computer's screen resolution and align the settings on the projector to match. There is no need to search for the settings either on the source computer or the projector, saving time and ensuring a proper match.

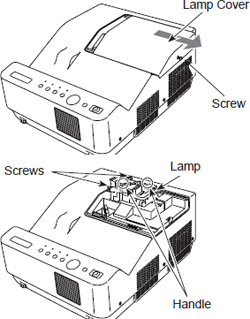

| The high performance of the LV-8235 UST is matched with impressive durability in use and simplified maintenance. While delivering more, it costs you less in time and maintenance. Lamp Life  With up to 2,000 hours lamp life in Normal Mode and 3,000 hours in Eco Mode possible, the extended lamp life of the LV-8235 UST lowers operating costs and reduces maintenance.Easy Access Lamp To make replacing the lamp quick and easy, the LV-8235 UST's lamp is located on the top of the projector. There is no need to move the projector, even if it is ceiling mounted. Air Filter The high-performance three layer hybrid filters of the LV-8235 UST can last up to 4,000 hours in Eco Mode. Consisting of perforated metal, urethane and metal mesh, anti-dust performance is greatly improved and filter life is dramatically lengthened over that of single layer electrostatic filters. It offers significantly reduced maintenance time. To further aid in maintenance, a replacement counter indicates when lamps and filters require changing. |
| Lcd Panel System | 0.65" Single-Chip DLP |
| Aspect Ratio | 16:10 |
| Native Resolution | 1280 X 800 (WXGA) |
| Brightness | 2500 Lumens |
| Uniformity | 78% |
| Contrast Ratio | 2000:1 |
| Digital Keystone Vertical | ±5 Degrees (Auto / Manual) |
| Digital Keystone Horizontal | No |
| Projection Lens | F2.5, F=4.83 Mm |
| Zoom | Fixed (0.5x - 2x Digital Zoom) |
| Focus | Manual |
| Screen Size | 60 ~ 110 In. |
| Throw Distance | 0.75 - 1.49 Ft. (23.0 - 45.5 Cm) 80": 1.04 Ft. (32.0 Cm) |
| Throw Ratio | 0.19:1 |
| Color Mode | Presentation, Standard, High Contrast, Cinema, User 1-4 |
| Color Adjust | Yes |
| Wall Correction | Red, Blue, Yellow, Green, Blackboard Green |
| Mounting | Ceiling, Rear, Rear-Ceiling, Upwards, Downwards, Wall |
| Tilt Angle | Front Two Feet (Fine Adjustment) |
| Scanning Frequency | H:15 - 93 KHz, V: 50 - 120 KHz |
| Analog Input | WUXGA / UXGA / WSXGA+ / SXGA+ / SXGA / WXGA+ / WXGA / XGA / SVGA / VGA / MAC |
| Digital Input | WSXGA+ / SXGA+ / SXGA / WXGA+ / WXGA / XGA / SVGA / VGA |
| Video Svideo Input | NTSC / PAL / SECAM / NTSC4.43 / PAL-M / PAL-N / PAL-60 |
| Component Input | 1080i / 1035i / 720p / 575p / 575i / 480p / 480i |
| Digital Video Input | HDMI: 1080p / 1080i / 1035i / 720p / 575p / 575i / 480p / 480i |
| Input Dvi 15 Pin | Analog RGB / Component Video Input |
| Input Rca 1 | Composite Video Input |
| Input Mini 4 Pin | S-Video Input |
| Input Rj45 | Network Input X1 |
| Input Stereo Mini Jack | Stereo Audio Input X2 |
| Output Dsub 15pin | Analog RGB Output |
| Output Stereo Mini Jack | Stereo Output X 1 |
| Built In Speaker | 10W Mono |
| Control Terminal | RS-232C |
| Lamp Type | 275W NSHA (AC) |
| Lamp Life | 2000 (Normal) / 3000 (Eco) Hours |
| Wireless | Infrared |
| Fan Noise | 28dBA (Eco) / 36dBA (Normal) |
| Power Comsumption | 400W (Normal) / 320W (Eco) |
| Power Source | AC100 ~ 240V, 50/60 Hz |
| Operating Temperature | 41° To 104° F (5° To 40° C) |
| Storage Temperature | 14° To 140° F (-10° To 60° C), 5%RH - 80%RH |
| Dimension | 12.6 X 6.7 X 15.2 In. (Not Including Protrusions) |
| Weight | 13.7 Lbs |
