LV-7390
- Native XGA Resolution (1024 x 768)
- 3000 Lumens and 2000:1 Contrast Ratio
- 1.2x Optical Zoom Lens
- Longer Lamp and Air Filter Life
- Auto Setup
- LV-7390 LCD Projector
- Lens Cap (with strap)
- AC Power Cord
- Remote Control (with AAA batteries)
- VGA to VGA Connection Cable (Mini D-sub 15-pin/Mini D-sub 15-pin)
- CD-ROM
- Quick Start Guide
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS

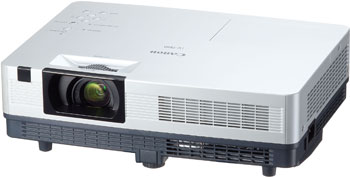

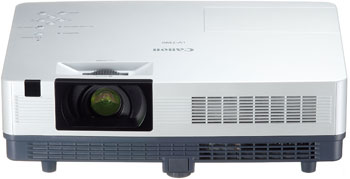

The Canon LV-7390 offers great value in a 3000 lumens portable LCD projector, delivering bright and clear images in large and small venues. The projectors auto iris brings a 2000:1 contrast ratio ensuring images will display crisp blacks with depth and dimension. The LV-7390 has been designed to maximize ease of use and maintenance with longer lamp life, up to 6000 hours in Quiet Mode, and an air filter designed to withstand 5500 hours of use in ECO Mode. Whether your LV-7390 is used portably or installed, you will enjoy a simpler maintenance schedule.
This new model has the flexibility needed for educators, small/startup businesses and traveling salespeople as they will find great value and capability in this high-performance, affordable LCD projector.
Canon brings the best of LCD technology to the LV-7390 projector. This projector has been designed and specified to deliver the impressive image quality you expect from a Canon product. LCD technology allows the LV-7390 to be small, light and portable, while still giving it the capability to serve as a great installation unit. ![]() |
Clear, sharp video, diagrams and text are yours with the LV-7390's XGA (1024 x 768) resolution. It is an ideal pairing with an XGA laptop computer and, in addition, the affordable LV-7390 also supports WXGA resolution from your widescreen laptop or PC through high quality compression. ![]() |
The LV-7390's 3000 lumens will produce bright, clearly visible images in spaces from offices and small classrooms to larger classrooms and boardrooms. This projector's high brightness is able to offset a reasonable amount of ambient light in a venue without sacrificing visibility of the image. The projector's built-in auto iris delivers a 2000:1 contrast ratio, ensuring that what you project shows deep blacks and bright whites. Another key benefit of the LV-7390's AC lamp system is that it lasts up to 6,000 hours in Quiet Mode. ![]() |
![]() By allowing you to take full advantage of it's wide projection distance coverage, from 3.6 feet to 34.4 feet (screen sizes 40" - 300"), the LV-7390 gives outstanding flexibility for use in small or moderately large spaces. |

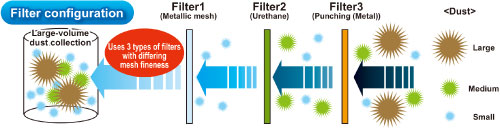

The LV-7390 adds to its already impressive value through enhanced durability and simplified maintenance. You will find this projector both easy to live with and less costly to run. The extended lamp life of the LV-7390, with up to 4,000 hours in Normal Mode and 6,000 hours in ECO Mode possible, lowers operating costs and reduces maintenance. Employing three-layer hybrid filters, consisting of perforated metal, urethane and metal mesh, anti-dust performance is greatly improved and filter life is dramatically lengthened over that of single layer electrostatic filters. The filter in the LV-7390 can last up to 5,500 hours in ECO Mode, significantly reducing maintenance time. ![]() ![]() For a quick and easy replacement, the LV-7390's lamp is located on the top of the projector. There is no need to move the projector, even if it is ceiling mounted. To further aid in maintenance, a replacement counter indicates when lamp and filter require changing. |
Canon's engineers have worked to ensure that the LV-7390 is user-friendly in use, with features and a design created to maximize convenience and ease. Quick Start and Quick Power Off ![]() Setting up the LV-7390 is both quick and easy with the Auto Setup function. Through a single button you can set Auto Input, Auto PC and Auto Keystone correction. With the projector placed on a flat surface, the engagement of Auto Setup will employ sensors which will detect the tilt of the projector in relation to the screen, automatically correcting for any keystone distortion — up to +/- 20 degrees vertically. Of course, keystone correction can be adjusted manually as well up to +/- 30 degrees. ![]() ![]() Easy to use and clear controls for volume and menu mean that the focus of a presenter will be on the presentation, not on running the projector. The LV-7390 makes it simple to switch between input sources with the touch of a button. Buttons which are familiar in look and feel to those of printers and copy machines fall easily to hand. For added convenience, the wireless IR remote control can be used. The clear to read white text on black background of the LV-7390's on-screen menu is easy to navigate. For added convenience, choose from 21 languages for the menu display. Users can select from multiple Image Modes to ensure content is optimally displayed.
Even if you don't have an external sound system to use, the 10W high output speaker of the LV-7390 delivers clear, well produced sound for venues of varying sizes. ![]() |

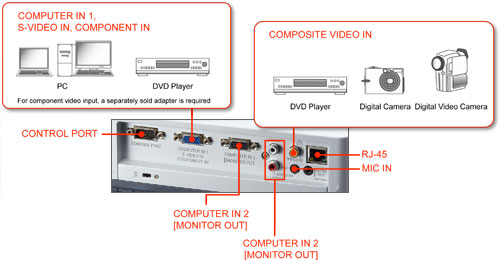

The LV-7390 connects to a variety of devices, including laptop and desktop computers, DVD players, and digital cameras and camcorders. ![]() Network-ready RJ-45 Port To maximize the usability of the LV-7390, the built-in RJ-45 port enables centralized control and monitoring from a networked PC. This makes it simple for an A/V team to operate ceiling mounted installed projectors from a remote PC, allowing fewer personnel to cover a larger service area. The LV-7390's RS-232 Serial Port allows for local control of the LV-7390 through a third-party control system.
Two audio Mini-Jack stereo inputs and one output are found on the LV-7390 for relaying audio through external speakers. It provides the flexibility needed to play audio from a linked DVD or PC source. |
Quiet Operation No one wants to have a projector which competes with you for the audience's attention and the LV-7390 keeps itself in the background with its quiet operation. Any potential distraction from fan noise is minimized, with a sound level of 36dB, which can be reduced to 29dB when in Quiet Mode. ![]() ![]() Closed Captioning If you are giving a presentation to a hearing impaired audience, or are working in a venue with a good deal of background noise, the LV-7390 gives you the option of closed captioning to facilitate understanding of any dialogue. |
Lcd Panel System | 0.63" Active Matrix X 3 |
Aspect Ratio | 4:3 |
Native Resolution | XGA (1024 X 768) |
Brightness | 3000 Lumens |
Uniformity | 85% |
Contrast Ratio | 2000:1 |
Digital Keystone Vertical | +/- 30 Degrees (Manual); +/- 20 Degrees (Auto) |
Projection Lens | F2.0 - 2.15, F=18.38 - 22.06mm |
Zoom | 1.2x Zoom (Manual) |
Focus | Manual |
Screen Size | 40" - 300" |
Throw Distance | 3.6 - 34.4 Ft. (1.1 - 10.5m) |
Color Mode | Presentation, Standard, High Contrast, Cinema, Blackboard (Green), Colorboard, User 1-4 |
Wall Correction | Yes |
Mounting | Ceiling, Rear, Rear-Ceiling, Upwards, Downwards |
Tilt Angle | Adjusting Foot Up To 10 Degrees |
Scanning Frequency | H:15~100 KHz, V:50~100 Hz |
Analog Input | WUXGA / UXGA / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA / MAC |
Video Svideo Input | NTSC / PAL / SECAM / NTSC4.43 / PAL-M / PAL-N / PAL-60 |
Component Input | 1080i / 1035i / 720p / 575p / 575i / 480p / 480i |
Input Dvi 15 Pin | Analog RGB / Component Video / S-Video Input |
Input Rca 1 | Composite Video Input |
Input Rj45 | Yes |
Input Stereo Mini Jack | Stereo Audio Input X 2 |
Output Dsub 15pin | Analog RGB Output |
Output Stereo Mini Jack | Stereo Audio Output |
Built In Speaker | 10W (Mono) |
Control Terminal | RS-232C |
Lamp Type | 215W UHP |
Lamp Life | 4000 / 6000 Hours (Normal / Quiet) |
Wireless | Wireless Infrared, Front |
Fan Noise | 29 / 36dB |
Power Comsumption | 286W / 6.6W / 0.4W |
Power Source | AC100 To 240V, 50/60Hz |
Operating Temperature | 41° To 95° F (5° To 35° C) |
Storage Temperature | 14° To 140° F (-10° To 60° C), 5%RH ~ 90%RH |
Dimension | 13.13" X 3.98" X 9.72" (333 Mm X 101 Mm X 247 Mm) |
Weight | 6.6 Lbs. |
Warranty | 3 Year Parts And Labor / 120 Day On Lamp |
