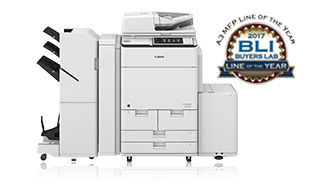

imageRUNNER ADVANCE C7580i

-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS
Workflow Efficiency
The Canon imageRUNNER ADVANCE C7580i all-in-one solution delivers an intuitive user interface that includes a color touch-screen display with smartphone-like usability. The built-in My ADVANCE platform allows users to create a customized experience for their workflow needs. Preferences such as display language, initial log-in screen and accessibility options can be synchronized across multiple compatible devices for consistency. The imageRUNNER ADVANCE C7580i device also offers users the ability to capture, print or access documents via certain cloud applications.*
This Canon device comes loaded with intelligent features, like a motion sensor to wake it up from sleep mode and the ability to automatically remove blank pages from documents when scanning. The printer can help you maximize productivity with advanced finishing options, and scanned documents can be fed through the 300-sheet-capacity document feeder and converted to Searchable PDF, Microsoft® Word, and/or Microsoft® PowerPoint® files.
* Subscription to a third-party cloud service required. Subject to third-party cloud service providers' terms and conditions.
Cost Management
The imageRUNNER ADVANCE platform is designed to deliver cost savings and can help maximize return on investment. The imageRUNNER ADVANCE C7580i model and supported solutions can give high-volume workplace environments the ability to apply print policies, monitor output, and restrict usage by user. This can help reduce unnecessary printing, enable cost recovery and save money on paper and toner. This Canon multipurpose printer offers excellent reliability, combined with remote diagnostics tools, to help reduce time spent resolving IT issues. Compatible with output solutions, such as Canon's optional uniFLOW management system, the imageRUNNER ADVANCE C7580i model can also carry out detailed tracking, reporting and cost analysis.
Security
The Canon imageRUNNER ADVANCE C7580i allows controlled access with authentication via the Universal Login Manager (ULM) application. This standard feature helps prevent unauthorized access to sensitive information. The standard HDD Encryption function, which has been updated to obtain FIPS 140-2 validation, allows the device to automatically encrypt the data stored on the main unit's HDD to help limit unauthorized access to internal data. For more robust tracking and access controls, the imageRUNNER ADVANCE C7580i model is compatible with additional standard and optional security features based on the administrators' needs.
* ULM is not pre-installed in 230V modelsDevice and Fleet Management Efficiency
The imageRUNNER ADVANCE C7580i device offers consistent and easy user operation - combined with remote and centralized fleet management - to help simplify maintenance of a single device or entire Canon fleet. Installing and managing networked devices with the third generation imageRUNNER ADVANCE platform is simple with device management tools that allow administrators to distribute settings across a fleet. Administrators can also check status of consumables, capture meter readings, and manage address books and Canon drivers from a centralized, remote location. The imageRUNNER ADVANCE C7580i model supports standard genuine Adobe® PostScript® and PCL® for integration with many enterprise applications and legacy systems.
* PS is standard for 120V models only.
Quality and Reliability
Canon's imageRUNNER ADVANCE C7580i device can provide businesses with quality output designed to meet the needs of high-volume workplaces and demanding color environments. Offices and walk-up multi-user environments can produce consistently striking images with the device's outstanding technologies, such as Canon's V2 color profile, up to 2400-dpi print resolution with R-VCSEL red laser technology, and a cooling system for the developer that helps maintain stable image quality over time.
The third generation imageRUNNER ADVANCE platform is designed to help achieve maximum uptime with tools that can provide status notifications to notify administrators, built-in intuitive user maintenance videos and automatic job rerouting (with optional solutions).
Sustainability
Canon's imageRUNNER ADVANCE Series of multifunction printers were designed with sustainability in mind, helping high-volume offices and multi-user environments save on cost while considering energy use and waste. The imageRUNNER ADVANCE C7580i model can help minimize waste with default two-sided printing, Secure Print features, and the ability to preview and change settings at the device for successful results the first time. All models in the imageRUNNER ADVANCE series are ENERGY STAR®-certified and the imageRUNNER ADVANCE C7580i has received an EPEAT® Gold rating.*
* For current EPEAT rating (Gold/Silver/Bronze), please visit www.epeat.net.
Model Name | ImageRUNNER ADVANCE C7580i |
Type | Color Laser Multifunctional |
Functions | Standard: Print, Copy, Scan, Send, Store Optional: Fax |
Operation Panel | Standard: 10.1" TFT LCD WSVGA Color Touch-Panel Optional: 10.4" TFT LCD WSVGA Color Upright-Panel |
Imaging System | Canon Dual Custom Processor (Shared) |
Image Server Memory | 4.0 GB RAM |
Hard Disk Drive | Standard: 250 GB Maximum: 1 TB |
Mirroring Hard Disk Drive | Optional (250 GB, 1 TB) Method: Raid1 |
Network Interface Connection | Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 B/G/N) Optional: NFC, Bluetooth |
Other Interface | Standard: USB 2.0 X2 (Host), USB 3.0 X1 (Host), USB 2.0 X1 (Device) Optional: Serial Interface, Copy Control Interface |
Max Mailboxes Supported | 100 User In-Boxes, 1 Memory RX In-Box, 50 Confidential Fax In-Boxes |
Max Pages Stored | 30,000 Maximum Pages Stored |
Available Disk Space | Approx. 16 GB (Standard HDD) Approx. 480 GB (1 TB HDD) |
Common Protocol | SMB Or WebDAV |
Supported Client Pc | Windows (Windows Vista/7/8/8.1/10) |
Max Number Of Concurrent Connections | SMB: 64 WebDAV: 3 (Active Sessions) |
Advanced Box Features | Disabling Advanced Box, Storage Filtering, Authentication For Advanced Box Log-In, Search Function, Sort Function, Printing A PDF File With A Password, ImageWARE Secure Audit Manager Support |
Standard | Standard: USB |
Printing Resolution | 2400 Dpi X 2400 Dpi |
Letter | Up To 80/70 Ppm / A4 Up To 80/70 Ppm |
Letter R | Up To 60/52 Ppm |
Legal | Up To 47/41 Ppm |
Ledger | Up To 40/35 Ppm |
First Copy Time | As Fast As 4.4 Seconds (BW)/ 5.4 Seconds (Color) |
Multiple Copies | Up To 9,999 Copies |
Copy Exposure | Automatic Or Manual (9 Levels) |
Magnification | 25%-400% (1% Increments) |
Preset Reductions | 25%, 50%, 64%, 73%, 78% |
Preset Enlargements | 121%, 129%, 200%, 400% |
Acceptable Originals | Sheet, Book, 3-Dimensional Objects [Up To 4.4 Lb. (2 Kg)] |
Maximum Original Size | Paper Drawers (1/2): Letter, A4 Paper Cassettes (3/4): 13" X 19", 12" X 18", 11" X 17", Legal, Letter, A4, Letter-R, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (5-1/2" X 7-1/8" To 13" X 19-1/4"), Envelope Custom Size (3-7/8" X 5-7/8" To 13" X 19-1/4") Stack Bypass: 13" X 19", 12" X 18", 11" X 17", Legal, Letter, A4, Letter-R, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (4" X 5-7/8" To 13" X 19-1/4"), Envelope Custom Size (3-1/2" X 3-7/8" To 13" X 19-1/4"), Free Size (4" X 7-1/8" To 13" X 19-1/4") |
Standard Paper Capacity | 3,550 Sheets |
Maximum Paper Capacity | 9,300 Sheets |
Output Paper Capacity | 250 Sheets (With Copy Tray-R2), 3,500 Sheets (With External Finisher-V2), 4,250 Sheets (With External Finisher-X1) |
Cassette | Paper Drawers: 14 Lb. Bond To 80 Lb. Cover (52 To 220 G/M2) Paper Cassettes: 14 Lb. Bond To 140 Lb. Index (52 To 256 G/M2) Stack Bypass: 14 Lb. Bond To 110 Lb. Cover (52 To 300 G/M2) Duplexing: 14 Lb. Bond To 80 Lb. Cover (52 To 220 G/M2) |
Warm Up Time | From Power On: 30 Seconds Or Less From Deep Sleep Mode: 30 Seconds Or Less Quick Startup Mode: 4 Seconds1 |
Power Requirements | 208 V AC, 60 Hz,12 A 220-240 V AC, 50/60 Hz, 11A |
Power Consumption | Maximum: Approx. 2.5 KWh Standby: Approx. 119.2 Wh (208V) 136.6Wh (230V) Sleep Mode: Approx. 0.9 W Typical Electricity Consumption (TEC) Rating: : 5.5 KWh (208V) 5.6 KWh (230V) |
Plug | NEMA 6-15P (208V) CEE 7/7 (230V) |
Dim | 27-1/8" X 37-1/8" X 48" (689 Mm X 941 Mm X 1,220 Mm) |
Installation Space | Basic [With Booklet Finisher-V2 (Stack Bypass And Cassette Drawers Open)]: 75-3/8" X 60" (1,913 Mm X 1,524 Mm) Fully Configured [With Multi-Drawer Paper Deck-C1+Document Insertion Unit-N1+Multi Function Professional Puncher-A1+Document Insertion Unit-N1+ Booklet Finisher-X1 (Cassette Drawers Open)]: 150-3/8" X 60" (3,818 Mm X 1,524 Mm) |
Weight | Approx. 595.2 Lb. (270 Kg)2 |
Basic Copy Features | Preset Reduction/Enlargement Ratios By Area, Paper Setting, Previous Settings, Favorite Settings, Finishing, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel |
Special Copy Features | Book To Two Pages, Two-Sided Original, Finishing, Booklet, Job Build, N On 1, Add Cover, Insert Sheets, Different Size Originals, Density Adjustment, Original Type Selection, Transparency Cover Sheets, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Shift, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Job Done Notice, Mirror Image, Print On Tab, Store In Mail Box, Superimpose Image, Copy ID Card, Detect Feeder Multi Sheet Feed, Free Size Original, Color Balance, Adjust One-Touch Color, Area Designation |
Toner | GPR-56 Toner |
Estimated Toner Yield | (Estimated @ 5% Coverage): Black: 82,000 Images Color (C,M,Y): 66,500 Images |

GPR-56 Toner Black
Estimated Toner Yield: 82,000 Copies/Bottle (Estimated @ 5% Coverage)

GPR-56 Toner Magenta
Estimated Toner Yield: 66,500 Copies/Bottle (Estimated @ 5% Coverage)

GPR-56 Toner Cyan
Estimated Toner Yield: 66,500 Copies/Bottle (Estimated @ 5% Coverage)

GPR-56 Toner Yellow
Estimated Toner Yield: 66,500 Copies/Bottle (Estimated @ 5% Coverage)
- Windows Server 2025
- macOS 14
- macOS 13
- Windows 11
- macOS 12
- Windows Server 2022
- macOS 11
- Linux MIPS
- Linux ARM
- macOS 10.15
- macOS v10.13
- macOS v10.14
- Windows Server 2019 (x64)
- macOS v10.14
- macOS v10.13
- Windows Server 2016 (x64)
- macOS Sierra v10.12
- Linux 64bit
- Linux 32bit
- OS X v10.11
- Windows 10
- Windows 10 (x64)
- OS X v10.10
- OS X v10.9
- Windows Server 2012 R2 (x64)
- Windows 8.1 (x64)
- Windows 8.1
- Windows Server 2012 (x64)
- Windows 8
- Windows 8 (x64)
- Windows 7
- Windows 7 (x64)
- Windows Vista
- Windows Vista (x64)
- Windows XP
- Windows XP (x64)
- Windows Server 2008
- Windows Server 2008 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2003
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003 R2 (x64)
- Windows 2000
- Windows NT
- Windows 3.1
- Windows Me
- Windows 98
- Windows 95
- Mac OS X v10.8
- Mac OS X v10.7
- Mac OS X v10.6
- Mac OS X v10.5
- Mac OS X v10.4
- Mac OS X v10.3
- Mac OS X v10.2
- Mac OS X v10.1
- Mac OS X
- Mac OS 9
- Mac OS 8
- Linux (x64)
- Linux (x32)
- Linux
Locating and installing your download Locating and installing your download ES Locating and installing your download PT
How to identify your OS version
To help determine which Windows operating system is running on your computer, please view the below steps:
Windows 11
Click on the Windows button (located left to the Search at the bottom).
Click on the Settings button to navigate to the system settings.
Scroll to the bottom of the page and click on the About button.
You will be able to find your Windows operating system under the Windows Specifications section.
Windows® 10
Click Start or click the Windows button (usually found in the lower-left corner of your screen).
Click Settings.
Click About (which is usually located within the lower left of the screen). The next screen should display the Windows version.
Windows 8 or Windows 8.1
Option1: Swipe in from the upper-right corner of the screen while viewing the desktop in order to open the menu, then select Settings.
Select PC Info. Under Windows edition, the Windows version is shown.
Option 2: From the Start Screen
While on the Start screen, type computer.
Right-click on the computer icon. If using touch, press and hold on the computer icon.
Click or tap Properties. Under Windows edition, the Windows version is shown.
Windows 7
Click Start or click the Windows button (usually found in the lower-left corner of your screen).
Right-click Computer and select Properties from the menu. The resulting screen should now display the Windows version.
Linux
To check the version of your Linux operating system (OS), you can use the following commands in your terminal:
1. uname -r: Displays your Linux kernel version.
2. cat /etc/os-release: Displays your distribution name and version.
3. lsb_release -a: Displays specific details about your Linux distribution and version.
4. You can also use the hostnamectl command to display the Linux kernel version. However, this command is only available on Linux distributions that use systemd by default.
To help determine which Mac operating system is running on your computer, select the Apple menu in the upper-left corner of your screen and choose About This Mac.
Upon selecting, you should see the macOS name followed by the version number.
