Explore imageRUNNER ADVANCE C5255

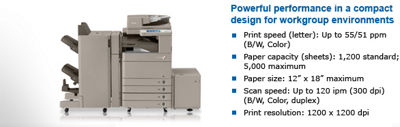

imageRUNNER ADVANCE C5255

At up to 55 pages per minute (letter), the imageRUNNER ADVANCE C5255 model offers powerful performance for busy workgroups that demand outstanding efficiency.

The imageRUNNER ADVANCE C5200 Series transforms workflow from a series of individual processes to an integrated flow of shared information. A beautifully compact communications hub, this Series can drive your organization to new levels of performance and productivity. From every point of view, these models are simply advanced.

Untitled Document

An exceptionally intuitive, simple-to-use interface puts access to all functions right at your fingertips, whether at the device or at your desktop.

Get noticed with high-impact color or crisp black-and-white output, all delivered with amazing speed.

Even on the go, you're in control. Print from a laptop, tablet, or smartphone to an imageRUNNER ADVANCE system.

Advanced technology and expansive enterprise applications work seamlessly with your device to deliver exceptional results.

A simple touch of a button on the user interface lets you access, scan to, or print directly from, the cloud.

Multilayered solutions safeguard confidential information and support security compliance.

Untitled Document

The imageRUNNER ADVANCE C5200 Series helps each user accomplish every task with outstanding ease. A center of extraordinary productivity, these models are simple to personalize, creating a truly customized way to work.

A powerful digital communications center, the imageRUNNER ADVANCE C5200 Series integrates enterprise applications, connects to the cloud, and gives you the freedom to work from wherever you are, efficiently and easily.

In today's networked world, you need greater control over your resources and data. The imageRUNNER ADVANCE C5200 Series delivers just that with the ability to configure a system, safeguard information, and track resources, all right at your fingertips.

Accomplish multiple tasks with impressive speed, produce professional-quality documents, and seamlessly link to business applications-all with performance you can count on.

It's all about a brighter, greener future. The imageRUNNER ADVANCE C5200 Series incorporates innovative, eco-conscious solutions that propel your business while reducing your environmental footprint.

Product Attributes

Model Name	ImageRUNNER ADVANCE C5255
Type	Color Digital Multifunction Imaging System Letter: Up To 55/51 Ppm Legal: Up To 28/26 Ppm Ledger: Up To 28/26 Ppm
Functions	Standard: Copy, Print (UFR II), Scan, Send, Store Optional: Print (PCL, Adobe® PostScript® 3™), Fax (Up To 4 Lines)
Operation Panel	8.4" SVGA Full-Color TFT Screen
Image Server Memory	Standard: 2GB RAM Maximum: 2.5GB RAM
Hard Disk Drive	Standard: 160GB Maximum: 1TB
Mirroring Hard Disk Drive	Optional (160GB, 1TB), Method: RAID1
Network Interface Connection	Standard: 1000Base-T/100Base-TX/10Base-T
Other Interface	Standard: USB 2.0 (Host) X 2, USB 2.0 (Device) Optional: Device Port [USB 2.0 (Host) X 2], Serial Interface, Copy Control Interface
Max Mailboxes Supported	100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax InboxesApprox.
Max Pages Stored	6,000 Maximum Pages Stored
Available Disk Space	15GB (Standard HDD) Approx. 629GB (1TB HDD)
Common Protocol	SMB Or WebDAV
Supported Client Pc	Windows® (Windows 2000/XP/Windows Vista®)
Max Number Of Concurrent Connections	SMB: 32, WebDAV: 12 (Active Sessions)
Advanced Box Features	Disabling Advanced Box, Storage Filtering, Authentication For Advanced Box Log-In, Search Function, Sort Function, Printing A PDF File With A Password, ImageWARE Secure Audit Manager Support
Standard	USB Memory
Optional	SD, SDHC, CompactFlash, Memory Stick, Microdrive
Network Twain Scan	Standard
Network Scan Utility	Color Network ScanGear
Standard Paper Capacity	Dual 550-Sheet Paper Cassettes, 100-Sheet Stack Bypass
Optional	Dual 550 Sheet Paper Cassettes, 2,700-Sheet Paper Deck
Maximum Paper Capacity	5,000 Sheets
Output Paper Capacity	(20 Lb. Bond): Standard: 250 Sheets (Inner Tray) Maximum: 3,250 Sheets (W/Staple Finisher Or Booklet Finisher)
Cassette	12" X 18",* 11" X 17",* Legal, Letter, Letter-R, Statement-R, Executive, Custom Size (5-1/2" X 7-1/8" To 12" X 18")
Bypass	12" X 18", 11" X 17", Legal, Letter, Letter-R, Statement, Statement-R, Executive, Custom Size (3-7/8" X 5-1/2" To 12-5/8" X 18") Paper Deck: Letter
Other Option	Envelope Feeder Attachment (COM10 No.10, Monarch, DL, ISO-C5) Tab Feeding Attachment Kit
Cassette	14 Lb. Bond To 80 Lb. Cover (52 To 220g/M²)
Bypass	14 Lb. Bond To 140 Lb. Index (52 To 256g/M²)
Paper Size	Standard Automatic Trayless Duplexing (Executive To 12" X 18")
Paper Weight	14 Lb. Bond To 80 Lb. Cover (52 To 220g/M²)
Special Media Support	Thin, Plain 1 [17 Lb. Bond To 21 Lb. Bond (64g/M2 To 81g/M²], Plain 2 [22 Lb. Bond To 28 Lb. Bond (82g/M2 To 105g/M²)], Recycled, Color, Pre-Punched, Bond, Heavy 1 [29 Lb. Bond To 60 Lb. Cover (106g/M² To 163g/M²)], Heavy 2 [61 Lb. Cover To 80 Lb. Cover (164g/M² To 220g/M²)], Heavy 3 [82 Lb. Cover To 140 Lb. Index (221g/M² To 256g/M²)], Tracing, Coated, Labels, Transparency, Tab, Letterhead, And Envelopes
Warm Up Time	From Power On: 31 Seconds, From Sleep: 18 Seconds Quick Startup Mode: 7 Seconds***
Power Requirements	120V AC, 60Hz, 15A Or 220-240V AC, 50/60 Hz, 8.7 A
Power Consumption	Maximum: 1.8kW Sleep Mode: 0.8W
Plug	NEMA 5-20P
Dim	37-3/8" X 24-3/8" X 28-1/8" (950mm X 620mm X 715mm)
Installation Space	33-1/2" X 28-1/8 (850mm X 715mm)
Weight	Approx. 346 Lb. (157kg)†
Scan Resolution	Up To 600 X 600 Dpi
Acceptable Originals	(Glass): Sheet, Book, 3-Dimensional Objects [Up To 4.4 Lb. (2kg)]
Maximum Original Size	Up To 11" X 17"
Basic Copy Features	First Copy Time: BW: 3.9 Seconds, Color: 6.0 Seconds Multiple Copies: 1 To 999 Copy Exposure: Automatic Or Manual (9 Levels) Magnification: 25% - 400% (1% Increments) Preset Reductions: 25%, 50%, 64%, 73%, 78% Preset Enlargements: 121%, 129%, 200%, 400%
Standard	Department ID Management, Single Sign On-H, Access Management System (Device And Function Level Log-In)♦♦, Secured Print, Trusted Platform Module, User Access Control Of Advanced Box, Mail Box Password Protection, IPV6, Restricting Features (Restricting The Send Function, Restricting New Addresses On Address Book), SSL Encrypted Communication, SNMPv1/V3, MAC/IP Address Port Filtering, SMTP Authentication, POP Authentication Before SMTP, HDD Erase (Up To 3x), HDD Initialize (Up To 9x), HDD Lock, IPSec, Adobe LiveCycle Rights Management ES2.5 Integration
Optional	Removable HDD, HDD Encryption, HDD Mirroring, Encrypted Secure Print, Encrypted PDF, Document Scan Lock, Secure Watermark, IEEE 2600.1 Common Criteria Certification
Environmental Features	ENERGY STAR® Qualified RoHS Compliant Ecomark Blue Angel WEEE Directive
Estimated Toner Yield	(Estimated Yield @ 5% Coverage): Black: 44,000 Images, Color (C,M,Y): 38,000 Images
Acceptable Originals	11" X 17", Legal, Letter, Letter-R, Statement, Or Statement-R
Scan Method	Single-Pass Duplexing, Automatic Document Feeder♦♦
Scanning Speed	(BW/Color; Letter): Simplex: Up To 75/75 Ipm (300 Dpi)/ Up To 75/51 Ipm (600 Dpi) Duplex: Up To 120/120 Ipm (300 Dpi)/ Up To 75/51 Ipm (600 Dpi)
Capacity	(20 Lb. Bond): 150 Sheets
Paper Weight	1-Sided Scanning: 11 Lb. Bond To 58 Lb. Cover (42 To 157g/M²) 2-Sided Scanning: 13 Lb. Bond To 58 Lb. Cover (50 To 157g/M²)
Description	Cassette Feeding Unit-AD2
Paper Capacity	550 Sheets X 2 Cassettes [20 Lb. Bond (80g/M²)]
Paper Size	12" X 18", 11" X 17", Legal, Letter, Letter-R, Statement-R, Executive, And Custom Size [5-1/2" X 7-1/8" To 12" X 18" (139.7mm X 182mm To 304.8mm X 457.2mm)]
Paper Weight	14 Lb. Bond To 80 Lb. Cover (52 To 220g/M²)
Power Source	From The Main Unit
Power Consumption	Approximately 30W
Dimensions	9-7/8" X 24-3/8" X 27-5/8" (251mm X 620mm X 700mm)
Weights	Approximately 61.7 Lb. (28kg)
Description	Paper Deck Unit-B2
Number Of Cassettes	1
Paper Capacity	2,700 Sheets [20 Lb. Bond (80g/M²)]
Paper Size	Letter
Paper Weight	14 Lb. Bond To 60 Lb. Cover (52 To 163g/M²)
Power Source	From Main Unit
Power Consumption	Approximately 45W
Dimensions	18-5/8" X 14-5/8" X 23-3/4" (473mm X 372mm X 603mm)
Weights	Approximately 81.6 Lb. (37kg)
Description	Envelope Feeder Attachment-D1**
Paper Capacity	50 Sheets (Or 30mm In Height)
Paper Size	COM10 No.10, Monarch, DL, ISO-C5 Feeding Speed: 10 Cpm
Dimensions	3-1/4" X 17-1/4" X 12-1/8" (81mm X 439mm X 307mm)
Weights	Approximately 2.6 Lb. (1.2kg)
Description	Inner 2-Way Tray-F1Δ
Total Output Capacity	Top Tray: 250 Sheets (20 Lb. Bond) Lower Tray: 100 Sheets (20 Lb. Bond) Number Of Trays: 2
Paper Size	12" X 18", 12-5/8" X 17-11/16", 11" X 17", Legal, Letter, Letter-R, Statement, Statement-R, Executive, Custom Size [3-7/8" X 5-9/16" To 12-5/8" X 18" (99mm X 139.7mm To 320mm X 457.2mm)], And Envelopes
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256g/M²)
Dimensions	3" X 16-3/4" X 16" (76mm X 427mm X 407mm)
Weight	Approximately 1.3 Lb. (574g)
Description	Inner Finisher-E1Δ
Paper Size	12" X 18", 12-5/8" X 17-11/16", 11" X 17", Legal, Letter, Letter-R, Statement, Statement-R, Executive, Custom Size (3-7/8" X 5-9/16" To 12-5/8" X 18"), And Envelopes
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256g/M²)
Number Of Trays	Up To 2 Trays (With Inner Finisher Additional Tray-A1)
Total Output Capacity	Without Inner Finisher Additional Tray-A1: 500 Sheets
Top Tray	(With Inner Finisher Additional Tray-A1): 100 Sheets (Letter)
Lower Tray	(With Inner Finisher Additional Tray-A1): 200 Sheets (Letter)
Staple Positions	Corner Stapling (11" X 17", Legal, Letter, Letter-R) Double Stapling (11" X 17", Legal, Letter, Letter-R)
Stapling Capacity	Letter And Executive: 50 Sheets (14 To 21 Lb. Bond) 30 Sheets (22 To 28 Lb. Bond) 2 Sheets (29 Lb. Bond To 140 Lb. Index) 11" X 17", Legal And Letter-R: 30 Sheets (14 To 21 Lb. Bond) 20 Sheets (22 To 28 Lb. Bond) 2 Sheets (28 Lb. Bond To 140 Lb. Index) Paper Capacity Of Staple Mode: Top Tray: 3/8" In Height Lower Tray: 30 Sets (Or 2-1/2" In Height)
Type Of Staple	Staple-J1 (5,000 X 3)
Power Source	From The Main Unit
Power Consumption	Approximately 40W
Dimensions	9-1/4" X 34-1/8" X 21-1/4" [234mm X 865mm X 540mm (When The Auxilary Tray Is Extended)]
Weight	Approximately 28.7 Lb. (13kg)
Description	Staple Finisher-J1Δ
Paper Size	12" X 18", 12-5/8" X 17-11/16", 11" X 17", Legal, Letter, Letter-R, Statement, Statement-R, Executive, Custom Size [3-7/8" X 5-9/16" To 12-5/8" X 18" (99 X 139.7mm To 320mm X 457.2mm)], And Envelopes
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256g/M²)
Paper Type	Thin, Plain, Recycled, Color, Pre-Punched, Bond, Heavy, Tracing, Letterhead, Coated, Labels, Transparency, And Envelopes
Number Of Trays	2
Total Output Capacity	3,000 Sheets (Letter, Statement-R, Executive)
Top Tray	1,300 Sheets (Letter, Statement-R, Executive) 650 Sheets (11" X 17", Legal, Letter-R)
Lower Tray	1,700 Sheets (Letter, Statement-R, Executive) 650 Sheets (11" X 17", Legal, Letter-R)
Staple Positions	Corner Stapling: (11" X 17", Legal, Letter, Letter-R, Executive) Double Stapling: (11" X 17", Legal, Letter, Letter-R, Executive)
Stapling Capacity	Letter And Executive: 50 Sheets (14 To 21 Lb. Bond) 30 Sheets (22 To 28 Lb. Bond) 2 Sheets (29 Lb. Bond To 140 Lb. Index) 11" X 17", Legal And Letter-R: 30 Sheets (14 To 21 Lb. Bond) 20 Sheets (22 To 28 Lb. Bond) 2 Sheets (29 Lb. Bond To 140 Lb. Index) Paper Capacity Of Staple Mode: Top Tray: 1,300 Sheets/30 Sets (Letter, Executive), 650 Sheets/30 Sets (11" X 17", Legal, Letter-R) Lower Tray: 1,700 Sheets/30 Sets (Letter, Executive), 650 Sheets/30 Sets (11" X 17", Legal, Letter-R)
Type Of Staple	Staple-J1 (5,000 X 3)
Power Source	From The Main Unit
Power Consumption	Approximately 100W
Dimensions	43-1/4" X 26-5/8" X 25-1/2" [1,097mm X 677mm X 646mm (When The Auxilary Tray Is Extended)]
Weight	Approximately 101 Lb. (46kg)
Description	Booklet Finisher-J1Δ
Paper Size	12" X 18", 12-5/8" X 17-11/16", 11" × 17", Legal, Letter, Letter-R, Statement, Statement-R, Executive, Custom Size [3-7/8" X 5-9/16" To 12-5/8" X 18" (99 X 139.7mm To 320mm X 457.2mm)], And Envelopes
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256g/M²)
Paper Type	Plain, Heavy, Color, Recycled, Pre-Punched, Transparency, Tracing, Labels, Bond, Transparency, Envelopes
Number Of Trays	2
Total Output Capacity	3,000 Sheets (Letter, Statement-R, Executive)
Top Tray	1,300 Sheets (Letter, Statement-R, Executive) 650 Sheets (11" X 17", Legal, Letter-R)
Lower Tray	1,700 Sheets (Letter, Statement-R, Executive) 650 Sheets (11" X 17", Legal, Letter-R)
Paper Capacity Of Saddle Stitch Mode	16 Sheets (14 To 20 Lb. Bond) 10 Sheets (22 To 28 Lb. Bond) Paper Capacity Of Saddle-Stitch Mode:25 Booklets (5-Sheet Booklets)
Staple Positions	Corner/Double Stapling: 11" X 17", Legal, Letter, Letter-R, Executive Saddle-Stitch: 11" X 17", Legal, Letter-R
Stapling Capacity	Letter And Executive: 50 Sheets (14 To 22 Lb. Bond) 30 Sheets (22 To 28 Lb. Bond) 2 Sheets (29 Lb. Bond To 140 Lb. Index) 11" X 17", Legal And Letter-R: 30 Sheets (14 To 21 Lb. Bond) 20 Sheets (22 To 28 Lb. Bond) 2 Sheets (29 Lb. Bond To 140 Lb. Index) Paper Capacity Of Staple Mode: Top Tray: 1,300 Sheets/30 Sets (Letter, Executive), 650 Sheets/30 Sets (11" X 17", Legal, Letter-R) Lower Tray: 1,700 Sheets/30 Sets (Letter, Executive), 650 Sheets/30 Sets (11" X 17", Legal, Letter-R)
Type Of Staple	Staple-J1 (5,000 X 3) Staple Cartridge-D3 (2,000 X 3)
Power Source	From The Main Unit
Power Consumption	Approximately 123W
Dimensions	43-1/4" X 31-1/8" X 25-1/2" [1097mm X 789mm X 646mm (When The Auxilary Tray Is Extended)]
Weight	Approximately 165 Lb. (75kg)
Description	External 2/3 Hole Puncher-B2
Paper Size	11" X 17", Legal, Letter, Letter-R
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256g/M²)
Paper Type	Thin, Plain, Heavy, Color, Recycled, Letterhead,Coated
Punch Type	2 Holes: (Legal, Letter-R, Executive) 3 Holes: (11" X 17", Letter)
Tray Capacity	2 Holes: 10,000 Sheets (21 Lb. Bond) 3 Holes: 3,000 Sheets (21 Lb. Bond)
Distance Between Punch Holes	2 Holes: 2-3/4" (70mm) 3 Holes: 4-1/4" (108mm)
Power Requirements	From The Main Unit
Dimensions	36x 4-1/4" X 24-1/4" (915mm X 107mm X 615mm)
Weight	Approximately 15.9 Lb. (7.2kg)
Applicable Line	4
Modem Speed	Super G3: 33.6 Kbps G3: 14.4 Kbps
Data Compression	MH, MR, MMR, JBIG
Resolution	400 X 400 Dpi, 200 X 400 Dpi, 200 X 200 Dpi, 200 X 100 Dpi
Scanning Recording Size	Statement To 11" X 17"
Fax Features	Job Forwarding, Different-Size Originals, Adjusting Overall Density For Scanning, Sharpness, Copy Ratio, Erase Frame, Job Build, Specifying The Sender's Name (When Sending Fax), Selecting The Telephone Line (When Sending Fax), Delayed Send, Preview, Finished Stamp, Job Done Notice, Original Type Selection, Two-Sided Original, Book To Two Pages
Processor	Canon Dual Custom Processor (Shared)
Standard Memory	2GB RAM
Maximum Memory	2.5GB RAM
Hard Disk	Standard: 160GB Maximum: 1TB
Engine Resolution	1200 X 1200 Dpi
Pdl Support	Standard: UFR II Optional: PCL 5c, PCL 6, Adobe PS 3
Print Controller Technology	UFR II, PCL 5c/6, Adobe PS 3: Windows® (XP/Windows Vista®/7), Windows Server (2003/ 2008/2008 R2/SBS 2011/2012), Windows Terminal Servers (Server 2003/Server 2008/Server 2008 R2/2012), Microsoft® Clustering Server (Server 2003/Server 2003 R2/Server 2008/Server 2008 R2), Citrix (Presentation Server 4.5, Xen App 5.0/6.0/6.5, Xen Desktop 4.0/5.0/5.5), Macintosh® (OS X 10.5.8 Or Later, UFR II And PS 3 Only), VMware, SAP (PS And PCL Only)
Print Features	Suspend Job Timeout, Subset Finishing (PS Only), Profile Settings, Secured Print, Watermark, Page Border, Header/Footer, Page Layout, Two-Sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Offsetting, Printing On Transparencies, Front/Back Covers, Black And White Printing, Objective, Color/Black-And-White Auto Detect, Toner Reduction, Poster Printing Direct Print Support: Standard: TIFF, JPEG Optional: PDF, XPS††, EPS†††
Sending Method	E-Mail, I-Fax, File Server (FTP, SMB, WebDAV), Mail Box, Super G3 Fax (Optional)
Color Mode	Auto Color Select (Color, Gray), Auto Color Select (Color, Black), Full Color, Grayscale, BW
Scan Resolution	600 X 600 Dpi, 400 X 400 Dpi, 300 X 300 Dpi, 200 X 400 Dpi, 200 X 200 Dpi, 200 X 100 Dpi, 150 X 150 Dpi, 100 X 100 Dpi
Address Book Capacity	Max. 1,800 Destinations (Incl. 200 One-Touch Buttons)
Communication Protocol	File: FTP (TCP/IP), SMB (TCP/IP), WebDAV E-Mail/I-Fax: SMTP, POP3, I-FAX (Simple, Full)
File Format	Standard: TIFF, JPEG, PDF, PDF (Compact), PDF (Apply Policy), PDF (Optimize For Web), PDF/XPS (OCR), PDF/A-1b, XPS, XPS (Compact), OOXML (OCR) (.Pptx And .Docx)♦♦ Optional: PDF (Trace & Smooth), PDF (Encrypted), PDF/XPS (Digital Signature), PDF (Reader Extensions)
I Fax Data Format	Color: .Tfx (JPEG) BW: .Tif (MH, MR, MMR) Universal Send Features: Two-Sided Original, Different-Size Originals, Original Type Selection, Book To Two Pages, Density Adjustment, Sharpness, Document Name, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Finished Stamp, Job Done Notice, File Name, Subject/Message, Reply-To, Sender's Name (TTI), E-Mail Priority * Not Available On Top Cassette. Can Be Set To Cassette 2 Only. Can Not Install Envelope Feeder Attachment And Tab Feeding Attachment At Same Time. * If "Quick Startup Settings For Main Power" Is Set To ON, It Takes 7 Seconds Until The Key Operation On The Touch Panel Display Is Available After Turning On The Main Power. † Includes Consumables. †† XPS Cannot Be Printed Directly From The Web Access Software. ††† EPS Can Be Printed Directly Only From Remote User Interface. Δ The Inner 2-Way Tray-F1, Inner Finisher-E1, Staple Finisher-J1, And Booklet Finisher-J1 Cannot Be Installed At The Same Time. ♦♦ Standard In 120V Models; Optional In 230V Models
