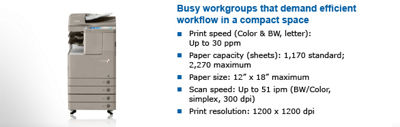

imageRUNNER ADVANCE C2230
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS
|
|
|
Untitled Document
|
![]() |
|
![]() |
|
![]() |
|
![]() |
|
Model Name | ImageRUNNER ADVANCE C2230 |
Type | Color Digital Multifunction Imaging System Letter: Up To 30/30 Ppm Legal/11" X 17": Up To 15 Ppm |
Functions | Standard: Copy, Print (UFR II), Scan, Send Optional: Print (PCL, Adobe® PostScript® 3), Fax (Up To 2 Lines) |
Operation Panel | 7" WVGA Full-Color TFT Screen |
Image Server Memory | Standard: 2GB RAM Maximum: 2GB RAM |
Hard Disk Drive | Standard: 80GB Maximum: 80GB |
Network Interface Connection | Standard: 1000Base-T/100Base-TX/10Base-T |
Other Interface | Standard: USB 2.0 (Host) X 2, USB 2.0 (Device) Optional: Device Port [USB 2.0 (Host) X 2], Copy Control Interface |
Standard | USB Memory |
Optional | SD, SDHC, CompactFlash, Memory Stick, Microdrive |
Network Twain Scan | Standard |
Network Scan Utility | Color Network ScanGear |
Multiple Copies | 1 To 999 |
Copy Exposure | Automatic Or Manual (9 Levels) |
Magnification | Magnification: 25% - 400% (1% Increments) From Platen Glass Magnification: 25% - 200% (1% Increments) From Document Feeder |
Preset Reductions | 25%, 50%, 64%, 73%, 78% |
Preset Enlargements | 121%, 129%, 200%, 400% |
Standard Paper Capacity | One 550 Sheet Paper Cassette 100-Sheet Stack Bypass |
Optional | Dual 550 Sheet Paper Cassettes |
Maximum Paper Capacity | 2,270 Sheets |
Output Paper Capacity | (20 Lb. Bond): Standard: 250 Sheets (Inner Tray) Maximum: 3,000 Sheets (W/Staple Finisher Or Booklet Finisher) |
Cassette | Cassette 1: 11" X 17", Letter, Executive Cassettes 2/3/4: 12" X 18",* 11" X 17", Legal, Letter, Letter-R, Statement-R, Executive, Custom Size (5-1/2" X 7-1/8" To 12" X 18") |
Bypass | 12" X 18", 12-5/8" X 17-11/16", 11" X 17", Legal, Letter, Letter-R, Statement, Statement-R, Executive, Custom Size (3-7/8" X 5-1/2" To 12-5/8" X 18") |
Other Option | Envelope Feeder Attachment (COM10 No.10, Monarch, DL, ISO-C5)** Tab Feeding Attachment Kit** |
Cassette | Cassette 1: 17lb. Bond To 32 Lb. Bond (64 To 120g/M2) Cassettes 2/3/4: 17 Lb. Bond To 60 Lb. Cover (64 To 163g/M2) |
Bypass | 17 Lb. Bond To 80 Lb. Cover (64 To 220g/M2) |
Paper Size | Standard Automatic Trayless Duplexing (Executive To 12" X 18") |
Paper Weight | 17lb. Bond To 32 Lb. Bond (64 To 120g/M2) |
Warm Up Time | From Power On: 34 Seconds, From Sleep: 10 Seconds, Quick Startup Mode: 7 Seconds*** |
Power Requirements | 120V AC, 60Hz, 7.5A |
Power Consumption | Maximum: 1.5kW Sleep Mode: 0.8W |
Plug | NEMA 5-15P |
Dim | 36-1/2" X 22-1/4" X 26-3/4" (928mm X 565mm X 680mm) |
Installation Space | 33-3/8" X 28-3/4" (846mm X 680mm) (When The Multi-Purpose Tray Is Extended.) |
Weight | Approx. 198 Lb. (90kg)† |
Scan Resolution | Up To 600 X 600 Dpi |
Acceptable Originals | (Glass): Sheet, Book, 3-Dimensional Objects [Up To 4.4 Lb. (2kg)] |
Maximum Original Size | Up To 11" X 17" |
Basic Copy Features | First Copy Time: BW: 5.9 Seconds, Color: 8.9 Seconds |
Standard | Department ID Management, Single Sign On-H, Access Management System (Device And Function Level Log-In), Secured Print, Trusted Platform Module, IPV6, Restricting Features (Restricting The Send Function, Restricting New Addresses On Address Book), SSL Encrypted Communication, SNMPv1/V3, MAC/IP Address Port Filtering, SMTP Authentication, POP Authentication Before SMTP, HDD Erase (Up To 3x), HDD Initialize (Up To 9x), HDD Lock, IPSec, Adobe LiveCycle Rights Management ES2.5 Integration |
Optional | Removable HDD, HDD Encryption, HDD Mirroring, Encrypted Secure Print, Encrypted PDF, Document Scan Lock, Secure Watermark, IEEE 2600.1 Common Criteria Certification, Wireless LAN (IEEE 803.1x Via Third-Party Adapter)* |
Environmental Features |
|
Estimated Toner Yield | (Estimated Yield @ 5% Coverage): Black: 23,000 Images, Color (C,M,Y): 19,000 Images |
Description | Cassette Feeding Unit-AF1 |
Paper Capacity | 550 Sheets X 2 Cassettes [20 Lb. Bond (80g/M2)] |
Paper Size | 12" X 18", 11" X 17", Legal, Letter, Letter-R, Statement-R, Executive, And Custom Size [5-1/2" X 7-1/8" To 12" X 18" (139.7mm X 182mm To 304.8mm X 457.2mm)] |
Paper Weight | 17 Lb. Bond To 60 Lb. Cover (64 To 163g/M2) |
Power Source | From The Main Unit |
Power Consumption | Approximately 30W |
Dimensions | 9-3/4" X 22-1/4" X 25-5/8" (248mm X 565mm X 650mm) |
Weights | Approximately 61 Lb. (27.5kg) |
Description | Envelope Feeder Attachment-D1** |
Paper Capacity | 50 Sheets (Or 30mm In Height) |
Paper Size | COM10 No.10, Monarch, DL, ISO-C5Feeding Speed: 10 Cpm |
Dimensions | 3-1/4" X 17-1/4" X 12-1/8" (81mm X 439mm X 307mm) |
Weights | Approximately 2.6 Lb. (1.2kg) |
Description | Inner 2-Way Tray-F1 |
Total Output Capacity | Top Tray: 250 Sheets (20 Lb. Bond) Lower Tray: 100 Sheets (20 Lb. Bond)Number Of Trays: 2 |
Paper Size | 12" X 18", 12-5/8" X 17-11/16", 11" X 17", Legal, Letter, Letter-R, Statement, Statement-R, Executive, Custom Size [3-7/8" X 5-9/16" To 12-5/8" X 18" (99mm X 139.7mm To 320mm X 457.2mm)], And Envelopes |
Paper Weight | 14 Lb. Bond To 140 Lb. Index (52 To 256g/M2) |
Dimensions | 3" X 16-3/4" X 16" (76mm X 427mm X 407mm) |
Weight | Approximately 1.3 Lb. (574g) |
Description | Inner Finisher-F1Δ |
Paper Size | 12" X 18", 11" X 17", Legal, Letter, Letter-R, Statement, Statement-R, Executive, Custom Size (3-7/8" X 5-1/2" To 12-5/8" X 18"), And Envelopes |
Paper Weight | 17 Lb. Bond To 80 Lb. Cover (64 To 220g/M2) |
Number Of Trays | Up To 2 Trays (With Inner Finisher Additional Tray-A1) |
Total Output Capacity | Without Inner Finisher Additional Tray-A1: 500 Sheets |
Top Tray | (With Inner Finisher Additional Tray-A1): 100 Sheets (Letter) |
Lower Tray | (With Inner Finisher Additional Tray-A1): 350 Sheets (Letter) |
Staple Positions | Corner Stapling (11" X 17", Legal, Letter, Letter-R) Double Stapling (11" X 17", Legal, Letter, Letter-R) |
Stapling Capacity | Letter And Executive: 50 Sheets (17 To 21 Lb. Bond) 30 Sheets (22 To 28 Lb. Bond) 2 Sheets (29 Lb. Bond To 80 Lb. Cover) 11" X 17", Legal And Letter-R: 30 Sheets (17 To 21 Lb. Bond) 20 Sheets (22 To 28 Lb. Bond) 2 Sheets (28 Lb. Bond To 140 Lb. Index)Paper Capacity Of Staple Mode: Top Tray: 3/8" In Height Lower Tray: 30 Sets (Or 3-3/4" In Height) |
Type Of Staple | Staple-J1 (5,000 X 3) |
Power Source | From The Main Unit |
Power Consumption | Approximately 40W |
Dimensions | 9-1/4" X 34-1/8" X 21-1/4" [234mm X 865mm X 540mm (When The Auxilary Tray Is Extended)] |
Weight | Approximately 31 Lb. (14kg) (When Inner Finisher Additional Tray-A1 Is Attached) |
Description | Staple Finisher-M1 |
Paper Size | 12" X 18", 12-5/8" X 17-11/16", 11" X 17", Legal, Letter, Letter-R, Statement, Statement-R, Executive, Custom Size [3-7/8" X 5-9/16" To 12-5/8" X 18" (99 X 139.7mm To 320mm X 457.2mm)], And Envelopes |
Paper Weight | 17 Lb. Bond To 80 Lb. Cover (64 To 220g/M2) |
Number Of Trays | 2 |
Total Output Capacity | 3,000 Sheets (Letter, Statement-R, Executive) |
Top Tray | 1,300 Sheets (Letter, Statement-R, Executive) 650 Sheets (11" X 17", Legal, Letter-R) |
Lower Tray | 1,700 Sheets (Letter, Statement-R, Executive) 650 Sheets (11" X 17", Legal, Letter-R) |
Staple Positions | Corner Stapling: (11" X 17", Legal, Letter, Letter-R, Executive) Double Stapling: (11" X 17", Legal, Letter, Letter-R, Executive) |
Stapling Capacity | Letter And Executive: 50 Sheets (17 To 22 Lb. Bond) 30 Sheets (22 To 28 Lb. Bond) 2 Sheets (29 Lb. Bond To 80 Lb. Cover)11" X 17", Legal And Letter-R: 30 Sheets (17 To 22 Lb. Bond) 20 Sheets (22 To 28 Lb. Bond) 2 Sheets (29 Lb. Bond To 80 Lb. Cover)Paper Capacity Of Staple Mode: Top Tray: 1,300 Sheets/30 Sets (Letter, Executive), 650 Sheets/30 Sets (11" X 17", Legal, Letter-R) Lower Tray: 1,700 Sheets/30 Sets (Letter, Executive), 650 Sheets/30 Sets (11" X 17", Legal, Letter-R) |
Type Of Staple | Staple-J1 (5,000 X 3) |
Power Source | From The Main Unit |
Power Consumption | Approximately 84W |
Dimensions | 43-1/4" X 26-1/2" X 25-1/2" [1097mm X 673mm X 647mm (When The Auxiliary Tray Is Extended)] |
Weight | Approximately 101 Lb. (46kg) |
Description | Booklet Finisher-M1 |
Paper Size | 12" X 18", 12-5/8" X 17-11/16", 11" × 17", Legal, Letter, Letter-R, Statement, Statement-R, Executive, Custom Size [3-7/8" X 5-9/16" To 12-5/8" X 18" (99 X 139.7mm To 320mm X 457.2mm)], And Envelopes |
Paper Weight | 18 Lb. Bond To 80 Lb. Cover (64 To 220g/M2) |
Number Of Trays | 2 |
Total Output Capacity | 3,000 Sheets (Letter, Statement-R, Executive) |
Top Tray | 1,300 Sheets (Letter, Statement-R, Executive) 650 Sheets (11" X 17", Legal, Letter-R) |
Lower Tray | 1,700 Sheets (Letter, Statement-R, Executive) 650 Sheets (11" X 17", Legal, Letter-R) |
Paper Capacity Of Saddle Stitch Mode | 16 Sheets (18 To 20 Lb. Bond) 10 Sheets (22 To 28 Lb. Bond)Paper Capacity Of Saddle-Stitch Mode:25 Booklets (5-Sheet Booklets) |
Staple Positions | Corner/Double Stapling: 11" X 17", Legal, Letter, Letter-R, Executive Saddle-Stitch: 11" X 17", Legal, Letter-R |
Stapling Capacity | Letter And Executive: 50 Sheets (18 To 22 Lb. Bond) 30 Sheets (22 To 28 Lb. Bond) 2 Sheets (29 Lb. Bond To 80 Lb. Cover) 11" X 17", Legal And Letter-R: 30 Sheets (18 To 22 Lb. Bond) 20 Sheets (22 To 28 Lb. Bond) 2 Sheets (29 Lb. Bond To 80 Lb. Cover)Paper Capacity Of Staple Mode: Top Tray: 1,300 Sheets/30 Sets (Letter, Executive), 650 Sheets/30 Sets (11" X 17", Legal, Letter-R) Lower Tray: 1,700 Sheets/30 Sets (Letter, Executive), 650 Sheets/30 Sets (11" X 17", Legal, Letter-R) |
Type Of Staple | Staple-J1 (5,000 X 3) Staple Cartridge-D3 (2,000 X 3) |
Power Source | From The Main Unit |
Power Consumption | Approximately 118W |
Dimensions | 43-1/4" X 31" X 25-7/8" [1097mm X 786mm X 656mm (When The Auxiliary Tray Is Extended)] |
Weight | Approximately 165 Lb. (75kg) |
Applicable Line | 2 |
Modem Speed | Super G3: 33.6 Kbps G3: 14.4 Kbps |
Data Compression | MH, MR, MMR, JBIG |
Resolution | 400 X 400 Dpi, 200 X 400 Dpi, 200 X 200 Dpi, 200 X 100 Dpi |
Scanning Recording Size | Statement To 11" X 17" |
Fax Features | Job Forwarding, Different-Size Originals, Adjusting Overall Density For Scanning, Sharpness, Copy Ratio, Erase Frame, Job Build, Specifying The Sender's Name (When Sending Fax), Selecting The Telephone Line (When Sending Fax), Delayed Send, Preview, Finished Stamp, Job Done Notice, Original Type Selection, Two-Sided Original, Book To Two Pages |
Processor | Canon Dual Custom Processor (Shared) |
Standard Memory | 2GB RAM |
Hard Disk | Standard: 80GB Maximum: 80GB |
Engine Resolution | 1200 X 1200 Dpi |
Pdl Support | Standard: UFR II Optional: PCL 5c, PCL 6, Adobe PS 3 |
Print Controller Technology | UFR II, PCL 5c/6, Adobe PS 3: Windows® (XP/Windows Vista®/7), Windows Server (2003/ 2008/2008 R2/SBS 2011/2012), Windows Terminal Servers (Server 2003/Server 2008/Server 2008 R2/2012), Microsoft® Clustering Server (Server 2003/Server 2003 R2/Server 2008/Server 2008 R2), Citrix (Presentation Server 4.5, Xen App 5.0/6.0/6.5, Xen Desktop 4.0/5.0/5.5), Macintosh® (OS X 10.5.8 Or Later, UFR II And PS 3 Only), VMware, SAP (PS And PCL Only) |
Print Features | Suspend Job Timeout, Subset Finishing (PS Only), Profile Settings, Secured Print, Watermark, Page Border, Header/Footer, Page Layout, Two-Sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Offsetting, Printing On Transparencies, Front/Back Covers, Black And White Printing, Objective, Color/Black-And-White Auto Detect, Toner Reduction, Poster PrintingDirect Print Support: Standard: TIFF, JPEG Optional: PDF, XPS††, EPS††† |
Sending Method | E-Mail, I-Fax, File Server (FTP, SMB, WebDAV), Super G3 Fax (Optional) |
Color Mode | Auto Color Select (Color, Gray), Auto Color Select (Color, Black), Full Color, Grayscale, BW |
Scan Resolution | 600 X 600 Dpi, 400 X 400 Dpi, 300 X 300 Dpi, 200 X 400 Dpi, 200 X 200 Dpi, 200 X 100 Dpi, 150 X 150 Dpi, 100 X 100 Dpi |
Address Book Capacity | Max. 1,800 Destinations (Incl. 200 One-Touch Buttons) |
Communication Protocol | File: FTP (TCP/IP), SMB (TCP/IP), WebDAV E-Mail/I-Fax: SMTP, POP3, I-FAX (Simple, Full) |
File Format | Standard: TIFF, JPEG, PDF, PDF (Compact), PDF (Apply Policy), PDF (Optimize For Web), PDF/XPS (OCR), PDF/A-1b, XPS, XPS (Compact), OOXML (OCR) (.Pptx And .Docx) Optional: PDF (Trace & Smooth), PDF (Encrypted), PDF/XPS (Digital Signature), PDF (Reader Extensions) |
I Fax Data Format | Color/BW: .Tif (MH, MR, MMR)Universal Send Features: Two-Sided Original, Different-Size Originals, Original Type Selection, Book To Two Pages, Density Adjustment, Sharpness, Document Name, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Finished Stamp, Job Done Notice, File Name, Subject/Message, Reply-To, Sender's Name (TTI), E-Mail Priority * Not Available On Top Cassette. ** Can Be Set To Cassette 2 Only. Can Not Install Envelope Feeder Attachment And Tab Feeding Attachment At Same Time. *** If "Quick Startup Settings For Main Power" Is Set To ON, It Takes 7 Seconds Until The Key Operation On The Touch Panel Display Is Available After Turning On The Main Power. † Includes Consumables. †† XPS Cannot Be Printed Directly From The Web Access Software. ††† EPS Can Be Printed Directly Only From Remote User Interface. Δ The Inner 2-Way Tray-F1, Inner Finisher-F1, Staple Finisher-M1, And Booklet Finisher-M1 Cannot Be Installed At The Same Time. * Not Available In Latin America At Time Of Launch. |
