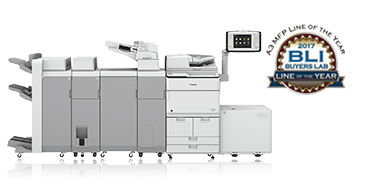

imageRUNNER ADVANCE 8505

Explore Canon's imageRUNNER ADVANCE 8500 Series, offering multifunction printers with enterprise-class functionality, high performance, high volume and advanced finishing options.

SERVICE LOCATOR

The Canon imageRUNNER ADVANCE 8500 Series is an intuitive, high performance solution for enterprise-level offices and central reprographics departments (CRDs). This black-and-white multifunction printer can be your organization's essential device for streamlining overall workflow efficiency and helping to improve productivity in a high-volume workplace. Built on the core values of Canon's Third Generation imageRUNNER ADVANCE platform,* the imageRUNNER ADVANCE 8500 Series operates on intelligent information management principles.

Designed for high volume offices and CRDs, the imageRUNNER ADVANCE 8505i multifunction printer is capable of meeting diverse needs, with high quality output and precision staple/booklet finishing options. Serving high-volume offices and in-plants, the imageRUNNER ADVANCE 8500 Series is designed to not only meet the needs of dedicated operators but it can also serve busy multi-user environments, with an intuitive user interface. Together these benefits can improve uptime and help facilitate business continuity.

* Canon's Third Generation imageRUNNER ADVANCE core values include Workflow Efficiency, Cost Management, Security, Device and Fleet Management Efficiency, Quality and Reliability, and Sustainability.

Product Attributes

Model Name	ImageRUNNER ADVANCE 8505
Type	Monochrome Laser Multifunctional
Functions	Standard: Print, Copy, Scan, Send, Store Optional: Fax
Operation Panel	10.4" TFT LCD WSVGA Color Upright Panel
Imaging System	Canon Dual Custom Processor (Shared)
Image Server Memory	3.0 GB RAM
Hard Disk Drive	Standard: 250 GB Maximum: 1 TB
Mirroring Hard Disk Drive	Optional (250 GB, 1 TB), Method: Raid1
Network Interface Connection	1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 B/G/N)
Other Interface	Standard: USB 2.0 X2 (Host), USB 3.0 X1 (Host), USB 2.0 X1 (Device) Optional: Serial Interface, Copy Control Interface
Max Mailboxes Supported	100 User In-Boxes, 1 Memory RX In-Box, 50 Confidential Fax In-Boxes
Max Pages Stored	30,000 Maximum Pages Stored
Available Disk Space	Approx. 16GB (Standard HDD) Approx. 480GB (Optional 1TB HDD)
Common Protocol	Communication Protocol: SMB Or WebDAV
Supported Client Pc	Windows (Windows Vista/7/8/8.1/10)
Max Number Of Concurrent Connections	SMB: 64 WebDAV: 3 (Active Sessions)
Advanced Box Features	Disabling Advanced Box, Storage Filtering, Authentication For Advanced Box Log-In, Search Function, Sort Function, Printing A PDF File With A Password, ImageWARE Secure Audit Manager Support
Standard	Standard: USB
Scanning Resolution	600 X 600 Dpi, 400 X 400 Dpi, 300 X 300 Dpi, 200 X 400 Dpi, 200 X 200 Dpi, 200 X 100 Dpi, 150 X 150 Dpi, 100 X 100dpi
Printing Resolution	1200 Dpi X 1200 Dpi, 600 Dpi X 600 Dpi Standard Page Description Languages UFR II, PCL^® 6, Adobe^® PS^® 3* PCL6/PS3 Optional For 230V Model Direct Print* Available From USB, Advanced Box, Remote UI, And Web Access5 Supported File Types PDF, TIFF, JPEG, EPS,6 XPS Printing From Mobile And Cloud A Range Of Software And MEAP-Based Solutions Are Available To Provide Printing From Mobile Devices Or Internet-Connected Devices And Cloud-Based Services Depending On Your Requirements. Fonts PCL Fonts: 93 Roman, 10 Bitmap Fonts, 2 OCR Fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified And Traditional Chinese)⁷ PS Fonts: 136 Roman Operating System⁸ UFRII: Server 2003/Server 2003 R2Vista/ Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10, MAC OS X (10.5.8 Or Later) PCL: Server 2003/Server 2003 R2Vista/ Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10 PS: Server 2003/Server 2003 R2Vista/ Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10, MAC OS X (10.5.8 Or Later) Print Features Suspend Job Timeout, Subset Finishing (PS Only), Profile Settings, Secured Print, Watermark, Page Border, Header/Footer, Page Layout, Two-Sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/ Orientations, Offsetting, Printing On Transparencies, Front/Back Covers, Toner Reduction, Poster Printing
Letter	Up To 105 Ppm
Letter R	Up To 81 Ppm
Legal	Up To 63 Ppm
Ledger	Up To 53 Ppm
First Copy Time	As Fast As 2.7 Seconds
Multiple Copies	Up To 9,999 Copies
Copy Exposure	Automatic Or Manual (9 Levels)
Magnification	25%-400% (1% Increments)
Preset Reductions	25%, 50%, 64%, 73%, 78%
Preset Enlargements	121%, 129%, 200%, 400%
Standard Paper Capacity	(LTR, 20 Lb. Bond): Standard: Dual 1,500-Sheet Paper Drawers, Dual 550-Sheet Paper Cassettes, 100-Sheet Stack Bypass
Optional	3,500-Sheet Paper Deck (POD DECK LITE-C1 Or PAPER DECK UNIT-E1)
Maximum Paper Capacity	(LTR, 20 Lb. Bond): 7,700 Sheets
Output Paper Capacity	(LTR, 20 Lb. Bond): With External Finishers (-V1): 3,500 Sheets With External Finishers (-X1): 4,250 Sheets With External Finishers (-W1 PRO): 5,000 Sheets
Cassettes	Paper Drawers (1/2): Letter, A3, A4 Paper Cassettes (3/4): 13" X 19", 12-5/8" X 17-11/16", 12" X 18", 11" X 17", A3, A4, Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2" X 7-1/8" To 13" X 19-1/4")
Bypass	13" X 19", 12-5/8" X 17-11/16", 12" X 18", 11" X 17", A3, A4, Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (4 X 5-7/8" To 13" X 19-1/4"), Free Size (4" X 7-1/4" To 13" X 19-1/4")
Other Option	POD DECK LITE-C1: 13" X 19", 12-5/8" X 17-11/16", 12" X 18", 11" X 17", A3, A4, Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2" X 7-1/8" To 13" X 19-1/4" PAPER DECK UNIT-E1: Letter, A4
Cassette	14 Lb. Bond To 80 Lb. Cover (52 To 220 G/M2) Supported Media Types: Paper Drawers (1/2): Thin, Plain, Recycled, Color, Heavy, Pre-Punched, Letterhead, Bond Paper Cassettes (3/4): Thin, Plain, Recycled, Color, Heavy, Pre-Punched, Letterhead, Bond, Tab¹
Bypass	14 Lb. Bond To 140 Lb. Index (52 To 256 G/M²) Supported Media Types: Thin, Plain, Recycled, Color, Heavy, Pre-Punched, Bond, Transparency, Labels, Letterhead, Tab, Tracing² POD DECK LITE-C1: Thin, Plain, Recycled, Color, Heavy, Pre-Punched, Letterhead, Bond, Transparency, Labels, Tab PAPER DECK UNIT-E1: Thin, Plain, Recycled, Color, Heavy, Pre-Punched, Letterhead, Bond
Duplexing	14 Lb. Bond To 80 Lb. Cover (52 To 220 G/M²)
Warm Up Time	From Power On: 60 Seconds Or Less From Sleep Mode: 60 Seconds Or Less³
Power Requirements	220-240 V AC, 50/60 Hz, 10A
Power Consumption	Maximum: Approx. 2.4 KW Standby: Approx. 222 Wh Energy Saver Mode: Approx. 193.1 Wh Sleep Mode: Approx. 0.9 W Or Less⁹ Typical Electricity Consumption (TEC) Rating: 10.7 KWh
Plug	CEE 7/7
Dim	58-3/8" X 30-3/8" X 49-1/4" (1481mm X 770 Mm X 1252 Mm)
Installation Space	Fully Configured: 161-3/8" X 63-5/8" (4098 Mm X 1617 Mm) (POD DECK LITE-C1 + BOOKLET FINISHER-W1 PRO + DOCUMENT INSERTION UNIT-N1 + PAPER FOLDING UNIT-J1 + BOOKLET TRIMMER-D1)
Weight	Approx. 529 Lb. (240 Kg)⁴
Basic Copy Features	Preset Reduction/Enlargement Ratios By Area, Paper Setting, Previous Settings, Favorite Settings, Finishing, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel
Special Copy Features	Book To Two Pages, Two-Sided Original, Finishing, Booklet, Job Build, N On 1, Add Cover, Insert Sheets, Different Size Originals, Density Adjustment, Original Type Selection, Transparency Cover Sheets, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Shift, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Job Done Notice, Mirror Image, Print On Tab, Store In Mail Box, Superimpose Image, Cascade Copy, Copy ID Card, Detect Feeder Multi Sheet Feed, Free Size Original
Standard S	Authentication: Universal Login Manager, User Authentication, Department ID Authentication, (Device And Function Level Log-In), Access Management System Optional: UniFLOW Data Standard: Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Mail Box Password Protection, Hard Disk Drive Encryption (FIPS140-2 Validated) Optional: Hard Disk Drive Mirroring, Hard Disk Drive Removal, IEEE 2600.2 Common Criteria Certification, Data Loss Prevention (Requires UniFLOW) Network Standard: IP/Mac Address Filtering, IPsec, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication Before SMTP Document Standard: Secure Print, Adobe LiveCycle® Rights Management ES2.5 Integration Optional: Encrypted PDF, Encrypted Secure Print, User And Device Signatures, Secure Watermarks, Document Scan Locking
Environmental Features	ENERGY STAR^® Certified Rated EPEAT^® Gold10 EU RoHS Compliant Ecomark Blue Angel
Toner	GPR-37 Black Toner
Estimated Toner Yield	70,000 Copies
Description	Color Platen And Single-Pass Duplexing Automatic Document Feeder
Acceptable Originals	Sheet, Book, 3-Dimensional Objects [Up To 4.4 Lb. (2 Kg)]
Bw Originals	13 Lb. Bond To 80 Lb. Cover (50 To 220 G/M²)
Color Originals	17 Lb. Bond To 80 Lb. Cover (64 To 220 G/M²)
Scan Method	Color Network ScanGear² For Both Twain And WIA Supported OS: Windows Vista/7/8/8.1/10Windows Server 2003/Server 2003 R2/Server 2008/Server 2008 R2/ Server 2012/Server 2012 R2 Scan Resolution 600 X 600 Dpi, 400 X 400 Dpi, 300 X 300 Dpi, 200 X 400 Dpi, 200 X 200 Dpi, 200 X 100 Dpi, 150 X 150 Dpi, 100 X 100dpi Scan To Mobile Devices And Cloud-Based Services A Range Of Solutions Is Available To Provide Scanning To Mobile Devices Or And Cloud-Based Services Depending On Your Requirements.
Scanning Speed	(Letter): Single-Sided Scanning (BW): 120 Ipm (300 Dpi)/120 Ipm (600 Dpi) Single-Sided Scanning (Color): 120 Ipm (300 Dpi)/60 Ipm (600 Dpi) Double-Sided Scanning (BW): 240 Ipm (300 Dpi)/150 Ipm (600 Dpi) Double-Sided Scanning (Color): 220 Ipm (300 Dpi)/60 Ipm (600 Dpi)
Capacity	300 Sheets (20 Lb. Bond)
Different Size Originals	11" X 17", A3, A4, Legal, Letter, Letter-R, Statement, Statement-R
Description	PAPER DECK UNIT-E1
Paper Capacity	3,500 Sheets [21 Lb. Bond (80 G/M²)]
Paper Size	A4, Letter
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256 G/M²)
Power Source	From The Main Unit
Power Consumption	From The Main Unit
Dimensions	14-1/4" X 24-7/8" X 22-1/2" (363 Mm X 630 Mm X 572 Mm)
Weights	Approx. 75.0 Lb. (34 Kg)
Description	POD DECK LITE-C1
Paper Capacity	3,500 Sheets [21 Lb. Bond (80 G/M²)]
Paper Size	13" X 19", 12-5/8" X 17-11/16", 12" X 18", 11"X17", A3, A4, Legal, Letter, Letter-R, Executive, Statement-R, And Custom Size (5-1/2" X 7-1/8" To 13" X 19-1/4")
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256 G/M²)
Power Source	220-240 V AC, 50/60 Hz, 1.2 A
Power Consumption	Approx. 480 W
Dimensions	25-7/8" X 27" X 22-1/2" (656 Mm X 686 Mm X 570 Mm)
Weights	Approx. 149.9 Lb. (68 Kg)
Description	STAPLE FINISHER-V1¹¹
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256 G/M²)
Number Of Trays	3
Top Tray	Letter/Executive/Statement-R 250 Sheets, 13" X 19", 12-5/8" X 17-11/16", 12" X 18 11" X 17"/Legal/Letter-R 125 Sheets
Middle Tray	Letter/Executive/Statement-R 250 Sheets, 13" X 19", 12-5/8" X 17-11/16", 12" X 18" 11" X 17"/Legal/Letter-R 125 Sheets
Lower Tray	Letter/Executive/Statement-R 3,000 Sheets, 13" X 19", 12-5/8" X 17-11/16", 12" X 18" 11" X 17"/Legal/Letter-R 1,500 Sheets
Staple Capacity	Corner Staple And Double Staple: Letter/ Executive: 65 Sheets [24 Lb. Bond (90 G/M²)] 11" X 17"/ Legal/ Letter-R: 30 Sheets [24 Lb. Bond (90 G/M²)] Staple-Free Staple: 11"X17"/ Letter: 5 Sheets [14 To 17 Lb. Bond (52 To 64 G/M²)] 4 Sheets [17.3 To 21.7 Lb. Bond (65 To 81.4 G/M²)]3 Sheets [21.7 To 28 Lb. Bond (81.5 To 105 G/M2)] Staple On Demand: 65 Sheets [24 Lb. Bond (90 G/M²)]
Staple Positions	Corner, Double
Power Source	From The Main Unit
Power Consumption	Approx. 176 W (Including 2/3 Hole Puncher-A1)
Dimensions	20-5/8" X 24-1/2" X 43-1/4" (525 Mm × 623 Mm × 1099 Mm)¹²
Weight	Approx. 77.2 Lb. (35 Kg)
Description	STAPLE FINISHER-X1
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256 G/M²)
Number Of Trays	3
Top Tray	Letter/A4/Executive/Statement-R 1,500 Sheets 13" X 19"/12-5/8" X 17-11/16"/12" X 18"/ 11" X 17"/Legal/A3/Letter-R 750 Sheets
Middle Tray	Letter/A4/Executive/Statement-R 250 Sheets 11" X 17"/Legal/A3/Letter-R 125 Sheets
Lower Tray	Letter/A4 2,500 Sheets Executive/Statement-R 1,500 Sheets 13" X 19"/12-5/8" X 17-11/16"/ 12" X 18"/ 11" X 17"/Legal/ A3/Letter-R 750 Sheets
Staple Capacity	Letter/ Executive: 100 Sheets [21 Lb. Bond (80 G/M²)] 11" X 17"/ Legal/A3/ Letter-R: 50 Sheets [21 Lb. Bond (80 G/M²)]
Staple Positions	Corner, Double
Power Source	100-240 V AC, 50/60 Hz, 2.8 A
Power Consumption	Approx. 311 W (Including Puncher Unit-BS1)
Dimensions	25-3/4" X 30-1/8" X 41" (654 Mm × 765 Mm × 1040 Mm)¹²
Weight	Approx. 141.1 Lb. (64 Kg)
Description	STAPLE FINISHER-W1 PRO
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256 G/M²)
Number Of Trays	2
Top Tray	13" X 19"/12-5/8" X 17-11/16"/ 12" X 18"/ 11" X 17"/Legal/Letter/Letter-R/ Executive 1,000 Sheets
Middle Tray	If The High-Volume Stack Mode Is Set To "OFF" Letter/A4/Executive 2,000 Sheets, 13" X 19"/12-5/8" X 17-11/16"/ 12" X 18"/ 11" X 17"/Legal/A3/Letter-R 1,000 Sheets If The High-Volume Stack Mode Is Set To "ON" Letter/A4/Executive 4,000 Sheets, Letter-R 2,000 Sheets, 11" X 17"/ Legal/A3 1,500 Sheets 13" X 19"/12-5/8" X 17-11/16"/ 12" X 18" 1,000 Sheets
Staple Capacity	Letter/ Executive: 100 Sheets [21 Lb. Bond (80 G/M²)] Legal/ Letter-R: 50 Sheets [21 Lb. Bond (80 G/M²)]
Staple Positions	Corner, Double
Power Source	220-240 V AC, 50/60 Hz, 8A
Power Consumption	Approx. 500 W
Dimensions	31-1/2" X 31-1/4" X 48-3/4" (800 Mm × 792 Mm × 1239 Mm)¹²
Weight	Approx. 286.6 Lb. (130 Kg)
Description	BOOKLET FINISHER-V1¹¹
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256 G/M²)
Number Of Trays	3
Top Tray	Letter/Executive/Statement-R 250 Sheets 13" X 19"/12-5/8" X 17-11/16"/ 12" X 18"/ 11" X 17"/Legal/Letter-R125 Sheets
Middle Tray	Letter/Executive/Statement-R 250 Sheets, 13" X 19"/12-5/8" X 17-11/16"/ 12" X 18"/11" X 17"/Legal/Letter-R 125 Sheets
Lower Tray	Letter/Executive/Statement-R 3,000 Sheets 13" X 19"/12-5/8" X 17-11/16"/12" X 18"/ 11" X 17"/ Legal/Letter-R 1,500 Sheets
Paper Capacity Of Saddle Stitch Mode	20 Sheets [22 Lb. Bond(81 G/M²)] [Including 1 Cover Sheet Up To 140 Lb. Index (256 G/M²)] Paper Size 12 X 18, 11" X 17", Legal, Letter-R, Custom Size (7-3/4" X 10-5/8" To 12" X 18")
Staple Capacity	Letter/ Executive: 65 Sheets [24 Lb. Bond (90 G/M²)] 11" X 17"/ Legal/ Letter-R: 30 Sheets [24 Lb. Bond (90 G/M²)] Staple-Free Staple: 11"X17"/ Letter: 5 Sheets [14 To 17 Lb. Bond (52 To 64 G/M²)] 4 Sheets [17.3 To 21.7 Lb. Bond (65 To 81.4 G/M²)] 3 Sheets [21.7 To 28 Lb. Bond (81.5 To 105 G/M²)] Staple On Demand: 65 Sheets [24 Lb. Bond (90 G/M²)]
Staple Positions	Corner, Double
Power Source	From The Main Unit
Power Consumption	Approx. 176 W (Including 2/3 Hole Puncher-A1)
Dimensions	20-5/8" X 24-1/2" X 43-1/4" (525 Mm × 623 Mm × 1099 Mm)¹²
Weight	Approx. 127.9 Lb. (58 Kg)
Description	BOOKLET FINISHER-X1
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256 G/M²)
Number Of Trays	3
Top Tray	Letter/A4/Executive/Statement-R 1,500 Sheets 13" X 19"/12-5/8" X 17-11/16"/ 12" X 18"/ 11" X 17"/Legal/A3/Letter-R 750 Sheets
Middle Tray	Letter/A4/Executive/Statement-R 250 Sheets 11" X 17"/Legal/A3/Letter-R 125 Sheets
Lower Tray	Letter/A4 2,500 Sheet Executive/Statement-R 1,500 Sheets 13" X 19"/12-5/8" X 17-11/16"/ 12" X 18"/ 11" X 17"/ Legal/Letter-R 750 Sheets
Paper Capacity Of Saddle Stitch Mode	20 Sheets [22 Lb. Bond (81 G/M²)] [Including 1 Cover Sheet Up To 140 Lb. Index (256 G/M²)] Paper Size 13" X 19"/12-5/8" X 17-11/16"/ 12" X 18"/ 11" X 17"/Legal/Letter-R, Custom Size (8-1/4" X 11" To 13" X 19-1/4")
Staple Capacity	Letter/ Executive: 100 Sheets [21 Lb. Bond (90 G/M²)] 11" X 17"/ Legal/ Letter-R: 50 Sheets [21 Lb. Bond (80 G/M²)]
Staple Positions	One Point At Front, One Point At Back, Two Points In Center
Power Source	100-240 V AC, 50/60 Hz, 2.8 A
Power Consumption	Approx. 384 W (Including Puncher Unit- BS1 And Booklet Trimmer-A1)
Dimensions	30-1/4" X 30-1/8" X 41" (767 Mm × 765 Mm × 1040 Mm)¹²
Weight	242.5 Lb. (110 Kg)
Description	BOOKLET FINISHER-W1 PRO
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256 G/M²)
Number Of Trays	2
Top Tray	13" X 19"/12-5/8" X 17-11/16"/ 12" X 18"/ 11" X 17"/Legal/Letter/Letter-R/ Executive 1,000 Sheets
Middle Tray	If The High Volume Stack Mode Is Set To "OFF" Letter/A4/Executive 2,000 Sheets, 13" X 19"/12-5/8" X 17-11/16"/ 12" X 18"/ Legal/A3/Letter-R 1,000 Sheets If The High Volume Stack Mode Is Set To "ON" Letter/A4/Executive 4,000 Sheets, Letter-R 2,000 Sheets, 11" X 17"/Legal/A3 1,500 Sheets, 13" X 19"/12-5/8" X 17- 11/16"/ 12" X 18" 1,000 Sheets
Paper Capacity Of Saddle Stitch Mode	25 Sheets [21 Lb. Bond (80 G/M²)] (Including 1 Cover Sheet Up To 140 Lb. Index (256 G/M²)) Paper Size: 13" X 19"/12-5/8" X 17-11/16"/ 12" X 18"/ 11" X 17"/Legal/Letter-R, Custom Size" (8-1/4" X 11" To 13" X 19-1/4")
Staple Capacity	Letter/ Executive: 100 Sheets [21 Lb. Bond (80 G/M²)] Legal/ Letter-R: 50 Sheets [21 Lb. Bond (80 G/M²)]
Staple Positions	Corner, Double
Power Source	220-240 V AC 50/60 Hz, 8A
Power Consumption	Approx. 800 W
Dimensions	31-1/2" X 31-1/4" X 48-3/4" (800 Mm × 792 Mm × 1239 Mm)¹²
Weight	401.2 Lb. (182 Kg)
Description	2/3 HOLE PUNCHER-A1¹³
Paper Size	Two Holes 11" X 17", Legal, Letter, A3, A4, Letter-R, Executive Three Holes 11" X 17", Letter, Executive
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256 G/M²)
Power Requirements	From The Main Unit
Description	PUNCHER UNIT-BS1¹⁴
Paper Size	Two Holes Legal, Letter, Letter-R, Custom Size (7-1/8" X 7-1/8" To 11-3/4" X 17") Three Holes Letter, Executive, Custom Size (9-1/2" X 7-1/8" To 11-3/4" X 17")
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256 G/M²)
Power Requirements	From The Finisher
Description	PUNCHER UNIT-BF1¹⁵
Paper Size	Two Holes Legal, Letter-R Three Holes 11" X 17", Letter, A3, A4, Executive
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256 G/M²)
Power Requirements	From The Finisher
Description	MULTI FUNCTION PROFESSIONAL PUNCHER-A1¹⁶
Paper Size	12"X18", 11"X17", Legal, Letter-R, Letter, Statement
Paper Weight	Bypass: 14 Lb. Bond To 140 Index. (52 To 256 G/M²) Punch: 20 Lb. Bond To 140 Index (75 To 256 G/M²) Supported Punch Dies (Optional): Plastic Comb (19-Hole), Twin Loop (21- Or 32-Hole), Color Coil (44-Hole), Velo Bind (11-Hole), Loose Leaf (3- Or 5-Hole)
Dimensions	7-1/2" X 31-1/2" X 41" (445 Mm X 795 Mm X 1040 Mm)
Weight	225 Lb. (102 Kg)
Description	INNER BOOKLET TRIMMER-A1¹⁷
Paper Size	13" X 19", 12-5/8" X 17-11/16", 12"X18", 11"X17", Legal, A3, Letter-R, Custom Size (8-1/4"X11" To 13"X 19-1/4")
Paper Weight	16 Lb. Bond To 140 Lb. Index (60 To 256 G/M²) Trim Capacity: 40 Sheets
Power Requirements	From The Finisher
Description	BOOKLET TRIMMER-D1¹⁸
Trim Amount	0.08 To 0.78 ( 2 Mm To 20 Mm )
Waste Tray Capacity	Approx. 1,500 Sheets Booklet Capacity: 30 Booklets
Dimensions	62" X 30-3/8" X 41" (1575 Mm X 1040 Mm X 770 Mm)
Weight	Approx. 335.1 Lb. (152 Kg)
Description	DOCUMENT INSERTION UNIT-N1¹⁶
Paper Size	13" X 19", 12-5/8" X 17-11/16", 12" X 18", 11' X 17", Legal, Letter, A3, A4, Letter-R, Executive, Custom Size (7-1/8" X 7-1/8" To 13" X 19-1/4")
Paper Weight	14 Lb. Bond To 140 Lb. Index (52 To 256 G/M²)
Number Of Trays	2
Power Requirements	100-240 V AC, 50/60 Hz, 1.0 A
Power Consumption	Approx. 120 W
Dimensions	29-3/8" X 31-1/4" X 55-3/8" (746 Mm X 793 Mm X 1407 Mm)
Weight	Approx. 134.5 Lb. (61 Kg)
Description	PAPER FOLDING UNIT-J1¹⁶
Paper Size	C-Fold: Letter-R Z-Fold: 11" X 17", A3, Legal, Letter-R Accordion Z-Fold: Letter-R Double Parallel Fold: Legal, Letter-R Weight Half Fold: Letter-R
Paper Weight	C-Fold: 14 To 28 Lb. Bond (52 To 105 G/M²) Z-Fold: 14 To 28 Lb. Bond (52 To 105 G/M²) Accordion Z-Fold: 14 To 28 Lb. Bond (52 To 105 G/M²) Double Parallel Fold: 14 To 24 Lb. Bond (52 To 90 G/M²) Weight Half Fold: 14 To 28 Lb. Bond (52 To 105 G/M²)
Fold Type	C-Fold, Z-Fold, Accordion Z-Fold, Double-Parallel Fold, Half-Fold
Power Requirements	From The Finisher
Power Consumption	Approx. 150 W
Dimensions	13-1/4" X 31-1/4" X 46-7/8" (336 Mm X 793 Mm X 1190 Mm)
Weight	Approx. 156.5 Lb. (71 Kg)
Applicable Line	4
Modem Speed	Super G3: 33.6 Kbps G3: 14.4 Kbps
Data Compression	MH, MR, MMR, JBIG
Resolution	400 X 400 Dpi, 200 X 400 Dpi, 200 X 200 Dpi, 200 X 100 Dpi
Scanning Recording Size	Statement-R To 11" X 17
Memory	Up To 6,000 Pages
Memory Backup	Yes
One Touch Speed Dialing Locations	Max. 200
Coded Speed Dialing Locations	Max. 199 Dials Sequential Broadcast Max. 256 Addresses
Fax Features	Original Type Selection, Two-Sided Original, Book To Two Pages, Different-Size Originals, Density For Scanning, Sharpness, Copy Ratio, Erase Frame, Job Build, Specifying The Sender's Name (When Sending Fax), Sender's Name (TTI), Selecting The Telephone Line (When Sending Fax), Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, TX Report, Detect Feeder Multi Sheet Feed.
Description	ImagePASS-Y1 (External)
Processor	Intel Pentium G850 2.9 GHz
System	Fiery FS150Pro
Standard Memory	4 GB
Hard Disk	500 GB
Print Resolution	1200 Dpi X 1200 Dpi, 600 Dpi X 600 Dpi Standard Page Description Languages PCL, Adobe PS 3, APPE
Postscript Fonts	138 Adobe PS Fonts
Pcl Fonts	113 PCL Fonts
Interface Connections	2 X Ethernet (1000Base-T/100Base-T/10Base-T), USB X 5 (Front X 1, Rear X 4)
Protocols Supported	TCP/IP (LPD/Port 9100/IPP/SMB/FTP), ATP/DDP (AppleTalk)/Direct Mobile Printing/PrintMe Cloud Printing
Print Controller Technology	Windows XP 32 And 64bit/Windows VISTA 32 And 64 Bit/ Windows 8 32 And 64 Bit/Windows 8.1 32 And 64 Bit/ Windows Server 2008 32 And 64 Bit/Windows Server 2008 R2 64 Bit Only/Windows Server 2012 64bit Only/Windows Server 2012 R2 64bit Only/MAC OS (10.6 Or Higher)
Other Features	Fiery Print Controller Options: FIERY IMPOSE, FIERY COMPOSE, FIERY IMPOSE AND COMPOSE, Removable Hard Disk Drive, Integration Interface And Stand (19" Display, Keyboard, Mouse, And Furniture Stand), Fiery ImageViewer
Print Features	Fiery Print Controller Features: Hot Folders, Secure Erase, Paper Catalog Kit, VDP-A1 Kit, Virtual Printer
Dimensions	5-1/2" X 13-5/8" X 12-5/8" (140 Mm X 345 Mm X 320 Mm)
Sending Method	E-Mail/Internet Fax (SMTP), SMB, FTP, WebDAV, Mail Box, Super G3 Fax (Optional), IP Fax (Optional)
Color Mode	Automatic-Color Select (Full Color/Grayscale), Automatic-Color Select(Full Color/Black-And-White), Full Color, Grayscale, And Black-And-White
Scan Resolution	600 X 600 Dpi, 400 X 400 Dpi, 300 X 300 Dpi, 200 X 400 Dpi, 200 X 200 Dpi,200 X 100 Dpi, 150 X 150 Dpi, 100 X 100dpi
Address Book Capacity	LDAP (2,000)/Local (1,600)/Speed Dial (200)
Communication Protocol	File: FTP, SMB, WebDAV E-Mail/I-Fax: SMTP, POP3, I-Fax (Simple, Full)
File Format	Standard: TIFF, JPEG, PDF (Compact, Searchable, Apply Policy, Optimize For Web, PDF A/1-B) Optional: PDF (Trace & Smooth, Encrypted), PDF/XPS (Digital Signature), PDF/XPS ( Searchable), Open XML ( Powerpoint, Word) Universal Send FeaturesOriginal Type Selection,Two-Sided Original, Book To Two Pages, Different-Size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Sender's Name (TTI), Select Line, Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, File Name, Subject/Message, Reply-To, E-Mail Priority, TX Report, Original Content Orientation, Skip Blank Originals, Detect Feeder Multi Sheet Feed. Hardware Options Card Readers MiCARD PLUS PROXIMITY CARD READER COPY CARD READER-F1 Others PRINTER COVER-H1 TAB FEEDING ATTACHMENT KIT-B1 STAMP INK CARTRIDGE-C1 UPRIGHT CONTROL PANEL-E1 UTILITY TRAY-B1 Security Options Document Security DOCUMENT SCAN LOCK KIT-B1 SECURE WATERMARK-B1 ENCRYPTED SECURE PRINT SOFTWARE-D1 Data Security HDD MIRRORING KIT-J1 2.5INCH/250GB HDD-N1 2.5INCH/1TB HDD-P1 REMOVABLE HDD KIT-AL1 System And Controller Options Print Accessories PCL INTERNATIONAL FONT SET-A1 Barcode Printing BARCODE PRINTING KIT-D1 Fiery Based Controller ImagePASS-Y1 REMOVABLE HARD DISK DRIVE KIT-B4 FIERY IMPOSE FIERY COMPOSE FIERY IMPOSE AND COMPOSE FIERY IMAGE VIEWER System Accessories WEB ACCESS SOFTWARE-K1 SERIAL INTERFACE KIT-K2 Fax Accessories SUPER G3 FAX BOARD-AS1 REMOTE FAX KIT-A1 Other Options Accessibility Accessories ADF ACCESS HANDLE-A1 VOICE GUIDANCE KIT-G1 VOICE OPERATION KIT-D1 Staples STAPLE CARTRIDGE-X1¹⁹ STAPLE CARTRIDGE-Y1²⁰ STAPLE-N1²¹ STAPLE-P1²² ¹ Tab Paper Can Be Fed From Paper Cassettes (3/4) When The Optional Tab Feeding Attachment Kit-B1 Is Installed. ² Some Types Of Tracing Paper Cannot Be Used. ³ Warm-Up Time Shown For When "Quick Startup Settings For Main Power" Is Set To "OFF". For Significantly Faster Warm-Up Set "Quick Startup Settings For Main Power" To "ON". ⁴ Including The Toner Bottle. ⁵ PDF Print From Websites Is Supported. ⁶ EPS Can Be Printed Directly Only From The Remote User Interface. ⁷ Requires The Optional PCL International Font Set-A1. ⁸ Other Operating Systems And Environments Including AS/400, UNIX, Linux And Citrix May Be Supported. Some Of These Solutions Are Chargeable. SAP Device Types Are Available Via The SAP Market Place. For More Information, Contact Your Sales Representative. ⁹ 0.9 W Sleep Mode Not Available In All Circumstances Due To Certain Settings. ¹⁰ For Current EPEAT Rating (Gold/Silver/Bronze), Please Visit Www.Epeat.Net. ¹¹ Compatible Only With The ImageRUNNER ADVANCE 8585i Model. ¹² When The Extension Tray Is Not Extended. ¹³ Requires Either Staple Finisher-V1 Or Booklet Finisher-V1. ¹⁴ Requires Either Staple Finisher-X1 Or Booklet Finisher-X1. ¹⁵ Requires Either Staple Finisher-W1 PRO Or Booklet Finisher-W1 PRO. ¹⁶ Requires Either Staple Finisher-X1, Booklet Finisher-X1, Staple Finisher-W1 PRO, Or Booklet Finisher-W1 PRO. ¹⁷ Requires Booklet Finisher-X1. ¹⁸ Requires Booklet Finisher-W1 PRO. ¹⁹ For Staple Finisher-V1 And Booklet Finisher-V1. Used For Corner/Double Stapling Only, 3 Cartridges Per Case, 5,000 Staples Per Cartridge. ²⁰ For Booklet Finisher-V1. Used For Booklet Finishing Only, 2 Cartridges Per Case, 2,000 Staples Per Cartridge. ²¹ For Staple Finisher-X1, Booklet Finisher-X1, Staple Finisher-W1 PRO And Booklet Finisher-W1 PRO), 3 Cartridge Per Case, 5,000 Staples Per Cartridge ²² For Booklet Finisher-X1 And Booklet Finisher-W1 PRO, 2 Cartridges Per Case, 5,000 Staples Per Cartridge.

Toners

GPR-37 Black Toner

Estimated Toner Yield: 70,000 Copies/Bottle (Estimated @ 5% Coverage)

Software & Drivers

Filter & Sort Filtrar y ordenar Filtrar e ordenar

All Todos Tudo

Drivers Controladores Drivers

Software & Utilities Software y Utilitarios Software e utilitários

Firmware Firmware Firmware

English Inglés Inglês

Spanish Español Espanhol

Portuguese Portugués Portuguê

CLEAR ALL Borrar Todo APAGAR TUDO

VIEW RESULTS Ver Resultados VER RESULTADOS

<p>Software & drivers are specific to your operating system. Not all software & drivers are compatible with operating systems and versions.</p>

Results will appear after selecting an Operating System and Version above.

Manuals

Brochures

FAQs

Sorry, No Results matched

1- of Results

Advisories

Title Service Notice: Measures to be taken against potential vulnerability in RSA Key generation for Canon Enterprise/Small Office Multifunction Printers and Laser Printers/Inkjet Printers

Advisory Type

Date 03.14.22

VIEW

Title Service Notice Update: Measures to be taken against potential vulnerability in RSA Key generation for Canon Enterprise/Small Office Multifunction Printers and Laser Printers/Inkjet Printers

Advisory Type

Date 04.06.22

VIEW

Apps

Software Development Kit

Wireless Help

How-to Video

Fax Help

Technical Warranty Info

Service Upgrades

Calibration

Additional Support

Awards

GET PRODUCTS

Want to buy a product? Let us help you find where you can.

WHERE TO BUY

GET SUPPORT

Need help with your product? Let us help you find what you need.

PRODUCT SUPPORT

GET SERVICE

Need to service your product? Let us help you find where you can.

SERVICE LOCATOR

Explore null | Canon Latin America

imageRUNNER ADVANCE 8505
