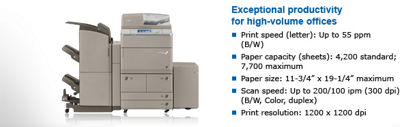

imageRUNNER ADVANCE 6255
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS
|
|
|
Untitled Document
|
![]() |
|
![]() |
|
![]() |
|
![]() |
|
Model Name | ImageRUNNER ADVANCE 6255 |
Type | Monochrome Digital Multifunction Imaging System Letter: Up To 55 Ppm Legal/11" X 17": Up To 39/32 Ppm |
Functions | Standard: Copy, Print (UFR II), Scan, Send, Store Optional: Print (PCL 5e/6, Adobe® PostScript® 3 ™), Fax (Up To 4 Lines) |
Operation Panel | Standard: 8.4" SVGA Full-Color, TFT Screen Optional: 10.4" SVGA Full-Color, TFT Upright Screen |
Image Server Memory | Standard: 1.5GB RAM Maximum: 2GB RAM |
Hard Disk Drive | Standard: 160GB Maximum: 1TB |
Mirroring Hard Disk Drive | Optional (160GB, 1TB), Method: RAID1 |
Network Interface Connection | Standard: 10Base-T/100Base-TX/1000Base-T |
Other Interface | Standard: USB 2.0 (Host) X2, USB 2.0 (Device) Optional: Device Port [USB 2.0 (Host) X2], Serial Interface, Copy Control Interface |
Max Mailboxes Supported | 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes |
Max Pages Stored | 20,000 Maximum Pages Stored |
Available Disk Space | Approx. 15GB (Standard HDD) Approx. 629GB (1TB HDD) |
Common Protocol | SMB Or WebDAV |
Supported Client Pc | Windows (Windows 2000/XP/7/Windows Vista) |
Max Number Of Concurrent Connections | SMB: 32, WebDAV: 12 (Active Sessions) |
Advanced Box Features | Disabling Advanced Box, Storage Filtering, Authentication For Advanced Box Log-In, Search Function, Sort Function, Printing A PDF File With A Password, ImageWARE Secure Audit Manager Support |
Standard | USB Memory |
Optional | SD, SDHC, CompactFlash, Memory Stick, Microdrive |
Network Twain Scan | Standard |
Network Scan Utility | Color Network ScanGear |
First Copy Time | 3.3 Seconds Or Less (Letter) |
Standard Paper Capacity | (20 Lb. Bond) Standard: Dual 1,500-Sheet Paper Drawers, Dual 550-Sheet Paper Cassettes, 100-Sheet Stack Bypass |
Optional | 3,500-Sheet Paper Deck Unit-A1 Or 3,500-Sheet Paper Deck Unit-D1 |
Maximum Paper Capacity | 7,700 Sheets (W/Paper Deck Unit Option) |
Output Paper Capacity | (20 Lb. Bond) Standard: 250 Sheets (W/Copy Tray) Maximum: 4,000 Sheets (W/Staple Finisher Or Booklet Finisher) |
Cassette | 11" X 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2" X 7-1/8" To 11-3/4" X 19-1/4") |
Bypass | 11" X 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (4" X 5-7/8" To 11-3/4" X 19-1/4") |
Cassette | 14 Lb. Bond To 80 Lb. Cover (52 To 220g/M²) |
Bypass | 14 Lb. Bond To 140 Lb. Index (52 To 256g/M²) |
Paper Size | Standard Automatic Trayless Duplexing (Up To 11" X 17") |
Paper Weight | 14 Lb. Bond To 80 Lb. Cover (52 To 220g/M²) |
Warm Up Time | From Power On: 30 Seconds Or Less, From Sleep Mode: 30 Seconds Or Less, Quick Startup Mode: 7 Seconds* |
Power Requirements | 120-127V AC, 60Hz, 16A ; 220-240V AC, 50/60Hz, 10A |
Power Consumption | Maximum: 1.92kW Sleep Mode: 0.9W Or Less |
Plug | NEMA 5-20P |
Dim | Without The Upright Control Panel: 48" X 25-3/8" X 30-3/8" (1220mm X 645mm X 770mm) With The Upright Control Panel (To The Right Edge Of The Upright Control Panel In The Right-Most Position): 49-1/4" X 53-3/8" X 30-3/8" (1252mm X 1481mm X 770mm) |
Installation Space | Without The Upright Control Panel: 53-5/8" X 30-3/8" (1362mm X 770mm) With The Upright Control Panel: 74-7/8" X 30-3/8" (1901mm X 770mm) |
Weight | Approx. 516 Lb. (234kg)** |
Scan Resolution | Up To 600 X 600 Dpi |
Acceptable Originals | (Glass): Sheet, Book, 3-Dimensional Objects [Up To 4.4 Lb. (2kg)] |
Maximum Original Size | Up To 11" X 17" |
Basic Copy Features | First-Copy-Out Time (Letter): 3.3 Seconds Or Less Multiple Copies: 1 To 9,999 Copy Exposure: Automatic Or Manual (9 Levels) Magnification: 25% - 400% (1% Increments) Preset Reductions: 25%, 50%, 64%, 73%, 78% Preset Enlargements: 121%, 129%, 200%, 400% Basic Copy Features: Preset R/E Ratios By Area, Finishing, Two-Sided, Exposure Adjustment, Original Type Selection, Interrupt Mode, Sample Set, Setting Confirmation/Cancel, Standard Keys, Reset, Guide Display, Job Duration Display, Reserved Copying |
Special Copy Features | Two-Page Separation, Cover/Sheet Insertion, Booklet, Transparency Interleaving, Shift, Margin, Frame Erase, Image Combination, Different-Size Original, Job Build, Job Done Notice, Scan Image Check, Mode Memory, Recall, Negative/Positive Inversion, Image Repeat, Mirror Image, Sharpness, Tab Paper Creation, Form Composition, Secure Watermark, Page Numbering, Copy Set Numbering, Watermark And Date, Job Block Combination, Store In User Inbox, Cascade Copy |
Standard | Department ID Management, Single Sign-On H, Access Management System (Device And Function Level Log-In)♦, Secure Print, Trusted Platform Module, User Access Control Of Advanced Box, Mail Box Password Protection, IPv6, Restricting Features (Restricting The Send Function, Restricting New Addresses On Address Book), SSL Encrypted Communication, SNMPv1/V3, MAC/IP Address Filtering, SMTP Authentication, POP Authentication Before SMTP, HDD Erase (Up To 3x), HDD Initialize (Up To 9x), HDD Lock, IPsec, Adobe LiveCycle® Rights Management ES2.5 Integration ♦ Standard In 120V Models; Optional In 230V Models |
Optional | Removable HDD, HDD Encryption, HDD Mirroring, Encrypted Secure Print, Encrypted PDF, Document Scan Lock, Secure Watermark, IEEE 2600.1 Common Criteria Certification † † |
Environmental Features |
|
Estimated Toner Yield | (Estimated Yield @ 6% Coverage): Black: 56,000 Images |
Acceptable Originals | 11" X 17", Legal, Letter, Letter-R, Statement, Statement-R |
Scan Method | Single-Pass Duplexing Automatic Document Feeder |
Scanning Speed | (BW/Color; Letter): Simplex: Up To 120/85 Ipm (300 Dpi)/Up To 120/51 Ipm (600 Dpi)*** Duplex: Up To 200/100 Ipm (300 Dpi)/Up To 120/51 Ipm (600 Dpi)*** |
Capacity | (20 Lb. Bond): 300 Sheets |
Paper Weight | 1-Sided Scanning: 13 Lb. Bond To 80 Lb. Cover (50 To 220g/M²) 2-Sided Scanning (Black-And-White Original): 13 Lb. Bond To 80 Lb. Cover (50 To 220g/M²) 2-Sided Scanning (Color Original): 17 Lb. Bond To 80 Lb. Cover (64 To 220g/M²) |
Description | Paper Deck Unit-A1 |
Number Of Cassettes | 1 |
Paper Capacity | 3,500 Sheets [20 Lb. Bond (80g/M²)] |
Paper Size | Letter |
Paper Weight | 14 Lb. Bond To 80 Lb. Cover (52 To 220g/M²) |
Paper Type | Thin, Plain, Heavy, Color, Recycled, Bond, Pre-Punched |
Power Source | From The Main Unit |
Power Consumption | Approx. 39W |
Dimensions | 22-1/2" X 12-3/4" X 23" (570mm X 323mm X 583mm) |
Weights | 81.6 Lb. (37kg) |
Description | Paper Deck Unit-D1 |
Number Of Cassettes | 1 |
Paper Capacity | 3,500 Sheets [20 Lb. Bond (80g/M²)] |
Paper Size | 11" X 17", Legal, Letter, Letter-R |
Paper Weight | 14 Lb. Bond To 80 Lb. Cover (52 To 220g/M²) |
Paper Type | Thin, Plain, Heavy, Color, Recycled, Bond, Pre-Punched |
Power Source | From The Main Unit |
Power Consumption | Approx. 39W |
Dimensions | 22-1/2" X 23-5/8" X 24-1/2" (570mm X 601mm X 621mm) |
Weights | Approx. 125.7 Lb. (57kg) |
Description | Copy Tray-Q1 |
Paper Size | 11" X 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size [4" X 5-7/8" To 11-3/4" X 19-1/4" (100mm X 148mm To 297mm X 487.7mm)] |
Paper Weight | 14 Lb. Bond To 140 Lb. Index (52 To 256g/M²) |
Total Output Capacity | 250 Sheets [20 Lb. Bond (80g/M²)] |
Dimensions | 6-7/8" X 16-1/2" X 15" (175mm X 420mm X 382mm) |
Weight | Approx. 2.4 Lb. (1.1kg) |
Description | Booklet Finisher-P1 |
Paper Size | 11" X 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size [4" X 5-7/8" To 11-3/4" X 19-1/4" (100mm X 148mm To 297mm X 487.7mm)] |
Paper Weight | 14 Lb. Bond To 140 Lb. Index (52 To 256g/M²) |
Number Of Trays | 3 |
Total Output Capacity | 4,000 Sheets (Letter) |
Top Tray | 250 Sheets (Letter, Statement-R, Executive) 125 Sheets (11" X 17", Legal, Letter-R) |
Middle Tray | 1,300 Sheets (Letter, Statement-R, Executive) 650 Sheets (11" X 17", Legal, Letter-R) |
Lower Tray | 2,450 Sheets (Letter) 1,700 Sheets (Statement-R, Executive), 650 Sheets (11" X 17", Legal, Letter-R) |
Paper Capacity Of Saddle Stitch Mode | 16 Sheets [20 Lb. Bond (80g/M²)] [Including 1 Cover Sheet, Up To 140 Lb. Index (256g/M²)] Paper Capacity Of Saddle-Stitch Mode: 1 To 5 Sheets/25 Sets, 6 To 10 Sheets/15 Sets, 11 To 16 Sheets/10 Sets |
Staple Capacity | Tray B And Tray C: 1,300 Sheets/100 Sets (Letter, Executive), 650 Sheets/50 Sets (11" X 17", Legal, Letter-R) |
Staple Positions | Corner/Double Stapling: 11" X 17", Legal, Letter, Letter-R, Executive Saddle-Stitch: 11" X 17", Legal, Letter-R |
Stapling Capacity | Letter And Executive: 50 Sheets [20 Lb. Bond (80g/M²)] 11" X 17", Legal, Letter-R: 30 Sheets [20 Lb. Bond (80g/M²)] |
Fold Type | Saddle Fold: 1 Sheet [16 Lb. Bond To 140 Lb. Index (60 To 256g/M²)] |
Type Of Staple | Staple-J1 (5,000 X 3)/Staple Cartridge-D2 (2,000 X 3) |
Power Source | From The Main Unit |
Power Consumption | Approx. 155W (Including The External 2/3 Hole Puncher-A1) Approx. 143W (Excluding The External 2/3 Hole Puncher-A1) |
Dimensions | 44-1/8" X 25-1/2" (30"† † † †) X 25-7/8" [1121mm X 646mm (761 Mm† † † †) X 656 Mm] |
Weight | 159 Lb. (72kg) |
Description | Staple Finisher-P1 |
Paper Size | 11" X 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size [4" X 5-7/8" To 11-3/4" X 19-1/4" (100mm X 148mm To 297mm X 487.7mm)] |
Paper Weight | 14 Lb. Bond To 140 Lb. Index (52 To 256g/M²) |
Number Of Trays | 3 |
Total Output Capacity | 4,000 Sheets (Letter) |
Top Tray | 250 Sheets (Letter, Statement-R, Executive) 125 Sheets (11" X 17", Legal, Letter-R) |
Middle Tray | 1,300 Sheets (Letter, Statement-R, Executive) 650 Sheets (11" X 17", Legal, Letter-R) |
Lower Tray | 2,450 Sheets (Letter) 1,700 Sheets (Statement-R, Executive) 650 Sheets (11" X 17", Legal, Letter-R) |
Staple Capacity | Letter And Executive: 50 Sheets [20 Lb. Bond (80g/M²)] 11" X 17", Legal And Letter-R: 30 Sheets [20 Lb. Bond (80g/M²)] |
Staple Positions | Corner/Double Stapling: (11" X 17", Legal, Letter, Letter-R, Executive) |
Stapling Capacity | Tray B And Tray C: 1,300 Sheets/100 Sets (Letter, Executive), 650 Sheets/50 Sets (11" X 17", Legal, Letter-R) |
Type Of Staple | Staple-J1 (5,000 X 3) |
Power Source | From The Main Unit |
Power Consumption | Approx. 147W (Including The External 2/3 Hole Puncher-A1) Approx. 136W (Excluding The External 2/3 Hole Puncher-A1) |
Dimensions | 44-1/8" X 25-3/8" (30"† † † †) X 25-7/8" [1121mm X 644mm (761mm† † † †) X 656mm] |
Weight | 106 Lb. (48kg) |
Description | External 2/3-Hole Puncher-A1 |
Paper Size | 11" X 17", Legal, Letter, Letter-R |
Paper Weight | 14 Lb. Bond To 140 Lb. Index (52 To 256g/M²) |
Paper Type | Thin, Plain, Heavy, Color, Recycled, Tab, Bond, Coated† † † |
Punch Type | 2 Holes: (Legal, Letter-R) 3 Holes: (11" X 17", Letter) |
Tray Capacity | Approx. 10,000 Sheets [20 Lb. Bond (80g/M²)] |
Distance Between Punch Holes | 2 Holes: 2-3/4" (70mm) 3 Holes: 4-1/4" (108mm) |
Power Requirements | From The Main Unit |
Dimensions | 32-1/2" X 4-1/4" X 24-1/4" (825mm X 107mm X 615mm) |
Weight | Approx. 17 Lb. (7.7kg) |
Description | Document Insertion Unit-L1 |
Paper Size | 11" X 17", Legal, Letter, Letter-R, Executive |
Paper Weight | 16 Lb. Bond To 140 Lb. Index (60 To 256g/M²) |
Paper Type | Covers And Inserts: Thin, Plain, Heavy, Color, Recycled, Tab, Bond, Letterhead, Coated† † † |
Number Of Trays | 1 |
Tray Capacity | 100 Sheets [20 Lb. Bond (80g/M²)] |
Power Requirements | 100-240V AC, 50/60Hz, 1.0A |
Power Consumption | Approx. 84W |
Dimensions | 48-7/8" X 26-1/8" X 26-3/4" (1242mm X 662mm X 679mm) |
Weight | Approx. 88.2 Lb. (40kg) |
Description | Document Insertion/Folding Unit-H1 |
Paper Size | Z-Fold: 11" X 17", Legal, Letter-R C-Fold: Letter-R Insertion Unit: 11" X 17", Legal, Letter, Letter-R, Executive |
Paper Weight | Z-Fold: 16 Lb. Bond To 28 Lb. Bond (60 To 105g/M²) C-Fold: 16 Lb. Bond To 28 Lb. Bond (60 To 105g/M²) Insertion Unit: 16 Lb. Bond To 140 Lb. Index (60 To 256g/M²) |
Paper Type | Z-Fold/C-Fold: Thin, Plain, Color, Recycled Insertion Unit: Thin, Plain, Heavy, Color, Recycled, Tab, Bond, Letterhead, Coated † † † |
Fold Type | Z-Fold, C-Fold |
Folding Method | Roller Pressure Folding |
Power Requirements | 100-240V AC, 50/60Hz, 1.0A |
Power Consumption | Approx. 170W |
Dimensions | 48-7/8" X 26-1/8" X 26-3/4" (1242mm X 662mm X 679mm) |
Weight | Approx. 168 Lb. (76kg) |
Description | ImagePASS-U2 Controller |
Processor | Intel® Pentium® Processor E5300 2.60GHz |
Type | External |
System | Fiery® System 10 |
Standard Memory | 2GB |
Maximum Memory | 2GB |
Hard Disk | 250GB |
Print Resolution | 1200 X 1200 Dpi 2400 Dpi Equivalent X 600 Dpi |
Pdl Support | Adobe PS 3, PCL 5e/6 |
Interface Connections | 250GB |
Utility Software |
|
Other Features |
Options:
|
Dimensions | 12-1/2" X 5-1/2" X 15-1/2" (317.5mm X 139.7mm X 393.7mm) |
Description | Universal Send Specifications |
Sending Method | E-Mail, I-Fax, File Server (FTP, SMB, WebDAV), Mail Box, Super G3 Fax (Optional) |
Color Mode | Auto Color Select (Full Color, Grayscale), Auto Color Select (Color, BW), Full Color, Grayscale, BW |
Scan Resolution | 600 X 600 Dpi, 400 X 400 Dpi, 300 X 300 Dpi, 200 X 400 Dpi, 200 X 200 Dpi, 200 X 100 Dpi, 150 X 150 Dpi, 100 X 100 Dpi |
Address Book Capacity | Max. 1,800 Destinations (Incl. 200 One-Touch Buttons) |
Communication Protocol | File: FTP (TCP/IP), SMB (TCP/IP), WebDAV E-Mail/I-Fax: SMTP, POP3, I-Fax (Simple, Full) |
File Format | Standard: TIFF (BW), JPEG, PDF, PDF (Compact), PDF (Apply Policy), PDF (Optimize For Web), PDF/XPS (OCR) For 120V, PDF/A-1b, XPS, XPS (Compact), OOXML (.Pptx) For 120V Optional: PDF (Trace & Smooth), PDF (Encrypted), PDF/XPS (Digital Signature), PDF (Reader Extensions)PDF/XPS (OCR) For 230V, OOXML (.Pptx) For 230V |
I Fax Data Format | BW: TIFF (MH, MR, MMR) Color: TIFF (Profile-C) Universal Send Features: Two-Sided Original, Different-Size Originals, Original Type Selection, Book To Two Pages, Density Adjustment, Sharpness, Document Name, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Finished Stamp, Job Done Notice, File Name, Subject/Message, Reply-To, Sender's Name (TTI), E-Mail Priority * If "Quick Startup Settings For Main Power" Is Set To ON, It Takes 7 Seconds Until The Key Operation On The Touch-Panel Display Is Available After Turning On The Main Power. ** Including Toner Bottle And Duplex Color Image Reader. *** Standard Color Scan Support Is Up To 300 Dpi. Up To 600 Dpi Scanning Requires Additional Memory Type D (512 MB). **** EPS Can Be Printed Directly Only From Remote User Interface. † XPS Cannot Be Printed Directly From The Web Access Software. † † Not Available At Time Of Launch. † † † Coated Paper Can Be Loaded From The Document Insertion Unit Only. † † † † When The Auxiliary Tray Is Extended. |
