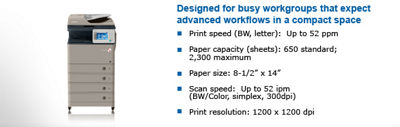

imageRUNNER ADVANCE 500iF
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS
|
|
|
|
|
|
|
|
Model Name | ImageRUNNER ADVANCE 500iF |
Type | Color Digital Multifunction Imaging System |
Functions | Copy, Print (UFR II, PCL 5e/6, Adobe® PostScript® 3™),Fax (Up To 2 Lines), Scan, Send, Store |
Operation Panel | 7" WVGA Full-Color, TFT Screen |
Image Server Memory | Standard: 1.5GB RAM Maximum: 1.5GB RAM |
Hard Disk Drive | Standard: 80GB Maximum: 80GB |
Network Interface Connection | Ethernet 10/100 Base-TX, Ethernet 1000 Base-TX |
Other Interface | USB 2.0 X3 (Host), USB 2.0 (Device) |
Advanced Box
Advanced Box Features | Store To Remote Advanced Box:♦ Supported Print/View From Remote Advanced Box:♦ Supported |
Memory Media
Standard | USB Memory |
Scan Specifications
Network Twain Scan | Standard |
Network Scan Utility | Color Network ScanGear |
Output Sizes
Cassettes | LGL, LTR, STMT, EXEC, Custom Size 5-1/2" X 8-1/4" To 8-1/2" To 14" (139.7mm X 210mm To 216mm X 355.6 Mm), And Envelopes (COM10, Monarch, DL, ISO-C5)* |
Bypass | LGL, LTR, STMT, EXEC, Custom Size [3-7/8" X 5-1/2" To 8-1/2" X 14" (99mm X 139.7mm To 216mm X 355.6mm)], And Envelopes (COM10, Monarch, DL, ISO-C5) |
Other Option | Envelope Feeder Attachment (COM10, Monarch, DL, ISO-C5)* |
Acceptable Paper Weights
Cassette | 17 Lb. Bond To 28 Lb. Bond (64 To 105g/M2) |
Bypass | 17 Lb. Bond To 34 Lb. Bond (64 To 128g/M2) |
Duplexing Props
Duplexing | Standard Automatic Trayless Duplexing |
Paper Size | Statement To Legal |
Paper Weight | Up To 34 Lb. Bond (128g/M2) |
Dummy Header B
Special Media Support | Plain 1 [17 Lb. Bond To 21 Lb. Bond (64 To 80g/M2)], Plain 2 [22 Lb. Bond To 24 Lb. Bond (81 To 90g/M2)], Recycled [17 Lb. Bond To 21 Lb. Bond (64 To 80g/M2)], Color [17 Lb. Bond To 24 Lb. Bond (64 To 90g/M2)], Heavy 1 [25 Lb. Bond To 28 Lb. Bond (91 To 105g/M2)], Heavy 2 [29 Lb. Bond To 34 Lb. Bond (106 To 128g/M2)], Transparency [40 Lb. Bond To 67 Lb. Cover (151 To 181g/M2)]**, Pre-Punched [20 Lb. Bond To 21 Lb. Bond (75 To 80g/M2)], Bond [20 Lb. Bond To 24 Lb. Bond (75 To 90g/M2)], Labels [40 Lb. Bond To 67 Lb. Cover (151 To 181g/M2)], Envelope |
Warm Up Time | From Power On: 34 Seconds From Sleep Mode: 10 Seconds Or Less Quick Startup Mode: Within 7 Seconds Or Less*** |
Power Requirements | 120V AC, 60Hz |
Power Consumption | Maximum: 1.5 KW Sleep Mode: 1 W |
Plug | 10.5A |
Dim | 24-7/8" X 22-1/8" X 22-3/8" (633mm X 560mm X 567mm) |
Installation Space | Without Staple Finisher-R1: 34-3/4" X 40-7/8" (881mm X 1035mm) With Staple Finisher-R1: 50-1/4" X 40-7/8" (1276mm X 1035mm) |
Weight | Approximately 107 Lb. (48.7kg)Δ |
Image Reader
Scan Resolution | Up To 600 X 600 Dpi |
Acceptable Originals | (Glass): Sheet, Book, 3-Dimensional Objects [Up To 4.4 Lb. (2kg)] |
Maximum Original Size | Legal (8-1/2" To 14") |
Dummy Header C
Basic Copy Features | Preset R/E Ratios By Area, Finishing, Two-Sided, Exposure Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel, Standard Keys, Reset, Job Duration Display, Reserved Copying, ID Management, Counter Check |
Special Copy Features | ID Card Copy, Shift, Frame Erase, Scan Image Check, Mode Memory, Recall, Sharpness, Secure Watermark, Page Numbering, Copy Set Numbering, Watermark And Date |
Security Features
Standard S | Department ID Management, Single Sign On-H, Access Management System (Device And Function Level Log-In), Secured Print, Trusted Platform Module, IPv6, Restricting Features (Restricting The Send Function, Restricting New Addresses On Address Book), Send To Myself (Only), SSL Encrypted Communication, SNMPv1/V3, MAC/IP Address Filtering, IEEE 802.1x (Wired/Wireless), SMTP Authentication, POP Authentication Before SMTP, HDD Initialize (Up To 9x) HDD Erase (Up To 3x), HDD Lock, IPsec, Adobe® LiveCycle® Rights Management ES2.5 Integration |
Optional | HDD Encryption, Encrypted Secure Print, Encrypted PDF, Secure Watermark, IEEE 2600.1 Common Criteria Certification♦♦ |
Dummy Header
Environmental Features |
|
Estimated Toner Yield | (Estimated Yield @ 6% Coverage): 15,200 Images |
- Windows Server 2025
- macOS 14
- macOS 13
- Windows 11
- macOS 12
- Windows Server 2022
- macOS 11
- Linux MIPS
- Linux ARM
- macOS 10.15
- macOS v10.13
- macOS v10.14
- Windows Server 2019 (x64)
- macOS v10.14
- macOS v10.13
- Windows Server 2016 (x64)
- macOS Sierra v10.12
- Linux 64bit
- Linux 32bit
- OS X v10.11
- Windows 10
- Windows 10 (x64)
- OS X v10.10
- OS X v10.9
- Windows Server 2012 R2 (x64)
- Windows 8.1 (x64)
- Windows 8.1
- Windows Server 2012 (x64)
- Windows 8
- Windows 8 (x64)
- Windows 7
- Windows 7 (x64)
- Windows Vista
- Windows Vista (x64)
- Windows XP
- Windows XP (x64)
- Windows Server 2008
- Windows Server 2008 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2003
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003 R2 (x64)
- Windows 2000
- Windows NT
- Windows 3.1
- Windows Me
- Windows 98
- Windows 95
- Mac OS X v10.8
- Mac OS X v10.7
- Mac OS X v10.6
- Mac OS X v10.5
- Mac OS X v10.4
- Mac OS X v10.3
- Mac OS X v10.2
- Mac OS X v10.1
- Mac OS X
- Mac OS 9
- Mac OS 8
- Linux (x64)
- Linux (x32)
- Linux
Locating and installing your download Locating and installing your download ES Locating and installing your download PT
How to identify your OS version
To help determine which Windows operating system is running on your computer, please view the below steps:
Windows 11
Click on the Windows button (located left to the Search at the bottom).
Click on the Settings button to navigate to the system settings.
Scroll to the bottom of the page and click on the About button.
You will be able to find your Windows operating system under the Windows Specifications section.
Windows® 10
Click Start or click the Windows button (usually found in the lower-left corner of your screen).
Click Settings.
Click About (which is usually located within the lower left of the screen). The next screen should display the Windows version.
Windows 8 or Windows 8.1
Option1: Swipe in from the upper-right corner of the screen while viewing the desktop in order to open the menu, then select Settings.
Select PC Info. Under Windows edition, the Windows version is shown.
Option 2: From the Start Screen
While on the Start screen, type computer.
Right-click on the computer icon. If using touch, press and hold on the computer icon.
Click or tap Properties. Under Windows edition, the Windows version is shown.
Windows 7
Click Start or click the Windows button (usually found in the lower-left corner of your screen).
Right-click Computer and select Properties from the menu. The resulting screen should now display the Windows version.
Linux
To check the version of your Linux operating system (OS), you can use the following commands in your terminal:
1. uname -r: Displays your Linux kernel version.
2. cat /etc/os-release: Displays your distribution name and version.
3. lsb_release -a: Displays specific details about your Linux distribution and version.
4. You can also use the hostnamectl command to display the Linux kernel version. However, this command is only available on Linux distributions that use systemd by default.
To help determine which Mac operating system is running on your computer, select the Apple menu in the upper-left corner of your screen and choose About This Mac.
Upon selecting, you should see the macOS name followed by the version number.
