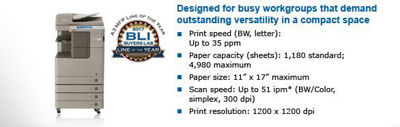

Model Name | ImageRUNNER ADVANCE 4235 |
Type | Digital Multifunction Imaging System |
Functions | Standard: Copy, Print (UFR II), Scan, Send, Store Optional: Print (PCL, Adobe® PostScript® 3&Trade;), Fax (Up To 4 Lines)Processor Canon Dual Custom Processor (Shared) |
Operation Panel | 8.4" SVGA Full-Color TFT Screen |
Image Server Memory | Standard: 1.25GB RAM Maximum: 1.75GB RAM |
Hard Disk Drive | Standard: 160GB Maximum: 1TB |
Mirroring Hard Disk Drive | Optional (160GB, 1TB), Method: RAID1 |
Network Interface Connection | Standard: 10/100/1000Base-TX |
Other Interface | Standard: USB 2.0 (Host) X 2, USB 2.0 (Device) Optional: Device Port [USB 2.0 (Host) X 2], Copy Control Interface |
Max Mailboxes Supported | 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes |
Max Pages Stored | 6,000 Maximum Pages Stored |
Available Disk Space | Approx. 15GB (Standard HDD) Approx. 629GB (1TB HDD) |
Common Protocol | SMB Or WebDAV |
Supported Client Pc | Windows (Windows 2000/XP/Windows Vista/7) |
Max Number Of Concurrent Connections | SMB: 32, WebDAV: 12 (Active Sessions) |
Advanced Box Features | Disabling Advanced Box, Storage Filtering, Authentication For Advanced Box Log-In, Search Function, Sort Function, Printing A PDF File With A Password, ImageWARE Secure Audit Manager Support |
Standard | USB Memory |
Optional | SD, SDHC, CompactFlash®, Memory Stick, Microdrive |
Network Twain Scan | Standard |
Network Scan Utility | Color Network ScanGear |
Letter | Up To 35 Ppm (BW) |
Legal | Up To 25 Ppm (BW) |
Ledger | Up To 22 Ppm (BW) |
First Copy Time | (Letter): As Fast As 3.8 Seconds |
Multiple Copies | 1 To 999 |
Copy Exposure | Automatic Or Manual (9 Levels) |
Magnification | From Platen Glass: 25% - 400% (1% Increments) From ADF: 25% - 200% (1% Increments) |
Preset Reductions | 25%, 50%, 64%, 73%, 78% |
Preset Enlargements | 121%, 129%, 200%, 400% |
Standard Paper Capacity | Dual 550-Sheet Paper Cassettes |
Optional | Dual 550 Sheet Paper Cassettes, 2,700-Sheet Paper Deck |
Manual Bypass | 80-Sheet Stack Bypass |
Maximum Paper Capacity | 4,980 Sheets |
Output Paper Capacity | (20 Lb. Bond): Standard: 250 Sheets (Inner Tray) Maximum: 3,100 Sheets (W/Staple Finisher Or Booklet Finisher) |
Cassettes | Cassette 1: Legal, Letter, Letter-R, Statement-R, Executive, Custom Size (5-1/2" X 7-1/8" To 11-3/4" X 15-3/8") Cassettes 2/3/4: 11" X 17", Legal, Letter, Letter-R, Statement-R, Executive, Custom Size (5-1/2" X 7-1/8" To 11-3/4" X 17") |
Bypass | 11" X 17", Legal, Letter, Letter-R, Statement-R, Executive, Custom Size (3-7/8" X 5-7/8" To 11-3/4" X 17") |
Other Option | Envelope Feeder Attachment** (COM10 No.10, Monarch, DL, ISO-C5) |
Cassette | 16 Lb. Bond To 34 Lb. Bond (60 To 128g/M2) |
Bypass | 14 Lb. Bond To 80 Lb. Cover (52 To 220g/M2) |
Paper Size | Standard Automatic Trayless Duplexing (Executive To 11" X 17") |
Paper Weight | 14 Lb. Bond To 28 Lb. Bond (52 To 105g/M2) |
Warm Up Time | From Power On: 30 Seconds From Sleep Mode: 10 Seconds Quick Startup Mode: 7 Seconds*** |
Power Requirements | 120V AC, 60Hz, 10.4A ; 220-240V AC, 50/60 Hz, 5.6A |
Power Consumption | Maximum: 1,500W Sleep Mode: 0.9W |
Plug | NEMA 5-15P ; CENELEC |
Dim | 30-3/8" X 22-1/4" X 27-5/8" (971mm X 565mm X 700mm) |
Installation Space | (When The Multi-Purpose Tray Is Extended): 34-1/2" X 27-5/8 (876mm X 700mm) |
Weight | Approx. 154 Lb. (70kg) |
Scan Resolution | Up To 600 X 600 Dpi‡ |
Acceptable Originals | (Glass): Sheet, Book, 3-Dimensional Objects [Up To 4.4 Lb. (2kg)] |
Maximum Original Size | Up To 11" X 17" |
Basic Copy Features | Preset R/E Ratios By Area, Finishing, Two-Sided, Density/Exposure Adjustment, Original Type Selection, Interrupt Mode, Sample Set, Setting Confirmation/Cancel, Standard Keys, Reset, Guide Display, Job Duration Display, Reserved Copying |
Special Copy Features | Two-Page Separation, Cover/Sheet Insertion, Booklet, Transparency Interleaving, Shift, Margin, Frame Erase, ID Card Copy, Image Combination, Different Size Original, Job Build, Job Done Notice, Scan Image Check, Mode Memory, Recall, Negative/ Positive Inversion, Image Repeat, Mirror Image, Sharpness, Tab Paper Creation, Form Composition, Secure Watermark, Page Numbering, Copy Set Numbering, Watermark And Date, Job Block Combination, Store In User Inbox |
Standard S | Department ID Management, Single Sign On-H, Access Management System**** (Device And Function Level Log-In), Secured Print, Trusted Platform Module, User Access Control Of Advanced Box, Mail Box Password Protection, IPV6, Restricting Features (Restricting The Send Function, Restricting New Addresses On Address Book), SSL Encrypted Communication, SNMPv1/V3, MAC/IP Address Port Filtering, SMTP Authentication, POP Authentication Before SMTP, HDD Erase (Up To 3x), HDD Initialize (Up To 9x), HDD Lock, IPsec, Adobe LiveCycle Rights Management ES2.5 Integration **** Standard In 120V And Optional In All 230V Models. |
Optional | Removable HDD, HDD Encryption, HDD Mirroring, Encrypted Secure Print, Encrypted PDF, Document Scan Lock, Secure Watermark, IEEE 2600.1 Common Criteria Certification⟫ |
Environmental Features |
|
Estimated Toner Yield | (Estimated Yield @ 6% Coverage): 30,200 Images |
Description | Duplexing Automatic Document Feeder (Optional) |
Acceptable Originals | 11" X 17", Legal, Letter, Letter-R, Statement |
Bw Originals | BW: 11 Lb. Bond To 34 Lb. Bond (42 To 128g/M2) |
Color Originals | Solid Black Text/Color: 17 Lb. Bond To 34 Lb. Bond (64 To 128g/M2) |
Scanning Speed | (BW/Color; Letter): Simplex: 51/51 Ipm (300 Dpi) 51/30 Ipm (600 Dpi)‡ |
Capacity | (20 Lb. Bond): 100 Sheets |
Description | Cassette Feeding Unit-AF1 |
Paper Capacity | 550 Sheets X 2 Cassettes [20 Lb. Bond (80g/M2)] |
Paper Size | 11" X 17", Legal, Letter, Letter-R, Statement-R, Executive, And Custom Size [5-1/2" X 7-1/8" To 11-3/4" X 17" (140mm X 182mm To 297mm X 431mm)] |
Paper Weight | 16 Lb. Bond To 34 Lb. Bond (60 To 128g/M2) |
Power Source | From The Main Unit |
Power Consumption | Approx. 30W |
Dimensions | 9-3/4" X 24-1/8" X 25-5/8" (248mm X 565mm X 650mm) |
Weights | Approx. 61 Lb. (27.5kg) |
Description | Paper Deck Unit-B2 |
Number Of Cassettes | 1 |
Paper Capacity | 2,700 Sheets [20 Lb. Bond (80g/M2)] |
Paper Size | Letter |
Paper Weight | 16 Lb. Bond To 34 Lb. Bond (60 To 128g/M2) |
Power Source | From Main Unit |
Power Consumption | Approx. 35W |
Dimensions | 18-5/8" X 14-5/8" X 23-3/4" (473mm X 372mm X 603mm) |
Weights | Approx. 81.6 Lb. (37kg) |
Description | Envelope Feeder Attachment-D1** |
Paper Capacity | 50 Sheets (Or 30mm In Height) |
Paper Size | COM10 No.10, Monarch, DL, ISO-C5 |
Dimensions | 3-1/4" X 17-1/4" X 12-1/8" (81mm X 439mm X 307mm) |
Weights | Approx. 2.6 Lb. (1.2kg) |
Description | Inner 2-Way Tray-H1 |
Total Output Capacity | Upper Tray: 250 Sheets (20 Lb. Bond) Lower Tray: 100 Sheets (20 Lb. Bond) |
Paper Size | 11" X 17", Legal, Letter, Letter-R, Statement-R, Executive, Custom Size [3-7/8" X 5-7/8" To 11-3/4" X 17" (99mm X 148mm To 297mm X 431.8mm)], And Envelopes |
Paper Weight | 14 Lb. Bond To 80 Lb. Cover (52 To 220g/M2) |
Dimensions | 3" X 16-7/8" X 16" (76mm X 427mm X 407mm) |
Weight | Approx. 1 Lb. (574g) |
Description | Inner Finisher-D1 |
Paper Size | 11" X 17", Legal, Letter, Letter-R, Statement-R, Executive, And Envelopes |
Paper Weight | 14 Lb. Bond To 80 Lb. Cover (52 To 220g/M2) |
Number Of Trays | Up To 2 Trays (With Inner Finisher Additional Tray-A1) |
Total Output Capacity | Without Inner Finisher Additional Tray-A1: 1,000 Sheets (Letter, Executive) With Inner Finisher Additional Tray-A1 Top Tray: 100 Sheets Lower Tray: 500 Sheets |
Staple Positions | Corner Stapling: (11" X 17", Legal, Letter, Letter-R, Executive) |
Stapling Capacity | Letter And Executive: 50 Sheets (14 To 22 Lb. Bond), 30 Sheets (23 To 28 Lb. Bond), 2 Sheets (29 Lb. Bond To 80 Lb. Cover) 11" X 17", Legal And Letter-R: 30 Sheets (14 To 22 Lb. Bond), 20 Sheets (23 To 28 Lb. Bond), 2 Sheets (29 Lb. Bond To 80 Lb. Cover)Paper Capacity Of Staple Mode: Top Tray: 15 Sets (Or 3/8" In Height) Lower Tray: 30 Sets (Or 4-7/8" In Height) |
Type Of Staple | Staple-J1 (5,000 X 3) |
Power Source | From The Main Unit |
Power Consumption | Approx. 49W |
Dimensions | 11-5/8" X 27-1/2" X 21-7/8" [295mm X 697mm X 554mm (When The Auxiliary Tray Is Extended)] |
Weight | Approx. 29.7 Lb. (13.5kg) (When The Optional Inner Finisher Additiional Tray-A1 Is Attached) |
Description | Staple Finisher-G1 |
Paper Size | 11" X 17", Legal, Letter, Letter-R, Statement-R, Executive |
Paper Weight | 14 Lb. Bond To 80 Lb. Cover (52 To 220g/M2) |
Number Of Trays | 2 |
Total Output Capacity | 3,000 Sheets (Letter, Statement-R, Executive) |
Top Tray | 1,300 Sheets (Letter, Executive) 650 Sheets (11" X 17", Legal, Letter-R, Statement-R) |
Lower Tray | 1,700 Sheets (Letter, Executive) 650 Sheets (11" X 17", Legal, Letter-R, Statement-R) |
Staple Positions | Corner/Double Stapling: 11" X 17", Legal, Letter, Letter-R, ExecutivePaper Capacity Of Staple Mode: Top Tray: 1,300 Sheets/30 Sets (Letter, Executive), 650 Sheets/30 Sets (11" X 17", Legal, Letter-R) Lower Tray: 1,700 Sheets/30 Sets (Letter, Executive), 650 Sheets/30 Sets (11" X 17", Legal, Letter-R) |
Type Of Staple | Staple-J1 (5,000 X 3) |
Power Source | From The Main Unit |
Power Consumption | Approx. 85W |
Dimensions | 43-1/4" X 25-1/2" X 25-1/2" [1097mm X 648mm X 648mm (When The Auxiliary Tray Is Extended)] |
Weight | Approx. 101 Lb. (46kg) |
Description | Booklet Finisher-G1 |
Paper Size | 11" X 17", Legal, Letter, Letter-R, Statement-R, Executive |
Paper Weight | 14 Lb. Bond To 80 Lb. Cover (52 To 220g/M2) |
Number Of Trays | 2 |
Total Output Capacity | 3,000 Sheets (Letter, Statement-R, Executive) |
Top Tray | 1,300 Sheets (Letter, Statement-R, Executive) 650 Sheets (11" X 17", Legal, Letter-R) |
Lower Tray | 1,700 Sheets (Letter, Statement-R, Executive) 650 Sheets (11" X 17", Legal, Letter-R) |
Saddle Stitch Tray | 11" X 17", Legal, Letter-R |
Paper Capacity Of Saddle Stitch Mode | 16 Sheets (16 To 22 Lb. Bond) (11" X 17", Legal, Letter-R) 10 Sheets (22 To 28 Lb. Bond) (11" X 17", Legal, Letter-R)Paper Capacity Of Saddle-Stitch Mode: 25 Booklets (5-Sheet Booklets) |
Staple Positions | Corner/Double Stapling: 11" X 17", Legal, Letter, Letter-R, Executive |
Stapling Capacity | Letter And Executive: 50 Sheets (14 To 22 Lb. Bond) 30 Sheets (23 To 28 Lb. Bond) 2 Sheets (29 Lb. Bond To 80 Lb. Cover) 11" X 17", Legal And Letter-R: 30 Sheets (14 To 22 Lb. Bond) 20 Sheets (23 To 28 Lb. Bond) 2 Sheets (29 Lb. Bond To 80 Lb. Cover)Paper Capacity Of Staple Mode: Top Tray: 1,300 Sheets/30 Sets (Letter, Executive), 650 Sheets/30 Sets (11" X 17", Legal, Letter-R) Lower Tray: 1,700 Sheets/30 Sets (Letter, Executive), 650 Sheets/30 Sets (11" X 17", Legal, Letter-R) |
Type Of Staple | Staple-J1 (5,000 X 3), Staple Cartridge-D1 (2,000 X 3) |
Power Source | From The Main Unit |
Power Consumption | Approx. 113W |
Dimensions | 43-1/4" X 30-1/8" X 25-1/2" [1097mm X 766mm X 646mm (When The Auxiliary Tray Is Extended)] |
Weight | Approx. 165 Lb. (75kg) |
Description | Inner 2/3-Hole Puncher-A1Δ |
Paper Size | 11" X 17", Legal, Letter, Letter-R |
Paper Weight | 14 Lb. Bond To 80 Lb. Cover (52 To 220g/M2) |
Punch Type | 2 Holes: (Legal, Letter-R) 3 Holes: (11" X 17", Letter) |
Distance Between Punch Holes | 2 Holes: 2-3/4" (70mm) 3 Holes: 4-1/4" (108mm)Punch Waste Tray Capacity: Approx. 1,500 Sheets (21 Lb. Bond) |
Power Requirements | From The Main Unit |
Power Consumption | Approx. 37W |
Dimensions | 8-1/2" X 5-5/8" X 20-7/8" (216mm X 144mm X 531mm) |
Weight | Approx. 15.2 Lb. (6.9kg) External 2/3-Hole Puncher-B2ΔΔ Paper Size(S): 11" X 17", Legal, Letter, Letter-R Paper Weight: 14 Lb. Bond To 80 Lb. Cover (52 To 220g/M2) Punch Type: 2 Holes: (Legal, Letter-R) 3 Holes: (11" X 17", Letter) Distance Between Punch Holes: 2 Holes: 2-3/4" (70mm) 3 Holes: 4-1/4" (108mm) Punch Waste Tray Capacity: Approx. 3,000 Sheets (21 Lb. Bond) Power Requirements: From The Main Unit Dimensions (H X W X D): 35-3/4" X 4-1/4" X 24-1/2" (908mm X 107mm X 623mm) Weight: Approx. 15.9 Lb. (7.2kg) |
Applicable Line | 4 |
Modem Speed | Super G3: 33.6 Kbps G3: 14.4 Kbps |
Data Compression | MH, MR, MMR, JBIG |
Resolution | 400 X 400 Dpi, 200 X 400 Dpi, 200 X 200 Dpi, 200 X 100 Dpi |
Scanning Recording Size | Statement To 11" X 17" |
Fax Features | Job Forwarding, Different-Size Originals, Adjusting Overall Density For Scanning, Sharpness, Copy Ratio, Erase Frame, Job Build, Specifying The Sender's Name (When Sending Fax), Selecting The Telephone Line (When Sending Fax), Delayed Send, Preview, Finished Stamp, Job Done Notice, Original Type Selection, Two-Sided Original, Book To Two Pages |
Engine Resolution | 1200 X 1200 Dpi |
Pdl Support | Standard: UFR II Optional: PCL 5e, PCL 6, Adobe PS 3 |
Print Controller Technology | UFR II, PCL 5e/6, Adobe PS 3:Windows® (Windows XP/Windows Vista®/Windows 7/Server 2003/Server 2008/Server 2008 R2/Windows 8/Server 2012/Small Business Server 2011), Windows Terminal Servers (Server 2003/Server 2008/Server 2008 R2/Server 2012), Small Business Server 2011, Windows Clustering Server (Windows Server 2003/Server 2008/Server 2008 R2/Server 2012), Citrix (Presentation Server 4.5, XenApp 5.0/6.0/6.5, XenDesktop 4.0/5.0/5.5/6), Macintosh® (OSX 10.5.8 Or Later, UFR II And PS 3 Only), VMware (VSphere 4/5/5.1), SAP (PS And PCL Only)Direct Print Support Standard: TIFF, JPEG Optional: PDF, EPS‡‡, XPS‡‡‡ |
Print Features | Suspend Job Timeout, Subset Finishing (PS Only), Profile Settings, Secured Print, Watermark, Page Border, Header/Footer, Page Layout, Two-Sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Printing On Transparencies, Front/Back Covers, Objective, Toner Reduction, Poster Printing |
Sending Method | E-Mail, I-Fax, File Server (FTP, SMB, WebDAV), Mail Box, Super G3 Fax (Optional), IP Fax (VoIP) (Optional) |
Color Mode | Auto Color Select (Color, Gray), Auto Color Select (Color, Black), Full Color, Grayscale, BW |
Scan Resolution | (Dpi)&Dagger: 600 X 600 Dpi, 400 X 400 Dpi, 300 X 300 Dpi, 200 X 400 Dpi, 200 X 200 Dpi, 200 X 100 Dpi, 150 X 150 Dpi, 100 X 100 Dpi |
Address Book Capacity | Max. 1,800 Destinations (Incl. 200 One-Touch Buttons) |
Communication Protocol | File: FTP (TCP/IP), SMB (TCP/IP), WebDAV E-Mail/I-Fax: SMTP, POP3, I-FAX (Simple, Full) |
File Format | Standard:TIFF, JPEG, PDF, PDF/XPS (Compact), PDF (Apply Policy), PDF (Optimize For Web), PDF/A-1b, XPS, PDF/XPS (OCR) For 120V, OOXML (.Pptx) For 120V Optional: PDF (Trace & Smooth), PDF (Encrypted), PDF/XPS (Digital Signature), PDF/XPS (OCR) For 230V, OOXML (.Pptx) For 230V. |

GPR-43 Toner
Estimated Toner Yield: 30,200Copies/Bottle (Estimated @ 6% Coverage)
