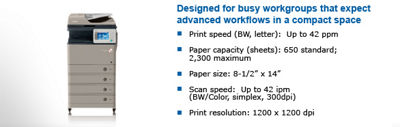

imageRUNNER ADVANCE 400i
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS
|
|
|
|
|
|
|
|
Model Name | ImageRUNNER ADVANCE 400i |
Type | Color Digital Multifunction Imaging System |
Functions | Copy, Print (UFR II, PCL 5e/6, Adobe® PostScript® 3™),Fax (Up To 2 Lines), Scan, Send, Store |
Operation Panel | 7" WVGA Full-Color, TFT Screen |
Image Server Memory | Standard: 1.5GB RAM Maximum: 1.5GB RAM |
Hard Disk Drive | Standard: 80GB Maximum: 80GB |
Network Interface Connection | Ethernet 10/100 Base-TX, Ethernet 1000 Base-TX |
Other Interface | USB 2.0 X3 (Host), USB 2.0 (Device) |
Advanced Box Features | Store To Remote Advanced Box:♦ Supported Print/View From Remote Advanced Box:♦ Supported |
Standard | USB Memory |
Network Twain Scan | Standard |
Network Scan Utility | Color Network ScanGear |
Letter | (BW): Up To 42/42 Ppm |
Legal | (BW): Up To 40/40 Ppm |
First Copy Time | (Letter): 5 Seconds Or Less |
Multiple Copies | 1 To 999 |
Copy Exposure | Automatic Or Manual (9 Levels) |
Magnification | 25 - 400% (1% Increments) From Platen Glass 25 - 200% (1% Increments) From Document Feeder |
Preset Reductions | 78%, 73%, 64%, 50%, 25% |
Preset Enlargements | 400%, 200%, 129% |
Standard Paper Capacity | (20 Lb. Bond): 550-Sheet Paper Cassette 100-Sheet Stack Bypass |
Optional | (20 Lb. Bond): 550-Sheet Paper Cassette (Up To 3) |
Maximum Paper Capacity | (20 Lb. Bond): 2,300 Sheets |
Output Paper Capacity | (20 Lb. Bond): Standard: 250 Sheets Maximum: 500 Sheets (With Staple Finisher-R1) |
Cassettes | LGL, LTR, STMT, EXEC, Custom Size 5-1/2" X 8-1/4" To 8-1/2" To 14" (139.7mm X 210mm To 216mm X 355.6 Mm), And Envelopes (COM10, Monarch, DL, ISO-C5)* |
Bypass | LGL, LTR, STMT, EXEC, Custom Size [3-7/8" X 5-1/2" To 8-1/2" X 14" (99mm X 139.7mm To 216mm X 355.6mm)], And Envelopes (COM10, Monarch, DL, ISO-C5) |
Other Option | Envelope Feeder Attachment (COM10, Monarch, DL, ISO-C5)* |
Cassette | 17 Lb. Bond To 28 Lb. Bond (64 To 105g/M2) |
Bypass | 17 Lb. Bond To 34 Lb. Bond (64 To 128g/M2) |
Duplexing | Standard Automatic Trayless Duplexing |
Paper Size | Statement To Legal |
Paper Weight | Up To 34 Lb. Bond (128g/M2) |
Warm Up Time | From Power On: 34 Seconds From Sleep Mode: 10 Seconds Or Less Quick Startup Mode: Within 7 Seconds Or Less*** |
Power Requirements | 230V AC, 50/60Hz |
Power Consumption | Maximum: 1.5 KW Sleep Mode: 1 W |
Plug | 5.0A |
Dim | 24-7/8" X 22-1/8" X 22-3/8" (633mm X 560mm X 567mm) |
Installation Space | Without Staple Finisher-R1: 34-3/4" X 40-7/8" (881mm X 1035mm) With Staple Finisher-R1: 50-1/4" X 40-7/8" (1276mm X 1035mm) |
Weight | Approximately 107 Lb. (48.7kg)Δ |
Scan Resolution | Up To 600 X 600 Dpi |
Acceptable Originals | (Glass): Sheet, Book, 3-Dimensional Objects [Up To 4.4 Lb. (2kg)] |
Maximum Original Size | Legal (8-1/2" To 14") |
Basic Copy Features | Preset R/E Ratios By Area, Finishing, Two-Sided, Exposure Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel, Standard Keys, Reset, Job Duration Display, Reserved Copying, ID Management, Counter Check |
Special Copy Features | ID Card Copy, Shift, Frame Erase, Scan Image Check, Mode Memory, Recall, Sharpness, Secure Watermark, Page Numbering, Copy Set Numbering, Watermark And Date |
Standard S | Department ID Management, Single Sign On-H, Access Management System ‡‡ (Device And Function Level Log-In), Secured Print, Trusted Platform Module, IPv6, Restricting Features (Restricting The Send Function, Restricting New Addresses On Address Book), Send To Myself (Only), SSL Encrypted Communication, SNMPv1/V3, MAC/IP Address Filtering, IEEE 802.1x (Wired/Wireless), SMTP Authentication, POP Authentication Before SMTP, HDD Initialize (Up To 9x) HDD Erase (Up To 3x), HDD Lock, IPsec, Adobe® LiveCycle® Rights Management ES2.5 Integration ‡‡ Standard In 120V; Optional In 230V Models. |
Optional | HDD Encryption, Encrypted Secure Print, Encrypted PDF, Secure Watermark, IEEE 2600.1 Common Criteria Certification♦♦ |
Environmental Features |
|
Estimated Toner Yield | (Estimated Yield @ 6% Coverage): 15,200 Images |
Description | Document Feeder |
Acceptable Originals | Legal, Letter, Statement |
Scan Method | Duplexing Automatic Document Feeder |
Scanning Speed | (BW/Color; Letter): Simplex: 52 Ipm (600 Dpi)/52 Ipm (300 Dpi) Duplex: 33 Ipm (600 Dpi)/33 Ipm (300 Dpi) |
Capacity | (20 Lb. Bond): 100 Sheets |
Paper Weight | One-Sided Scanning: 11 Lb. Bond To 34 Lb. Bond (42 To 128g/M2), Two-Sided Scanning: 13 Lb. Bond To 34 Lb. Bond (50 To 128g/M2) |
Description | Cassette Module-AA1 |
Paper Capacity | 550 Sheets [20 Lb. Bond (80g/M2)] |
Paper Size | LGL, LTR, STMT, EXEC, Custom Size [5-1/2" X 8-1/4" To 8-1/2" X 14" (139.7mm X 210mm To 216mm X 355.6mm)] |
Paper Weight | 17 Lb. Bond To 28 Lb. Bond (64 To 105g/M2) |
Power Source | From The Main Unit |
Power Consumption | Approximately 20W |
Dimensions | 4-3/4" X 21-1/4" X 19-3/4" (248mm X 565mm X 650mm) |
Weights | Approximately 17 Lb. (7.7kg) |
Description | Envelope Cassette-E1 |
Paper Capacity | 50 Sheets |
Paper Size | COM10, Monarch, DL, ISO-C5Feeding Speed: 12 Cpm |
Dimensions | 3-1/4" X 21-1/4" X 18-7/8" (96mm X 54 Mm X 480mm) |
Weights | Approximately 5.5 Lb. (2.5kg) |
Description | Staple Finisher-R1 |
Paper Size | LGL, LTR, STMT, EXEC, Custom Size [3-7/8" X 5-1/2" To 8-1/2" X 14" (99mm X 139.7mm To 216mm X 355.6mm)], And Envelopes |
Paper Weight | 17 Lb. Bond To 34 Lb. Bond (64 To 128g/M2) |
Number Of Trays | 1 |
Total Output Capacity | No Finishing, Collate, Group Mode: 500 Sheets [Or 2-7/8" (73.5mm) In Height] Collate + Offset, Group + Offset Mode: 500 Sheets [Or 2-7/8" (73.5mm) In Height] Staple Mode: 20 Sets [Or 2-7/8" (73.5mm) In Height] |
Staple Capacity | 50 Sheets [17 Lb. To 24 Lb. Bond (64 To 90g/M2)] 50 Sheets [25 Lb. To 28 Lb. Bond (91 To 105g/M2)] 30 Sheets [29 Lb. To 34 Lb. Bond (106 To 128g/M2)] |
Staple Positions | Corner Stapling (Legal, Letter, Executive) |
Type Of Staple | Staple-P1 (5,000 X 2) |
Power Source | From The Main Unit |
Power Consumption | Approximately 50W |
Dimensions | 10-3/8" X 31-3/8" X 15-5/8" [263mm X 798mm X 395mm (When The Auxiliary Tray Is Extended)] |
Weight | Approx. 23.1 Lb. (10.5kg) |
Applicable Line | Optional: Line 1and 2 |
Modem Speed | Super G3: 33.6 Kbps G3: 14.4 Kbps |
Data Compression | MH, MR, MMR, JBIG |
Resolution | 400 X 400 Dpi, 200 X 400 Dpi, 200 X 200 Dpi, 200 X 100 Dpi |
Scanning Recording Size | Statement To Legal |
Fax Features | Job Forwarding, Adjusting Overall Density For Scanning, Sharpness, Erase Frame, Job Build, Specifying The Sender's Name (When Sending Fax), Selecting The Telephone Line (When Sending Fax), Delayed Send, Preview, Job Done Notice, Original Type Selection, Two-Sided Original |
Processor | Canon Dual Custom Processor (Shared) |
Standard Memory | 1.5GB RAM |
Maximum Memory | 1.5GB RAM |
Hard Disk | Standard: 80GB Maximum: 80GB |
Engine Resolution | 1200 X 1200 Dpi |
Pdl Support | UFR II, PCL 5e/6, Adobe® PostScript® 3™ |
Print Controller Technology | UFR II, Adobe PostScript 3: Windows® (XP/Vista™/7/8), Windows Server (2003/2008/2008 R2/ SBS 2011/2012), Windows Terminal Server (2003/2008/2008 R2/ 2012), Microsoft Clustering Server (2003/2008/2008 R2/2012), Citrix (Presentation Server 4.5, XenApp 5.0/6.0/6.5, XenDesktop 4.0/5.0/5.5/5.6), VMware (VSphere 4/5/5.1), SAP (PS3 Only), Macintosh® (OS X 10.5.8 Or Later) PCL 5e/6: Windows® (Windows XP/Vista™/7/8; Windows Server 2003/2008/2008 R2/SBS 20112012), Windows Terminal Server (2003/2008/2008 R2/2012), Microsoft Clustering Server (2003/2008/2008 R2/2012), Citrix (Presentation Server 4.5, XenApp 5.0/6.0/6.5, XenDesktop 4.0/5.0/5.5/5.6), VMware (VSphere 4/5/5.1), SAPDirect Print Support Standard: TIFF, JPEG, PDF, EPSΔΔ Optional: XPSΔΔΔ |
Print Features | Suspend Job Timeout, Profile Settings, Secured Print, Watermark, Page Border, Header/Footer, Page Layout, Two-Sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Offsetting, Printing On Transparencies, Front/Back Covers, Objective, Toner Reduction, Poster Printing, Form Overlay |
Sending Method | E-Mail, I-Fax, File Server (FTP, SMB, WebDAV), Super G3 Fax (Optional) |
Color Mode | Auto (Color, Gray), Auto (Color, Black), Full Color, Grayscale, BWScan Resolution: 600 X 600 Dpi, 400 X 400 Dpi, 300 X 300 Dpi, 200 X 400 Dpi, 200 X 200 Dpi, 200 X 100 Dpi, 150 X 150 Dpi, 100 X 100 Dpi |
Address Book Capacity | Max. 1,800 Destinations (Incl. 200 One-Touch Buttons) |
Communication Protocol | File: FTP (TCP/IP), SMB (TCP/IP), WebDAV E-Mail/I-Fax: SMTP, POP3, I-Fax (Simple, Full) |
File Format | Standard: TIFF, JPEG, PDF, PDF (Compact), PDF (Apply Policy), PDF (Optimize For Web), PDF/A-1b, XPS, XPS (Compact) Optional: PDF (Trace & Smooth), PDF (Encrypted), PDF/XPS (Digital Signature), PDF/XPS (OCR), OOXML (OCR) (.Pptx) |
I Fax Data Format | Color: TIFF (MH, MR, MMR) BW: TIFF (MH, MR, MMR)Universal Send Features: Two-Sided Original, Original Type Selection, Density Adjustment, Sharpness, Erase Frame, Delayed Send, Preview, File Name, Subject/Message, Reply-To, Sender's Name (TTI), E-Mail Priority, Send To Myself, Send To My Folder* Can Be Set To Cassette 2 Only. ** Not Available On Top Cassette. *** If "Quick Startup Settings For Main Power" Is Set To On, It Takes Seven Seconds Until The Key Operation On The Touch-Panel Display Is Available After Turning On The Main Power. Δ Includes Consumables Except For Toner. ΔΔ EPS Can Be Printed Directly Only From Remote User Interface. ΔΔΔ XPS Cannot Be Printed Directly From Web Access Software. ♦ Requires ImageRUNNER ADVANCE Device With Advanced Box. ♦♦ Not Available At Time Of Launch. |
- Windows Server 2025
- macOS 14
- macOS 13
- Windows 11
- macOS 12
- Windows Server 2022
- macOS 11
- Linux MIPS
- Linux ARM
- macOS 10.15
- macOS v10.13
- macOS v10.14
- Windows Server 2019 (x64)
- macOS v10.14
- macOS v10.13
- Windows Server 2016 (x64)
- macOS Sierra v10.12
- Linux 64bit
- Linux 32bit
- OS X v10.11
- Windows 10
- Windows 10 (x64)
- OS X v10.10
- OS X v10.9
- Windows Server 2012 R2 (x64)
- Windows 8.1 (x64)
- Windows 8.1
- Windows Server 2012 (x64)
- Windows 8
- Windows 8 (x64)
- Windows 7
- Windows 7 (x64)
- Windows Vista
- Windows Vista (x64)
- Windows XP
- Windows XP (x64)
- Windows Server 2008
- Windows Server 2008 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2003
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003 R2 (x64)
- Windows 2000
- Windows NT
- Windows 3.1
- Windows Me
- Windows 98
- Windows 95
- Mac OS X v10.8
- Mac OS X v10.7
- Mac OS X v10.6
- Mac OS X v10.5
- Mac OS X v10.4
- Mac OS X v10.3
- Mac OS X v10.2
- Mac OS X v10.1
- Mac OS X
- Mac OS 9
- Mac OS 8
- Linux (x64)
- Linux (x32)
- Linux
Locating and installing your download Locating and installing your download ES Locating and installing your download PT
How to identify your OS version
To help determine which Windows operating system is running on your computer, please view the below steps:
Windows 11
Click on the Windows button (located left to the Search at the bottom).
Click on the Settings button to navigate to the system settings.
Scroll to the bottom of the page and click on the About button.
You will be able to find your Windows operating system under the Windows Specifications section.
Windows® 10
Click Start or click the Windows button (usually found in the lower-left corner of your screen).
Click Settings.
Click About (which is usually located within the lower left of the screen). The next screen should display the Windows version.
Windows 8 or Windows 8.1
Option1: Swipe in from the upper-right corner of the screen while viewing the desktop in order to open the menu, then select Settings.
Select PC Info. Under Windows edition, the Windows version is shown.
Option 2: From the Start Screen
While on the Start screen, type computer.
Right-click on the computer icon. If using touch, press and hold on the computer icon.
Click or tap Properties. Under Windows edition, the Windows version is shown.
Windows 7
Click Start or click the Windows button (usually found in the lower-left corner of your screen).
Right-click Computer and select Properties from the menu. The resulting screen should now display the Windows version.
Linux
To check the version of your Linux operating system (OS), you can use the following commands in your terminal:
1. uname -r: Displays your Linux kernel version.
2. cat /etc/os-release: Displays your distribution name and version.
3. lsb_release -a: Displays specific details about your Linux distribution and version.
4. You can also use the hostnamectl command to display the Linux kernel version. However, this command is only available on Linux distributions that use systemd by default.
To help determine which Mac operating system is running on your computer, select the Apple menu in the upper-left corner of your screen and choose About This Mac.
Upon selecting, you should see the macOS name followed by the version number.
