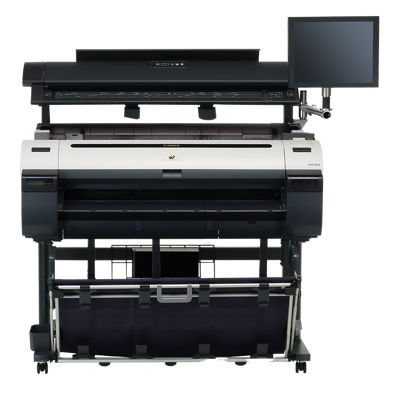

imagePROGRAF iPF765 MFP
- 36-inch Large Format Printer
- Integrated Stacker Basket and MFP Stand
- 250 GB Hard Drive
- 2 24" x 36" prints per minute
- Password Protected Interface Lock
- Colortrac Scanner with power cord & USB 2.0 Cable
- Scanner Stand
- SmartWorks MFP Software
- Computer
- Touch-Screen Monitor
- iPF765 Printer with Stand & Basket
- 2" Roll Holder with 3" Core Adapters
- Sample Media Cut Sheet
- 1 Print Head
- 1 Maintenance Cartridge (installed)
- 5 Ink Tanks (C, M, Y, BK, MBK)
- Ethernet Card (built in)
- USB 2.0 High-Speed Interface
- User Manual CD
- Quick Start Guide
- Reference Guide
- Menu Map
- Power Cord
- One Year Warranty Card
- Registration Card
- PosterArtist Lite
- User Software CD with:
- imagePROGRAF Printer Driver
- Printer Driver Extra Kit (FreeLayout, imageRUNNER Enlargement Copy modules)
- imagePROGRAF Status Monitor
- Media Configuration Tool
- Print Plug-in for Microsoft Word
- Accounting Manager
The Canon imagePROGRAF iPF765 MFP 36" large format imaging system is designed to meet the speed and precision requirements for AEC, CAD, MCAD, ECAD, and applications, with outstanding ease-of-operation to handle all-purpose, office projects. The scanner stand now connects directly to the printer stand to create a one piece structure and now has options for the position of the monitor. The iPF765 MFP provides a fast and effective system for copying, archiving and distributing maps, drawings, renderings, site and facilities management plans, design and layout proofs, posters and more.
With true 600dpi optical resolution, CIS scanning technology for incredible line definition and accuracy, and room for documents up to 41" wide (40" image width) by any length*, the iPF765 MFP is a versatile imaging solution. And with dynamic preview and a large, simple-to-use touch-screen interface, one-click scanning/copying has never been easier. Comes standard with the ability to scan to PDF, JPEG and TIFF file formats.
An environmentally-conscious design with fully front-accessible operations allows for outstanding ease-of-use and flush wall installation in any environment. From loading paper to navigating through an intuitive control panel, the iPF765 MFP simplifies your workflow. An increased hard drive capacity on the iPF765 MFP streamlines the printing workflow by bearing the processing workload on the printer to increase overall print processing times. And with a sub-ink tank system and Gigabit Ethernet support, the iPF765 MFP provides the versatility and flexibility needed to be used in a wide variety of industries and applications, all in one captivating package.
The scanner stand connects directly to the printer stand to create a one piece structure and to reduce the total footprint of the iPF MFP. The redesigned stand gives the user the flexibility to use as an "all in one" configuration or to be set up as an independent scanner stand. There are now also options for the monitor incorporated into the new design. The user can choose whether to place the monitor on the right or left side of the stand, as well as whether to use a straight or swing-arm orientation. When the monitor is set up using a swing-arm orientation, it can be positioned in two different heights. This single stand design eliminates the need to move the printer and scanner piece by piece when setting up or relocating the MFP.
The integrated stacker basket provides the capability to neatly stack up to twenty 24 x 36 inch plain paper prints. The stacker basket can be configured as a regular basket, a small stacker and a larger flat-positioned basket.
The interface lock system enhances the security functions on the printer and provides an option for administrative control to determine who has access to the printer. This feature allows the user to password protect the USB 2 and Ethernet connections which allows for the restriction of these ports.
This complete workflow solution includes large format printer, scanner, stand, computer, SmartWorks MFP Software and large touch-screen monitor. A versatile system built for the way you work, the imagePROGRAF MFP comes standard with the ability to scan to PDF, JPEG and TIFF file formats.
Whether its construction plans, drawings, maps or business presentations, speed is critical when deadlines are tight. A powerful production tool for many environments, now you can scan up to ten inches per second at 200 dpi for monochrome and up to 1.67 inches per second for color.
The imagePROGRAF iPF765 MFP uses CIS (Contact Image Scanning) technology to capture the finest image detail in technical documents, maps, sketches, hand-annotated drawings and complex schematics. With true 600dpi optical resolution, achieve exceptional monochrome performance with very sharp, clean black & white images and high definition color reproduction. And dynamic preview ensures that scans and copies match original hard copy documents every time.
The imagePROGRAF iPF765 MFP provides room to scan plain paper documents up to 41" wide (40" image width), max thickness 0.012 inches (0.3 mm). Its unique paper path returns documents to the front, allowing for a space saving design with front-accessible operation for flush wall installation.
SmartWorks MFP gives you all the tools you'll need to quickly and easily scan to copy / file / email large format technical documents. With a simple to use interface and unique scan-it-once ability, SmartWorks MFP allows for efficient batch scanning and ensures that top quality scanned images are produced in the least amount of time. Scan to PDF, TIFF and JPEG file formats.
A built-in 250GB hard drive within the printer increases productivity by relieving workload from the host PC, while providing a large capacity for print job data storage and retrieval. The hard drive has 32GB's dedicated to file processing memory. This 250GB hard drive enables job data to be stored in protected mailboxes for easy access via web browser or at the printer for job re-printing. The embedded hard disk is ideal for medium to large workgroups to share a printer efficiently with multiple users, offering sample job storage space. To ensure security of your files, there are is a quick erase mode, high-speed mode, and a secure erase mode which meets to U.S. Department of Defense requirements (DoD5220.22-M) for erasure of disk media.
Output a 24" x 36" size drawing in approximately 30 seconds*. When you need to keep projects moving forward and meet deadlines, this kind of speed is critical. Powering these incredible print speeds is Canon's L-COA (Large Format Printer COmmon Architecture) print controller, driving the imagePROGRAF print engine to lay down ink with exceptional speed and precision. This unique, high-speed processor enables the print system to process large volumes of data while optimizing output of complex high-color GIS images and architectural renderings for maximum readability and color accuracy.
* When printing in fast mode on plain paper. Includes paper-cutting time.
This printer was designed to be space-saving and environmentally conscious. This printer carries a small footprint with fully front-accessible operation for flush wall installation that fits into almost any environment. Also, loading roll media is simple with built-in loading guide rails and an automatic roll feeder. Made with less plastic and reduced CO2 emissions, this model has earned ENERGY STAR qualification, and draws only 140 watts of power during use.
Canon's unique sub-ink tank system means you can replace ink on-the-fly without stopping the printer. For long print runs, a high-capacity media basket comes standard with this printer. And its highly durable self-propelled dual rotary cutter allows for even faster printing of multi-page jobs.
Engineered for speed and advanced image production, this printer boasts Canon's latest print-head technology to lay down ink with unprecedented speed and accuracy. The PF-04 print head incorporates a nozzle shape to reduce satellite ink, producing cleaner lines and text, and minimizing mist. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 4 picoliter-size ink droplets that produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output with fine lines that are accurate to ±0.10% and as thin as 0.02mm.
Tracks how much ink and media is being consumed when printing. Costs can be assigned to ink and paper to determine expenses based on "Cost of goods". The user can also input a variable cost that will be added to the total of the print cost. The data is exportable to a .csv format for Microsoft Excel so the data can be used for billing purposes.
Features include:
*Ink usage is estimate, and error tolerance is ±15%
- Job Cost (ink, Media and variable cost inputted by user)
- Ink Consumed per Job*
- Media Consumed per Job
- Job Completion time
- And more
*Ink usage is estimate, and error tolerance is ±15%
Reduce total ink consumption by utilizing the Economy Print Mode for producing draft prints on select media. This feature regulates the use of all inks to produce quick check plots while minimizing the cost per print.
Ideal for technical and office applications, Canon's 5-color dye/pigment Reactive Ink technology utilizes four highly colorfast dye inks for producing bold, expressive color, plus two channels of matte black ink for printing precise lines, smooth curves, and small text on technical and office documents. These Canon inks provide superior adhesion to media, scratch and marker resistance, and ensure minimal "bleeding" between colors and text. Even small text printed on colored backgrounds or on uncoated technical papers is crisp and legible.
These Windows® and Macintosh® drivers incorporate simplified page setup options, one-touch borderless printing, expanded color settings, and much more into a printer driver that is intuitive and easy-to-operate while still giving even the most advanced users the tools needed to stay productive.
The Real Preview feature ensures users that the print setting and the layout on the roll paper is correct by providing real time preview, allowing users to change the print setting even after clicking on "print." The Free Layout feature enables nesting and custom layouts of images or files of nearly any type (available for both Windows and Mac driver).
The imageRUNNER Enlargement Copy feature built-in to the printer driver lets users transfer data from their Color imageRUNNER device with Universal Send to the imagePROGRAF printer - all with the touch of a button - enabling users to easily create posters from hard copy documents.
At a Glance:
- Easy-to-use preset document profiles (examples are Poster, CAD, Photo)
- Automatic print quality options dependent on print application and media
- Real Preview that lets users change document and printer settings after clicking "print"
- Page nesting feature with Free Layout for Windows and Mac
- imageRUNNER Enlargement Copy feature - with a hot folder solution to print Color imageRUNNER PDFs directly without opening in a PDF viewer
- Economy Print Mode
- Borderless printing
- Easy setting/Advanced setting
- Optimized module for AutoCAD
Canon's included PosterArtist Lite poster creation software gives users the ability to quickly and easily create professional large format prints. Users simply follow the program's four (4) easy steps to create posters that can be used in applications such as Office presentation, Trade shows, Retail Signage, and much, much more. The PosterArtist QuickCopy feature provides an easy solution for a CanoScan desktop scanner to be used as a copier, making letter-size flyers and documents into full-size posters with a touch of a button.
For those with more demanding poster creation needs, Canon's optional PosterArtist offers advanced features such as Auto Design, Variable Data, and in-application image editing features, as well as additional templates, royalty-free photos, and clip art. The built-in weblink feature in PosterArtist Lite links users directly to the PosterArtist website for useful hints and tips, and for even more free content for download.
This utility makes it easy to print large-format documents created in Microsoft Word, Excel, or PowerPoint. The Plug-in appears in a tool bar inside the Microsoft application and has an easy-to-follow "Wizard". The Plug-in will bypass the printer driver to simplify the printing process. A few simple steps convert your 8.5" x 11" office document to poster size.
1. For imagePROGRAF Printer Driver. For printing from PostScript applications such as Adobe Illustrator or QuarkXpress, please use a PostScript compatible RIP package. For a list of Canon recommended RIP packages, please consult with Canon Alliance and Industry Market list of RIP vendors.
2. The starter ink tanks initially packaged with the printer are not the same capacity as the replacement ink tanks specified here.
3. The maximum printable length varies depending on the application, OS, and RIP used.
| Printing Method | 5-Color 36-Inch Printer |
| Nozzle Text | Total: 15,360 MBK: 5,120 Nozzles C, M, Y, BK: 2,560 Nozzles Each Nozzle Pitch: 1,200 Dpi Non-Firing Nozzle Detection And Compensation |
| Resolution Text | 2,400 X 1,200 Dpi (Max) |
| Ink Compatibility | Dye/Pigment Reactive InkInk Capacity: 130ml Per Color2 |
| Ink Droplet Size | 4 Picoliter Color Set: Dye: Cyan, Magenta, Yellow, Black Pigment: Matte Black |
| Buffer Ram | 256MB Hard Drive: 250MB |
| Paper Sizes | Media Width: Cut Sheet: 8" - 36" Roll: 10" - 36" Media Thickness: Top Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil)Roll: 0.07 - 0.8mm (2.8 - 31.4mil) Maximum Roll Print Length: 59 Feet (18 Meters)2 Maximum Media Roll Diameter: 5.9 |
| Automatic Sheet Feeder | Top Loading Roll Feed: One Roll, Front Output Top Loading Manual Feed: One Sheet, Front Output Languages: GARO (Canon Proprietary) |
| Scanner Type | Contact Image Sensor (CIS) Technology - Requires No Stitching Or Maintenance Adjustment. |
| Scanning Element | Scan Accuracy: +/- 0.1% Speed: 10.1 Ips (Monochrome) 1.67 Ips (Color) |
| Max Resolution Text | 600dpi |
| Max Document Size | Width: 41 Inch Document Width Length: 96 Inches Thickness: 0.012in (0.3mm) |
| Os Compatibility | Windows® (XP/Vista/7) Macintosh® (OS10.4.11-10.7) |
| Standard Interface | USB 2.0 High-Speed 10/100/1000 Base-T/TX |
| Software Included | PosterArtist Lite, Accounting Manager, Canon Printer Driver, Printer Driver Extra Kit (Free Layout, ImageRUNNER Linking Function) SmartWorks MFP |
1. For imagePROGRAF Printer Driver. For printing from PostScript applications such as Adobe Illustrator or QuarkXpress, please use a PostScript compatible RIP package. For a list of Canon recommended RIP packages, please consult with Canon Alliance and Industry Market list of RIP vendors.
2. The starter ink tanks initially packaged with the printer are not the same capacity as the replacement ink tanks specified here.
3. The maximum printable length varies depending on the application, OS, and RIP used.
