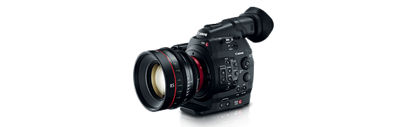

EOS C500

EF-mount camera compatible with existing Canon EF and EF-S lenses
Recording and output options specifically for 4K and 2K image acquisition
Super 35mm Canon CMOS Sensor and DIGIC DV III Image Processor
Designed to meet the needs of demanding cinema industry professionals

In The Box

EOS C500 Body (with Camera Cover)
Monitor Unit (with Microphone Holder Unit and Screws for MHU)
Handle unit
Thumb Rest
WFT Adapter
Tripod Adapter Base
Eye Cup
EVF CAP
SS-1200 Shoulder Strap
BP-955 Battery Pack (with Terminal Cover)
CG-940 Battery Charger
CA-940 Compact Power Adapter
DC Cable for CA-940
AC Cable
XF Utilities Disc Ver.31
Instruction Manual

The EOS C500 capitalizes on the groundbreaking ergonomic design of the EOS C300 camera, and offers a Super 35mm, 8.85-megapixel CMOS image sensor, DIGIC DV III Image Processor and an expansive range of recording and output options specifically for 4K and 2K image acquisition. Addressing the discrete needs of cinema and TV, the EOS C500 offers two forms of 4K origination - productions can dynamically select DCI (SMPTE 2048-1:2011 standard) or the alternative television-centric Quad-HD (SMPTE 2036-1:2009 and ITU-R BT.1769 standards) source image formats.

The EOS C500 features uncompressed Canon RAW output for both 4K and 2K recording. The Canon RAW output is delivered to external recording systems via built-in dual 3G-SDI ports. Dual uncompressed HD-SDI out ports supports external live monitoring. HD content can be written to dual onboard CF cards simultaneously to provide proxy video for offline NLE systems.

Canon has collaborated with some of the most respected names in the industry to ensure the Cinema EOS C500's output works seamlessly with external digital recording units, portable and master monitors, and on set DIT systems. The Cinema EOS C500 provides flexibility in 4K and 2K recording to allow production teams to maximize the efficiency in their production and post-production workflows.

Also available separately is the EOS C500 PL, which is a PL-mount camera.

Product Disclaimer

This device has not been authorized as required by the rules of the Federal Communications Commission. This device is not, and may not be, offered for sale or lease, or sold or leased, until authorization is obtained.

Expand All

Main Unit Spec

Power Supply Rated

DC 7.4 V (Battery Pack) / DC 8.4 V (DC In)

Recording Codec

Resolution

Mode	Resolution	Frame Rate
4K RAW 10bit	4096x2160/3840x2160	59.94p/29.97p/ 23.98p/50.00p/ 25.00p/24.00p
4K RAW 10bit	4096x1080/3840x1080	59.94i/29.98p/23.98p 50i/25p True 24 (24.00)
2K RGB 444 12bit	2048x1080/1920x1080	59.94i/29.98p/23.98p 50i/25p True 24 (24.00)
2K RGB 444 10bit	2048x1080/1920x1080	59.94i/29.98p/23.98p 50i/25p True 24 (24.00)
2K YCC 422 10bit	2048x1080/1920x1080	59.94i/29.98p/23.98p 50i/25p True 24 (24.00)

Recording Options

Mode	Resolution	Frame Rate
50 Mbps (CBR) 4:2:2 422P@HL	1920 X1080	59.94i/29.98p/23.98p 50i/25p True 24 (24.00)
50 Mbps (CBR) 4:2:2 422P@HL	1280 X 720	59.94i/29.98p/23.98p 50p/25p True 24 (24.00)
35 Mbps (VBR) 4:2:0 MP@HL	1920 X1080	59.94i/29.98p/23.98p 50i/25p
35 Mbps (VBR) 4:2:0 MP@HL	1280 X 720	59.94i/29.98p/23.98p 50p/25p
25 Mbps (CBR) 4:2:0 MP@H14	1440 X1080	59.94i/29.98p/23.98p 50i/25p

Slow And Fast Motion Recording

Available; Records At A Different Frame Rate Then The Playback Rate Allowing For Fast And Slow Motion Effects: (Slow And Fast Motion Recording Is Available In 4K And 2K Modes To External Recording Devices.)

Mode	Resolution	Playback Rate	Record Rate
4K RAW	4096x2160/3840x2160	60Hz/24:00	1-60
4K RAW	4096x2160/3840x2160	50Hz	1-50
4K RAW	4096x1080/3840x1080	60Hz/24:00	1-60. 62-120 In 2 Frame Increments
4K RAW	4096x1080/3840x1080	50Hz	1-50. 52-100 In 2 Frame Increments
2K RGB 4:4:4	2048x1080/1920x1080	60Hz/24:00	1-60. 62-120 In 2 Frame Increments
2K RGB 4:4:4	2048x1080/1920x1080	50Hz	1-50. 52-100 In 2 Frame Increments
2K YCC 4:2:2	2048x1080/1920x1080	60Hz/24:00	1-60. 62-120 In 2 Frame Increments
2K YCC 4:2:2	2048x1080/1920x1080	50Hz	1-50. 52-100 In 2 Frame Increments
50 Mbps	1920x1080	29.97p/23.98p/24.00p	1-30
	1920x1080	50i/25p	1-25
	1280x720	59.94p/29.97p/23.98p/24.00p	1-60
	1280x720	50p/25p	1-50
35 Mbps	1920x1080	29.97p/23.98p/24.00p	1-30
	1920x1080	50i/25p	1-25
	1280x720	59.94p/29.97p/23.98p/24.00p	1-60
	1280x720	50p/25p	1-50
25 Mbps	1440x1080	29.97p/23.98p	1-30

All Specifications Are Preliminary, And Based On Canon Inc.'S Standard Test Methods
All Specifications Subject To Change Without Prior Notice.

Image Sensor

CMOS; Super 35; 26.2 X 13.8 (29.6 Mm Diagonal); 6.4 µm Cell Pitch

Effective Pixels

4096 X 2160 Pixels; Approx. 8.85 Megapixels

Total Pixels

4206 X 2340 Pixels; Approx. 9.84 Megapixels

Max Movie Recording Time

Memory Capacity (CF Card)	Bit Rate
Memory Capacity (CF Card)	50 Mbps	35 Mbps	25 Mbps
2GB	5 Minutes	5 Minutes	10 Minutes
4GB	10 Minutes	10 Minutes	20 Minutes
8GB	20 Minutes	25 Minutes	40 Minutes
16GB	40 Minutes	55 Minutes	80 Minutes
32GB	80 Minutes	110 Minutes	155 Minutes
64GB	160 Minutes	225 Minutes	310 Minutes

Lens

Compatibility With EF, EF-S And EF Cinema Lens Systems

Focusing System

Manual

White Balance

Kelvin Setting 2,000K To 15,000K In 100K Increments

Minimum Illumination

59.94 Hz Mode: 0.3 Lux
(F/1.2, 24 DB, 29.97p, 1/30 Sec.)
50.00 Hz Mode: 0.25 Lux
(F/1.2, 24 DB, 25p, 1/25 Sec.)

Genlock Terminal

Yes; BNC Connector (Input Only)
Adjustment Range: -1023 To +1023

Hd Sd Sdi Terminal

Yes; (With Embedded Audio);
HD 8-Bit 4:2:2 (YPbPr) 1920x1080: 59.94i/50i/23.98/24.00, 1280x720: 59.94p/50p/23.98/24.00
SD 8-Bit 4:2:2 (YPbPr) 480: 59.94i, 576: 50i
BNC Connector, Output Only

SD-SDI:
NTSC 480i/PAL 576i: Compliant With SMTPE 259M
Embedded Audio: Compliant With SMTPE 272M
Time Code Standard: (VITC/LTC) SMTPE 12M
HD-SDI: (Compliant With SMTPE 292M)
1080i/720p: Compliant With SMTPE 292M
Embedded Audio: Compliant With SMTPE 299M
Time Code Standard: (VITC/LTC) SMTPE 12M

Timecode Terminals

Yes; BNC Connector (Input And Output)

Lcd Screen Monitor Unit

Rotating 4 Inch Wide Screen Color LCD Display (1,230,000 Dots: 854x480) On Detachable Controller

Recording Media

CF Card (Type 1 Only); 2 Slots (Movie Files); UDMA Supported
SD Card (Still Images (JPEG), Custom Picture Data*, Clip Metadata, And Menu Settings); SD/SDHC/SDXC Supported; MMC Cards Are Not Supported
* Custom Picture Data And Settings Is Not Compatible With Data From Others Canon Models

Audio Terminal

2 - Balanced 3-Pin XLR On Monitor Unit (Mic Level, Mic Level With Phantom Power And Line Level)

Hdmi Terminal

Yes (Type A) HD 8-Bit 4:2:2 (YPbPr) 1920x1080: 60i/59.94i/50i, 1280x720: 60p/59.94p/50p SD 8-Bit 4:2:2 (YPbPr) 480: 59.94i, 576: 50i

Operating Temperature Range

-5°C To 45°C, 60% (Relative Humidity)

Dimensions W X H X D

Approx. 6.3 X 7.0 X 6.7 In (160 X 179 X 171 Mm)

Weight Not Including Lens

C500 Body: Approx. 4.0 Lb. (1820 G)
