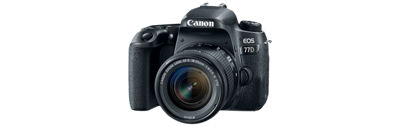

EOS 77D

Featuring an optical viewfinder with a 45-point all cross-type AF system* and fast, accurate Dual Pixel CMOS AF with phase-detection, it helps you capture the action right as it happens.

WHERE TO BUY

SERVICE LOCATOR

PRODUCT ADVISORIES

In The Box

EOS 77D
EF-S 18-135mm f/3.5-5.6 IS USM
Battery Pack LP-E17
Battery Charger LC-E17
Neck Strap EW-400D
Eyecup Ef (not shown)

Let your creativity take control with the EOS 77D camera.

Featuring an optical viewfinder with a 45-point all cross-type AF system* and fast, accurate Dual Pixel CMOS AF with phase-detection, it helps you capture the action right as it happens. Alongside the viewfinder, the EOS 77D's extensive, customizable controls and brilliant image quality help you get the photo looking exactly how you want it. Capture the vibrant colors and fine details of inspirational scenes with the 24.2 Megapixel CMOS (APS-C) Sensor. Without missing a beat, check and change your settings with the top-mounted LCD screen and rear Quick Control dial. When you're satisfied with your work, built-in Wi-Fi®**, NFC*** and Bluetooth®^ technology lets you easily share your favorite photos and videos. Creative control and innovative customizability comes with the EOS 77D.

Expand All

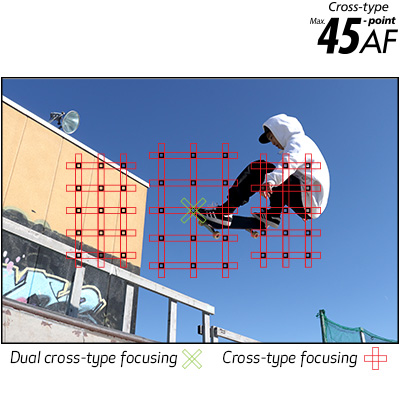

Optical Viewfinder with a 45-point All Cross-type AF System*

The EOS 77D camera’s optical viewfinder gives professional-level control and convenience by letting you see exactly what the lens sees in a variety of lighting conditions. A 45-point all cross-type autofocus system* helps you get what you want in focus, quickly. This comes in especially handy when trying to photograph fast-moving subjects, like athletes racing to score a goal or excited, playful pets. With minimal glare and minimal lag between what you see and what the camera captures, you could be on a dazzling beach photographing surfers or snapping a brilliant image of your friends dancing at midnight, and you can get the shot you want.

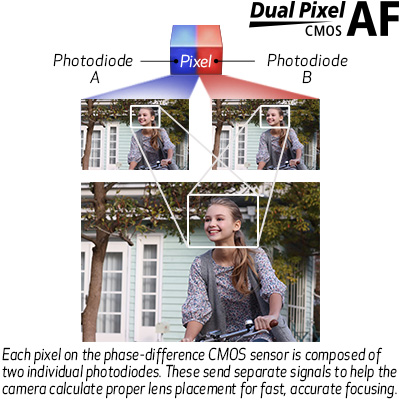

Fast & Accurate Dual Pixel CMOS AF with Phase-detection

There’s virtually no wait to focus with the EOS 77D camera’s Dual Pixel CMOS AF, which helps deliver the world’s fastest autofocusing speed at 0.03 sec.^^ Available when using Live View on the LCD touchscreen for both photos and videos, it features phase-detection which helps quickly and accurately determine how far away an object is by rapidly analyzing the phase of different colors of light. This highly advanced technology offers quick, precise autofocus that stays locked onto your subject, even if your subject is in motion. Dual Pixel CMOS AF helps ensure your results are sharp, keeps the time it takes to lock focus onto your subject to a minimum and smoothly maintains focus where you want it.

24.2 Megapixel CMOS (APS-C) Sensor

The EOS 77D camera features a 24.2 Megapixel (APS-C) sensor capable of capturing clear, detailed and vivid images and movies. From the skin tones in a portrait, to the greens and browns of nearby foliage, the incredibly sensitive CMOS-style sensor can capture the rich, vibrant colors of the world around you. Its high resolution reveals intricate details of your subject, and is suitable for printing or easily uploading for use on the web.

DIGIC 7 Image Processor, ISO 100-25600

The DIGIC 7 Image Processor powers the EOS 77D camera with high image quality and fast operation, even in low light. Even in extreme cases, like in low saturation or low-light dusk, dawn or darkened interior moments, it helps keep what you’re photographing in focus. When using high ISO settings, the image processing helps ensure results are highly detailed, while helping to minimize graininess. Powerful all around, the DIGIC 7 Image Processor helps ensure your photos and videos look sharp and lifelike with minimal unwanted noise or grain.

Built-in Wi-Fi**, NFC*** and Bluetooth^

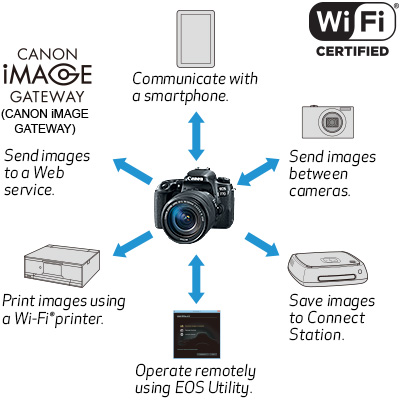

Built-in Wi-Fi^®** Capability

The EOS 77D camera is designed to make Wi-Fi^® connections** fast and easy. It can exchange data with other Wi-Fi^® compatible Canon cameras, and transfer files directly to a compatible smart device using the Camera Connect app. It can also connect directly to Canon’s Connect Station CS100 device, upload directly to various web services like CANON iMAGE GATEWAY^#, Facebook^® and YouTube^® and print directly to wireless Canon printers.

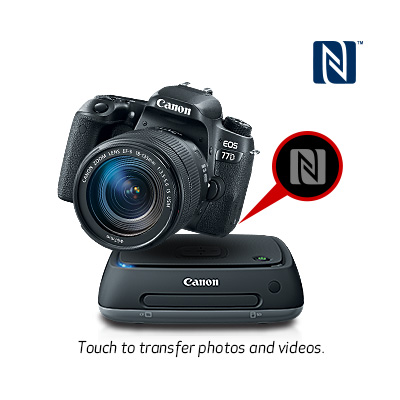

Built-in NFC*** Capability

With its built-in NFC (Near Field Communication) capability***, the EOS 77D camera connects directly to compatible Android devices as well as Canon’s Connect Station CS100 device by simply touching the NFC icon located on the camera to the device.

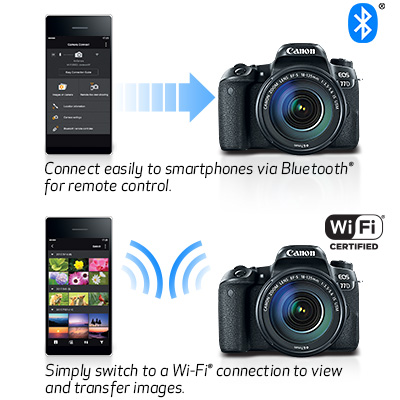

Built-in Bluetooth^®^ Capability

Bluetooth^®^ pairing lets you easily connect to and remotely control the EOS 77D from compatible smartphones using the free Canon Camera Connect app. After the initial pairing, you can set the camera to automatically connect to help preserve battery life while maintaining a wireless connection, and control camera operations remotely. This low-energy connection can also be used to control the optional Wireless Remote Control BR-E1 and the Power Zoom Adapter PZ-E1 accessories. You can also establish a direct Wi-Fi^® connection to use your phone as a viewfinder, and check and download previously captured photos and videos.

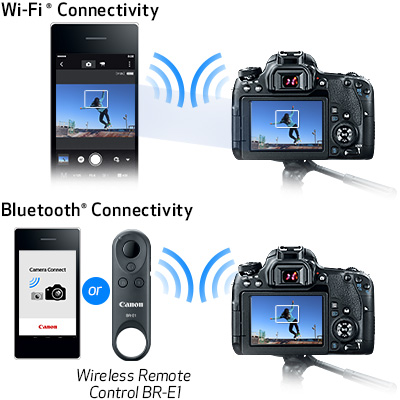

Remote Shooting

With the Canon Camera Connect app** installed, the EOS 77D camera connects to and can be controlled by your compatible smartphone or tablet, or the optional Wireless Remote Control BR-E1 for simple remote shooting.

Vari-angle Touch Screen, 3.0-inch LCD

The EOS 77D camera comes with a Vari-angle Touch Screen 3.0-inch Clear View LCD II monitor. It excels at shooting stills and videos at a variety of angles, as well as moviemaking whether used with a tripod or handheld. During Live View, tap the screen where you want to focus, and thanks to Dual Pixel CMOS AF the camera will focus on that location almost instantly. Two-finger touch gestures can be used for zooming or changing images after you’ve taken them, and menu and quick control settings can be accessed quickly and easily. With 1.04 million dots the screen is highly detailed and treated with a smudge-resistant coating to help minimize fingerprints and maintain a clear image, even in bright light.

7560-pixel RGB+IR Metering Sensor

A fine-tuned RGB+IR metering sensor not only helps ensure accurate exposure, but also uses Color Detection AF to detect skin tones and help provide precise AF. This is particularly useful when establishing focus for portraits in situations where other AF systems may falter. When a skin tone is detected, AI Servo AF starts off on skin-colored points, then tracks the subject based of the original AF point’s color information, maintaining focus on the person even when they’re in motion.

Anti-flicker Shooting

The EOS 77D camera features a flicker detection system that not only alerts the user in the viewfinder, but with the camera’s Anti-flicker Shooting function can compensate for flickering light sources, taking shots as close to peak light volume as possible. This feature is useful for helping to minimize disparities in color and exposure, especially during continuous shooting in sub-optimal lighting situations.

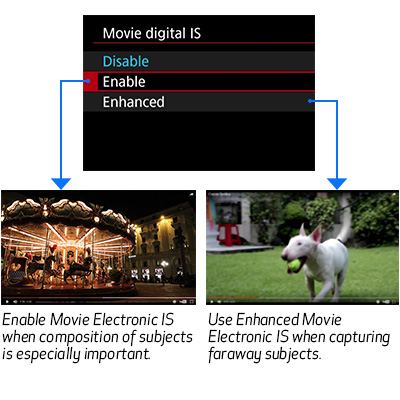

Movie Electronic IS

Camera shake is inevitable at times, whether you’re ready to record the game-winning goal while running to keep up with the players, or when the landscape is epic but you’re riding in the car on a bumpy road. Movie Electronic IS^^^ helps minimize image blur due to shake, even when recording Full HD videos. When enabled and used with a compatible lens, 5-axis stabilization helps minimize image blur in the horizontal, vertical, and rotational planes.

HDR Movie & Time-Lapse Movie

HDR Movie mode captures correctly exposed and under-exposed images, then blends them into one video with more highlight detail for stunning results. Time-Lapse Movie mode takes long stretches of time and condenses it down to a single high-speed video (minimum settable shutter speed of 1/25). Rapidly moving pedestrians on a busy street, fast-moving clouds in the sky the possibilities are only limited by your imagination.

High-speed Continuous Shooting at up to 6.0 fps

The more images, the better. That’s the idea behind the EOS 77D camera’s ability to capture up to 6.0 frames per second. Whether you’re capturing a majestic bird taking flight or a pro athlete scoring a winning goal, the EOS 77D can take the shot and stay locked on throughout the action, ensuring you capture the exact moment you want.

Product Disclaimer

* The number of AF points, cross-type AF points and Dual cross-type AF points vary depending on the lens used.

** Compatible with iOS® versions 8.4/9.3/10.2, Android™ smartphone and tablet versions 4.1/4.2/4.3/4.4/5.0/5.1/6.0/7.0/7.1. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.

*** Compatible with Android™ smartphone and tablet versions 4.1/4.2/4.3/4.4/5.0/5.1/6.0/7.0/7.1.

# One-time registration is required on CANON iMAGE GATEWAY online photo album.

^ Compatible with select smartphone and tablet devices (Android™ version 5.0 or later and the following iOS® devices: iPhone 4s or later, iPad 3rd gen. or later, iPod Touch 5th gen. or later) equipped with Bluetooth® version 4.0 or later and the Camera Connect App Ver. 2.0.30. This application is not guaranteed to operate on all listed devices, even if minimum requirements are met.

^^ Among all the interchangeable lens digital cameras incorporating the APS-C size image sensors with phase-difference detection AF on the image plane. As of February 14, 2017 (based on Canon research). Calculated based on the resulting AF speed measured according to the CIPA guidelines. (Varies depending on the shooting conditions and the lenses used.) Internal measurement method.

[Measurement conditions]
Focusing brightness: EV 12 (room temperature, ISO 100)
Shooting mode: M
Lens used: EF-S 18–55mm f/4–5.6 IS STM (at focal length of 55mm)
Live View shooting
AF method: Live 1-point AF (with Center AF point)
AF operation: One-Shot AF

^^^ Movie Electronic IS cannot be used with the following lenses: EF 50mm F1.2L USM, EF 85mm F1.2L II USM, EF 200mm F2L IS USM, EF 300mm F2.8L IS II USM, EF 400mm F2.8L IS II USM, EF 500mm F4L IS II USM, EF 600mm F4L IS II USM, EF 800mm F5.6L IS USM, EF 200–400mm F4L IS USM.

Product Attributes

Type

Digital Af/Ae Single-Lens Reflex Camera With Built-In Flash

Recording Medium

Sd/Sdhc/Sdxc Memory Cards

Sd Speed Class-Compatible
Uhs-I Compatible
High-Speed Writing Is Supported When A Uhs-I Compatible Sd Card Is Used.
Compatible With Eye-Fi Cards.
Multimedia Cards (Mmc) Cannot Be Used (Card Error Will Be Displayed).

Image Format

Approx. 22.3 X 14.9mm (Aps-C Size)

Compatible Lenses

Canon Ef Lenses (Including Ef-S Lenses, Excluding Ef-M Lenses)

Lens Mount

Canon Ef Mount

Type

Cmos Sensor (Supporting Dual Pixel Cmos Af)

Pixels

Effective Pixels: Approx. 24.2 Megapixels
Total Pixels: Approx. 25.8 Megapixels

Pixel Unit

Approx. 3.72 µm Square

Aspect Ratio

3:2 (Horizontal: Vertical)

Color Filter System

Rgb Primary Color Filters

Low Pass Filter

Installed In Front Of The Image Sensor, Non-Detachable

Dust Deletion Feature

(1) Self Cleaning Sensor Unit

Removes Dust Adhering To The Low-Pass Filter.
Self-Cleaning Executed Automatically (Taking Approx. 2 Sec.) When Power Is Turned On Or Off. Manual Execution Also Possible (Taking Approx. 7 Sec.).
After The Cleaning Is Performed, The Camera Will Automatically Restart (Power Off To On).

(2) Dust Delete Data Acquisition And Appending

The Coordinates Of The Dust Adhering To The Low-Pass Filter Are Detected By A Test Shot And Appended To Subsequent Images.
The Dust Coordinate Data Appended To The Image Is Used By The Provided Software To Automatically Erase The Dust Spots.

(3) Manual Cleaning

Recording Format

Compliant To Design Rule For Camera File System 2.0 And Exif 2.3

Image Format

Still Image: Jpeg, Raw (14 Bit Canon Original)
Video: Mov (Full Hd Movie: Mpeg4 Avc/H.264*; Audio: Linear Pcm), Mp4 (Movie: Mpeg4 Avc/H.264*; Audio: Aac)

* Variable (Averaged) Bit Rate

File Size

3:2 Aspect Ratio
Large: 6000 X 4000
Medium: 3984 X 2656
Small 1: 2976 X 1984
Small 2: 2400 X 1600
Raw: 6000 X 4000

4:3 Aspect Ratio
Large: 5328 X 4000*
Medium: 3552 X 2664
Small 1: 2656 X 1992
Small 2: 2112 X 1600*
Raw: 6000 X 4000

16:9 Aspect Ratio
Large: 6000 X 3368*
Medium: 3984 X 2240*
Small 1: 2976 X 1680*
Small 2: 2400 X 1344
Raw: 6000 X 4000

1:1 Aspect Ratio
Large: 4000 X 4000
Medium: 2656 X 2656
Small 1: 1984 X 1984
Small 2: 1600 X 1600
Raw: 6000 X 4000

Values For Recording Pixels Are Rounded To The Nearest 100,000.
Jpeg Images Are Generated In The Set Aspect Ratio.
Raw Images Are Generated In [3:2], And The Set Aspect Ratio Is Appended.

* Indicate An Inexact Proportion.

Backup Recording

Not Available

File Numbering

The Following Three Types Of File Numbering Method Can Be Set:
(1) File Numbering Method
Continuous Numbering

The Numbering Of Captured Images Will Continue Even After You Replace The Camera's Card.

Auto Reset

When You Replace The Camera's Card, The Numbering Will Be Reset To Start From 0001. If The New Card Already Contains Images, The Numbering Will Continue From The Last Recorded Image In The Card.

(2) Manual Reset

Resets The File Number To 0001, And Creates A New Folder Automatically.

Raw Jpeg Simultaneous Recording

Simultaneous Recording Is Possible Using A Combination Of Raw And Jpeg (Large).

Color Space

Srgb, Adobe Rgb

Picture Style

Auto
Standard
Portrait
Landscape
Fine Detail
Neutral
Faithful
Monochrome
User Defined 1-3

In Basic Zone Modes, [Auto] Will Be Set For And Of The Mode, And [Standard] Will Be Set For Other Modes.
In Creative Zone Modes, You Can Select Or Set The Picture Style.
[Auto] Is The Default Setting For [User Def. 1-3].

Settings

Auto (Ambience Priority/White Priority)
Daylight
Shade
Cloudy*
Tungsten Light
White Fluorescent Light
Flash
Custom (Custom Wb)

* Effective Also In Twilight And Sunset.

Auto White Balance

Option Between Ambience Priority And White Priority Settings

Color Temperature Compensation

Blue/Amber Bias: ±9 Levels
Magenta/Green Bias: ±9 Levels

Corrected In Reference To The Current Wb Mode’s Color Temperature.

Type

Eye-Level Slr (With Fixed Pentamirror)

Coverage

At Approx. 19mm Eyepoint

Aspect Ratio	3:2	Approx. 95% Vertically/Horizontally
	4:3	Approx. 95% Vertically/Horizontally
	16:9	Approx. 93% Vertically Approx. 95% Horizontally
	1:1	Approx. 95% Vertically/Horizontally

Magnification

Approx. 0.82x / 23.2&Deg (50mm Lens At ∞, -1m-1 Dpt)

Eyepoint

Approx. 19mm (At -1m^-1 From The Eyepiece Lens Center)

Dioptric Adjustment Correction

Adjustable From Approx. -3.0 To +1.0m^-1 (Dpt)

Focusing Screen

Fixed

Mirror

Quick-Return Half Mirror (Transmission: Reflection Ratio Of 40:60)

Viewfinder Information

Displayed With Transparent Liquid Crystal

Af Point Information
- Including Area Af Frame
Spot Metering Circle
Electronic Level
Grid
Aspect Line
Flicker Detection

Depth Of Field Preview

Provided With Depth Of Field Preview Button

Type

Ttl Secondary Image-Forming Phase-Difference Detection System With Af-Dedicated Sensor

Af Points

Up To 45 Points (Cross-Type Af Points: Max. 45)

Af Points And Af Patterns	Af Points (Max.)
Dual Cross-Type Af Points Supporting F/2.8 And F/5.6	1
Cross-Type Af Points Supporting F/5.6	45
Af Points Supporting F/8	27 (Cross-Type Af Point 9)

The Number Of Af Points, Cross-Type Af Points And Dual Cross-Type Af Points Varies Depending On The Lens Used.
Note That, With Aspect Ratio Of 1:1, The Maximum Number Of Af Points Becomes 35. (Each Left And Right End Line Of Af Points In Total Of Ten Are Not Usable.)

Focusing Modes

Autofocus

One-Shot Af
Predictive Ai Servo Af (Ai Servo Af Ii)
Ai Focus Af

Switches Between One-Shot Af And Ai Servo Af Automatically.

Manual Focus

Af Point Selection

Single-Point Af (Manual Selection)

The Checkmark Cannot Be Removed From This Option.

Zone Af (Manual Selection Of Zone)

All The Af Points Are Divided Into Nine Focusing Zones.

Large Zone Af (Manual Selection Of Zone)

All The Af Points Are Divided Into Three Focusing Zones.

Automatic Selection Af (45 Points)

Af Assist Beam

Intermittent Firing Of Built-In Flash
Effective Range

Center	Approx. 13.1 Ft. / 4.0m
Periphery	Approx. 11.5 Ft. / 3.5m

With An Eos-Dedicated Speedlite Attached, The Speedlite's Af-Assist Beam Is Emitted Instead.

Metering Modes

7560-Pixel Rgb+Ir Metering Sensor
63-Zone (9 X 7) Metering
(1) Evaluative Metering (Linked To All Af Points)
(2) Partial Metering (Center, Approx. 6.0% Of Viewfinder)
(3) Spot Metering (Center, Approx. 3.5% Of Viewfinder)
(4) Center-Weighted Average Metering

Metering Range

Ev 1-20 (Room Temperature, Iso 100, Evaluative Metering)

Exposure Control Systems

Creative Zone

Program Ae (Shiftable)
Shutter-Priority Ae
Aperture-Priority Ae
Manual Exposure (Including Bulb)

Basic Zone

Scene Intelligent Auto (Program Ae/ Non-Shiftable)
Flash Off
Creative Auto
Portrait
Landscape
Close-Up
Sports
Special Scene

Group Photo
Kids
Food
Candlelight
Night Portrait
Handheld Night Scene
Hdr Backlight Control

Creative Filters

Grainy B/W
Soft Focus
Fish-Eye Effect
Water Painting Effect
Toy Camera Effect
Miniature Effect
Hdr Art Standard
Hdr Art Vivid
Hdr Art Bold
Hdr Art Embossed

Iso Speed Range

Manual Setting

Normal Iso Speed	Iso 10025600 (In Whole-Stop Increments)
Expanded Iso Speed	Iso 51200

For [Highlight Tone Priority], The Settable Iso Speed Range Will Be Iso 20025600.

Exposure Compensation

Manual	±5 Stops In 1/3- Or 1/2-Stop Increments*
Aeb	±3 Stops In 1/3- Or 1/2-Stop Increments

*Up To ±2 Stops, Indicated In The Viewfinder.
*Up To ±3 Stops When [Shooting Screen: Guided] Is Set.

Ae Lock

(1) Auto Ae Lock

In The One-Shot Af Mode With Evaluative Metering, Ae Lock Takes Effect When Focus Is Achieved.

(2) Manual Ae Lock

In The P, Tv, Av And M Modes, Enabled With The Ae Lock Button. (Press Again To Update.)
Possible With All Metering Modes.

Type

Vertical-Travel, Mechanical, Focal-Plane Shutter With All Speeds Electronically-Controlled

Shutter Speeds

1/4000 To 30 Sec., Bulb (Total Shutter Speed Range. Available Range Varies By Shooting Mode.)
X-Sync At 1/200 Sec.

Shutter Release

Soft-Touch Electromagnetic Release

Self Timer

10-Sec. Or 2-Sec. Delay

Shutter Lag Time

With Sw-1 On, Time Lag Between Sw-2 On And Start Of Exposure: Approx. 0.070 Sec.
Time Lag Between Simultaneous Sw-1/Sw-2 On And Start Of Exposure: Approx. 0.250 Sec.

Time Lag With The Aperture Stopped Down By 3 Stops Or Less From The Open Aperture. Excludes Af Operation Time.

Type

Auto Pop-Up, Retractable Built-In Flash At The Pentamirror

Flash Metering System

E-Ttl Ii Autoflash With All Ex Series Speedlites

Guide Number

Approx. 39.4 / 12 (At Iso 100 In Feet / Meters)

Flash Coverage

Up To Approx. 17mm Focal Length (Equivalent To Approx. 28mm In 135 Format)

Fe Lock

Provided

Flash Exposure Compensation

Up To ±3 Stops In 1/3- Or 1/2-Stop Increments

Flash Metering

E-Ttl Ii Autoflash (Evaluative, Average), Fe Lock

Flash Exposure Compensation

±3 Stops In 1/3- Or 1/2-Stop Increments

Fe Lock

Provided

External Flash Settings

(1) External Flash Control

Flash Firing, E-Ttl Ii Metering, Flash Mode, Wireless Functions, Flash Zoom, Shutter Synchronization, Flash Exposure Compensation, Flash Exposure Bracketing And Clear Settings.
The Radio Wireless Flash Functions Can Be Set From The Camera.

(2) External Flash Custom Function Setting

The Setting Options For Both (1) And (2) Will Differ Depending On The Speedlite Used.

Drive Modes

Single Shooting
High-Speed Continuous Shooting
- Max. Approx. 6.0 Fps.
- Maximum Continuous Shooting Speed With 1/500 Sec. Or Faster Shutter Speed, Maximum Aperture (Varies Depending On The Lens), Anti-Flicker Shooting Set To Disable, With A Fully-Charged Battery Pack Lp-E17 And At Room Temperature (73°F/23°C).
- With The Af Mode Set To One-Shot Af And The Image Stabilizer Turned Off When Using The Following Lenses: Ef 300mm F/4l Is Usm, Ef 28-135mm F/3.5-5.6 Is Usm, Ef 75-300mm F/4-5.6 Is Usm, Ef 100-400mm F/4.5-5.6l Is Usm.
Low-Speed Continuous Shooting
- Max. Approx. 3.0 Fps
Self-Timer: 10 Sec./Remote Control
2 Sec. Self-Timer
Continuous Shooting After 10-Sec. Self-Timer (2 To 10 Shots)

Max Burst During Continuous Shooting

Image-Recording Quality	Image File Size (Approx. Mb)	Possible Shots (Approx.)	Maximum Burst (Approx.)
Image-Recording Quality	Image File Size (Approx. Mb)	Possible Shots (Approx.)	Standard	High-Speed (Uhs-I)
Large (Fine)	7.6	950	190	Full
Large (Normal)	3.9	1840	Full	Full
Medium (Fine)	4.1	1790	Full	Full
Medium (Normal)	2.0	3480	Full	Full
Small 1 (Fine)	2.6	2730	Full	Full
Small 1 (Normal)	1.3	5260	Full	Full
Small 2	1.8	3810	Full	Full
Raw	29.4	210	21	27
Raw+Large (Fine)	29.4+7.6	170	19	23

The Number Of Possible Shots And Maximum Burst (Standard) Are With A Canon’s Standard Testing 8gb Card. The Maximum Burst (High-Speed) Is With A Canon’s Standard Testing 16gb Card.
The File Size, Number Of Possible Shots And Maximum Burst Vary Depending On Shooting Conditions (Aspect Ratio Of 3:2, Subject, Memory Card Brand, Iso Speed, Picture Style, Etc.)
“Full” Indicates That Shooting Is Possible Until The Card Becomes Full.

Shooting Modes

Still Photo Shooting And Video Shooting

Focusing

Dual Pixel Cmos Af

Dual Pixel Cmos Af Is Possible With All Ef And Ef-S Lenses.
Contrast Af Is Not Provided.

Manual Focus
- Magnifying The Image By 5x Or 10x For Manual Focus Possible.

Metering Modes

Real-Time Metering With Image Sensor

Ae Lock Possible. The Metering Timer Can Be Changed.
1. Evaluative Metering (315-Zone)
2. Partial Metering (Center, Approx. 6.0% Of Viewfinder)
3. Spot Metering (Center, Approx. 2.6% Of Viewfinder)
4. Center-Weighted Average Metering
Ae Lock Possible. The Active Metering Timer Can Be Changed.

Metering Range

Ev 0-20 (Room Temperature, Iso 100, Evaluative Metering)

Grid Display

Off
3x3
6x4
3x3+Diag

Exposure Simulation

±3 Stop Increments

File Format

Mp4
Video: Mpeg-4 Avc / H.264

Variable (Averaged) Bit Rate

Audio: Aac
Mov: All-I (Fhd 29.97, Time-Lapse Movies Only)

Continuous Shooting Time

Video Recording Size			Total Recording Time On Card (Approx.)			File Size (Approx.)	Bit Rate (Approx.)
Video Recording Size			4gb	16gb	64gb	File Size (Approx.)	Bit Rate (Approx.)
1920 X 1080	59.94 Fps	Ipb (Standard)	8 Min.	35 Min.	2 Hrs. 21 Min.	431 Mb/Min.	60 Mbps
	29.97 Fps 23.98 Fps	Ipb (Standard)	17 Min.	1 Hr. 10 Min.	4 Hrs. 41 Min.	216 Mb/Min.	30 Mbps
	29.97 Fps	Ipb (Light)	43 Min.	2 Hrs. 53 Min.	11 Hrs. 35 Min.	87 Mb/Min.	12 Mbps
1280 X 720	59.94 Fps	Ipb (Standard)	20 Min.	1 Hr. 21 Min.	5 Hr. 24 Min.	184 Mb/Min.	26 Mbps
1280 X 720	29.97 Fps	Ipb (Light)	2 Hr. 5 Min.	8 Hrs. 20 Min.	33 Hrs. 22 Min.	30 Mb/Min.	4 Mbps
640 X 480	29.97 Fps	Ipb (Standard)	57 Min.	3 Hrs. 50 Min.	15 Hrs. 20 Min.	66 Mb/Min.	9 Mbps
640 X 480	29.97 Fps	Ipb (Light)	2 Hrs. 43 Min.	10 Hrs. 53 Min.	43 Hrs. 32 Min.	23 Mb/Min.	3 Mbps
Hdr Movie 1920 X 1080	29.97 Fps	Ipb (Standard)	17 Min.	1 Hr. 10 Min.	4 Hrs. 41 Min.	216 Mb/Min.	30 Mbps
Time-Lapse Movie 1920 X 1080	29.97 Fps	All-I	5 Min.	23 Min.	1 Hr. 33 Min.	654 Mb/Min.	90 Mbps

If The Recording Time Reaches 29 Min. 59 Sec., The Movie Shooting Stops Automatically.
Movie Shooting Does Not Stop Automatically Even If The File Size Reaches 4gb. (When An Sdxc Card Is Formatted In Exfat, A Movie Will Be Recorded In A Single Movie File Even If It Exceeds 4gb.)

Focusing

Dual Pixel Cmos Af

Contrast Af Is Not Provided.

Manual Focus
- Magnifying The Image By 5x Or 10x For Manual Focus Possible (Not Possible During Movie Shooting).

Exposure Control

Shooting Mode	Frame Rate	Shutter Speed (Sec.)		Aperture Value		Iso Speed (Recommended Exposure Index)
Shooting Mode	Frame Rate	Auto Setting	Manual Setting	Auto Setting	Manual Setting	Auto Setting	Manual Setting
Program Ae For Movie Shooting In Basic Zone Modes*	29.97, 23.98	1/40001/30		Yes		Iso 10012800
Program Ae For Movie Shooting In Basic Zone Modes*	59.94	1/40001/60		Yes		Iso 1006400 Or Iso 10012800 (H: 25600)
Program Ae For Movie Shooting In Creative Zone Modes	29.97, 23.98	1/40001/30
Program Ae For Movie Shooting In Creative Zone Modes	59.94	1/40001/60
Manual Exposure For Movie Shooting	23.98		1/40001/25		Yes	Iso 1006400 Or Iso 10012800 (H: 25600)	Iso 10012800 (H: 25600)
	29.97		1/40001/30
	59.94		1/40001/60

*In Basic Zone Modes, Exposure Control Is Exerted As Appropriate For The Detected Scene.

Exposure Compensation

Manual	±5 Stops In 1/3- Or 1/2-Stop Increments*
Aeb	±3 Stops In 1/3- Or 1/2-Stop Increments

*Up To ±2 Stops, Indicated In The Viewfinder.
*Up To ±3 Stops When [Shooting Screen: Guided] Is Set.

Type

Tft Color, Liquid-Crystal Monitor

Screen Monitor Size

3.0-Inch (Screen Aspect Ratio Of 3:2)
Approx. 3.03 In./7.70cm Diagonal (Approx. 2.51 In./6.37cm Width, Approx. 1.67 In/4.25cm Height)

Pixels

Approx. 1.04 Million Dots

Coverage

Approx. 95%*
* When The Aspect Ratio Is 16:9, Vertical Viewfinder Coverage Is Approx. 93%.

Brightness Control

Adjustable To One Of Seven Brightness Levels

Coating

Clear View Lcd Ii

Anti-Smudge Coating Applied.
Anti-Reflection Coating Not Applied.

Interface Languages

25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese)

On Lcd Monitor

Single-Image Display

No Information Display
Basic Information Display
Detailed Shooting Information Display

Basic Shooting Information
Lens Information And Rgb Histogram
White Balance
Picture Style And Sharpness
Contrast, Color Saturation And Color Tone
Color Space And Noise Reduction
Lens Aberration Correction
Gps Information (When Gps Receiver Is Used)

Index Display

4-Image
9-Image
36-Image
100-Image

Highlight Alert

With Detailed Information Display, Overexposed Highlight Areas With No Image Data Will Blink

Histogram

Brightness And Rgb

Items

Pressing The Quick Control Button Displays The Quick Control Screen During Viewfinder Shooting, Live View Shooting, Movie Shooting And Playback.

After Selecting An Item, You Can Select Contents By Operating The Main Dial.

Protection

Single Image (Select Image)
Select Range
All Images In A Folder
All Images In A Card
All Found Images (Only During Image Search)

Erase

Except Protected Images

Select Image To Erase
Select Range
All Images In A Folder
All Images In A Card
All Found Images (Only During Image Search)

Compatible Printers

Pictbridge-Compatible Printers (Wireless Lan Only)

Printable Images

Jpeg Images Compliant To Design Rule For Camera File System

Raw Images Can Be Printed.
Movies Cannot Be Printed.

Dpof

Complies To Dpof Version 1.1

Custom Functions

14 Custom Functions With 34 Settings Settable With The Camera

Custom Controls

Functions Can Be Assigned To The Following Control Parts:

Shutter Button (Halfway Pressing)
Ae Start Button
Ae Lock Button
Set Button

My Menu Registration

Up To Six Top-Tier Menu Options And Custom Function Settings Can Be Registered.
Up To Five My Menu Tabs Can Be Added.

My Menu Tab Overall Operations	Adding A Tab Deleting Tabs In A Batch Deleting All Tab Items Setting The Menu Display
My Menu Tab Detailed Operations	Selecting Item To Register Sorting Registered Items Deleting Selected Registered Items Deleting Registered Items In A Batch Deleting Tabs Changing A Tab Name (16 Ascii Characters)

Usb Terminal

Hi-Speed Usb (Usb 2.0)

For Pc Communication
For Gp-E2 Connection
For Connect Station Connection

Video Out Terminal

Type C (Resolution Switches Automatically)

Video Is Not Displayed Unless The Video Format Appropriate For The Connected Tv Set, [Ntsc] Or [Pal], Is Set.

Extension System Terminal

3.5mm Diameter Stereo Mini Jack

Directional Stereo Microphone Dm-E1 Connection

Battery

Battery Pack Lp-E17 X 1

With The Ac Adapter Ac-E6n And Dc Coupler Dr-E18, Ac Power Operation Is Possible.

Battery Life

Mode	Shooting Method	Battery	Temperature	Shooting Condition
				Ae 100%	Ae 50% / Fa 50%
Camera Body Only	Viewfinder Shooting	Lp-E17	At 73°F/23°C	Approx. 820	Approx. 600
			At 32°F/0°C	Approx. 770	Approx. 550
	Live View Shooting	Lp-E17	At 73°F/23°C	Approx. 310	Approx. 270
			At 32°F/0°C	Approx. 270	Approx. 230

Battery Check

Automatic Battery Check When The Power Switch Is Turned On. Displayed In 4 Levels.

Power Saving

Power Turns Off After The Set Time (10/30* Or 30 Sec., 1, 2, 4, 8 Or 15 Min.) Of Non-Operation Elapses
* Normally 10 Sec. Is Set. 30 Sec. Will Be Set For Function Setting, Live View Shooting, Image Playback, Etc.

Date Time Battery

Built-In Secondary Battery

It Is Not Replaceable By The User. It Recharges When Lp-E6 Is Loaded Or When The Ac Adapter Is Connected. Without Any Recharging, The Backup Battery Can Maintain The Date/Time For Approx. 3 Months. The Backup Battery Taxes Approx. 8 Hours To Be Fully Recharged.

Start Up Time

Approx. 0.2 Sec. (Based On Cipa Testing Standards)

Dimensions W X H X D

Approx. 5.16 X 3.93 X 3.00 In. (131.0 X 99.9 X 76.2mm)

Cipa Compliant.

Weight

Approx. 19.05 Oz. / 540g (Including Battery Pack And Sd Memory Card)
Approx. 17.39 Oz. / 493g (Body Only)

Operating Temperature Range

32-104°F/0-40°C

Operating Humidity Range

85% Or Less

Product Disclaimer

Dioptric Lenses

Dioptric Adjustment Lens E (+1)
