EOS 6D
- Newly-designed 20.2 Megapixel Full-Frame CMOS sensor, and DIGIC 5+ Image Processor
- New 11-point AF with EV-3 sensitivity (center point)
- Full HD Video
- Built-in Wi-Fi and GPS Receiver
- EOS 6D (WG) Body
- Eyecup Eb (Not Shown)
- Battery Pack LP-E6
- Battery Charger LC-E6
- Stereo AV Cable AVC-DC400ST
- Wide Neck Strap EW-EOS 6D
- USB Interface Cable IFC-200U
- EOS Digital Solution Disk & Software Instruction Manual CD
- Camera Instruction Manual (Not shown)
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS
Unlock Your Vision.
The EOS 6D features a newly developed Canon Full-Frame 20.2 Megapixel CMOS sensor for high resolution, perfectly detailed images delivered with incredible speed and performance. A 35.8mm x 23.9mm sensor captures images of 5472 x 3648 pixels with a pixel size of 6.55 µm square for fantastic detail and a superior signal-to-noise ratio, resulting in great images from the start. With no conversion factor, the EOS 6D’s sensor ensures that lenses mounted on the camera will deliver the same angle of view they would on a traditional 35mm camera. Working in tandem with the EOS 6D’s DIGIC 5+ Image Processor, the sensor containing a new photodiode structure delivers ISO sensitivities of 100-25600 (with expanded sensitivities of L: 50, H1: 51200, H2: 102400) and can shoot at up to 4.5 frames per second. Wrapped up in the EOS 6D’s compact and lightweight body, photography with a full-frame sensor has never been so easy and so portable.
14-bit A/D conversion, wide range ISO setting 100-25600 (L: 50, H1: 51200, H2: 102400)
The EOS 6D offers 14-bit signal processing for excellent image gradation, delivers high standard and expanded ISOs, and a score of new options to enhance shooting in varied and fast-changing lighting situations. The EOS 6D has a standard range of ISO 100-25600 but thanks to the improved signal-to-noise ratio of the newly designed sensor and powerful noise reduction, the camera can shoot at expanded sensitivities down to ISO 50 (L) and up to ISO 51200 (H1), and even expand to ISO 102400 (H2)! Beyond the obvious advantages of its wide ISO range, the EOS 6D has automatic ISO settings, which can be found on the dedicated ISO menu. Minimum and maximum ISO settings can be specified, as can a user-defined range, plus full auto and manual.
DIGIC 5+ Image Processor for enhanced noise reduction and exceptional processing speed
For a whole new level of performance, the EOS 6D uses a DIGIC 5+ Image Processor. Working with two 4-channel A/D converter front-end processing circuits, and delivering speeds of up to 4.5 fps (RAW + JPEG), the DIGIC 5+ Image Processor improves data processing performance and features new algorithms that promote greater noise reduction at higher ISOs. In addition to conventional image processing functions, the DIGIC 5+ Image Processor offers real-time compensation for chromatic aberration in both still and motion images. With the power of this processor, speed improvements are noticeable from the instant the camera is turned on and the stunning results speak for themselves.

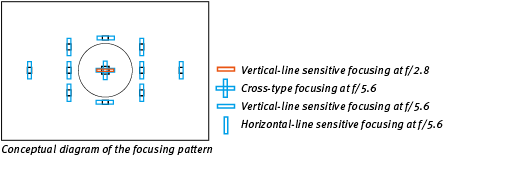

The EOS 6D has an entirely new 11-point AF system for fast, accurate AF no matter the situation. With its new centered cross-type AF point with EV -3 sensitivity for improved performance and focus in low light, and a newly developed and bright 21mm eye point viewfinder with 97% coverage, the EOS 6D offers impressive performance in both composition and AF, even in the dimmest lighting situations. Offering not only One-Shot AF, AI Servo AF, and AI Focus AF, the EOS 6D’s AI Servo focus can be customized with tracking, acceleration and deceleration tracking sensitivities, and 1st or 2nd image priority adjustments. For even more customization, adjustment levels for the wide-angle and telephoto ends of particular lenses can be entered and recorded into the camera’s memory.
The EOS 6D features Canon’s multi-layer 63-zone iFCL (intelligent Focus Color Luminance) Metering System that integrates the camera’s AF system into its readings. By taking into account the color and luminosity surrounding the chosen AF point(s), this system delivers accurate results, especially in situations where the light changes quickly. The metering sensor enables evaluative, center weighted, partial and spot metering, plus offers 5-step exposure compensation for perfectly exposed images, every time.
With continuous shooting speed up to 4.5 frames per second, the EOS 6D keeps up with the action. It is designed to capture the shots photographers want when shooting rapidly unfolding scenes.
The EOS 6D captures HD video with a level of sophistication on par with professional movie cameras, offering phenomenal performance on a DSLR. It offers both All-I (UHS-I memory card is required) and IPB compression, supports H.264/MPEG-4 AVC High Profile, and automatically splits files greater than 4GB (FAT specifications) for extended recording without interruption. It offers the option of timecoding during recording only (Rec Run) or at all times (Free Run), useful for multi-camera shoots. It also features improved sound recording adjustment capabilities, offering 64-step volume control accessible through the Quick Control screen, as well as a 3.5mm microphone terminal. The CMOS sensor’s drive system significantly increases image processor performance, reducing color artifacts and moiré (a common problem that occurs in scenes with horizontal lines), and ensures that the EOS 6D can record at a number of frame rates up to ISO 25600 in H mode.
All-I | Compresses each frame. Although the file size is larger than IPB, each frame is not affected by the previous and next frames, making it suitable for editing and extracting frames. |
IPB | Compresses the movie frame by referencing the previous and next frames. High compression is used, making it suitable for recording long movies. |
The new EOS 6D features built-in Wi-Fi®, incorporating cutting edge technology into the camera’s compact and lightweight design. The EOS 6D’s exposure settings such as aperture, shutter speed and ISO, focus, and shutter can be operated wirelessly using an iOS or Android smartphone* with the free Canon EOS Remote app**. Using a smartphone with the EOS Remote app** installed, shoot remotely from a distance, even in Live View mode, for those difficult-to-capture shots; you can also review images in the EOS 6D without having to take it out of the bag, and easily transfer and save images directly from the camera to a smartphone. Full DLNA (Digital Living Network Alliance) compatibility means easy sharing between the EOS 6D and other DLNA products, like HDTVs, smartphones and more. Still images can even be transferred between two Wi-Fi enabled Canon cameras over a Local Area Network. Photos can even be printed on a Wi-Fi® compatible printer^ without the need for a PC. Remarkably, the EOS 6D gains all of these wireless features without the need for any additional accessories; they’re built right in!
* Compatible with iOS version 8.4/9.3/10.2 or later and Android devices version 4.1/4.2/4.3/4.4/5.0/5.1/6.0/7.0/7.1 or later. Data charges may apply.
** This software enables you to upload images to social network services. Before uploading images, please be aware that image files may contain privacy related information such as people and places. If necessary, please delete such information. Canon does not obtain, collect or use such images or any information included in such images through this software.
^ DPS over IP certified printer is required.
Ideal for travel or nature photography, the EOS 6D’s built-in GPS## can record longitude, latitude and altitude data as EXIF data, can track movement at set intervals with its logging function and can even set the camera's internal clock to local time! When using the logger function on a computer, you will see the exact route you travelled, and the map will show you where and when you took each image.
## In certain countries and regions, the use of GPS may be restricted. Therefore be sure to use GPS in accordance with the laws and regulations of your country or region. Be particularly careful when traveling outside your home country. As a signal is received from GPS satellites, take sufficient measures when using in locations where the use of electronics is regulated.

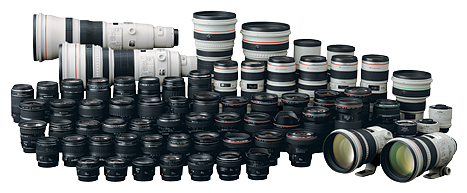

For photographers on the move, there’s nothing quite like the full-frame performance available with the EOS 6D. It’s designed to be portable, light and simple to operate yet doesn’t compromise the quality one expects from EOS SLRs. With an aluminum alloy and polycarbonate chassis and a magnesium polycarbonate resin exterior, plus a shutter rated to 100,000 cycles, the EOS 6D offers the perfect combination of lightweight and durable materials for reliable operation day after day.

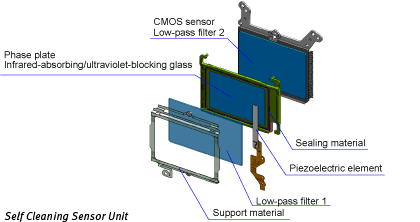

EOS Integrated Cleaning System for improved vibration-based dust removal
The Integrated Cleaning System featured in the EOS 6D delivers great dust removal for clearer images. To prevent dust accumulation, the system removes particles on the surface of the glass filter by vibrating the glass ultrasonically. The particles are then absorbed by an adsorbent at the bottom of the unit; the unit itself is completely sealed for protection against external contaminants, and the front face of the low-pass glass filter is treated with an anti-dust fluorine coating, making it easier to remove damp or sticky dust particles.
The EOS 6D’s 3.0" TFT LCD monitor has 1,040,000 dots, anti-reflective construction and features Canon’s Clear View technology for a bright, sharp display in any number of shooting situations. It’s ideal for reviewing settings and images, as well as for shooting in Live View mode. In Live View, grid lines can be displayed in 9 sections, 24 sections, or 9 sections with diagonals, as can the electronic level, which helps ensure accurate level by displaying roll. For image review, the EOS 6D has a dedicated Magnify/Reduce button. While pressing the button, zooming in or out (up to 10x) is achieved simply by turning the Main Dial. Images can be protected or erased quickly, individually or in batches, and slideshows can be created with some or all images and can be sequenced by date, folders, movies, stills or rating. A feature guide can be accessed for the selected menu, providing detailed reference information whenever needed.
With its High Dynamic Range (HDR) mode, the EOS 6D can merge 3 images of varying exposure in camera and save them as one final image, capturing a broad range of shadow and highlight detail with stunning tonal range. Adjustable to cover a range of ±3 stops, HDR recording truly expands the parameters of the light and dark detail a camera can actually record, surprising viewers with the range of tones a photograph can accurately recreate.

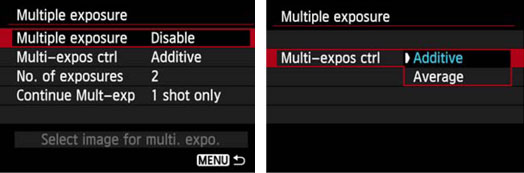

Multiple Exposure Control
The EOS 6D offers a Multiple Exposure mode for film-like image creation with the convenience of in-camera processing. It offers two different compositing methods for proper exposure and composition: additive or average. Multiple exposure shots from 2 to 9 are stored as one final image and can be taken in both RAW and JPEG shooting modes. A RAW image previously captured by the EOS 6D (3:2 aspect ratio only) can be used as a starting point, and cumulative results can be observed and corrected in real time on the camera's LCD screen.
Scene Intelligent Auto mode
An enhanced Scene Intelligent Auto mode incorporates a number of Canon technologies to deliver the best possible exposure. Joining Picture Style Auto, Automatic Lighting Optimizer, Automatic White Balance, Autofocus, and Automatic Exposure, Scene Intelligent Auto mode analyzes the image, accounting for faces, colors, brightness, moving objects, contrast, even whether the camera is handheld or on a tripod, and then chooses the exposure and enhancements that bring out the best in any scene or situation.
Special Scene modes
The EOS 6D features a variety of Special Scene modes that achieve high-quality images: Handheld Night Scene and HDR Backlight Control. The Handheld Night Scene mode captures nightscapes with bright highlights and detailed dark areas by shooting and combining four consecutive shots at a shutter speed fast enough to avoid camera shake, making dramatic nighttime photography simple. The HDR Backlight Control mode ensures that backlit subjects are not recorded too dark by shooting three consecutive shots at different exposures (underexposed, correctly exposed and overexposed) and then combining the images; the final result maintains detail in both the shadow and highlight areas, ensuring the backlit subject is properly exposed.
The EOS 6D uses popular SD, SDHC, SDXC memory cards, and is even compatible with the newest Ultra High Speed (UHS-I) memory cards. Compact and available in large capacities, SD, SDHC and SDXC memory cards are a perfect complement to the portable EOS 6D’s lightweight design.
The EOS 6D features a number of corrective tools to accommodate for the particulars of the lens used. Canon’s lens peripheral illumination correction feature corrects light falloff in the corner of the image. Chromatic aberration can be corrected at the time of shooting with the EOS 6D’s Chromatic Aberration Correction tool. The Distortion Correction feature corrects distortions such as curved lines by correcting for the characteristics of the particular lens used to take the shot, so images that may have been distorted in the captured image appear straight. The camera has correction data for a number of EF lenses preloaded, and new lenses can be added to the camera’s database via EOS Utility. The camera can even distinguish between different lenses of the same model using the serial number (with compatible EF lenses).
Auto Picture Style & Scene Intelligent Auto (A+)
The EOS 6D not only features a number of Canon’s Picture Style settings but also a Picture Style Auto setting that finely controls color tones for every composition based on information from the camera’s EOS Scene Detection System. This can be an effective feature not only in normal scenes, where “standard” punchy contrast will be used, but also in nature and outdoor scenes, where the blues and greens will look more vivid without the need to switch the camera’s Picture Style to Landscape.
In-Camera RAW Processing & JPEG Resize
The EOS 6D features state of the art in-camera RAW processing for quick conversion of RAW files to JPEG with control over size, brightness, WB, Picture Style, Auto Lighting Optimizer, Noise reduction, color space, distortion correction and more. Additionally, the EOS 6D features expanded Quick Control functions during playback like image protect, image rotate, rating, RAW image processing, resize, highlight alert, AF point and image jump, meaning a streamlined workflow can begin in the field.
Comparative Playback
The EOS 6D’s comparative playback mode enables images to be played back two at a time, side by side. A tremendous, in-camera timesaver, comparative playback means images can quickly be enlarged simultaneously to compare focus, blur and noise, and can be individually rated, deleted or locked.
Silent Shooting
The EOS 6D offers a silent, low vibration shooting mode. By slowing down and muting the shutter and mirror reflex action, the camera is capable of handheld, virtually imperceptible operation for discrete shooting in more situations.
* Compatible with iOS version 8.4/9.3/10.2 or later and Android devices version 4.1/4.2/4.3/4.4/5.0/5.1/6.0/7.0/7.1 or later. Data charges may apply.
** This software enables you to upload images to social network services (Upload feature not available in all countries). Before uploading images, please be aware that image files may contain privacy related information such as people and places. If necessary, please delete such information. Canon does not obtain, collect or use such images or any information included in such images through this software.
^ DPS over IP certified printer is required.
## In certain countries and regions, the use of GPS may be restricted. Therefore be sure to use GPS in accordance with the laws and regulations of your country or region. Be particularly careful when traveling outside your home country. As a signal is received from GPS satellites, take sufficient measures when using in locations where the use of electronics is regulated.
Type | Digital AF/AE Single-Lens Reflex Camera |
Recording Medium | SD Card, SDHC Card, SDXC Memory Card * Compatible With Ultra High-Speed (UHS-I) Memory Cards. |
Image Format | 35.8mm X 23.9mm (Full-Frame) |
Compatible Lenses | Canon EF Lenses (Except EF-S And EF-M Lenses) |
Lens Mount | Canon EF Mount |
Type | CMOS Sensor |
Pixels | Effective: Approx. 20.2 Megapixels |
Pixel Unit | 6.55 µm Square |
Total Pixels | Approx. 20.6 Megapixels |
Aspect Ratio | 3:2 (Horizontal: Vertical) |
Color Filter System | RGB Primary Color Filters |
Low Pass Filter | Fixed Position In Front Of The CMOS Sensor |
Dust Deletion Feature | (1) Self Cleaning Sensor Unit
|
Recording Format | Complies With Design Rule For Camera File System 2.0 And EXIF 2.30 |
Image Format | Still: JPEG, RAW (14-Bit, Canon Original), RAW+JPEG Video: MOV (Image Data: H.264, Audio: Linear PCM) |
File Size | (1) Large: Approx. 20.0 Megapixels (5,472 X 3,648) (2) Medium: Approx. 8.9 Megapixels (3,648 X 2,432) (3) Small 1: Approx. 5.0 Megapixels (2,736 X 1,824) (4) Small 2: Approx. 2.5 Megapixels (1920 X 1280) (5) Small 3: Approx. 350,000 Pixels (720 X 480) (6) RAW: Approx. 20.0 Megapixels (5,472 X 3,648) M RAW: Approx. 11.0 Megapixels (4,104 X 2,736) S RAW: Approx. 5.0 Megapixels (2,736 X 1,824) |
Backup Recording | N/A |
File Numbering | The Following Three Types Of File Numbering Methods Can Be Set: (1) Continuous Numbering * The Numbering Of Captured Images Will Continue Even After You Replace The Camera's Card. (2) Auto Reset * When You Replace The Camera's Card, The Numbering Will Be Reset To Start From 0001. If The New Card Already Contains Images, The Numbering Will Continue From The Last Recorded Image In The Card. (3) Manual Reset * Resets The File Number To 0001, And Creates A New Folder Automatically. |
Raw Jpeg Simultaneous Recording | Large RAW And JPEG Images Are Recorded Simultaneously |
Color Space | SRGB, Adobe RGB |
Picture Style | Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined 1-3 |
Settings | Auto, Preset (Daylight, Shade, Cloudy, Tungsten Light, White Fluorescent Light, Flash), Custom (Approx. 2,000° - 10,000°K), Color Temperature (Approx. 2,500&Deg - 10,000&DegK), White Balance Correction, And White Balance Bracketing |
Auto White Balance | Auto White Balance With The Image Sensor |
Color Temperature Compensation | Blue/Amber Bias: ±9 Levels - Magenta/Green Bias: ±9 Levels * Correction Based On The Current WB Mode's Color Temperature. |
Color Temperature Information Transmission | Provided |
Type | Eye-Level SLR (With Fixed Pentaprism) |
Coverage | Vertical/Horizontal Approx. 97% |
Magnification | Approx. 0.71x / 33.3° |
Eyepoint | Approx. 21mm (At -1m-1 From The Eyepiece Lens Center) |
Dioptric Adjustment Correction | -3.0 To +1.0m-1 (Diopter) |
Focusing Screen | Eg-A II Provided. Interchangeable With Eg-D And Eg-S. Incompatible With Eg-A. |
Mirror | Quick-Return Half Mirror (Transmission: Reflection Ratio Of 40:60) |
Viewfinder Information | - AF Information AF Points And Focus Confirmation - Exposure Information Shutter Speed, Aperture, ISO Speed (Always Displayed), AE Lock, Exposure Level, Exposure Warning - Flash Information Flash Ready, Flash Exposure Compensation, High-Speed Sync, FE Lock - Image Information Highlight Tone Priority (D+), Maximum Burst (2-Digit Display), Card Information - Battery Check - Composition Information Electronic Level - Warning Symbol Displayed If Any Of The Following Is Set: Monochrome, White Balance Correction, Expanded ISO Speed, Or Spot Metering. |
Depth Of Field Preview | Enabled With Depth-Of-Field Preview Button |
Type | TTL Secondary Image-Forming Phase-Difference Detection System With AF-Dedicated CMOS Sensor |
Af Points | 11 Points Center: Cross-Type At F/5.6; Vertical Line-Sensitive At F/2.8. Upper And Lower AF Points: Vertical Line-Sensitive AF At F/5.6. Other AF Points: Horizontal Line-Sensitive AF At F/5.6. |
Af Working Range | Center AF Point: EV -3 To 18 (At 73°F/23&DegC, ISO 100) Other AF Points: EV +0.5 To 18 (At 73&DegF/23&DegC, ISO 100) |
Focusing Modes | 1) Autofocus - One-Shot AF - AI Servo AF - AI Focus AF *Switches Between One-Shot AF And AI Servo AF Automatically. 2) Manual Focus |
Af Point Selection | (1) Automatic Selection (2) Manual Selection |
Selected Af Point Display | Displayed Or Indicated By Superimposed Display In The Viewfinder And On The LCD Monitor. |
Af Assist Beam | 1) Enable * With An EOS-Dedicated Speedlite Attached, AF-Assist Beam Is Emitted Automatically When Necessary. 2) Disable 3) IR AF-Assist Beam Only * No AF-Assist Beam With Flash Bursts. |
Metering Modes | Max. Aperture TTL Metering With 63-Zone SPC With The Following Selectable Modes: 1) Evaluative Metering 2) Partial Metering (Center: Approx. 8% Of Viewfinder) 3) Spot Metering (Center: Approx. 3.5% Of Viewfinder) 4) Center-Weighted Average Metering |
||||||||||||||
Metering Range | EV 1-20 (At 73°F/23°C With EF50mm F/1.8 II Lens, ISO 100) | ||||||||||||||
Exposure Control Systems | Creative Zone (1) Program AE (Shiftable) (2) Shutter-Priority AE (3) Aperture-Priority AE (4) Manual Exposure (5) Bulb (6) Custom Shooting Mode Basic Zone (1) Scene Intelligent Auto (Program AE / Non-Shiftable) (2) Creative Auto (3) Special Scene - Portrait - Landscape - Close-Up - Sports - Night Portrait - Handheld Night Scene - HDR Backlight Control Mode |
||||||||||||||
Iso Speed Range | For Stills: Manual Setting Range Of ISO 100-25600 (Expansion Possible To ISO 50, ISO 51200 And 102400) In 1/3-Stop Or Whole-Stop Increments)
*2: If Overexposure Would Occur With Fill Flash, The Minimum ISO Speed Is ISO 100. *3: Scene Intelligent Auto, Night Portrait And Handheld Night Scene Modes Are Excluded. *4: For Bounced External Flash When Creative Auto, Close-Up, Landscape, Macro, Sports / P Is Set, Automatically Set Between ISO 400–1600. |
||||||||||||||
Exposure Compensation | (1) Manual : ±5 Stops In 1/3- Or 1/2-Stop Increments (2) AEB : ±3 Stops In 1/3- Or 1/2-Stop Increments * Manual Exposure Compensation And AEB Can Be Combined. * The AEB Shooting Sequence Will Be Standard Exposure, Underexposure And Overexposure. With The Self-Timer, Three Continuous Shots Will Be Taken Regardless Of The Current Drive Mode. * The Number Of Bracketed Shots: 2, 3, 5, Or 7 Settable With A Custom Function. |
||||||||||||||
Ae Lock | Auto: Applied In One-Shot AF Mode With Evaluative Metering When Focus Is Achieved. Manual: By AE Lock Button. * During Movie Shooting, Press The <*> Button For AE Lock And Press The Button To Cancel AE Lock (Not Automatically Cancelled). * AE Lock (Cancelled Automatically When Metering Timer Is Turned Off) Possible Before Movie Shooting. Movie Shooting Can Start While AE Lock Is Set. |
Type | Vertical-Travel, Mechanical, Focal-Plane Shutter With All Speeds Electronically-Controlled |
Shutter Speeds | 1/4000 To 30 Sec., X-Sync At 1/180 Sec. (Total Shutter Speed Range. Available Range Varies By Shooting Mode.) |
Shutter Release | Soft-Touch Electromagnetic Release |
Self Timer | 10-Sec. Or 2-Sec. Delay |
Shutter Lag Time | (1) During SW-1 ON, Time Lag Between SW-2 ON And Start Of Exposure: Approx. 0.060 Sec. (2) Time Lag Between Simultaneous SW-1/SW-2 ON And Start Of Exposure: Approx. 0.144 Sec. * Time Lag With The Aperture Stopped Down By 3.5 Stops Or Less (Excludes AF Operation Time). |
Compatible Flash | EX-Series Speedlites |
Flash Metering | E-TTL II Autoflash (Evaluative Flash Metering And Average Flash Metering) |
Flash Exposure Compensation | ±3 Stops In 1/3- Or 1/2-Stop Increments |
Fe Lock | Provided |
Drive Modes | (1) Single Shooting (2) Continuous Shooting (3) Silent Single Shooting (4) Silent Continuous Shooting (5) 10-Sec. Self-Timer/Remote Control (6) 2-Sec. Self-Timer |
Continuous Shooting Speed | Continuous Shooting: Max. Approx. 4.5 Fps Silent Continuous Shooting: Max. Approx. 3.0 Fps |
Max Burst During Continuous Shooting | Based On 8GB Memory Card: JPEG Large/Fine: Approx. 73 Shots RAW: Approx. 14 Shots RAW+JPEG Large/Fine: 7 Shots Based On 8GB UHS-I Memory Card: JPEG Large/Fine: Approx. 1250 Shots RAW: Approx. 17 Shots RAW + JPEG Large/Fine: 8 Shots * Figures Are Based On Canon's Testing Standards (ISO 100 And Standard Picture Style). |
Shooting Modes | Still Photo Shooting And Video Shooting |
Focusing | (1) Autofocus - FlexiZone - Single * One-Point, Contrast AF. Switching To Another AF Point Is Possible. - Face Detection Live Mode * Face Detection, Contrast AF. Face Is Selectable. - Quick Mode AF * Phase-Difference AF With 11 AF Points. (2) Manual Focus - Magnify The Image By 5x Or 10x And Focus Manually. |
Metering Modes | Real-Time Evaluative Metering With Image Sensor. (1) Evaluative Metering (315 Zones) (2) Partial Metering (Approx. 11% Of Live View Screen) (3) Spot Metering (Approx. 3% Of Live View Screen) (4) Center-Weighted Average Metering |
Metering Range | EV 0-20 (At 73°F/23°C With EF 50mm F/1.4 Lens, ISO 100) |
Grid Display | Provided (Three Grid Displays) |
Exposure Simulation | Provided |
Silent Shooting | Provided (Mode 1 And 2) |
File Format | MOV (Image Data: MPEG-4 AVC / H.264) Audio: Linear PCM (Stereo) |
File Size | Recording Size: [Full HD] 1920 X 1080 (30 Fps/25fps/24fps): 235 MB/Min. With IPB Compression 685 MB/Min. With All-I Compression [HD] 1280 X 720 (60 Fps/50fps): 205 MB/Min. With IPB Compression 610 MB/Min. With All-I Compression [SD] 640 X 480 (30 Fps/25fps): 78 MB/Min. With IPB Compression |
Frame Rates | 1920 X 1080 (Full HD): 30p (29.97) / 24p (23.976) / 25p 1280 X 720 (HD): 60p (59.94) / 50p 640 X 480 (SD): 30p (29.97) / 25p |
Continuous Shooting Time | Based On 8GB Memory Card [1920 X 1080] 30 Fps/25 Fps/24 Fps: 32 Min. With IPB Compression 11 Min. With All-I Compression [1280 X 720] 60 Fps/50 Fps: 37 Min. With IPB Compression 12 Min. With All-I Compression [640 X 480] 30 Fps/25 Fps: 97 Min. With IPB Or All-I Compression * The Maximum Recording Time Is Limited To 29 Min. 59 Sec. |
Focusing | (1) Autofocus - FlexiZone - Single * One-Point, Contrast AF. Switching To Another AF Point Is Possible. - Face Detection Live Mode * Face Detection, Contrast AF. Face Is Selectable. - Quick Mode AF * Phase-Difference AF With 11 AF Points. - Manual Focus 1. Magnified View Is Not Possible During Video Shooting. |
Range | Full Range (0–255) |
Exposure Control | (1) Program AE For Movie Shooting * For Shooting Modes Other Than Manual Exposure And Bulb. * Shutter Speed 1/30 - 1/4000 Sec. (Signal Accumulation Time), Aperture, And ISO Speed Automatically Set. (2) Manual Exposure * For Manual Exposure. * Shutter Speed (Signal Accumulation Time), Aperture, And ISO Speed (Auto/Manual) Manually Set. The Shutter Speed (Signal Accumulation Time) Is Limited To 1/4000 Sec. At The Maximum And To 1/30 Sec. At The Minimum For 24/25/30 Fps Or 1/60 Sec. Or Higher For 50/60 Fps Depending On The Frame Rate. |
Exposure Compensation | Provided (±3 Stops In 1/3-Stop Increments) * For Movies, Even If Exposure Compensation Has Been Set Beyond ±3 Stops, Exposure Compensation Up To Only ±3 Stops Will Be Applied. |
Type | TFT Color, Liquid-Crystal Monitor |
Screen Monitor Size | 3.0-Inches (Screen Aspect Ratio Of 3:2) 7.7cm Diagonal (6.37cm Wide, 4.25cm High) |
Pixels | Approx: 1,040,000 Dots |
Coverage | Approx. 100% |
Brightness Control | Manually Adjustable To One Of 7 Levels |
Coating | Resin Cover And Anti-Reflection AR Coating |
Interface Languages | 25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese) |
Image Display Format | Single Image Display - Two Types Of Single-Image Full Display, Two Types Of Shooting Information - Index Display 4-Image Index And 9-Image Index - Jump Display Jump 1/10/100 Images, Shooting Date, Folder, Movies, Stills, Or Rating * Two-Image Comparative Display Is Not Provided. |
Highlight Alert | With Single-Image Display (Info.) And Single-Image Display, Overexposed Highlight Areas Will Blink. |
Histogram | Brightness And RGB Can Be Displayed. |
Items | When You Press The Quick Control Function Button Under The Following Conditions, You Can Set The Functions Below: *The Settable Functions Depend On The Shooting Mode (1) With Viewfinder Shooting: Shutter Speed, Aperture, ISO Speed, Exposure Compensation, AEB, Flash Exposure Compensation, Wi-Fi®, Picture Style, White Balance, White Balance Correction, Auto Lighting Optimizer, Custom Controls, AF Operation, AF Point Selection, Drive Mode, Metering Mode, And Image Recording Quality. (2) During Playback: Image Protect, Image Rotate, Rating, RAW Image Processing, Resize, Highlight Alert, AF Point, And Image Jump With Mode Dial. |
Protection | Erase Protection Can Be Applied/Canceled For A Single Image, All Images In A Folder, Or All Images In The Card. |
Erase | Erase Single Image, Erase Selected Images, Erase All Images On Folder, Erase All Images In A Card, Or Erase Only Unprotected Images. |
Compatible Printers | PictBridge-Compatible Printers |
Printable Images | RAW And JPEG Images Complying To Design Rule For Camera File System * Movies Cannot Be Printed. |
Dpof | Complies To DPOF Version 1.1 |
Compatible Images | Not Provided |
Custom Functions | 20 Custom Functions |
Custom Controls | The Following Camera Controls Can Be Customized By Assigning The Desired Function: Shutter Button Halfway Pressing, AF-ON Button, AE Lock Button, Depth-Of-Field Preview Button, Lens AF Stop Button, SET Button, Main Dial, Quick Control Dial, And Multi-Controller |
My Menu Registration | Up To Six Top-Tier Menu Options And Custom Function Settings Can Be Registered |
Usb Terminal | For Personal Computer Communication And Direct Printing (USB 2.0 Hi-Speed) |
Video Out Terminal | (1) AV Stereo OUT Terminal: NTSC/PAL Selectable (2) Mini-HDMI OUT Terminal (Type C) |
Battery | One Battery Pack LP-E6 - With The AC Adapter Kit ACK-E6, AC Power Is Possible. - With Battery Grip BG-E13, Two Battery Packs (LP-E6) Can Be Used. Or Six AA-Sized/LR6 Batteries Can Be Used |
|||||||||||||||||||||||||||||||||||||||||||||
Battery Life | 1) Camera Body Only:
2) With Battery Grip BG-E13:
|
|||||||||||||||||||||||||||||||||||||||||||||
Battery Check | Automatic Battery Level Check When Power Is Turned ON Battery Level Indicated In Six Levels.*1,2,3 *1 Battery Level Displayed On LCD Panel And In Viewfinder. *2 Battery Information Can Be Checked With The [Battery Info.] Menu. *3 If Battery Grip BG-E13 Is Used With Size-AA/LR6 Batteries, The Battery Level Is Displayed In Four Levels Instead. |
|||||||||||||||||||||||||||||||||||||||||||||
Power Saving | Power Turns Off After The Set Time Of Non-Operation Elapses * [Auto Power Off] Settable To 1 Min., 2 Min., 4 Min., 8 Min., 15 Min., 30 Min., Or Disable |
|||||||||||||||||||||||||||||||||||||||||||||
Date Time Battery | Built-In Secondary Battery When Battery Is Fully Charged, The Date/Time Can Be Maintained For 3 Months. Requires About 8 Hours To Fully Recharge The Backup Battery. |
|||||||||||||||||||||||||||||||||||||||||||||
Start Up Time | Approx. 0.1 Sec. (Based On CIPA Testing Standards) |
Dimensions W X H X D | Approx. 5.7 X 4.4 X 2.8 In./ 144.5 X 110.5 X 71.2mm |
Weight | Approx. 26.7 Oz. / 755g (CIPA Standard) Approx. 24.0 Oz. / 680g (Body Only) |
Operating Temperature Range | 32-104°F/0-40°C |
Operating Humidity Range | 85% Or Less |
* Compatible with iOS version 8.4/9.3/10.2 or later and Android devices version 4.1/4.2/4.3/4.4/5.0/5.1/6.0/7.0/7.1 or later. Data charges may apply.
** This software enables you to upload images to social network services (Upload feature not available in all countries). Before uploading images, please be aware that image files may contain privacy related information such as people and places. If necessary, please delete such information. Canon does not obtain, collect or use such images or any information included in such images through this software.
^ DPS over IP certified printer is required.
## In certain countries and regions, the use of GPS may be restricted. Therefore be sure to use GPS in accordance with the laws and regulations of your country or region. Be particularly careful when traveling outside your home country. As a signal is received from GPS satellites, take sufficient measures when using in locations where the use of electronics is regulated.

Dioptric Adjustment Lens E (+1)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.

Dioptric Adjustment Lens E (+2)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.

Dioptric Adjustment Lens E (-3)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.

Dioptric Adjustment Lens E (-4)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera. Requires Rubber Frame Ef, Eb or Ec.

Dioptric Adjustment Lens E (+1.5)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.

Dioptric Adjustment Lens E (0)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.

Dioptric Adjustment Lens E (+0.5)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.

Dioptric Adjustment Lens E (-2)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.

Remote Control RC-6
Remote Control for EOS cameras.

Wireless Controller for EOS LC-5
Extended range wireless controller system.

Timer Remote Controller TC-80N3
Remote switch for EOS cameras with the N3-type socket. This remote switch has a self-timer, interval timer, long exposure timer and exposure-count setting feature. The timer can be set from 1 second to 99 hours. A new dial enables you to easily enter the numeric settings with a single thumb. It has an illuminated LCD panel and a 2.6ft/80cm cord.

Remote Switch RS-80N3
Remote switch for EOS cameras with the N3-type socket to prevent camera shake for super telephoto shots, macro photography shots and bulb exposures. The Remote Switch works just like a shutter button, enabling halfway or complete pressing. It has a shutter-release lock and a 2.6ft/80cm cord.

Protecting Cloth PC-E1
The Protecting Cloth is for the purpose of protecting equipment such as a camera and lens from dirt and scratches, etc., but it cannot protect equipment from shocks or pressure.

Deluxe Gadget Bag 10EG
This gadget bag is an excellent value, with all the quality material of the Professional 1, at a slightly smaller size. It is designed to hold two 35mm SLR bodies, 5 - 8 lenses, plus film and accessories. It features full padding and interior partitions, leather reinforcing, high strength quick-release buckles, padded exterior pockets, leather snap handle and shoulder strap. Size: 10.5" (W) x 8"(H) x 7.5" (D)

Digital Gadget Bag 100DG
Designed especially for digital SLRs. Can hold your cameras, lenses, accessories and even a laptop computer. Durable, water-repellent nylon exterior. Padded interior dividers and easy-access storage pockets.

Professional Gadget Bag 1EG
Large gadget bag for the traveling professional. Size: 14.2" (W) x 8.7"(H) x 8.3"(D). This bag is designed to hold two 35mm SLR camera bodies, seven to ten lenses, flash, film, accessories, etc. It features full padding and interior dividers for cameras and lenses, as well as padded outside pockets.Features adjustable tripod straps, and high strength buckles for the main compartment. The Canon logo is embroidered on the top flap.

Gadget Bag 2400
Fits DSLR and Standard Lens Kit. Made from Cordura Nylon. Large Zippered Front Accessory Pocket. Zippered Mesh Pocket Inside Top Lid. Two Side Accessory Zippered Pockets. Tripod Loops on Bottom. Five Movable, Padded Internal Dividers. Two Strap Handles with Grip. Removable Shoulder Strap. Rubber Feet for Ground Protection.

Deluxe Gadget Bag 100EG
Waterproof bag holds 1-2 cameras and 3-4 lenses with room for accessories. Front and Rear zippered pouchs. Zippered full-length mesh pouch inside top cover. Divider system for secure storage and easy access. Size: 9" (W) x 7" (H) x 5.5" (D)

Digital Gadget Bag 200DG
Size 10.5"(W) x 7.5"(H) x 7"(D)

Deluxe Back Pack 200EG
Backpack with carry handle and detachable strap. Holds 1-2 Cameras bodies, 3-4 lenses and accessories. Inside measurements (W x H x D): 10 x 14.75 x 5 inches. Rugged nylon, water-repellent, urethane coated for extra durability. Well-arranged divider system for secure storage and easy access. Lightweight construction, padded shoulder straps and back for comfort. Front webbing ideal for storing a light jacket. Tripod carrying straps. Color: Black with Olive.

Angle Finder C (incl. Adapter Ec-C, Ed-C)
Angle Finder C lets you adjust the viewing angle while providing a 2.5x magnification for critical focusing with a full screen image that also shows exposure data.

Car Battery Charger CBC-E6
Car battery charger for Canon EOS Digital SLR LP-E6 battery.

DC Coupler DR-E6
When shooting indoors, in a studio or on a tabletop, use this DC coupler to provide uninterrupted power to your Canon Digital SLR.

Battery Charger LC-E6
Battery Charger for NP-E6 Li-ion Batteries.

Battery Grip BG-E13
This large capacity battery grip is powered by two Battery Pack LP-E6 (one pack or two), six AA-size/LR6 batteries or an optional AC Adapter Kit ACK-E6. It features a variety of operating controls such as shutter button, Main Dial, AF point selection button, AE lock/FE lock button, AF start button, multi-controller, and multi-function button. This is ideal for high volume and easy vertical shooting.

Battery Pack LP-E6N
Rechargeable lithium-ion battery. Compatible with Canon LC-E6 and Canon LC-E6E battery chargers.

Eyecup Eb

Focusing Screen EGAII
The Eg-A II is the standard focusing screen for the EOS 6D camera. It provides a clear and bright viewfinder for easy focusing.
- Windows Server 2025
- macOS 14
- macOS 13
- Windows 11
- macOS 12
- Windows Server 2022
- macOS 11
- Linux MIPS
- Linux ARM
- macOS 10.15
- macOS v10.13
- macOS v10.14
- Windows Server 2019 (x64)
- macOS v10.14
- macOS v10.13
- Windows Server 2016 (x64)
- macOS Sierra v10.12
- Linux 64bit
- Linux 32bit
- OS X v10.11
- Windows 10
- Windows 10 (x64)
- OS X v10.10
- OS X v10.9
- Windows Server 2012 R2 (x64)
- Windows 8.1 (x64)
- Windows 8.1
- Windows Server 2012 (x64)
- Windows 8
- Windows 8 (x64)
- Windows 7
- Windows 7 (x64)
- Windows Vista
- Windows Vista (x64)
- Windows XP
- Windows XP (x64)
- Windows Server 2008
- Windows Server 2008 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2003
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003 R2 (x64)
- Windows 2000
- Windows NT
- Windows 3.1
- Windows Me
- Windows 98
- Windows 95
- Mac OS X v10.8
- Mac OS X v10.7
- Mac OS X v10.6
- Mac OS X v10.5
- Mac OS X v10.4
- Mac OS X v10.3
- Mac OS X v10.2
- Mac OS X v10.1
- Mac OS X
- Mac OS 9
- Mac OS 8
- Linux (x64)
- Linux (x32)
- Linux
Locating and installing your download Locating and installing your download ES Locating and installing your download PT
How to identify your OS version
To help determine which Windows operating system is running on your computer, please view the below steps:
Windows 11
Click on the Windows button (located left to the Search at the bottom).
Click on the Settings button to navigate to the system settings.
Scroll to the bottom of the page and click on the About button.
You will be able to find your Windows operating system under the Windows Specifications section.
Windows® 10
Click Start or click the Windows button (usually found in the lower-left corner of your screen).
Click Settings.
Click About (which is usually located within the lower left of the screen). The next screen should display the Windows version.
Windows 8 or Windows 8.1
Option1: Swipe in from the upper-right corner of the screen while viewing the desktop in order to open the menu, then select Settings.
Select PC Info. Under Windows edition, the Windows version is shown.
Option 2: From the Start Screen
While on the Start screen, type computer.
Right-click on the computer icon. If using touch, press and hold on the computer icon.
Click or tap Properties. Under Windows edition, the Windows version is shown.
Windows 7
Click Start or click the Windows button (usually found in the lower-left corner of your screen).
Right-click Computer and select Properties from the menu. The resulting screen should now display the Windows version.
Linux
To check the version of your Linux operating system (OS), you can use the following commands in your terminal:
1. uname -r: Displays your Linux kernel version.
2. cat /etc/os-release: Displays your distribution name and version.
3. lsb_release -a: Displays specific details about your Linux distribution and version.
4. You can also use the hostnamectl command to display the Linux kernel version. However, this command is only available on Linux distributions that use systemd by default.
To help determine which Mac operating system is running on your computer, select the Apple menu in the upper-left corner of your screen and choose About This Mac.
Upon selecting, you should see the macOS name followed by the version number.
Canon U.S.A Inc. All Rights Reserved. Reproduction in whole or part without permission is prohibited.
