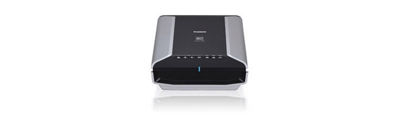

CanoScan 5600F
- CanoScan 5600F
- Power Cord
- USB Cable
- Film Guide:
35mm film strip/mounted slides - Documentation kit:
Setup Software & User's Guide CD-ROM
Quick Start Guide
Contact information Sheet
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
RESOURCES
-
SUPPORT
-
MISCELLANEOUS
- Optical resolution is a measure of maximum hardware sampling, based on ISO 14473 standard.
- Color document scan speed is measured with ISO/IEC 24712 Newsletter. Scan speed indicates the time measured between pressing the scan button of the scanner driver and when the on-screen status display turns off. Scan speed may vary depending on system configuration, interface, software, scan mode settings and document size, etc.
- The time required for the light source to reach sufficient operating temperature. Film scanning excluded.
- Specifications are subject to change without notice.
- System requirements vary by application.
Scanner Type | Flatbed Color Image Scanner |
Scanning Element | Charge-Coupled Device (CCD) 6-Line Color |
Light Source | White LED (Reflectives), Cold Cathode Fluorescent Lamp (CCFL) Film |
Features | White LED, Zero Warm-Up Time, Automatic Document Recognition, 7 EZ Buttons, Auto Dust & Scratch Reduction, Backlit Film Scan, Fading/Grain/Backlight Correction, Auto Scan Mode, Convenient Filing Function (PDF Function), PDF Password, Gutter Shadow Correction, High-Speed Scanning |
Scanner Buttons | 7 Buttons PDFx4, COPY, SCAN, PHOTO/FILM, E-MAIL |
Max Resolution Choice | Optical |
Max Resolution Text | 4800 Dpi X 9600 Dpi2 |
Max Resolution Choice | Interpolated |
Max Resolution Text | 19,200 Dpi X 19,200 Dpi |
Scanning Speed | Scanning Speed*3 Color Color/A4/300dpi: Approx. 11 Sec. Scanning Speed*4 Grayscale, B&W 14.6msec/Line (4800 Dpi) 14.6msec/Line (2400 Dpi) 9.7msec/Line (1200 Dpi) 3.7msec/Line (600 Dpi) 1.8msec/Line (300 Dpi) Color" 14.6msec/Line (4800 Dpi) 14.6msec/Line (2400 Dpi) 9.7msec/Line (1200 Dpi) 3.7msec/Line (600 Dpi) 1.8msec/Line (300 Dpi) Scanning Speed*4 (Film)" Color, Grayscale, B&W 1.8 ~ 58.4 Msec/Line |
Scanning Mode | Color: 48-Bit Internal Input (16 Bits For Each Color) 48 Or 24-Bit External Output(16 Bits Or 8 Bits For Each Color) Grayscale: 48 Bits Internal Input (16 Bits For Each Color) 16 Bits (Film Scanning Only) Or 8 Bits External Output |
Max Document Size | A4/Letter: 216 X 297 Mm (8.5 X 11.7 In.) |
Max Film Size | Film Type/No. Of Frames 35 Mm Strip (Negative/Positive)/6 Frames, Slide (Negative/Positive)/4 Frames |
Interface | USB 2.0 Hi-Speed |
Dimensions W X D X H | 271mm(W) X 492mm (D) X 96mm (H) (10.7" (W) X 19.4" (D) X 3.8" (H)) |
Weight | Approx. 4.3 Kg (9.5 Lbs.). |
Os Compatibility | Windows Vista®, Windows XP/2000 And Mac OS® X V.10.3.9- 10.5.X5 |
Software | Setup Software And User's Guide CD-ROM, MP Navigator EX,Solution Menu, ArcSoft® PhotoStudio® |
Power Source | AC Adapter |
Max Power Consumption | In Operation: 19 Watts Maximum, Stand-By: 3.2 Watts) |
Operating Temperature | 10°C- 35°C (50°F - 95°F) |
Operating Humidity | 10% To 90% RH (20% To 80% RH For Film Scanning), Without Condensation Formation |
- Optical resolution is a measure of maximum hardware sampling, based on ISO 14473 standard.
- Color document scan speed is measured with ISO/IEC 24712 Newsletter. Scan speed indicates the time measured between pressing the scan button of the scanner driver and when the on-screen status display turns off. Scan speed may vary depending on system configuration, interface, software, scan mode settings and document size, etc.
- The time required for the light source to reach sufficient operating temperature. Film scanning excluded.
- Specifications are subject to change without notice.
- System requirements vary by application.
